Products Overview
Intruducing

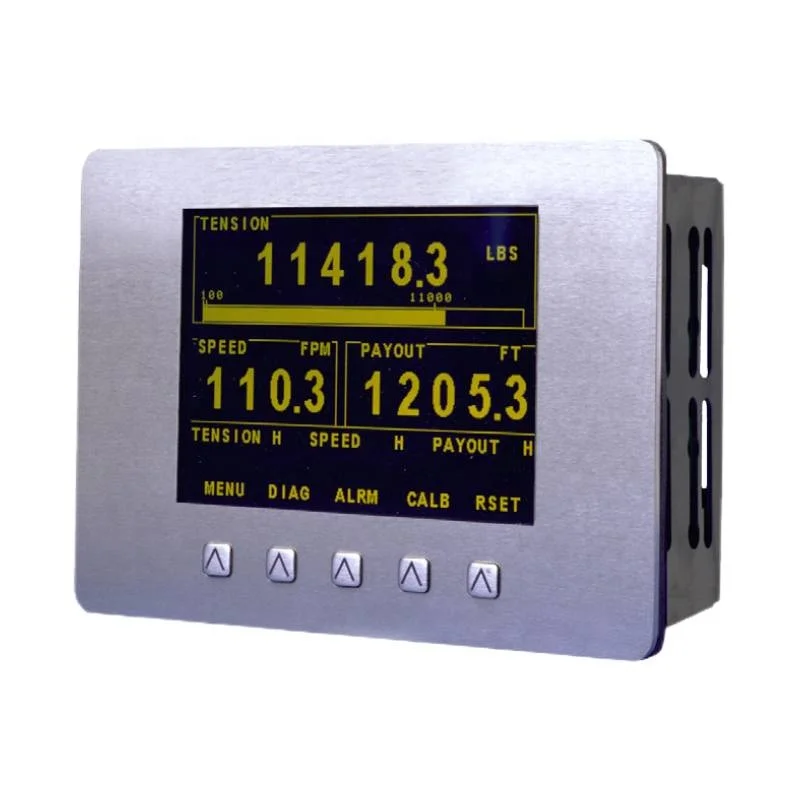

Multifunction Display Features
* Five fully sealed push buttons within a heavyduty 316 stainless-steel front panel
* Easy-to-follow English language menu for sensor calibration, input/output (I/O) channel configuration, alarm settings, network settings, and screen layout
* Bright 320 x 240 electroluminescent display
* 160° readability in all light conditions
* Four strain gauge input channels (20 mV or 100 mV) and four analog output channels
* Serial networking capabilities; USB and Ethernet ports
* Internal CompactFlash diskz
* Accepts inputs from a range of tension and payout sensors
* Thin-film transistor
* Easy-to-follow English language menu for sensor calibration, input/output (I/O) channel configuration, alarm settings, network settings, and screen layout
* Bright 320 x 240 electroluminescent display
* 160° readability in all light conditions
* Four strain gauge input channels (20 mV or 100 mV) and four analog output channels
* Serial networking capabilities; USB and Ethernet ports
* Internal CompactFlash diskz
* Accepts inputs from a range of tension and payout sensors
* Waterproof front panel (with available watertight mount and enclosure)
* Certified in Class I, Division 2, Groups A, B, C, and D hazardous locations * Thin-film transistor
Operating temperature | Temperature range is -40°C to 75°C |
Front panel construction | Stainless stee |
Panel window | Glass-coated Lexan, epoxy lamination assembly |
Pushbutton construction | Fully sealed stainless-steel push buttons |
Input voltage range | 9 to 36 VDC |
Display viewing angle | Electroluminescent, more than 160° |
Display pixel density | Electroluminescent pixel density 320 x 240 |
Input modes | Up to four analog inputs, 4 to 20 mA, 0 to 5 VDC |
Menu structure | Easy-to-use English language menus |
Units of measure | Switch units at any time, no recalibration required |
Serial ports | RS-485, RS-232, USB and Ethernet ports |
Serial protocols | Multiple serial protocols supported |
Diagnostics | One button brings up diagnostic screen |
Calibration | Calibration units are actual sensor units |
