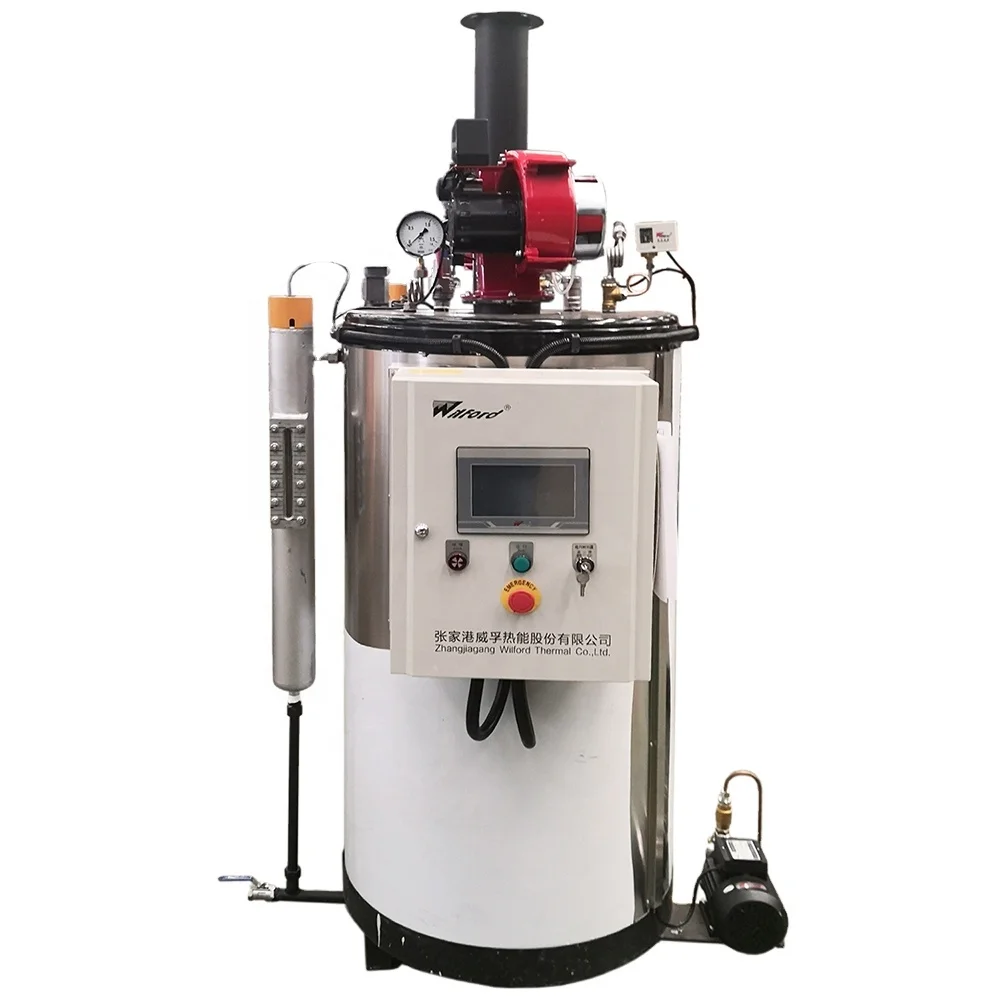

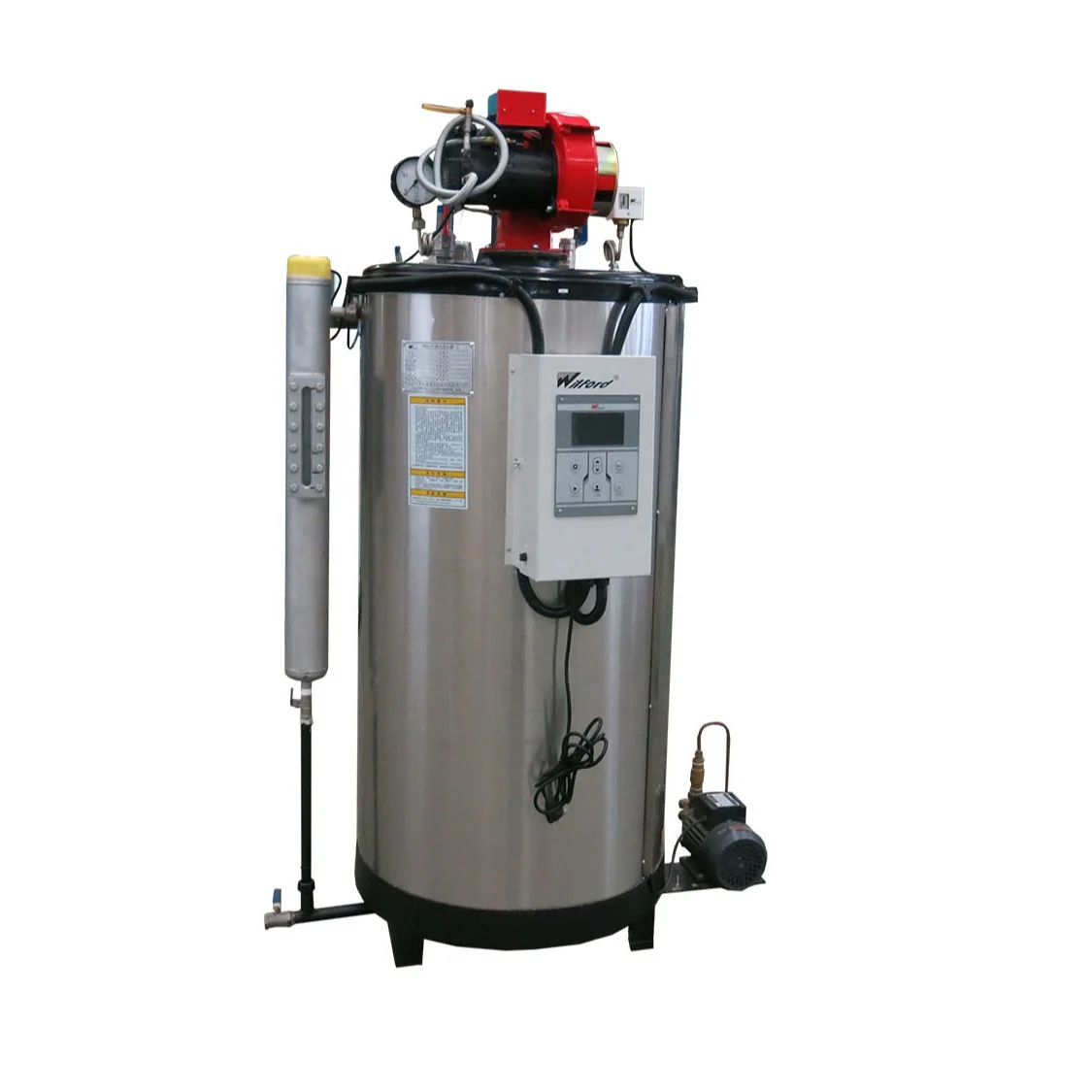

Mini LPG Fired Steam generator for industrial used
Product Description
1.Boiler water volume is small, with quick start of cold furnace,which can realize temperature and pressure rise during a short period of time.
2.Built-in multi steam and water separation technology,quality steam .
3.With multiple chain protection for water level,steam pressure,overheating ,which is safe and reliable
4.Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control, exempted of installtion and design
Technical Parameters
Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
Project | Unit | ||||||||
Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
Rated working pressure | MPa | 0.7 | |||||||
Staturated steam temperature | ℃ | 170 | |||||||
Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
Natural gas | Nm³/h | 7 | 8.75 | 15 | 19 | 22 | 36.5 | ||
LPG | 1.5 | 3 | 3.8 | 6 | 7.5 | 9 | 14.5 | ||
City gas | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | ||
Water capacity | L | 29 | 49.3 | 49.6 | 49.5 | 49.6 | |||
a Main steam valve diameter | DN | 15 | 25 | 32 | 50 | ||||
b Safety valve diameter | 20 | 25 | 40 | ||||||
c Inlet diamater | 15 | ||||||||
d Blowoff Valve diameter | 20 | 25 | |||||||
Chimney diameter | 80 | 125 | 125 | 150 | 250 | ||||
Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1800 | |
W | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | ||
H | 1600 | 1800 | 1900 | 2200 | 2350 | ||||
φDiameter | 600 | 650 | |||||||
Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 |
