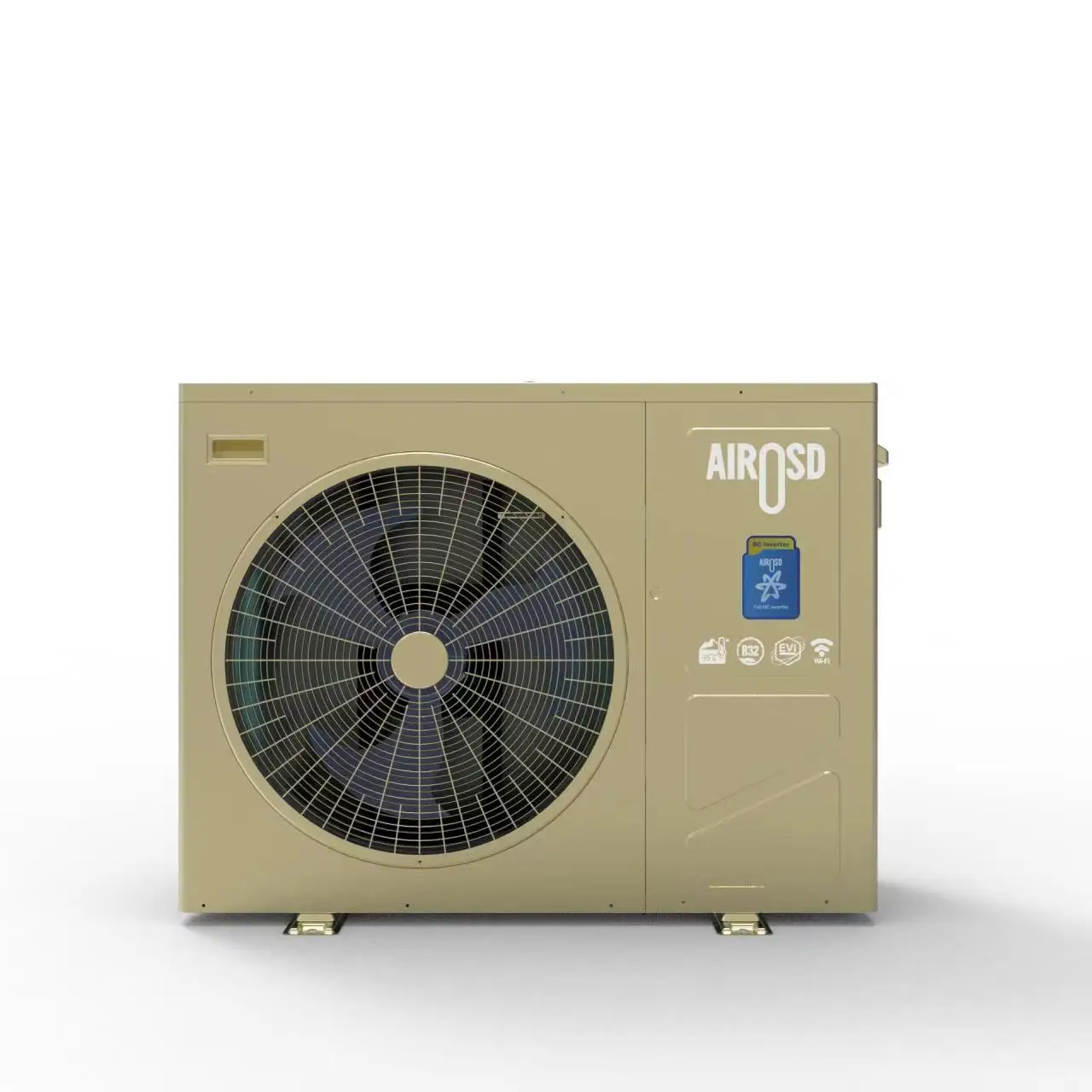

A +++ CE R32 воздушный тепловой насос 3 в 1 нагревательный охлаждающий DHW
- Категория: Heat Pump Water Heaters >>>
- Поставщик: Foshan,Airosd,Thermal,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1428.98 $* | 1499.65 $* |
| Aug-15-2025 | 1416.24 $* | 1487.80 $* |
| Jul-15-2025 | 1188.63 $* | 1247.91 $* |
| Jun-15-2025 | 1392.60 $* | 1462.86 $* |
| May-15-2025 | 1212.53 $* | 1273.29 $* |
| Apr-15-2025 | 1368.86 $* | 1436.2 $* |
| Mar-15-2025 | 1356.98 $* | 1424.58 $* |
| Feb-15-2025 | 1344.73 $* | 1411.20 $* |
| Jan-15-2025 | 1332.60 $* | 1399.2 $* |
Характеристики
Compact and small heat pump
Household heating and cooling and domestic hot water 9KW
Full DC inverter monobloc heat pump
ECO- friendly R32 refrigerant
Main Feature
1) Panasonic EVI compressor
2) Working ambient temperature down to -35℃
3) Automatic defrosting function
4) In-built plate heat exchange,flow switch
5) In-built auxiliary heat source signal
6) Controller with WIFI to realize APP remote setting
7) Convenient for installation and maintenance
8) Heating cooling water heater 3 in 1
| Full DC EVI Inverter Heating & Cooling & DHW 3 in 1 Heat Pump | |||
| Modle | QBKFXFC-009SRI | ||
| Photo |  | ||
| Heating capacity range | kW | 3.5~10.0 | |
| DHW heating capacity | Heating capacity | kW | 10 |
| Water yield | L/H | 215 | |
| Input power | kW | 2.31 | |
| COP | / | 4.32 | |
| Operating current | A | 10.4 | |
| Heating capacity A7w35 | Heating capacity | kW | 9 |
| Input power | kW | 2.02 | |
| COP | / | 4.46 | |
| Operating current | A | 9.0 | |
| Heating capacity A7w45 | Heating capacity | kW | 9 |
| Input power | kW | 2.61 | |
| COP | / | 3.45 | |
| Operating current | A | 11.7 | |
| cooling capacity A35W7 | Cooling capacity | kW | 6.5 |
| Input power | kW | 2.28 | |
| EER | / | 2.85 | |
| Operating current | A | 10.2 | |
| Heating capacity /COP | A7W55 | / | 9.1/2.91 |
| A-7W35 | / | 7.2/3.16 | |
| A-7W45 | / | 7.3/2.65 | |
| A-7W55 | / | 7.3/2.20 | |
| A-15W35 | / | 5.7/2.67 | |
| A-15W45 | / | 5.8/2.21 | |
| A-15W55 | / | 6.0/1.82 | |
| ERP(35℃) | / | A+++ | |
| ERP(55℃) | / | A++ | |
| Operating current | A | 20 | |
| Maximum input power | kW | 4.8 | |
| Power supply | V/Hz | 220-240V~ /50Hz | |
| Ambient temp. range | ℃ | -35~45 | |
| Refrigerant type | -- | R32 | |
| Compressor | Type | / | DC inverter twin rotary |
| Brand | / | Panasonic | |
| Water side heat exchanger | / | Plate heat exchanger | |
| Brand of water side heat exchanger | / | Feng Huang | |
| Temperature range of heating water outlet | ℃ | 25~58 | |
| Temperature range of cooling water outlet | ℃ | 5~25 | |
| Temperature range of domestic hot water | ℃ | 40~55 | |
| Water port size | / | G1.0 Internal thead(DN25) | |
| Water yield | m³/h | 1.72 | |
| Water side pressure loss | kPa | 25 | |
| Expansion tank capacity | L | / | |
| Noise | dB(A) | ≤55 | |
| Unit dimension (W×D×H) | mm | 1075*480*805 | |
| Packing dimension (W×D×H) | mm | 1165*530*925 | |
| N.W. | kg | 80 | |
| G.W. | kg | 90 | |
| Remarks: 1. Heating capacity conditions : (DB/WB) =20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C. 2. Heating A7W35 condition:(DB/WB)= 7°C/ 6°C, inlet water temperature 30°C, outlet water temperature 35°C; 3. Heating A7W45condition:(DB/WB)= 7°C/ 6°C, inlet water temperature 40°C, outlet water temperature 45°C; 4. Rated cooling condition: (DB/WB)=35°C, inlet water temperature 12°C, outlet water temperature 7°C; Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. | |||
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are a manufacturer of R&D and production heat pumps which is located in Foshan city, Guangdong province of china.
We can provide different kinds of heat pumps as you need, such as EVI inverter heat pump, DC inverter heat pump and swimming pool heat pump ect.. We also can provide OEM/ODM services.
Q: How long is the product lifespan?
A: In general, with proper maintenance, its lifespan can last up to more than 15 years.
Q: If the temperature drops below zero, will the air source heat pump still work?
A: Yes, AIROSD Air Source heat pumps with EVI technology can operate high efficiently when the temperature downs to -30°C.
Q: What is the benefits of air source heat pumps?
A: One Bill : Air source heat pump runs on electricity, so there's no need to pay for gas, oil or solid fuels to heat your house. You eliminate the standing charge for mains gas supply, delivery charge for oil and solid fuel, etc.
Save space : Air source heat pump system is compact, and requires no storage space for fuel.
Energy Saving : Air source heat pump can make energy saving up to 75% than traditional electrical water heater.
