Байм храповое колесо зачистки кабеля для нож PG-5 круглый кабель шкуры инструмент провода Регулируемый
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Yueqing,Baym,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 12.48 $* | 13.85 $* |
| Aug-17-2025 | 12.24 $* | 13.85 $* |
| Jul-17-2025 | 10.12 $* | 11.37 $* |
| Jun-17-2025 | 12.12 $* | 13.9 $* |
| May-17-2025 | 10.30 $* | 11.2 $* |
| Apr-17-2025 | 11.12 $* | 12.34 $* |
| Mar-17-2025 | 11.89 $* | 12.11 $* |
| Feb-17-2025 | 11.63 $* | 12.77 $* |
| Jan-17-2025 | 11.30 $* | 12.44 $* |
Характеристики
* For more than 25mm,1.0 lnch diameter circle cable skinning
* Various insulation layer can be stripped completely

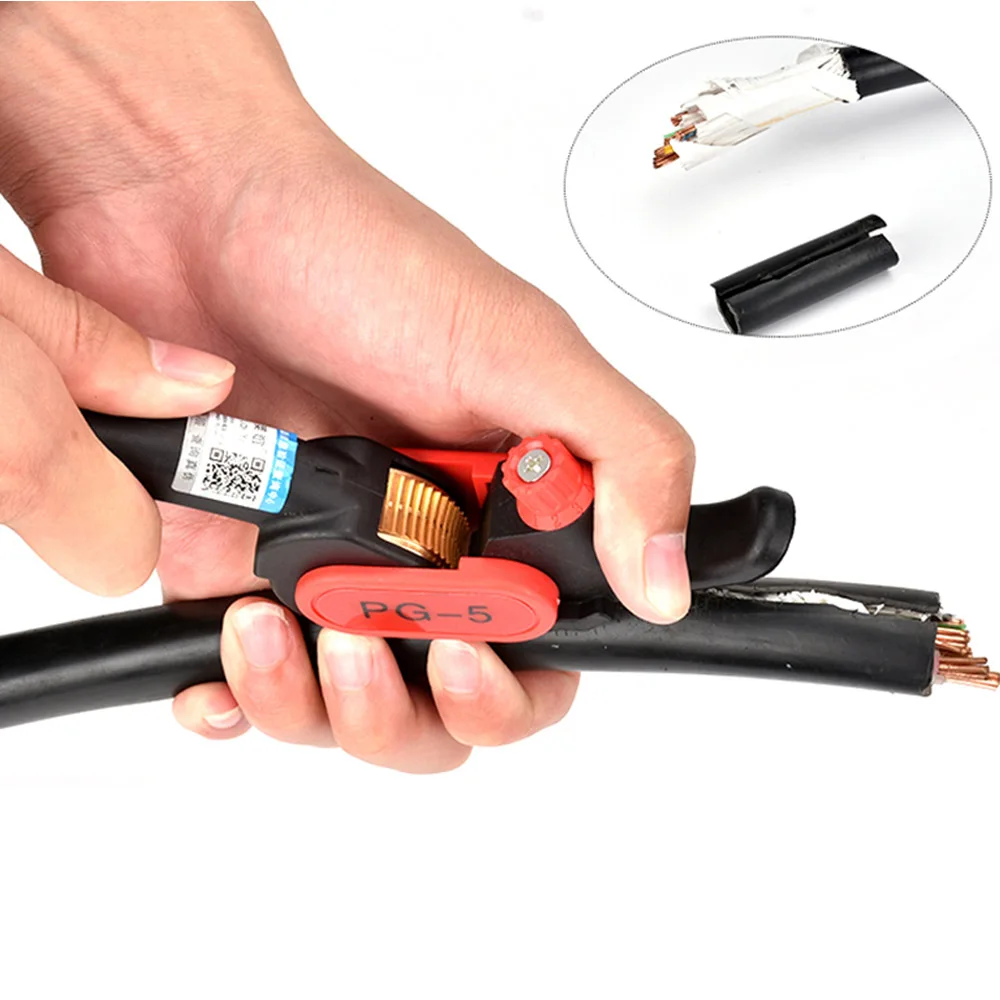

* Suitable for vertical cutting and cutting around

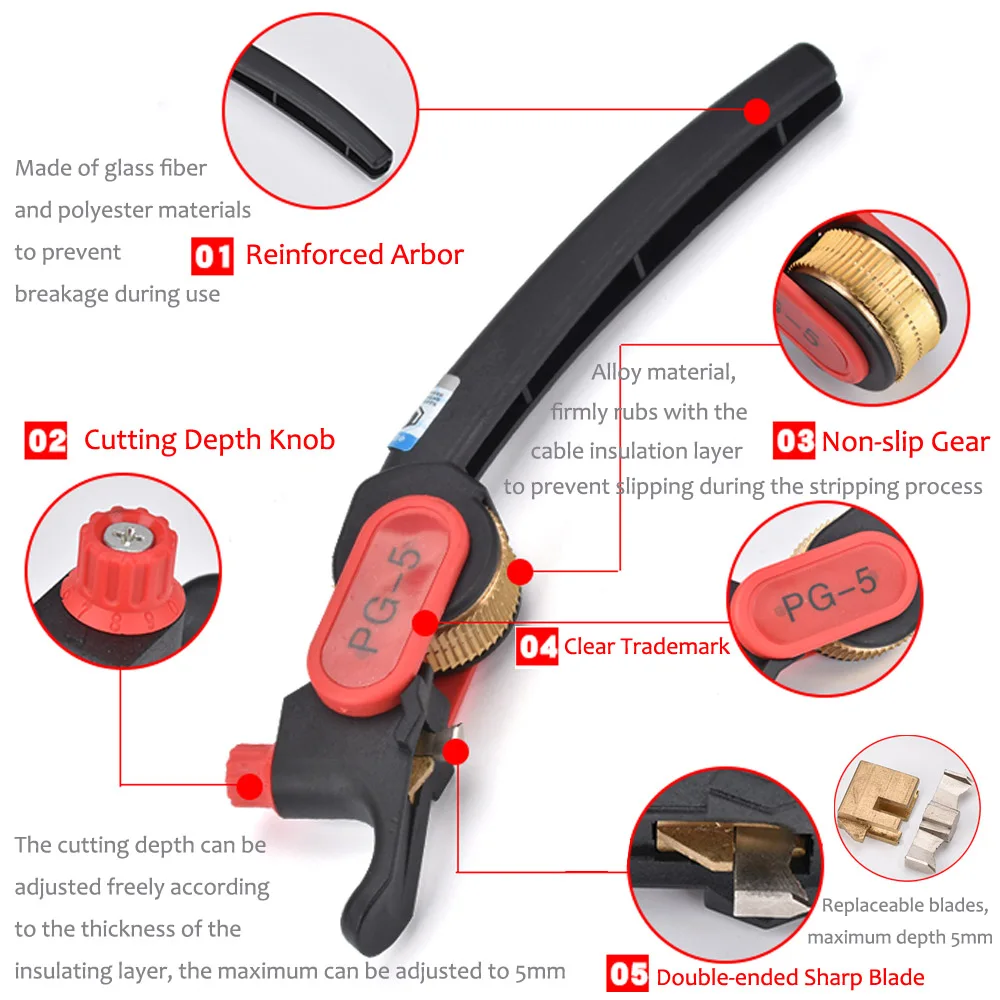

* Most adjustable cutting depth to 5mm,replaceable blade(both sides can be used)
* Cutter arbor used glass fiber reinforce with material made of pplyester
* Various insulation layer can be stripped completely
* Suitable for vertical cutting and cutting around
* Most adjustable cutting depth to 5mm,replaceable blade(both sides can be used)
* Cutter arbor used glass fiber reinforce with material made of pplyester
Features:

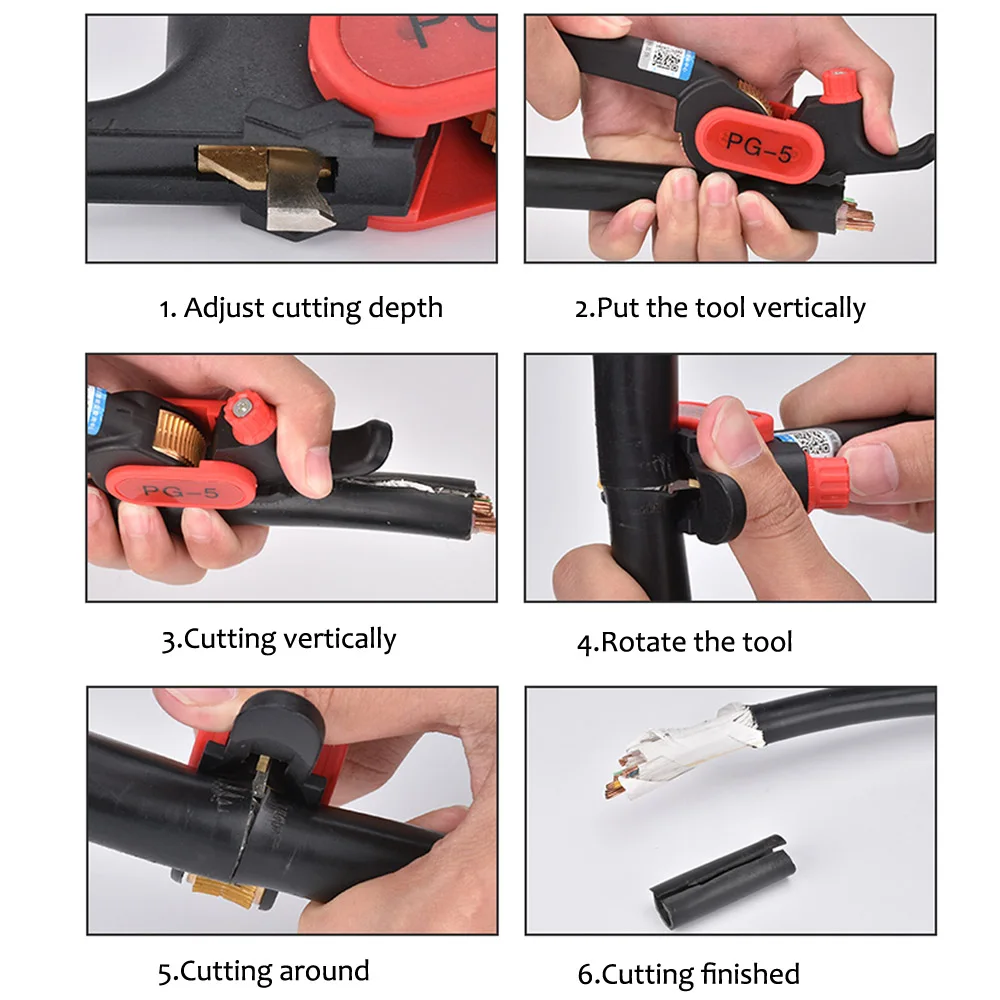

To begin cutting in either direction, the blade is pressed and guided by operator's thumb.
The cutting of the outer insulation is achieved by means of small movements and pressure on gear towards the insulation at the same time.
The blade can be turned between length and diameter cutting at any time.
In order to remove the joint of the insulation the blade must be pressed into the insulation.
Changing the blade: By removing the adjusting screw the double-ended blade can be changed
1. PG-5 Cable Stripper for Stripping 25mm Comm/PVC/LV/MV Cables, for longitudinal and circular cutting Operation Method.
2. For removing all layers of insulation on cables with diameters of over 25mm , applicable for communication cable, MV cable(PVC constructed), LV cable(PVC insulation), MV cable(PVC insulation). By using the adjusting screw, the cutting depth (0 -5mm ) can be adjusted according to the thickness of the outer insulation.
2. For removing all layers of insulation on cables with diameters of over 25mm , applicable for communication cable, MV cable(PVC constructed), LV cable(PVC insulation), MV cable(PVC insulation). By using the adjusting screw, the cutting depth (0 -5mm ) can be adjusted according to the thickness of the outer insulation.
To begin cutting in either direction, the blade is pressed and guided by operator's thumb.
The cutting of the outer insulation is achieved by means of small movements and pressure on gear towards the insulation at the same time.
The blade can be turned between length and diameter cutting at any time.
In order to remove the joint of the insulation the blade must be pressed into the insulation.
Changing the blade: By removing the adjusting screw the double-ended blade can be changed
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
