Аппарат для изготовления пленки с новым рисунком аппарат ротовой мембраны
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Shanghai,Aligned,Machinery,Manufacture,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 24990.22 $* | 26240.88 $* |
| Aug-18-2025 | 24780.83 $* | 26019.10 $* |
| Jul-18-2025 | 20790.25 $* | 21830.76 $* |
| Jun-18-2025 | 24360.65 $* | 25578.29 $* |
| May-18-2025 | 21210.17 $* | 22271.70 $* |
| Apr-18-2025 | 23940.34 $* | 25137.33 $* |
| Mar-18-2025 | 23730.62 $* | 24917.41 $* |
| Feb-18-2025 | 23520.29 $* | 24696.64 $* |
| Jan-18-2025 | 23310.77 $* | 24476.69 $* |
Характеристики

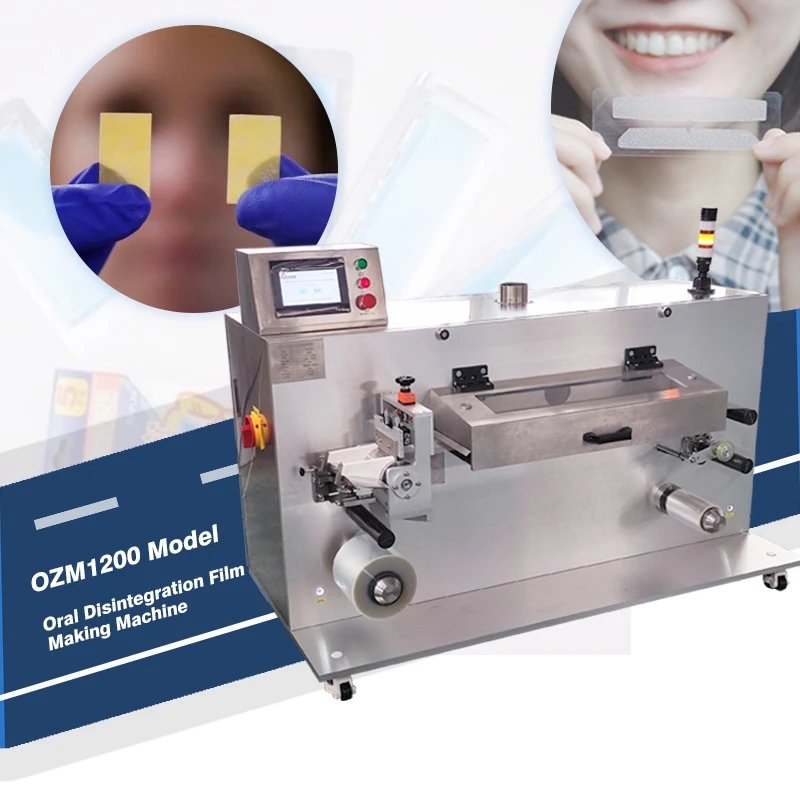

OZM120 Oral Disintegration Film Making Machine
Oral disintegration film making machine is a special equipment for evenly spreading liquid materials on the bottom film to make thin film-like materials. The film making machine is a special equipment that evenly spreads the liquid material on the bottom film to make a thinner film material, and can be equipped with functions such as lamination and slitting. Pilot-scale filmmakers can be used in the manufacture of products in the pharmaceutical, cosmetic or food industries.

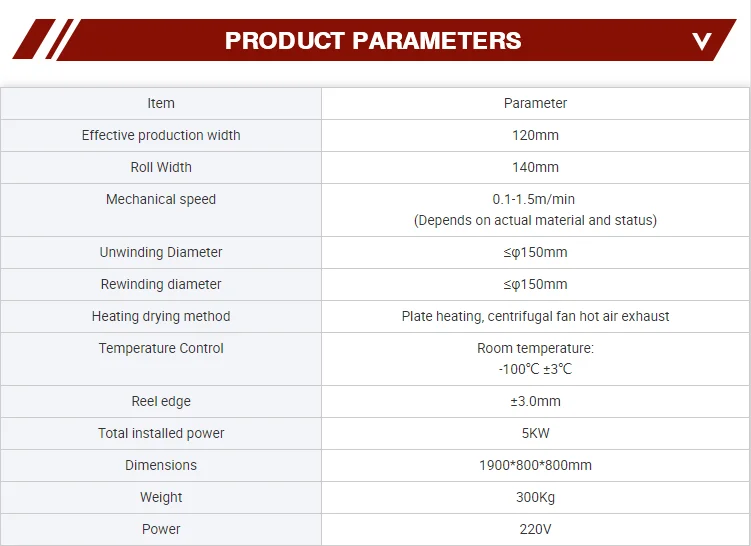

Item | Parameter |
Effective production width | 120mm |
Roll Width | 140mm |
Mechanical speed | 0.1-1.5m/min (Depends on actual material and status) |
Unwinding Diameter | ≤φ150mm |
Rewinding diameter | ≤φ150mm |
Heating drying method | Plate heating, centrifugal fan hot air exhaust |
Temperature Control | Room temperature: -100℃ ±3℃ |
Reel edge | ±3.0mm |
Total installed power | 5KW |
Dimensions | 1900*800*800mm |
Weight | 300Kg |
Power | 220V |
The ODF Machine is specialized in making liquid materials into thin film. It can be used to make quick-dissolvable oral films,transfilms, and mouth freshener strips, having wide application range in pharmaceutical field, food industry and etc.
1. The machine adopts the structure of main body plus attachment module, each module can be disassembled and installed separately. The installation uses cylindrical pin positioning, screw fastening, easy to assemble, easy to transport and clean.
2. With automatic working length record, speed display, automatic oven temperature control and other functions to ensure efficient and high quality production.
3.All parts in contact with the material are made of stainless steel and food-grade materials, in accordance with "GMP" requirements. All electrical components, wiring and operating schemes are in accordance with "UL" safety standards.
4. The film making machine has the functions of film making and air drying. All data parameters are adjusted by PLC control panel.
2. With automatic working length record, speed display, automatic oven temperature control and other functions to ensure efficient and high quality production.
3.All parts in contact with the material are made of stainless steel and food-grade materials, in accordance with "GMP" requirements. All electrical components, wiring and operating schemes are in accordance with "UL" safety standards.
4. The film making machine has the functions of film making and air drying. All data parameters are adjusted by PLC control panel.
