Оборудование для переработки отходов оборудование разделения бытовых баллистический сепаратор
- Категория: Waste Treatment Machinery >>>
- Поставщик: Henan,Mind,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14875.27 $* | 15619.39 $* |
| Aug-18-2025 | 14750.79 $* | 15488.35 $* |
| Jul-18-2025 | 12375.54 $* | 12994.6 $* |
| Jun-18-2025 | 14500.33 $* | 15225.65 $* |
| May-18-2025 | 12625.16 $* | 13256.95 $* |
| Apr-18-2025 | 14250.74 $* | 14963.94 $* |
| Mar-18-2025 | 14125.27 $* | 14831.64 $* |
| Feb-18-2025 | 14000.22 $* | 14700.26 $* |
| Jan-18-2025 | 13875.96 $* | 14569.52 $* |
Характеристики
Product Description
Ballistic Classifier for the Separation of Several Fractions of Packaging Waste, Household Waste, Commercial Waste and Mixed Construction Waste
The Ballistic Separator is the best choice for an effective sorting process at low cost and with high availability.
It separates the material into three fractions. The separation process is done in just one step. The movement of the paddles sets the infeed material into vibration for a vertical as well as a horizontal conveying direction. The vertical acceleration mixes the material thoroughly which leads to excellent separation and yields a high screening quality.

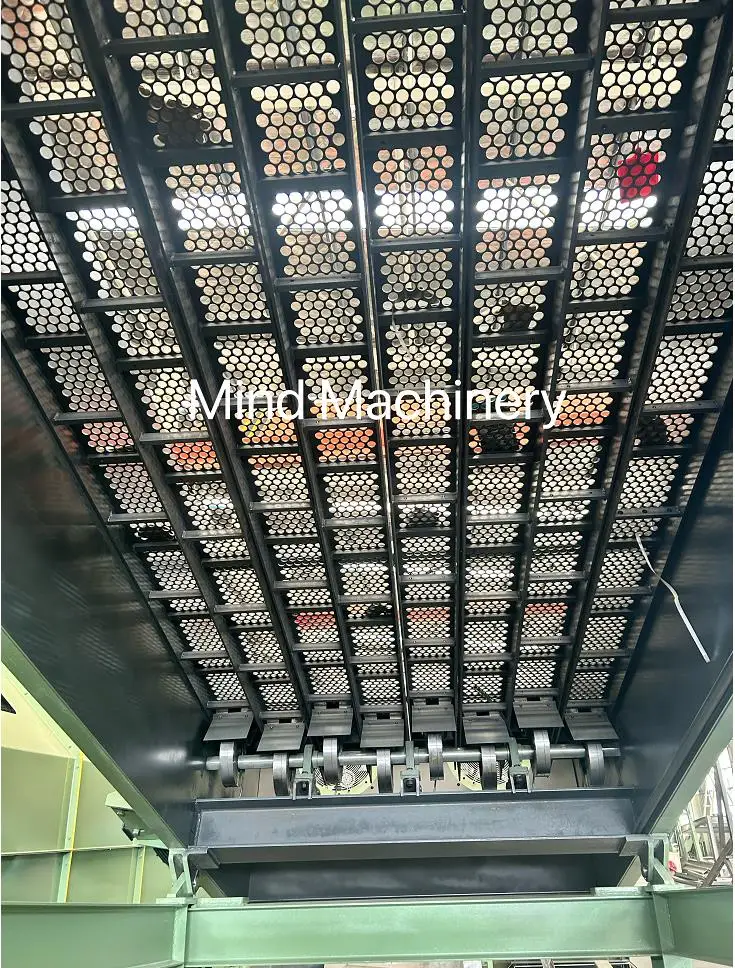

Ballistic Separator separates the material based on the climbing ability and the irregular ballistic behavior of the components. Rolling and bulky objects, stones, bottles and other hollow bodies submit to the ballistic principle and travel to the lower end of the machine (3D) where they are discharged. Lightweight and flat material, foils, textiles and paper migrate upward, subject to their individual climbing ability, to the overflow at the upper end of the machine (2D). During this process, the lightweight matter is hurled up repeatedly. By the time the matter lands on the screen, most of the fine debris clinging to it (such as moist soil or dust) will have been removed. A third fraction is achieved as a sieve fraction by the perforation of the sieve on the paddles. The size of the sieve grid can be chosen according to the material.
The conveying speed, the ballistic separation and the level of material mixing can be adjusted by modifying the rotational speed. A separation precision of up to 90% can be achieved with the MIND Ballistic Separator.
Specifications
Equipment has been updated in replacement, please consult the sales staff for specific parameters
Advantages
PIVOTING FRAME
· With manual tilt adjustment between 0° and 25° for fast adjustment
of sorting quality
EASY MAINTENANCE AND ADJUSTMENT
· Bolt-on screens
· Easy access to all areas of the machinery thanks to maintenance doors
SHAFT QUALITY
· Robust design for sorting dry waste
· Optimum rating of shaft stroke and speed – for maximum throughput
and minimum machine vibrations
MODEL VARIETY
· A choice of various machine widths and lengths for high-efficiency
sorting processes in line with the required throughputs
STACKING
· A maximum of three ballistic separators can be stacked to increase
the separation quality for different particle size fractions
ADJUSTABLE OUTER SKIN
· For flexible design of the material infeed and plant integration
