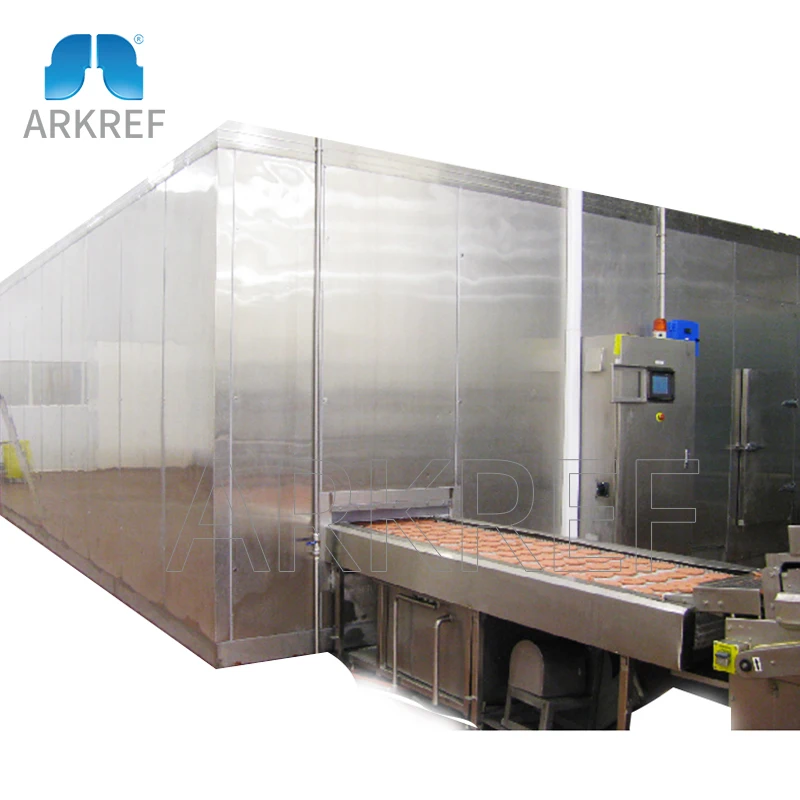

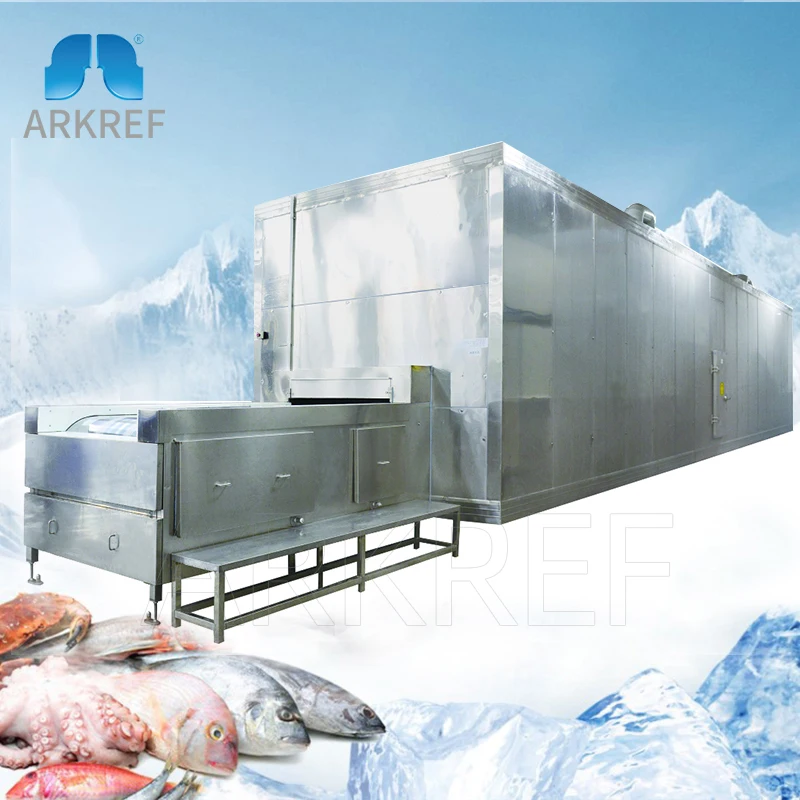

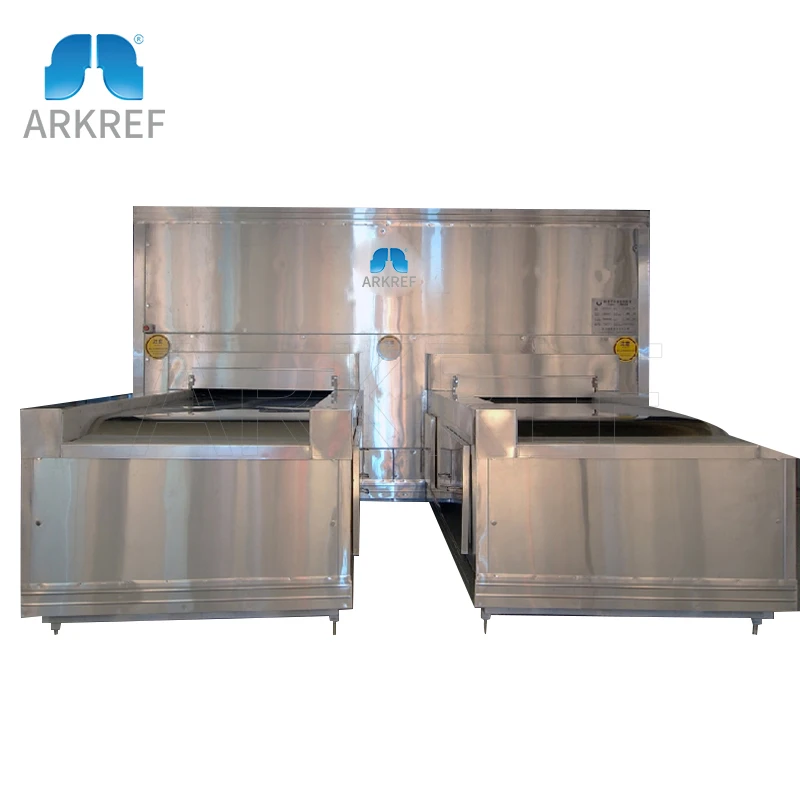

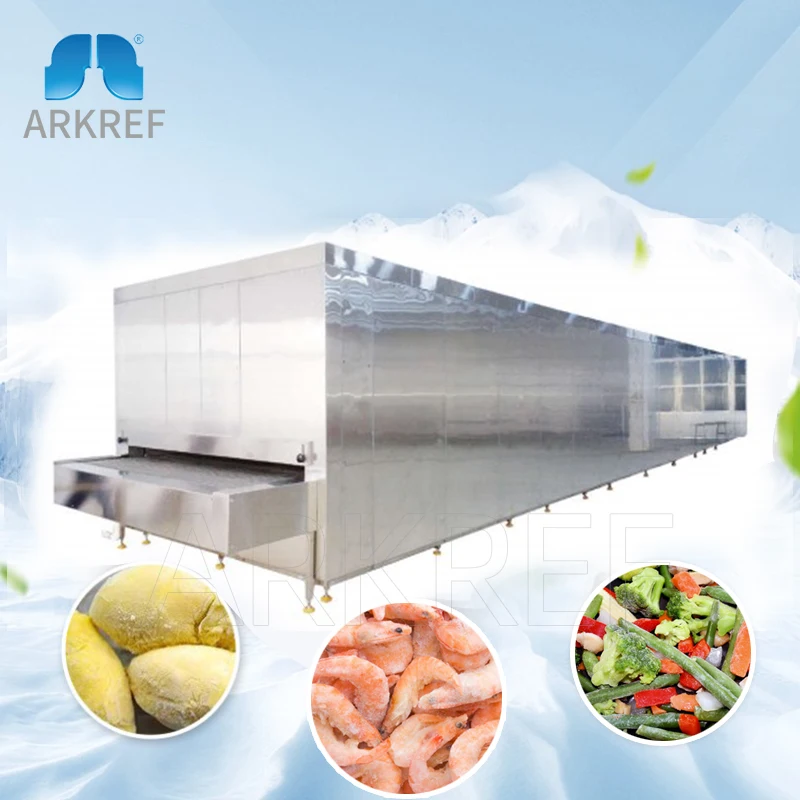

Мгновенная замораживающая машина Iqf флэш замораживание пищевых продуктов для

Мгновенная замораживающая машина Iqf флэш замораживание пищевых продуктов для

Категория: Freezing Equipment >>>
Поставщик: Shandong,Shenzhou,Refrigeration,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.27 $*	0.3 $*
Aug-19-2025	0.7 $*	0.51 $*
Jul-19-2025	0.94 $*	0.79 $*
Jun-19-2025	0.78 $*	0.94 $*
May-19-2025	0.53 $*	0.68 $*
Apr-19-2025	0.63 $*	0.69 $*
Mar-19-2025	0.69 $*	0.15 $*
Feb-19-2025	0.58 $*	0.54 $*
Jan-19-2025	0.27 $*	0.71 $*

Характеристики

Technical Data

Model	Freezing Capacity(kg)	Freezing Time(min)	Installed Power(kw)	Cooling Capacity(kw)	Size(m)	Transmission bandwidth(m)
SZ-1TF150	150	10-100 Adjustable	3.75	34	762525	1.8
SZ-1TF300	300	10-100 Adjustable	9.55	65	1152525	1.8
SZ-1TF500	500	10-100 Adjustable	19.8	99	1662525	1.8
SZ-2TF500	500	10-100 Adjustable	20.2	99	923929	2.5
SZ-1TF1000	1000	10-100 Adjustable	28.6	175	1804228	3
SZ-1TF1500	1500	10-100 Adjustable	42.6	256	2404228	3
SZ-1TF2000	2000	10-100 Adjustable	55.8	326	2964228	3

Customization Process

Need to provide the following information:

1.Types of frozen products2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing
5.The core temperature of the goods after quick freezing

Product Detalis

Perfect air distribution system

Reasonable air distribution, low-noise and high-efficiency fans ensure the rapid freezing of frozen materials.

Evaporator

Large size fins, Imported special equipment for expanded connection, tight contact，small heat resistance，high heat exchange efficiency.

Axial Fan

Reasonable air current organization and the high-efficiency axial flow fan with low noise ensure freezing of materials.

Good insulation performance

The library board adopts double-sided stainless steel structure, which has good heat preservation.

Stable and reliable transmission system

A reduction gear is installed and can realize stepless frequency conversion and speed control;with the reduction gear, the speed of conveyor belts can be flexibly adjusted to meet the requirement of different products.

Related Products

Stronger Freezing Capacity

Specifically designed for the application of quick-freezers, two-stage compression + frequency conversion speed increase +electronic expansion valve control.the lower the temperature required by the quick-freezer, the greater the advantage of its freezing capacity.

Control System

It adopts advanced dedicated quick freezing visual controller and monitor, which can memorize the relevant parameters of the machine's operation, and the button can switch the quick-freezing category, which is convenient for querying faults and providing
references for solving problems.

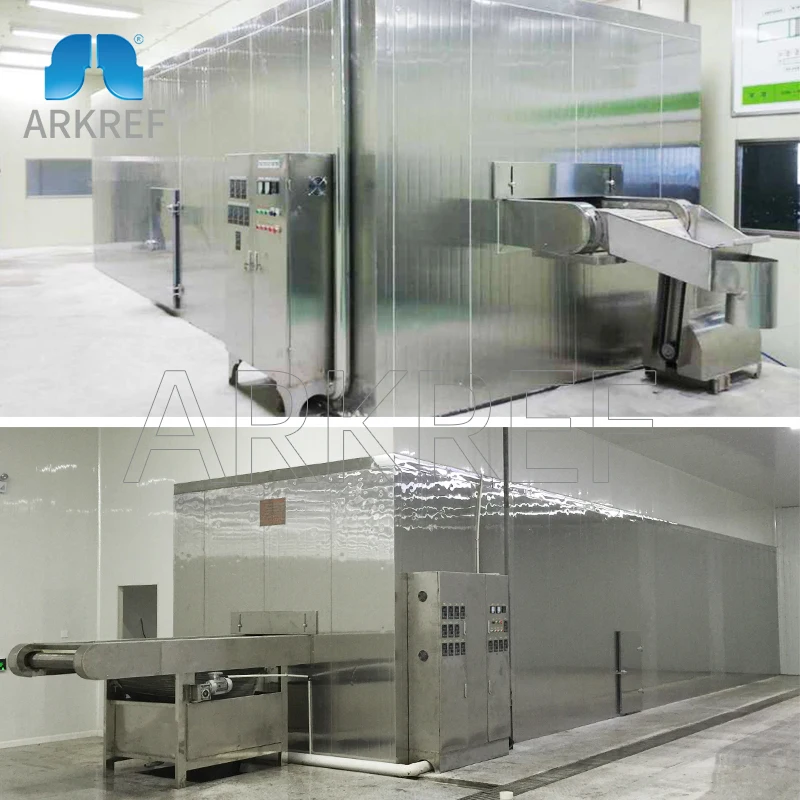

Sucessful Cases
