Полуконтактная пластина морозильная камера воздушная для замораживания морепродуктов и

Полуконтактная пластина морозильная камера воздушная для замораживания морепродуктов и

Категория: Freezing Equipment >>>
Поставщик: Changzhou,Loman,Refrigeration,Technology,Co.,Ltd.

Цена:3 766 819,67 ₽ - 6 780 335,67 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	4783860.34 $*	4879537.99 $*
Jul-15-2025	3879824.74 $*	3957420.12 $*
Jun-15-2025	4708524.26 $*	4802694.64 $*
May-15-2025	4670856.9 $*	4764273.26 $*
Apr-15-2025	3729151.90 $*	3803734.43 $*
Mar-15-2025	4595519.35 $*	4687429.24 $*
Feb-15-2025	4557851.90 $*	4649008.76 $*
Jan-15-2025	4520183.1 $*	4610587.18 $*

Характеристики

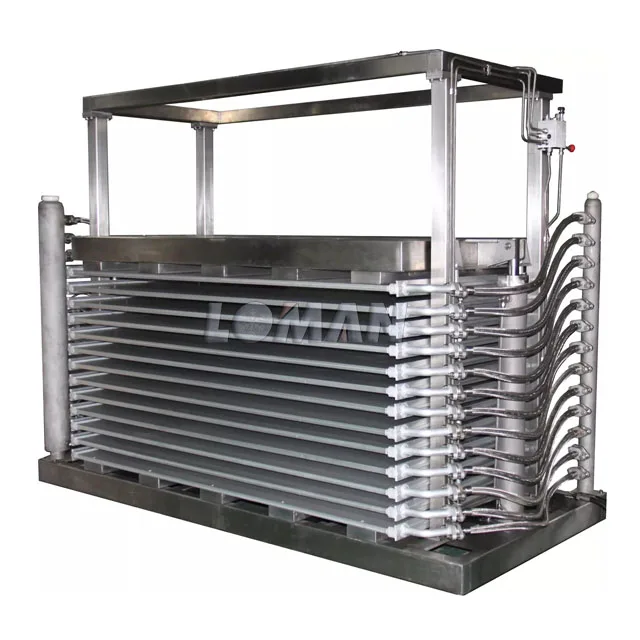

Hydraulic contact freezer is composed of Plate evaporator, Electrol Cabinet, Hydraulic Pressure device etc. The Aluminum alloy evaporator is driven by hoist cylinder to contact with frozen foods directly and keep certain pressure. The closed touch, with frozen food forms advantages of high frozen speed, high efficiency energy-saving, sanitation and c ompact. The unit is running under normal temperature to ensure long-ter m life. Adopt contact-type heat conducting, no air flow, which is benefit to decrease foods weight loss.

Refrigeration system can be equipped as per defferent requirments of users.

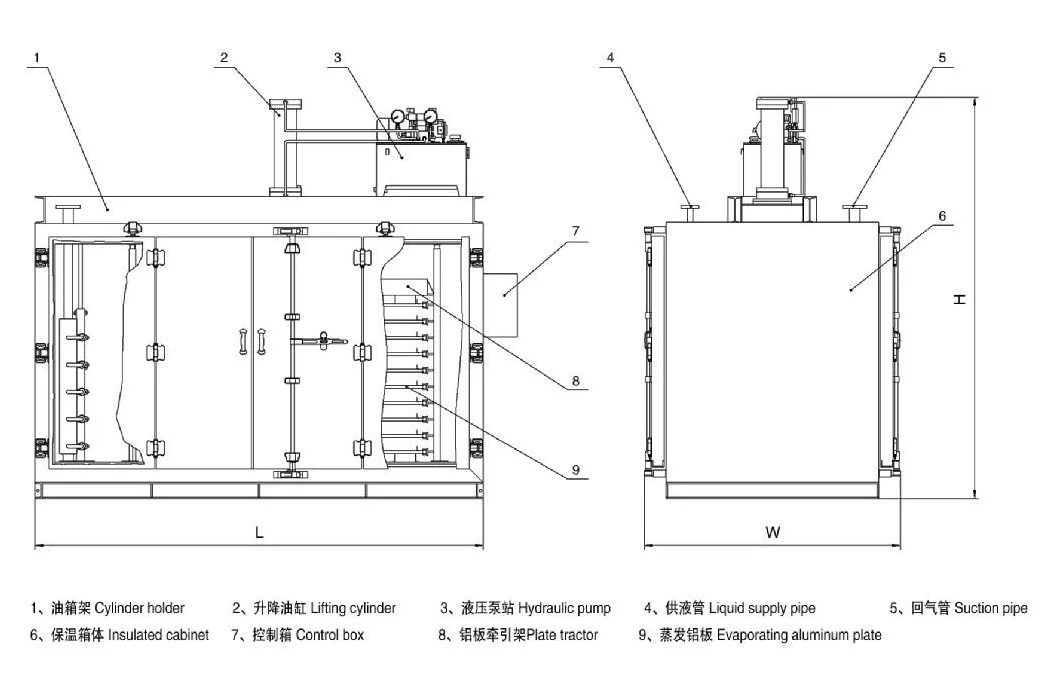

Structure drawing

1.Cylinder holder

2. Lifting cylinder

3. Hydraulic pump

4. Liquid supply pipe

5. Suction pipe

6. Insulated cabinet

7. Control box

8. Plate tractor

9. Evaporating aluminum plate

Specification

Freezing capacity (kg/batch)	Size of plate (mm)	Tier pitch (mm)	Refrigerant	Refrigeration capacity (kw)	Overall Dimention (mm)
420	1250x1260	55-100	R717/R22/R404a	19	2300x1560x1600
900	2000x1260	55-108			37	3300x1900x2900
1000	2000x1260	55-108			40	3300x1900x2900
1100	2000x1260	55-100			43	3300x1900x2900
1200	2000x1260	50-80			46	3300x1900x2900
1210 *	1700x1459	55-100			43	3300x1900x2900
1300	2000x1260	55-108			49	3300x1900x3250
1430 *	1700x1459	55-108			49	3300x1900x3250
1936 *	2100x1620	55-100			56	3300x2060x2900
1500	2000x1260	50-80			56	3300x1900x3250
2288 *	2100x1620	55-108			64	3300x2060x3250

In-take Temp:	+15°C
Out-take Temp:	-18°C
Ambient Temp:	≤50°C
Condensing temp:	+35°C
Evap. Temp:	-35°C

Product details

Main feature

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
