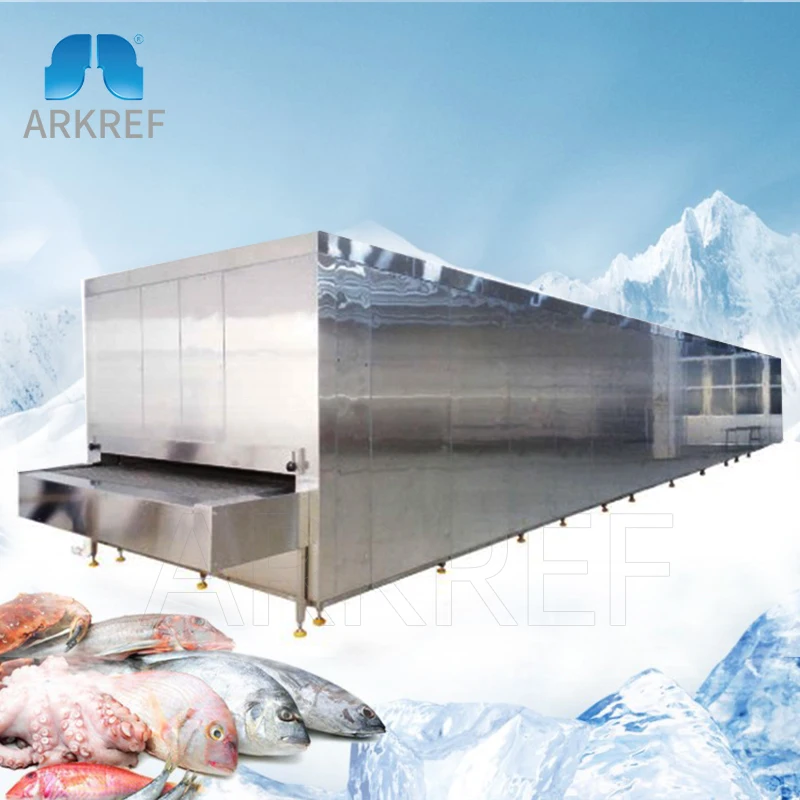

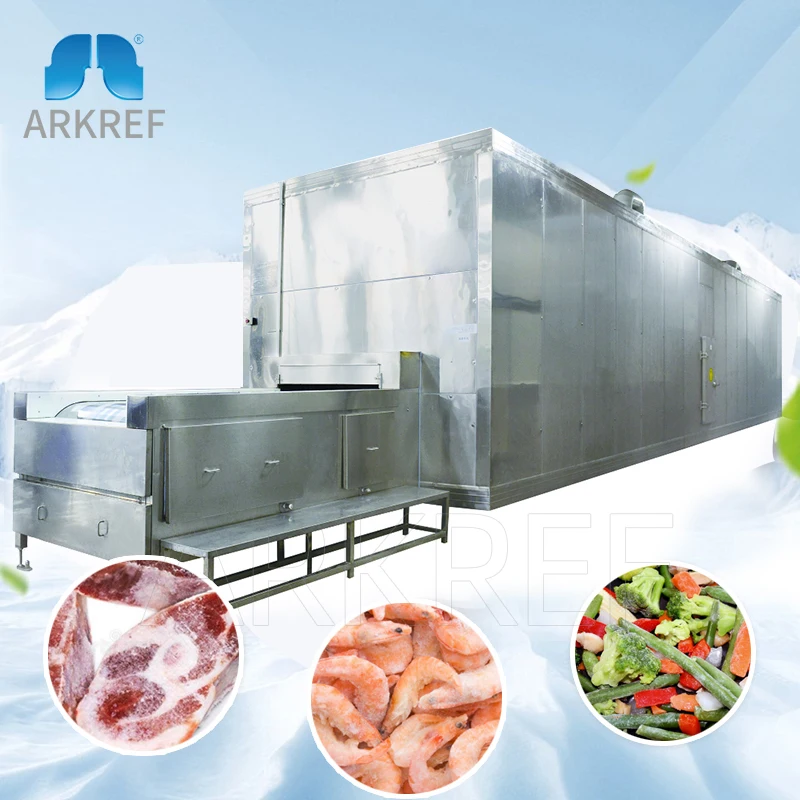

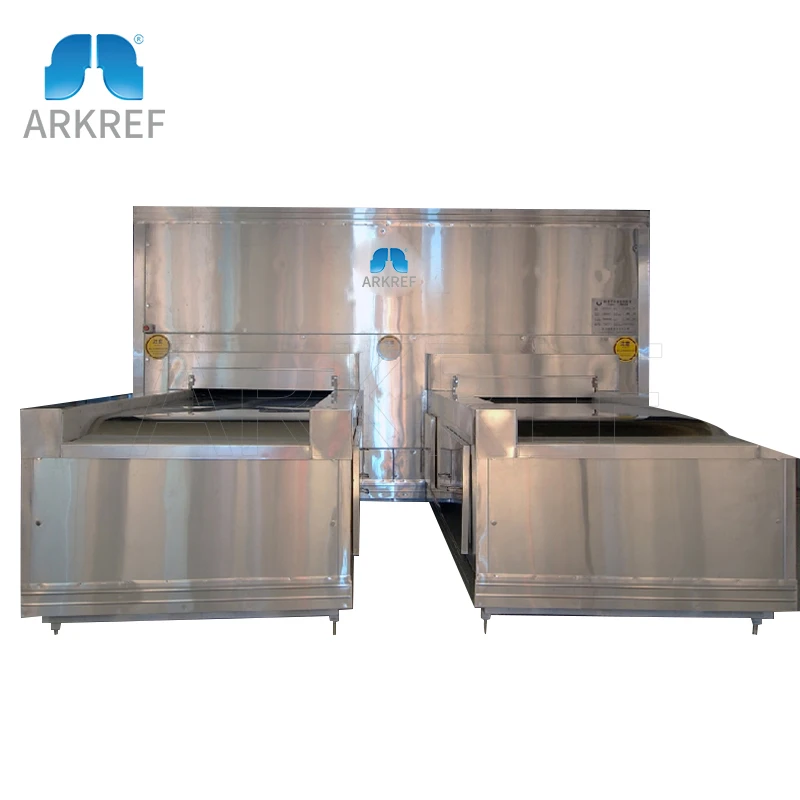

Нержавеющая сталь Arkref морозильник IQF туннель для
Нержавеющая сталь Arkref морозильник IQF туннель для
Нержавеющая сталь Arkref морозильник IQF туннель для
Нержавеющая сталь Arkref морозильник IQF туннель для
Нержавеющая сталь Arkref морозильник IQF туннель для
Нержавеющая сталь Arkref морозильник IQF туннель для
Нержавеющая сталь Arkref морозильник IQF туннель для

Нержавеющая сталь Arkref морозильник IQF туннель для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.38 $* 0.80 $*
Aug-16-2025 0.88 $* 0.73 $*
Jul-16-2025 0.67 $* 0.64 $*
Jun-16-2025 0.54 $* 0.17 $*
May-16-2025 0.58 $* 0.17 $*
Apr-16-2025 0.74 $* 0.80 $*
Mar-16-2025 0.45 $* 0.88 $*
Feb-16-2025 0.67 $* 0.66 $*
Jan-16-2025 0.93 $* 0.8 $*

Характеристики





Technical Data


Model
Freezing Capacity(kg)
Freezing Time(min)
Installed Power(kw)
Cooling Capacity(kw)
Size(m)
Transmission bandwidth(m)
SZ-1TF150
150
10-100 Adjustable
3.75
34
76*25*25
1.8
SZ-1TF300
300
10-100 Adjustable
9.55
65
115*25*25
1.8
SZ-1TF500
500
10-100 Adjustable
19.8
99
166*25*25
1.8
SZ-2TF500
500
10-100 Adjustable
20.2
99
92*39*29
2.5
SZ-1TF1000
1000
10-100 Adjustable
28.6
175
180*42*28
3
SZ-1TF1500
1500
10-100 Adjustable
42.6
256
240*42*28
3
SZ-1TF2000
2000
10-100 Adjustable
55.8
326
296*42*28
3


Customization Process


Need to provide the following information:
1.Types of frozen products2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing
5.The core temperature of the goods after quick freezing


Product Detalis

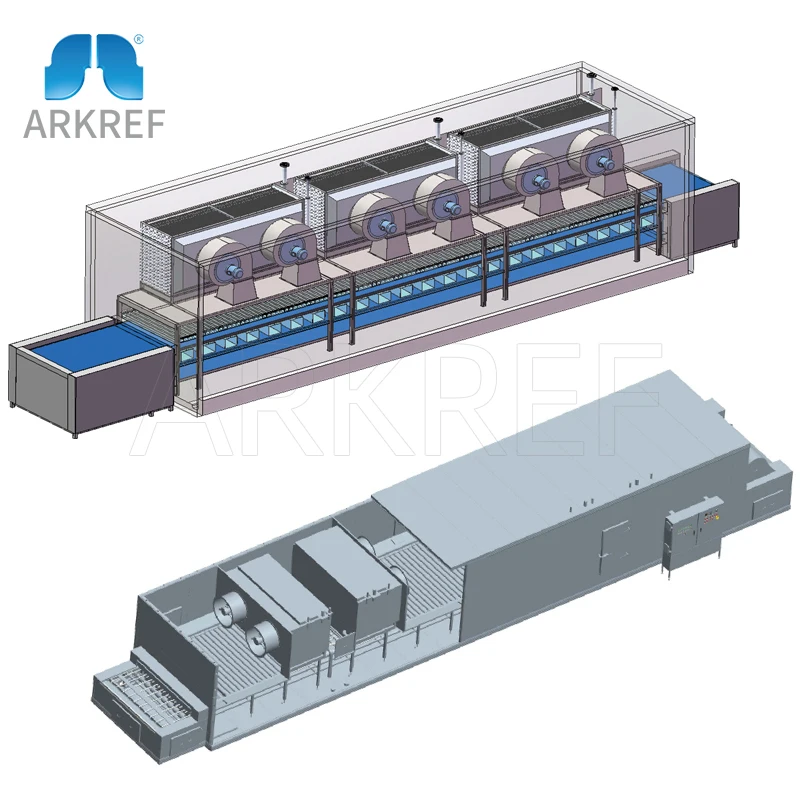

Perfect air distribution system
Reasonable air distribution, low-noise and high-efficiency fans ensure the rapid freezing of frozen materials.
Evaporator
Large size fins, Imported special equipment for expanded connection, tight contact，small heat resistance，high heat exchange efficiency.


Axial Fan
Reasonable air current organization and the high-efficiency axial flow fan with low noise ensure freezing of materials.
Good insulation performance
The library board adopts double-sided stainless steel structure, which has good heat preservation.





Stable and reliable transmission system
A reduction gear is installed and can realize stepless frequency conversion and speed control;with the reduction gear, the speed of conveyor belts can be flexibly adjusted to meet the requirement of different products.


Related Products










Stronger Freezing Capacity
Specifically designed for the application of quick-freezers, two-stage compression + frequency conversion speed increase +electronic expansion valve control.the lower the temperature required by the quick-freezer, the greater the advantage of its freezing capacity.


Control System
It adopts advanced dedicated quick freezing visual controller and monitor, which can memorize the relevant parameters of the machine's operation, and the button can switch the quick-freezing category, which is convenient for querying faults and providing
references for solving problems.

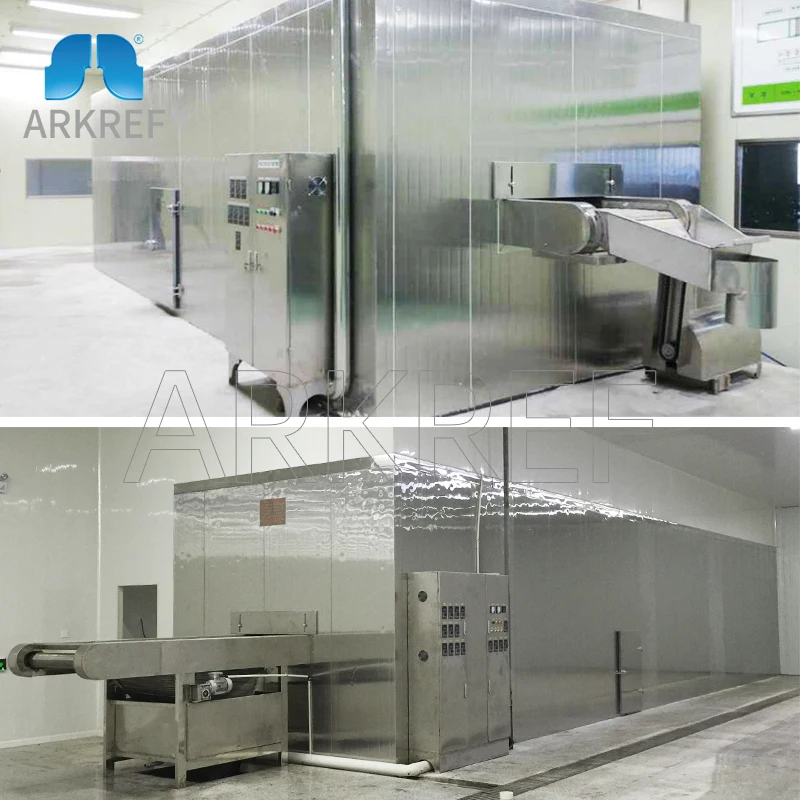

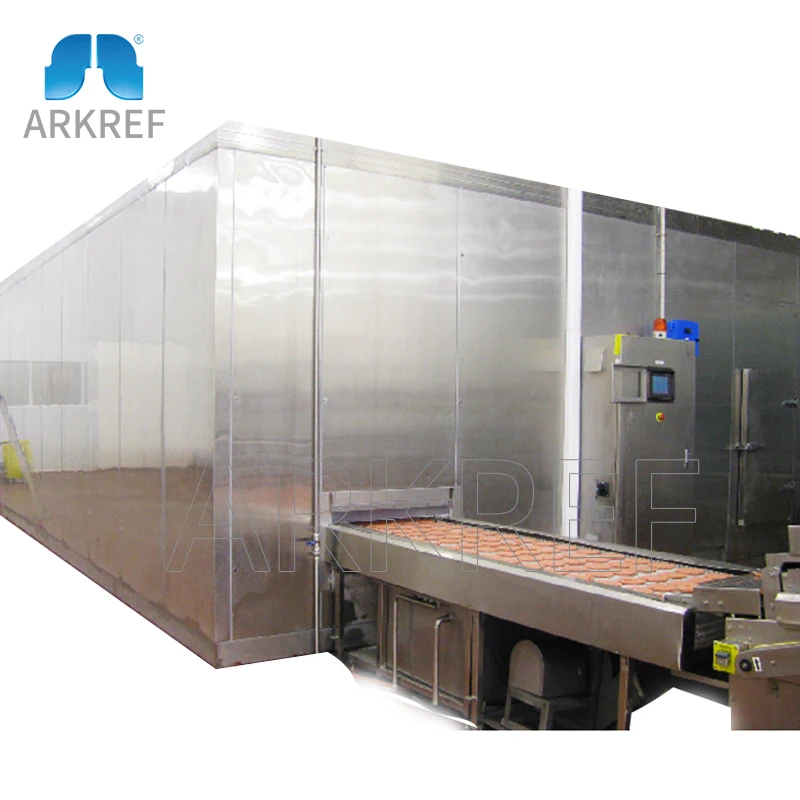

Sucessful Cases
