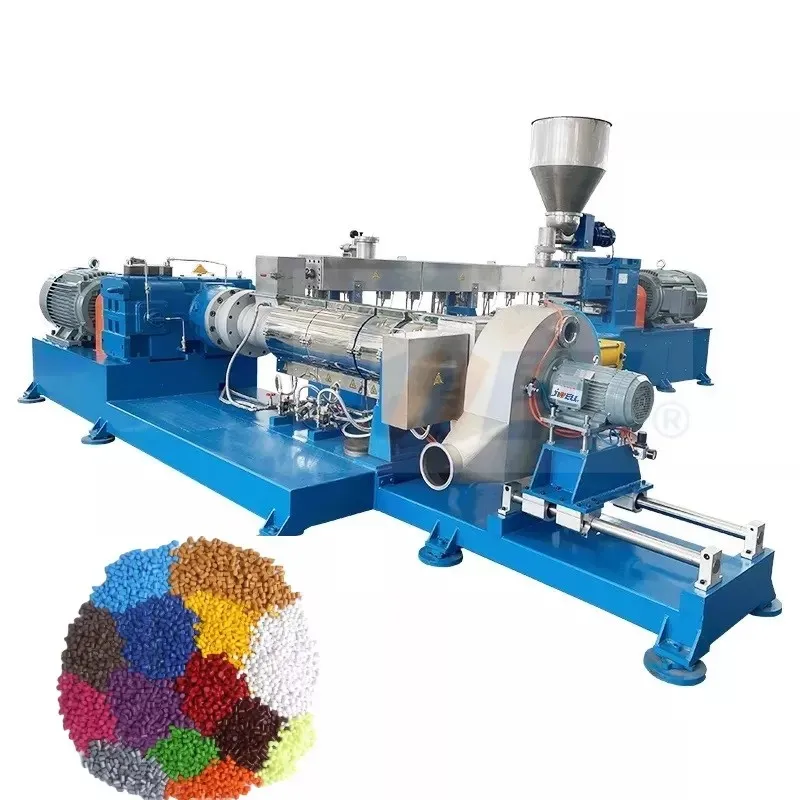

Машина для гранулирования ПП/ПЭ пластика машина гранулирования/переработанных
- Категория: Plastic Granulators >>>
- Поставщик: Danyang,Henglv,New,Material,Packing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 47600.19 $* | 49980.81 $* |
| Aug-19-2025 | 47200.41 $* | 49560.1 $* |
| Jul-19-2025 | 39600.38 $* | 41580.50 $* |
| Jun-19-2025 | 46400.69 $* | 48720.59 $* |
| May-19-2025 | 40400.12 $* | 42420.28 $* |
| Apr-19-2025 | 45600.30 $* | 47880.39 $* |
| Mar-19-2025 | 45200.40 $* | 47460.95 $* |
| Feb-19-2025 | 44800.73 $* | 47040.61 $* |
| Jan-19-2025 | 44400.15 $* | 46620.98 $* |
Характеристики
Products Description
Main technical features:
1) Applicable raw materials : PE/PP whole or broken cleaning film, HDPE/PP/ABS/PS crushing materials;
2) Production capacity: 220-1000kg/h;
3) Model range: screw diameter from Φ100-250mm, according to the material characteristics, the different degree of cleanliness can be designed for single, double and third order;
4) According to the different raw materials, the water-cooled strip grilling method or the water ring grilling of die surface can be selected;
5) Peripheral equipment: cooling system, hydraulic system, vacuum system, circulating water system, flue gas recovery system, etc., all adopt modular design.
3) Model range: screw diameter from Φ100-250mm, according to the material characteristics, the different degree of cleanliness can be designed for single, double and third order;
4) According to the different raw materials, the water-cooled strip grilling method or the water ring grilling of die surface can be selected;
5) Peripheral equipment: cooling system, hydraulic system, vacuum system, circulating water system, flue gas recovery system, etc., all adopt modular design.
Excellent energy saving technology:
1) Mechanical structure: screw structure design specially for thin film and thin sheet material, with excellent exhaust,
plasticizing ability and energy saving effect;
2) Power system: the selection of advanced permanent magnet synchronous servo motor drive, crusher optional motorized spindle direct drive;
3) Temperature control system: heating ring and energy-saving electromagnetic induction heating system can be selected.
Electromagnetic induction heating system heating response speed is fast, low energy consumption, good insulation effect.
plasticizing ability and energy saving effect;
2) Power system: the selection of advanced permanent magnet synchronous servo motor drive, crusher optional motorized spindle direct drive;
3) Temperature control system: heating ring and energy-saving electromagnetic induction heating system can be selected.
Electromagnetic induction heating system heating response speed is fast, low energy consumption, good insulation effect.
Excellent man-machine operation environment:
1) Operation: The operating system of the electromechanical cabinet is adopted, which supports functions such as one-button start, one-button stop and fault warning;
2) Noise: The transmission system uses high-quality silent reducer and low noise motor drive, low noise;
3) Labor intensity: Automatic scraper filter or large area hydraulic mesh changer can be optional for mesh changing parts, so as to realize continuous mesh changing without shutdown and greatly reduce labor intensity.
2) Noise: The transmission system uses high-quality silent reducer and low noise motor drive, low noise;
3) Labor intensity: Automatic scraper filter or large area hydraulic mesh changer can be optional for mesh changing parts, so as to realize continuous mesh changing without shutdown and greatly reduce labor intensity.
Product Paramenters

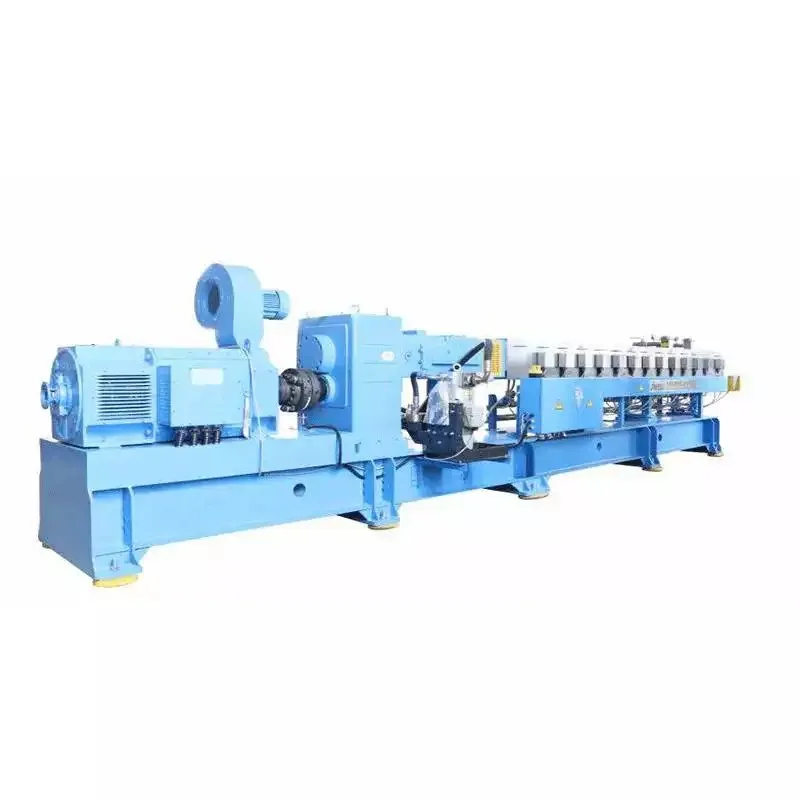

Plastic Pelletizing Machine

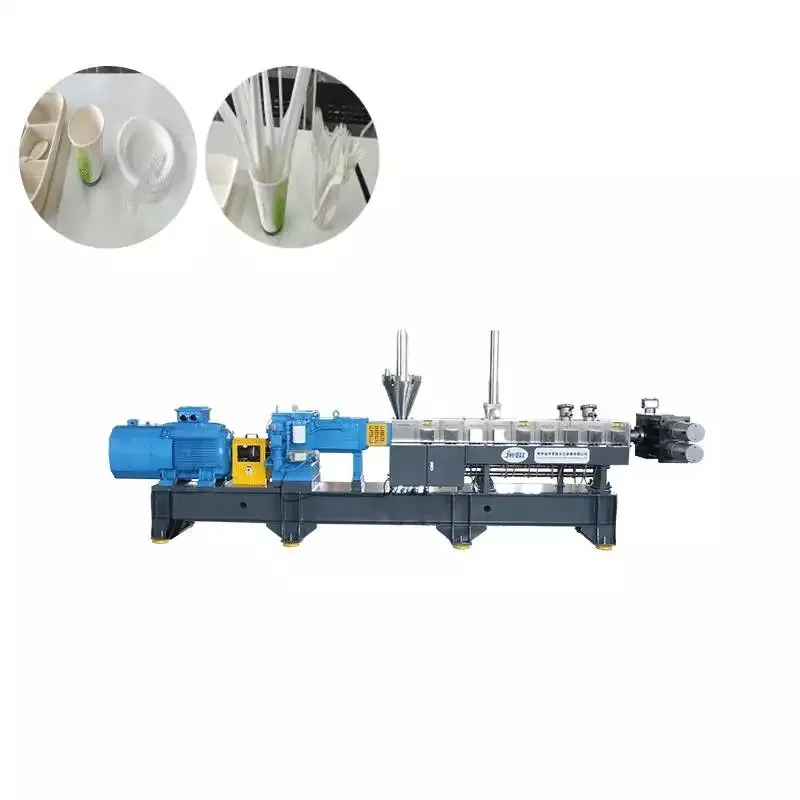

Typical application as plastic alloy, starch filled compound, bio-mass filled compound or mineral powder filled compound for bio degradable plastics as PLA,PBAT,PBS,PPC , PCL, TPS and PHA etc.
Typical application as plastic alloy, starch filled compound, bio-mass filled compound or mineral powder filled compound for bio degradable plastics as PLA,PBAT,PBS,PPC , PCL, TPS and PHA etc.
Model | L/D | Screw speed (rpm) | Capacity for reference (kg/hr) |
CJWH-52 | 40-56 | 300 | 150 |
CJWH-65 | 40-56 | 300 | 240 |
CJWH-75 | 40-56 | 300 | 440 |
CJWH-95 | 40-56 | 300 | 820 |
CJWS-52 | 40-56 | 300 | 190 |
CJWS-65 | 40-56 | 266 | 310 |
CJWS-75 | 40-56 | 300 | 550 |
CJWS-95 | 40-56 | 300 | 1060 |
CJWS-75 Plus | 40-56 | 330 | 700 |

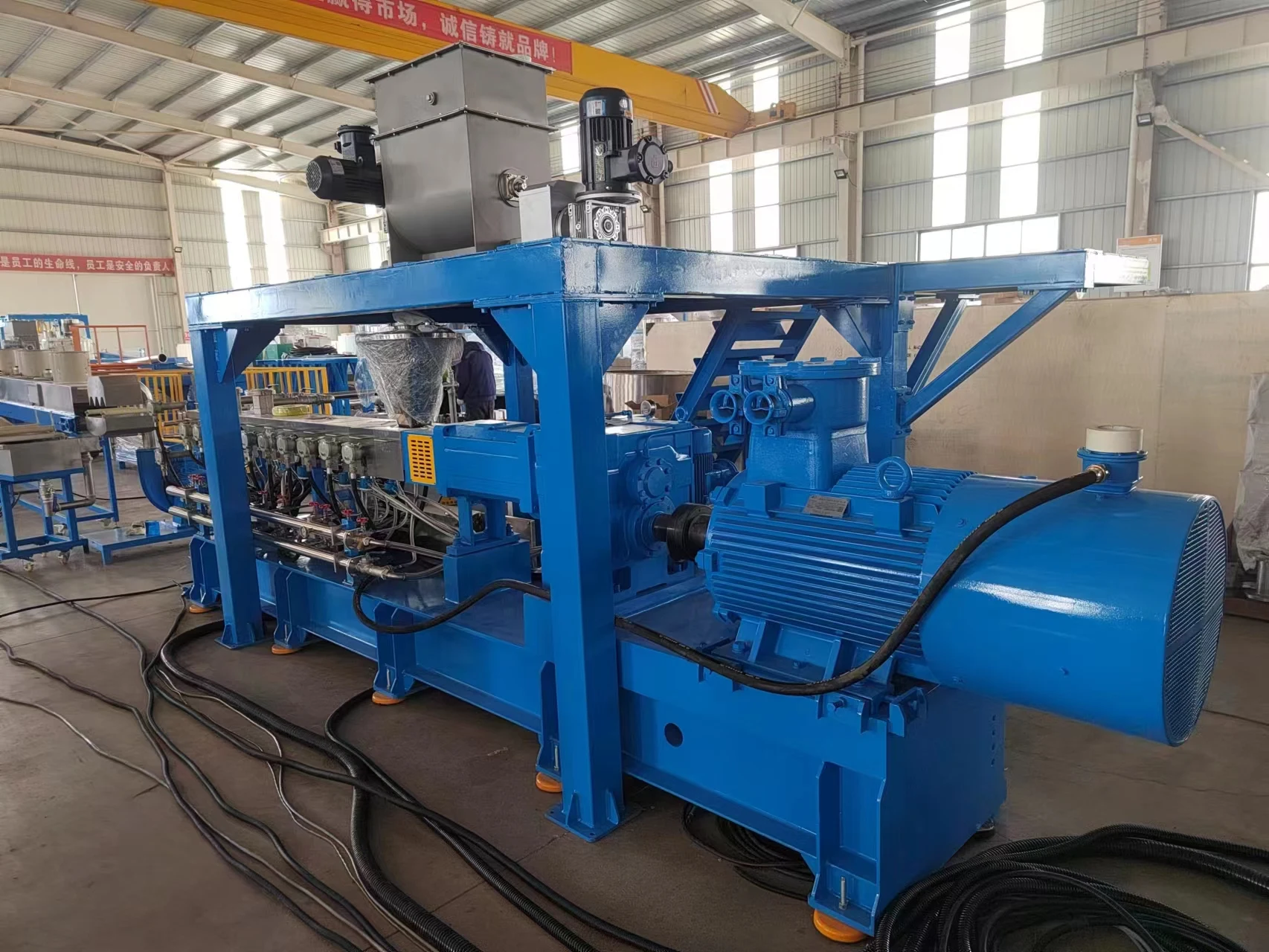

Details Images
Company Profile
Danyang Henglv New Material Packing Co., Ltd. boasts teams of professional and high-efficient colleagues in technology, management, sales, and service. with our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.

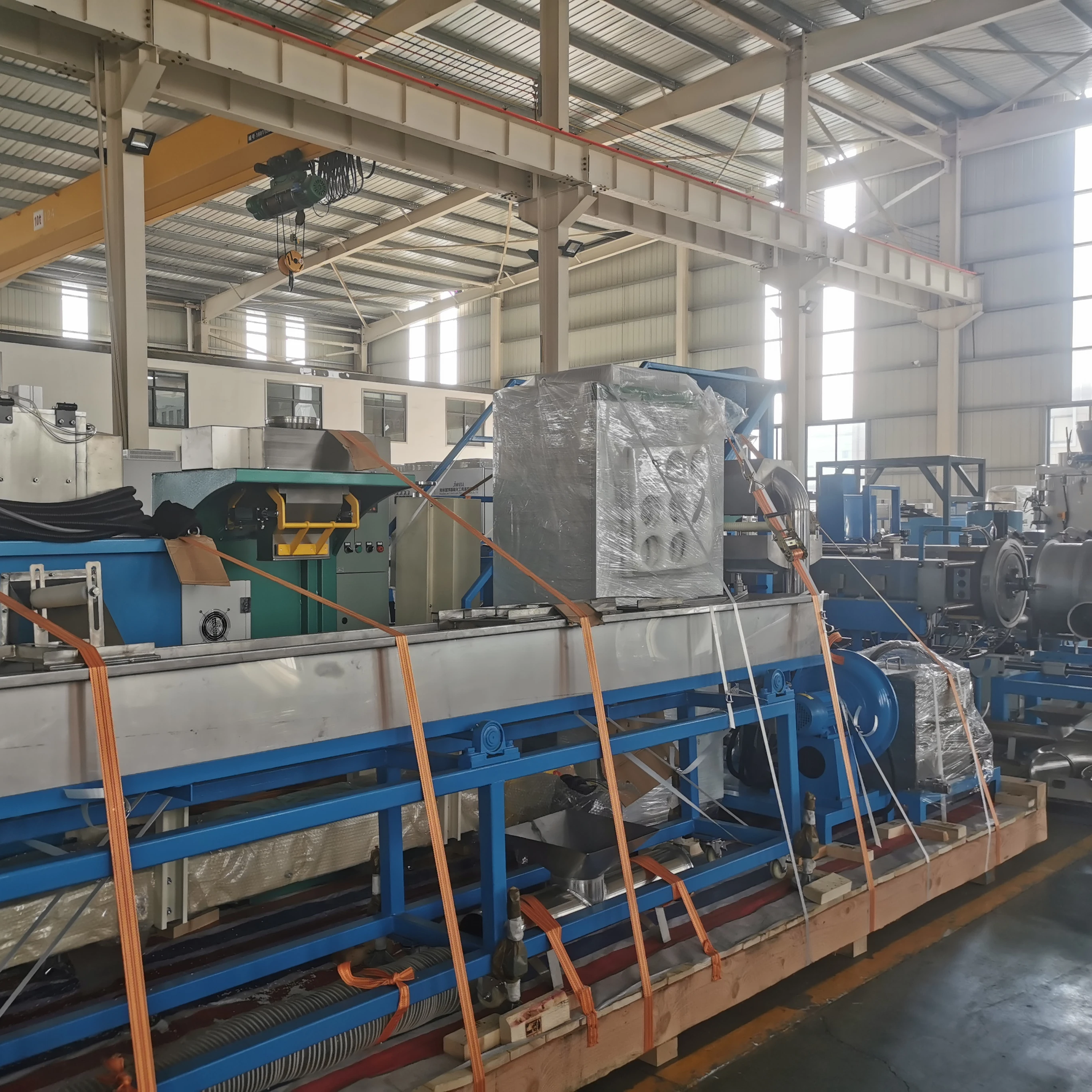

Product packaging
Chat Us
FAQ
Q：What’s the line speed and capacity for the line?
A：We can calculate and provide you based on your profile size, shape, weight/m and material.
Q：If your machine can produce different size profile on same line?
A：We can provide customized solution based on your samples or drawings.
Q：How can we check the machines before delivery?
A：We can provide online checking when testing the machine on site
We will take and prepare detailed testing videos for your checking before the delivery.
We accept third-party testing.Except above points, we will provide detailed testing report.
Q：What’s the machines package when delivery?
A：For safe shipping and machines protection, we provide fumigation free wooden frame for each unit equipment.
Q：If you can arrange engineer for machines installation?
A：Yes, we can. And our engineer will teach your workers for machines operation on site. At the same time, our agent can provide fast service in local too.
A：We can calculate and provide you based on your profile size, shape, weight/m and material.
Q：If your machine can produce different size profile on same line?
A：We can provide customized solution based on your samples or drawings.
Q：How can we check the machines before delivery?
A：We can provide online checking when testing the machine on site
We will take and prepare detailed testing videos for your checking before the delivery.
We accept third-party testing.Except above points, we will provide detailed testing report.
Q：What’s the machines package when delivery?
A：For safe shipping and machines protection, we provide fumigation free wooden frame for each unit equipment.
Q：If you can arrange engineer for machines installation?
A：Yes, we can. And our engineer will teach your workers for machines operation on site. At the same time, our agent can provide fast service in local too.
