Двухслойная кровельная листовая роликовая машина трапециевидная гофрированная для формовки кровельных листов
- Категория: Building Material Machinery >>>
- Поставщик: Henan,Dingkou,Industrial,Co.,Ltd.Henan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1124942.3 $* | 1147441.18 $* |
| Jul-19-2025 | 912354.43 $* | 930601.59 $* |
| Jun-19-2025 | 1107226.62 $* | 1129371.44 $* |
| May-19-2025 | 1098368.47 $* | 1120335.97 $* |
| Apr-19-2025 | 876923.51 $* | 894461.48 $* |
| Mar-19-2025 | 1080653.97 $* | 1102266.52 $* |
| Feb-19-2025 | 1071795.44 $* | 1093231.46 $* |
| Jan-19-2025 | 1062937.86 $* | 1084196.52 $* |
Характеристики
MORE FOR YOU CHOOSE
More model for your choice
When you choose roll forming machine, you had better learn popular tile shape in local,also raw material is an important
considering point, if do not have good supplier in local, we can assist your purchase in China together. we are professional
factory in this area for many years, any demands please contact us at any time!
1200 double layer roofing sheet roll forming machine | metal roof roll forming machine | metal roof machine | trapezoidal sheet roll forming machine | roofing sheet making machine | wall sheet roll forming machine.
considering point, if do not have good supplier in local, we can assist your purchase in China together. we are professional
factory in this area for many years, any demands please contact us at any time!
1200 double layer roofing sheet roll forming machine | metal roof roll forming machine | metal roof machine | trapezoidal sheet roll forming machine | roofing sheet making machine | wall sheet roll forming machine.
2. Typical tile type drawings
As the manufacturer of the roll forming machinery, we can produce most of the products according to your requirements, not just
the size of the products on this page.
the size of the products on this page.
3. Work Flow
Capacity of the entire production line is 20-30 m/min. It consists of 5 parts. Un-coiler→Feeding material →Roll forming→Auto
cutting→Products receiving table, but It only takes 1-2 worker.
cutting→Products receiving table, but It only takes 1-2 worker.
4. Equipment List
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1 set |
2 | Forming Main Machine | 1 set |
3 | Hydraulic Cutting System | 1 set |
4 | Material Receiving Table | 1 set |
5 | PLC Control System | 1 set |
6 | Supporting Accessories | 1 set |
5. Product Specification
Item | Parts | Specification & Description |
1.Raw Material | Type | GI / GL /PPGI / PPGL /Customization |
Thickness(mm) | 0.3-0.8 | |
2.Un-coiler Device | Type | Manual / Electric / Hydraulic Decoiler（optional） |
Bearing(Tons) | 5T/8T/10T（optional） | |
Way of working | Manual / Electric / Hydraulic tensioning crank. The center of the four-bar linkage is supported outward. | |
Inner contraction range | φ450-550mm | |
Coil Inner diameter | φ480-500mm | |
Panel Width（mm） | 940-1220mm(customizable) | |

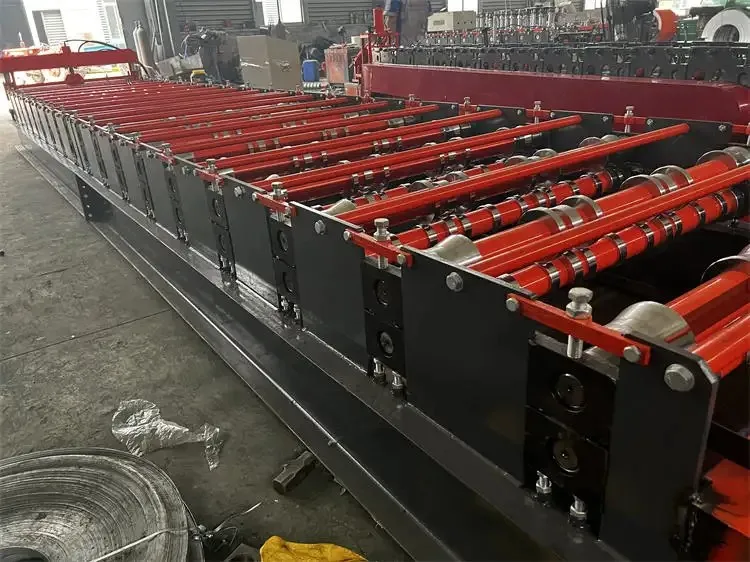

3.Forming host | Main frame | Material:350H steel The main frame is welded with 350H steel frame. The machining table uses CNC milling of 16mm steel plates.The frame has undergone aging treatment to eliminate internal stress and has good stability. Processing: CNC milling - precision machining - aging treatment |
Middle plate | Material : 45#steel Thickness: 20mm Processing :laser cutting | |
Shaft | Material : 40Cr solid shaft Diameter : 80mm Processing : Precision machining, heat treatment, precision grinding | |

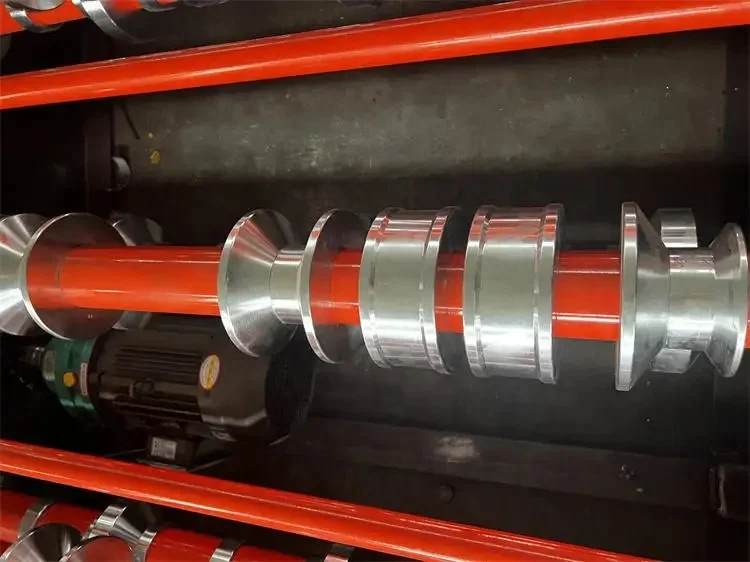

Rollers | Material: Gcr15 high-carbon chromium bearing steel Processing : Quenching, precision turning, polishing treatment | |
Roller Station | 12-14 stations or Customization | |
Transmission | Specifications:1.2 inch chain wheel with gear transmission Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil | |
Main Motor | Power:5.5KW Brand：Lichao(optional) Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | |

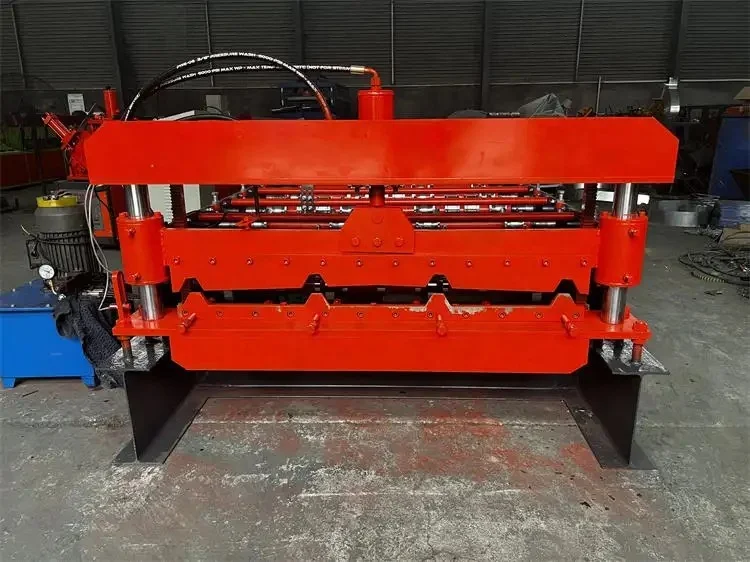

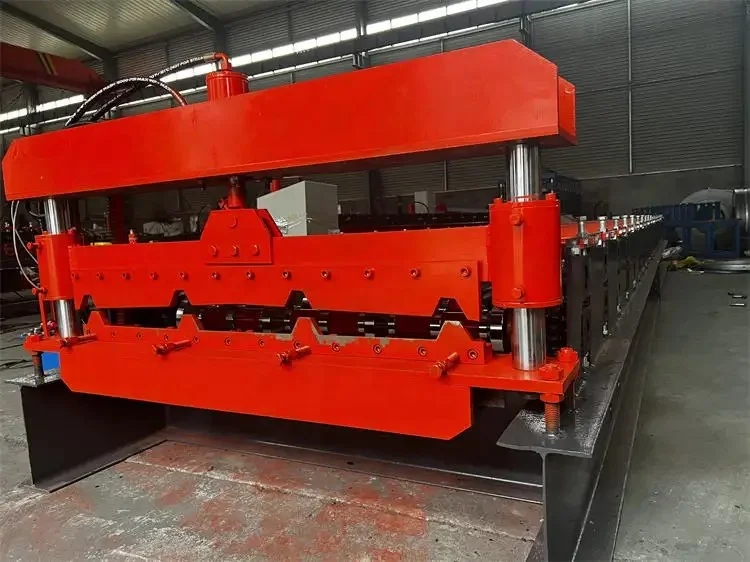

4.Cutting System | Type | Automatic high-speed electric shearing for Four guide pillars |
Blade | material:SKD11 Processing :precision grinding, cutting, heat treatment. Service life: 500000 times | |
Motor for cutter | Power: 3KW | |
5.Receiving rack | Type | manual / Electric receiving rack |
6.PLC Control System | PLC Control System | Plc brand：Delta (optional) Text control box:Vertical LCD touch screen control box/Swing arm LCD touch screen control box Language: English / Chinese / Customized |
Inverter | Rated power:7.5KW |
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
