Портативное пневматическое оборудование для испытания гидростатического давления на

Портативное пневматическое оборудование для испытания гидростатического давления на

Категория: Oil Field Equipment >>>
Поставщик: Chongqing,Weiyun,Technology,Development,Co.,Ltd.

Цена:3 000,00 $ - 6 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	3570.91 $*	3749.94 $*
Aug-19-2025	3540.59 $*	3717.30 $*
Jul-19-2025	2970.6 $*	3119.97 $*
Jun-19-2025	3480.78 $*	3654.89 $*
May-19-2025	3030.4 $*	3182.95 $*
Apr-19-2025	3420.16 $*	3591.22 $*
Mar-19-2025	3390.21 $*	3560.39 $*
Feb-19-2025	3360.96 $*	3528.36 $*
Jan-19-2025	3330.26 $*	3497.3 $*

Характеристики

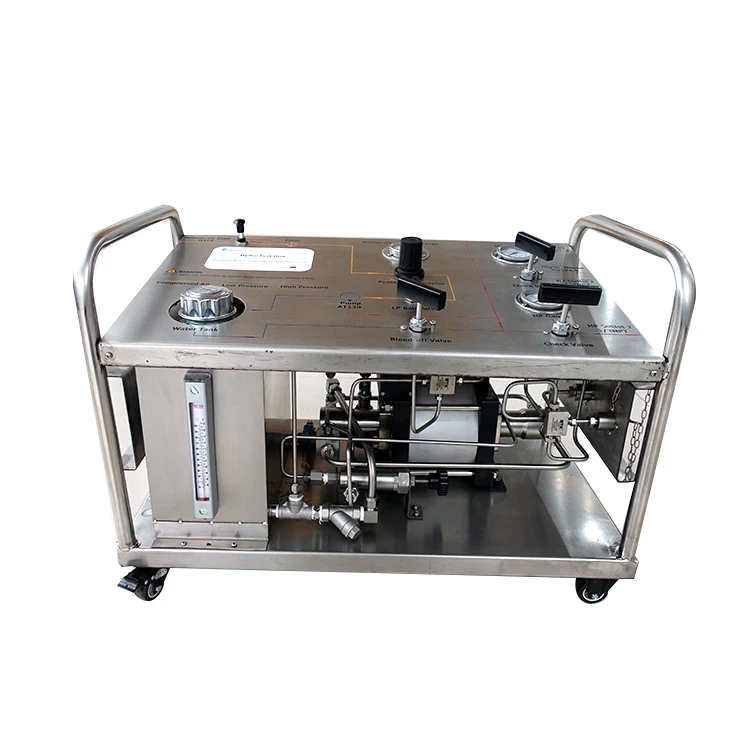

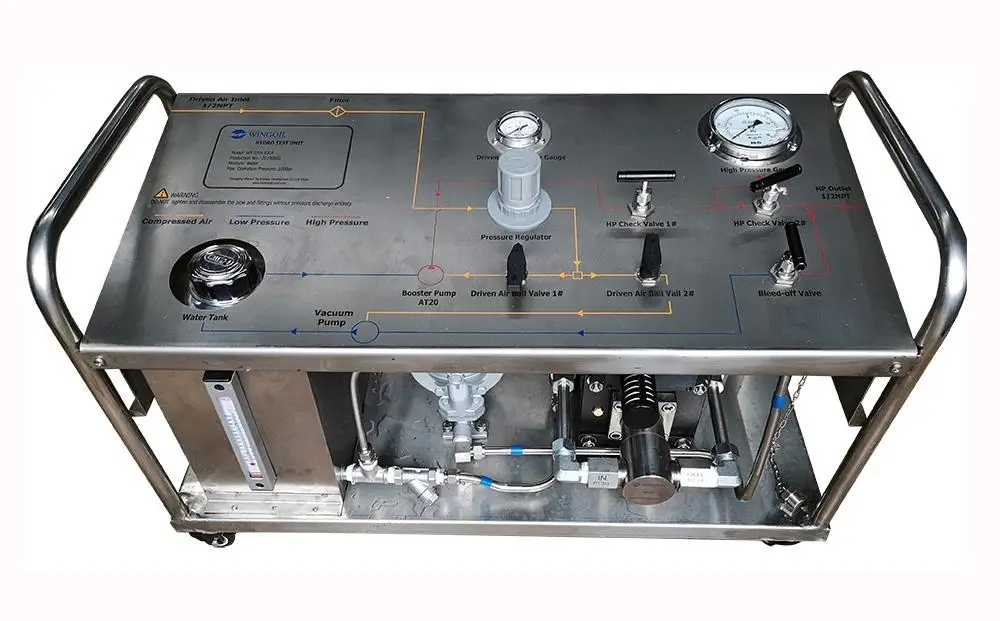

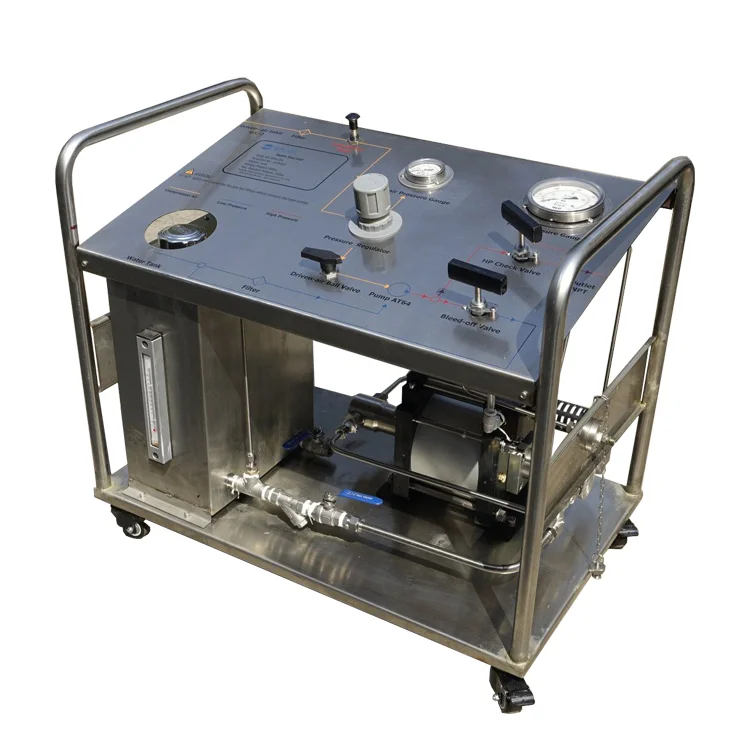

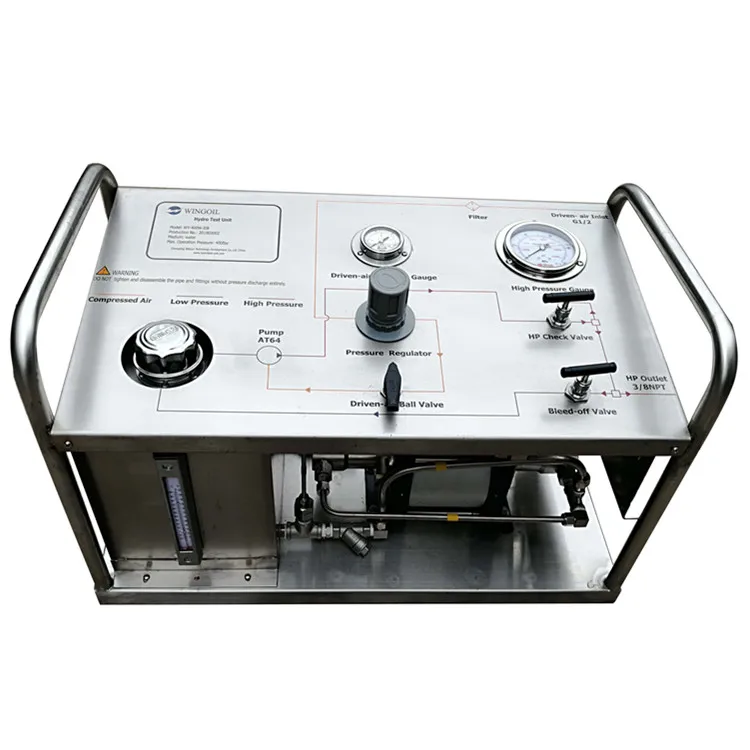

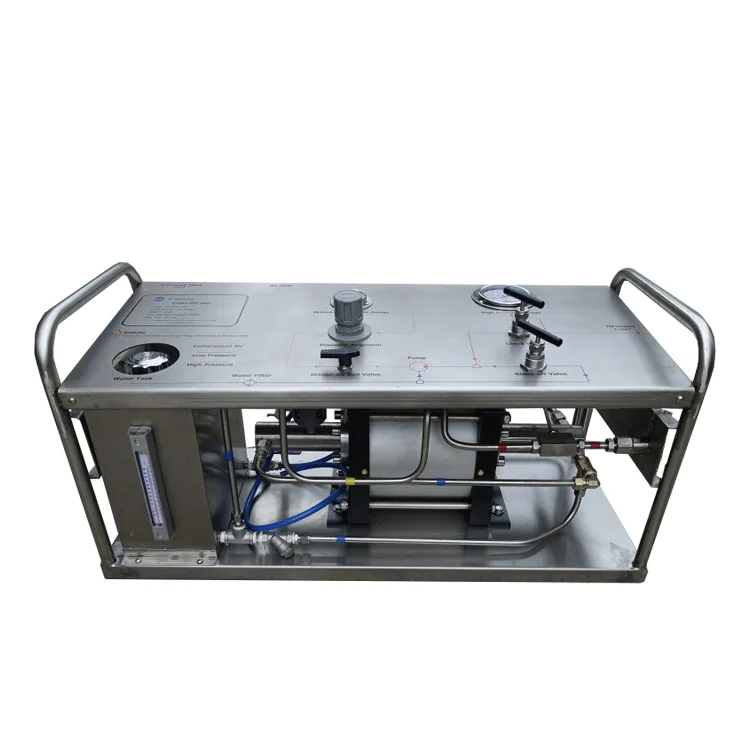

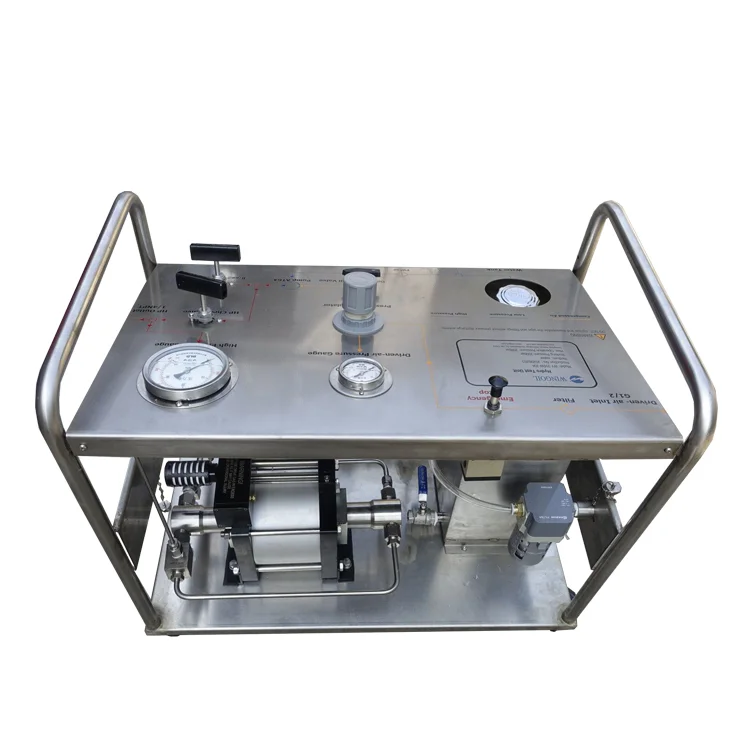

Portable High Pressure Well Testing Equipment

Wingoil Portable Pressure Test System which is a set of pressure testing equipment with mechanical recording, mainly consisting of three parts: pressure testing device, disc recording and power supply system.

Product model: WY-70W-BJ0
Product series: WY-***-J*

Features
1) Low-pressure compressed air as the booster power source, safe and environmentally friendly
Infinitely variable output pressure and flow
2) Holds static pressure without generating heat or consuming power
Pressure self-locking function, under the condition of setting the driving air pressure, the output pressure is constant.
3) Dual scale shockproof pressure gauge display
4) The flowmeter is made of lithium battery and has a service life of 2-3 years. Safe to use.
5) Equipped with a metering valve that can adjust the output pressure slightly and accurately control the output pressure.
6) No heat, flame or risk of spark
7) Well proven and trouble-free operation
8) Designed for ease of maintenance
9) Low cost servicing
10) Compact, robust, selfcontained structure

Performance data
Pressure ratio：1:100
Testing medium: clean water
Max. output pressure: 700bar
Max. flow: 3.62L/min
Max. air pressure: 10 bar
Dimension:700L×500W×700H
Rated pressure of Needle Valve: 22,500PSI

Connection
Compressed air inlet: 1/2″NPT(F)
High-pressure outlet: 3/8″NPT（F）
Water inlet: DN50

FAQ
If you can't find suitable model for your application by above information, we can service you after knowing blow basic technical parameters:
1. What is your present gas pressure? ( )bar
2. The pressurized gas is oxygen,nitrogen or any other?
3. How about the Max.outlet gas pressure you want to reach? ( )bar
4. What is the driven air pressure (of your air compressor) you can offer? ( )bar
5. how about the required flow rate? ( )L/min
