Характеристики
Product Description

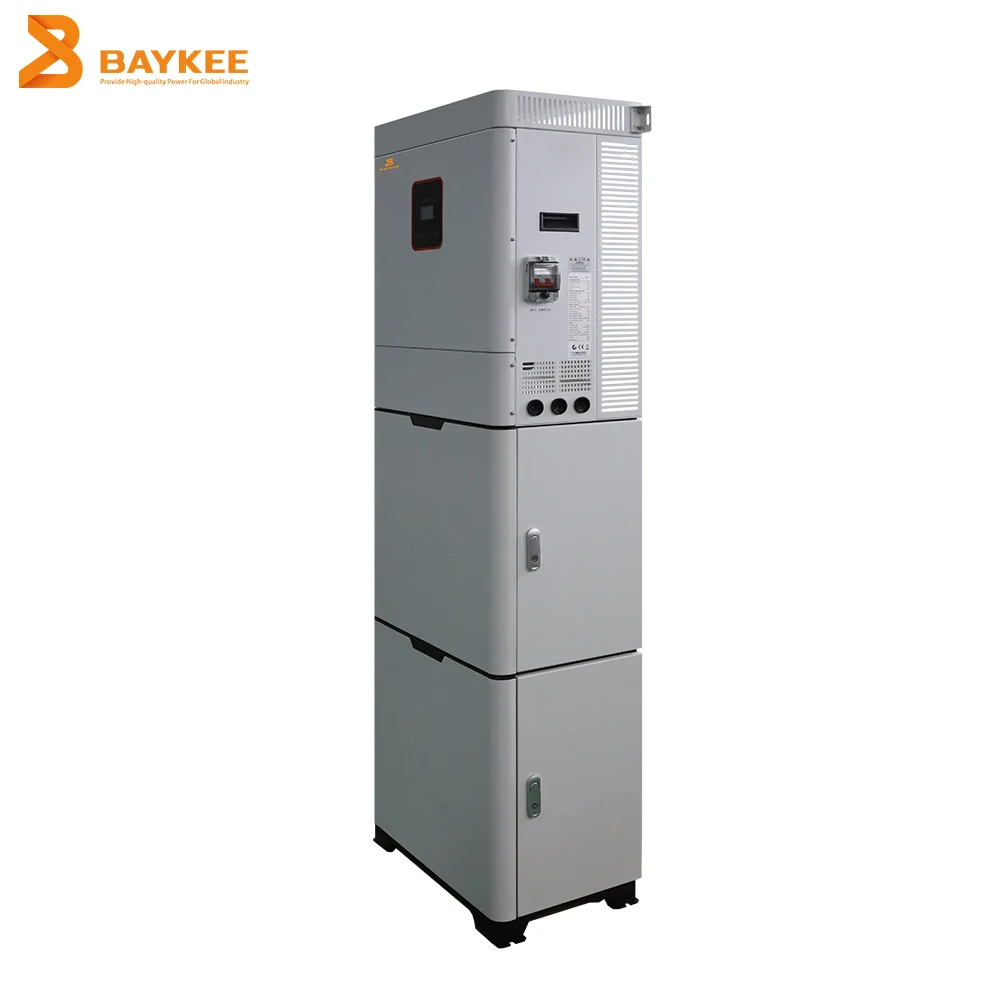

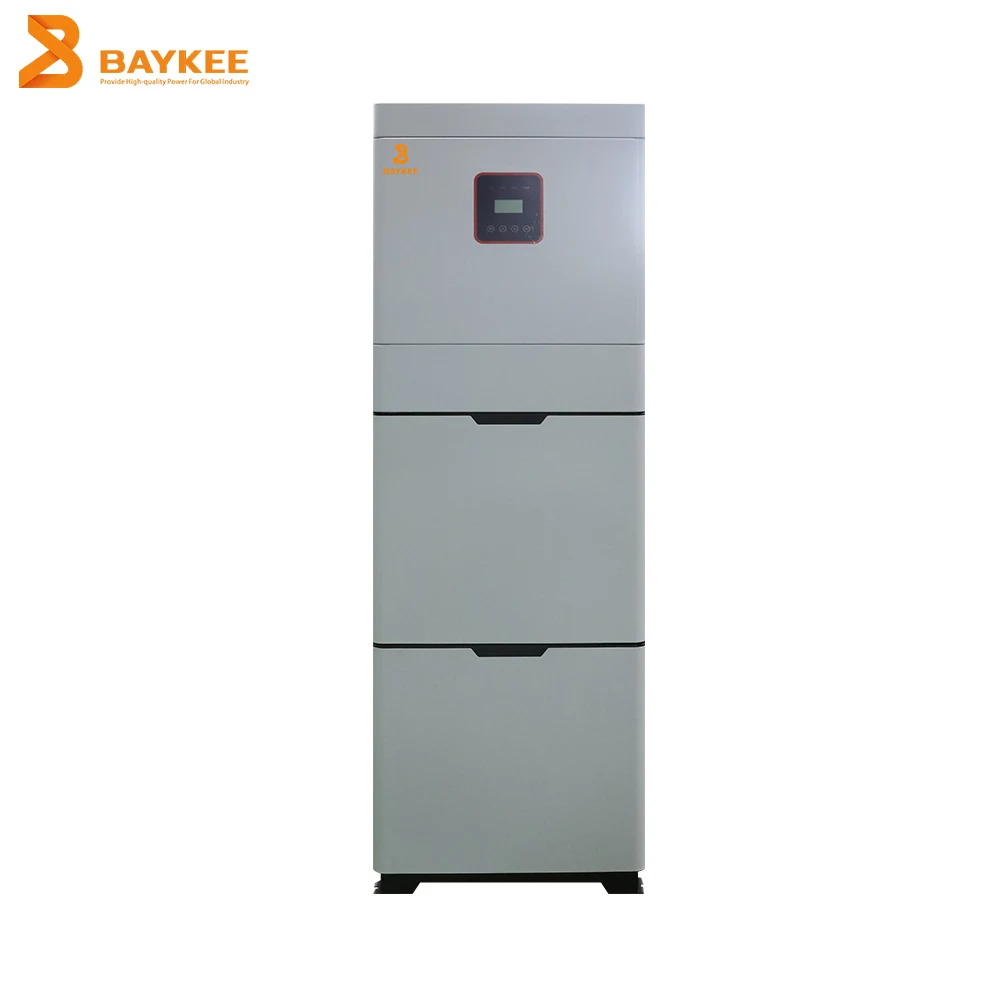

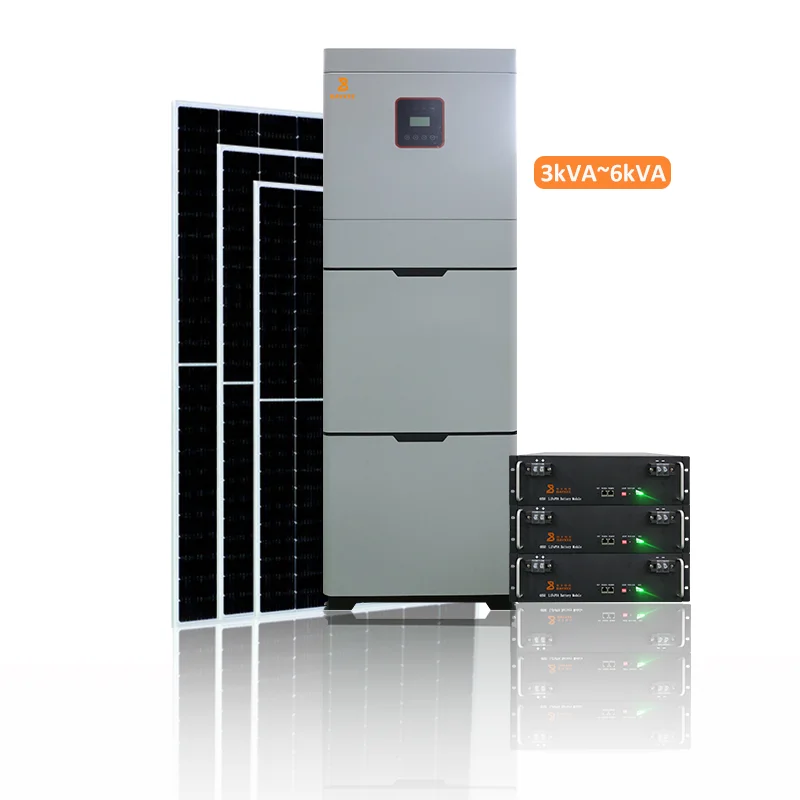

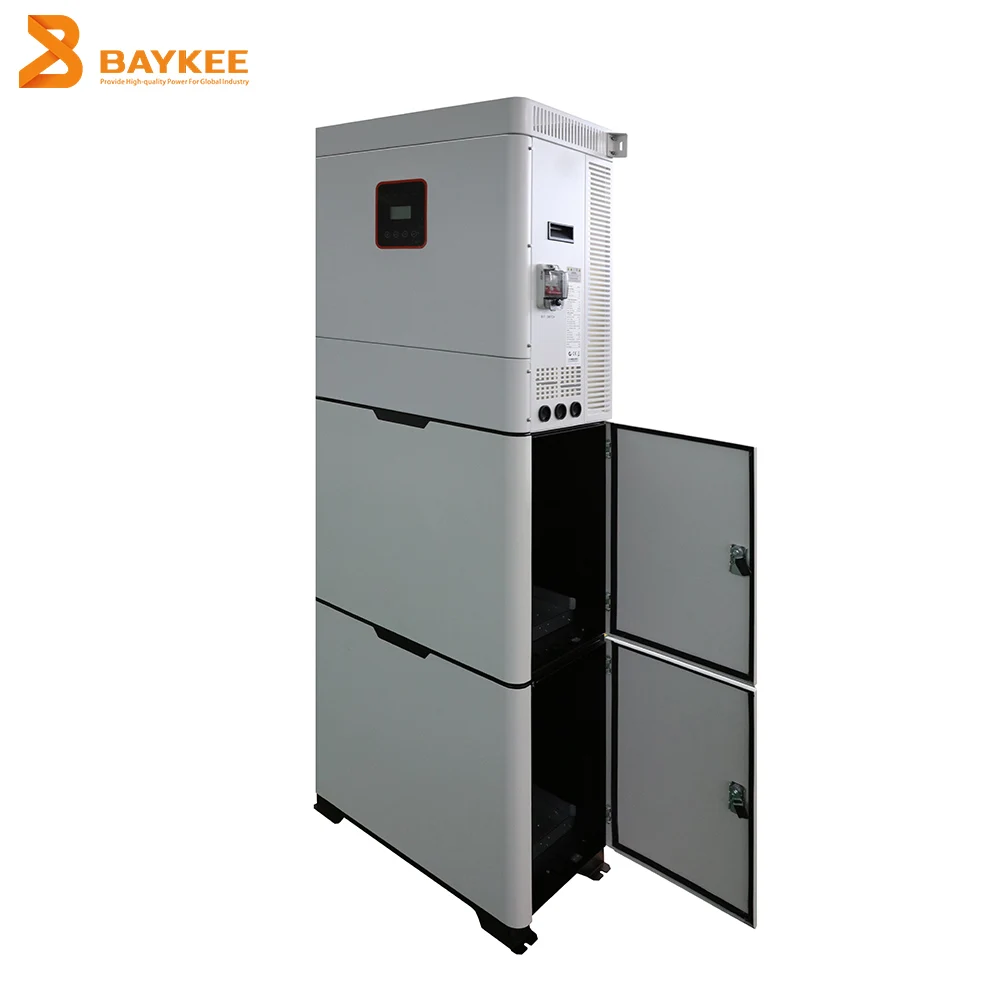

All In One Solar Inverter And Battery
Introduction:
Baykee all in one solar inverter and battery is Baykee's latest hot representative product for solar system integration. Great solution to the complexity of past installations with preset internal wiring layout. Easy connection and installation saves your installation time and cost. In addition, the extensible system design facilitates expansion and flexible investment.
Feature:
◆Simple connection and installation, saving installation time and cost.
◆Expandable system design, convernient for capacity expansion.
◆Overall solution of home smart energy.

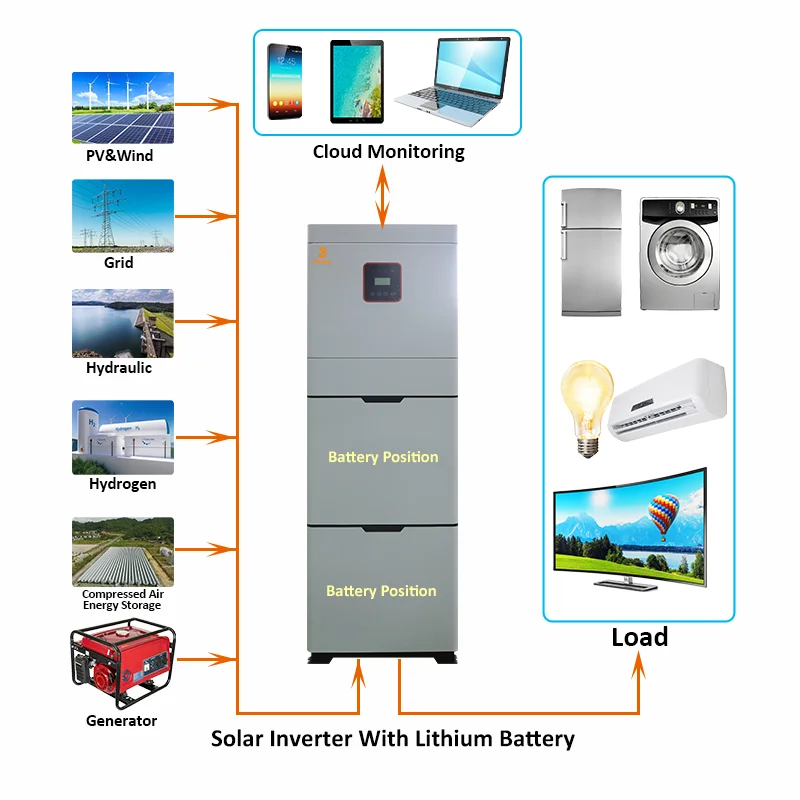

Application
◆Villa
◆Communication base station
◆Communication room
◆Move charging station
◆Communication room
◆Move charging station
◆Farm
Specification
Model | BK3KL1-A | BK3K6L1-A | BK4KL1-A | BK4K6L1-A | BK5KL1-A | BK6KL1-A | ||||||
Inverter Parameters | ||||||||||||
Max. Input Power | 4600W | 4600W | 6000W | 6000W | 7000W | 7000W | ||||||
Max. Input Current | 2*14A | |||||||||||
Max. PV Voltage | 550V | |||||||||||
MPPT Tracker/Strings | 2/1 | |||||||||||
MPPT Range | 125-500V | |||||||||||
AC Output | ||||||||||||
Rated Output Power | 3000W | 3600W | 4000W | 4600W | 5000W | 5600W | ||||||
Rated Output Current | 13A | 16A | 17.4A | 20A | 21.7A | 26A | ||||||
Type Of Grid Connection | L+N+PE | |||||||||||
Rated Output Voltage | 230V | |||||||||||
Grid Voltage Range | 180-270V | |||||||||||
Rated Output Frequency | 50Hz/60Hz | |||||||||||
PF | 0.99 lagging-0.99leading | |||||||||||
EPS Output | ||||||||||||
Rated Output Power | 3000W | 3600W | 4000W | 4600W | 5000W | 5600W | ||||||
Rated Output Current | 13A | 16A | 17.4A | 20A | 21.7A | 26A | ||||||
Rated Output Voltage | 230V | |||||||||||
Rated Output Frequency | 50Hz/60Hz | |||||||||||
THDU | ＜2% | |||||||||||
Overload Capacity | 110%,60s/120%,30s/150%,10s | |||||||||||
Battery Technical Parameters | ||||||||||||
Battery Module | Customizable | |||||||||||
Battery Type | Lithium iron phosphate | |||||||||||
MAX. Parallel Batteries | 2.4-14.4kWh | |||||||||||
Lifespan | 6 | |||||||||||
Charge/Discharge Current | 95/62.5A | 95/76.6A | 95/83.3A | 95/95.8A | 95/110A | 95/110A | ||||||
System Parameters | ||||||||||||
Protection Class | IP20 | |||||||||||
MPPT Efficiency | 0.999 | |||||||||||
Max. Efficiency | 0.976 | |||||||||||
Inverter Topology | Without transformer | |||||||||||
Self-Consumption | ＜3W | |||||||||||
Interface | RS485/wifi/can/drm | |||||||||||
Display | LCD | |||||||||||
Operating Temperature | -10℃-60℃ | |||||||||||
Relative Humidity | 15%-85%(non-condensing) | |||||||||||
Height | 2000m | |||||||||||
Dimensions(W*D*H)mm | 580*350*1800mm | |||||||||||
Weight | 70kg | |||||||||||
Safety Regulations | IEC 62109-1&-2,IEC 62477, CE-EMC | |||||||||||
