Цветной манометр BOSJ стальной киль каркас холодная формовочная машина металлопрокатные
- Категория: Building Material Machinery >>>
- Поставщик: Jiangyin,Bosj,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.68 $* | 0.78 $* |
| Aug-18-2025 | 0.17 $* | 0.26 $* |
| Jul-18-2025 | 0.57 $* | 0.15 $* |
| Jun-18-2025 | 0.71 $* | 0.43 $* |
| May-18-2025 | 0.7 $* | 0.14 $* |
| Apr-18-2025 | 0.55 $* | 0.54 $* |
| Mar-18-2025 | 0.14 $* | 0.47 $* |
| Feb-18-2025 | 0.66 $* | 0.67 $* |
| Jan-18-2025 | 0.29 $* | 0.93 $* |
Характеристики
@BOSJ Australia Service Center
After-Sales Service;
Special offer for Australia Customer ;
Delivered to door service in the near future starting from the Melbourne area;
Special offer for Australia Customer ;
Delivered to door service in the near future starting from the Melbourne area;
Current stock available: C89 machine,
Arrive Melbourne approx. in 10 days.
Product Overview

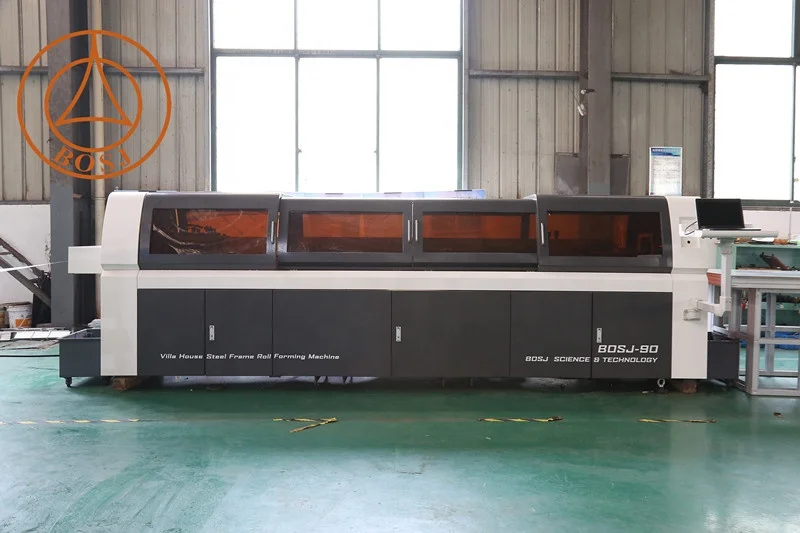

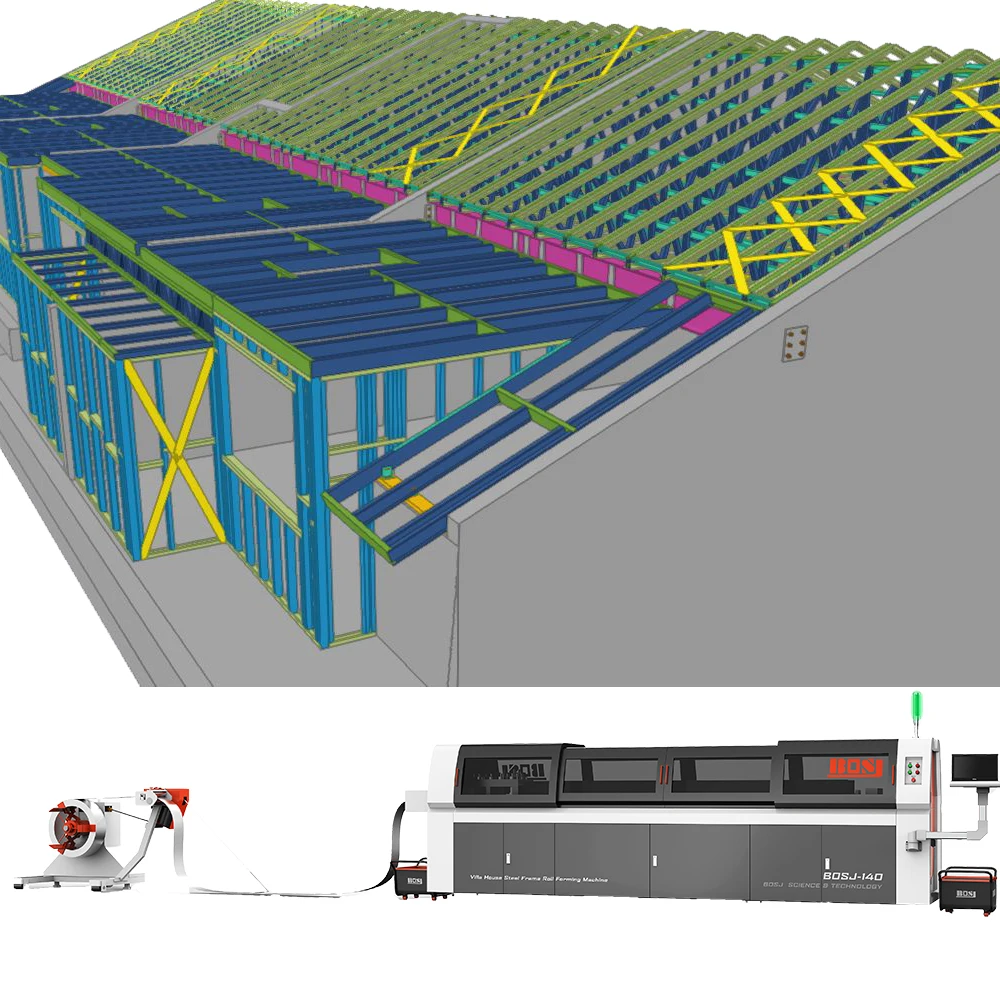

The BOSJ LGS SYSTEM is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile.
This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major international light steel framing building codes: America, British, Euro, Canadian and Australian.
PRODUCT SPECIFICATIONS
Name | Details | ||
Section | C type | ||
Size | 50mm x 41mm x 6mm 60mm x 41mm x 10mm 75mm x 41mm x 13mm 90mm x 41mm x 13mm 100mm x 41mm x 13mm 140mm x 41mm x 13mm 150mm x 41mm x 13mm | 2” x 1.625” (200S162) 2.5” x 1.625” (250S162) 3”x 1.625” (300S162) 3.5”x 1.625” (350S162) 3.625”x 1.625” (362S162) 4”x 1. 625” (400S162) 5.5”x 1. 625” (550S162) 6”x 1. 625” (600S162) | |
Thickness | 0.8-1.2 mm, G300-G550 zinc plated, aluminum zinc plated | ||
Main motor | 7.5 KW Servo motor | ||

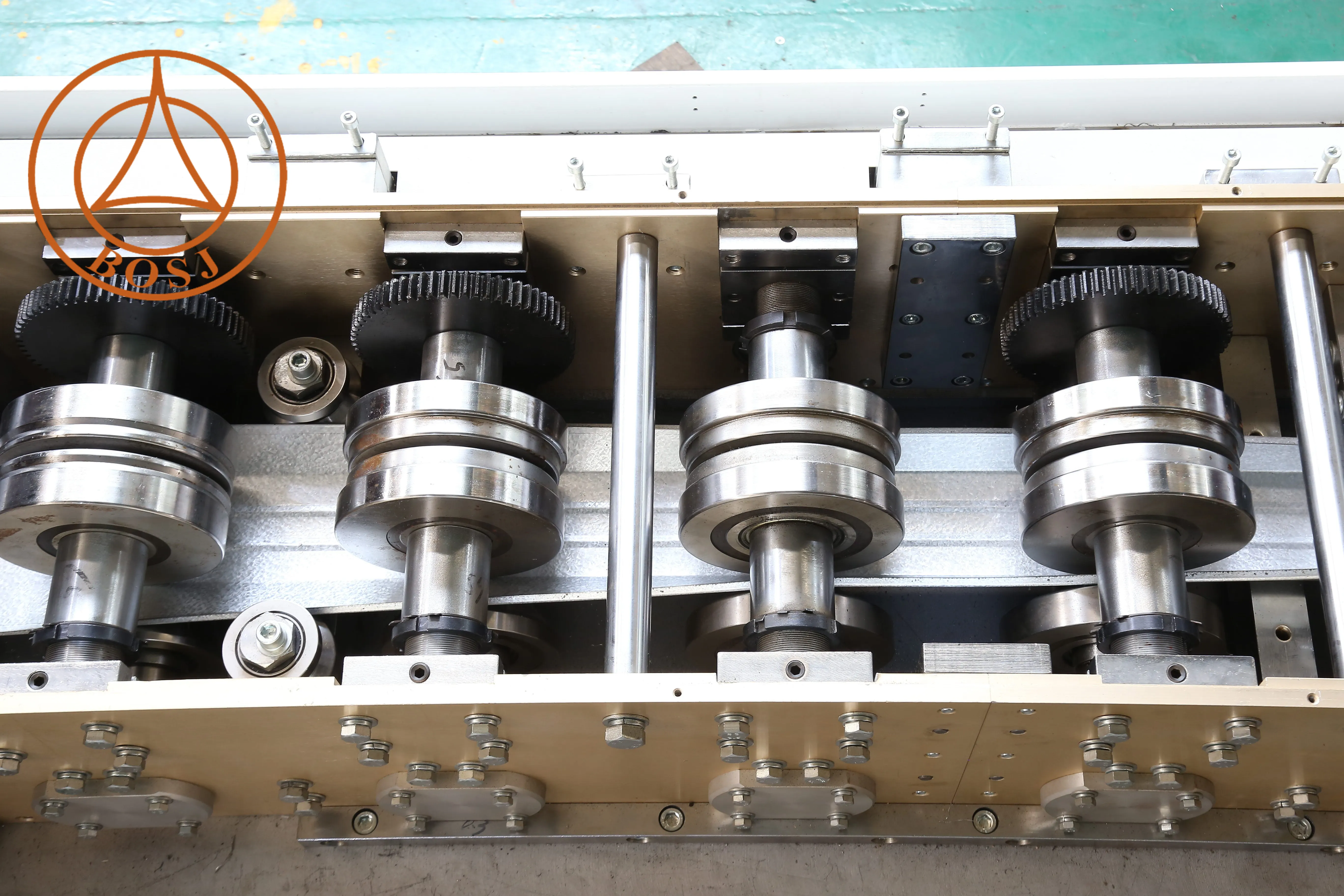

Transmission | Gear transmission + chain drive | ||
Speed | 40m/min(without punching and cutting) | ||

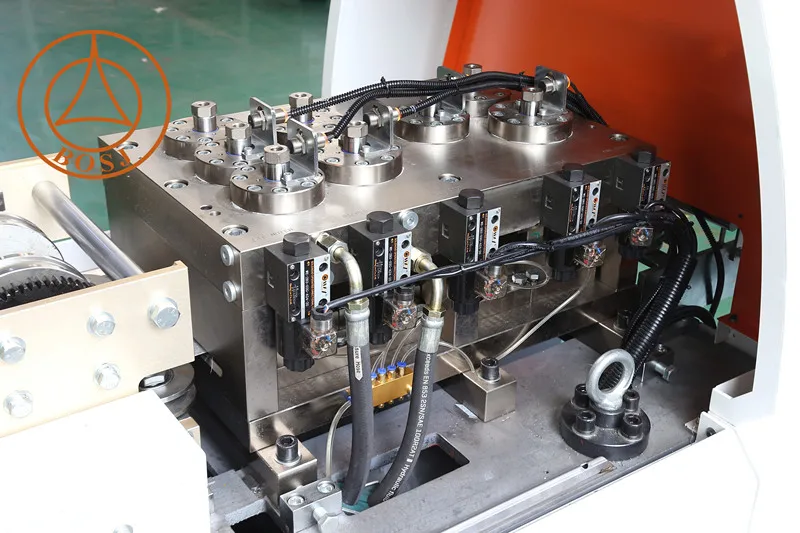

High speed continuous punch tools:
Service hole punch
Left & right lip notch punch
Web notch punch
Truss end cut punch
Flange dimple hole punch
Shear cut
End crimp punch
Service hole punch
Left & right lip notch punch
Web notch punch
Truss end cut punch
Flange dimple hole punch
Shear cut
End crimp punch
Software
Successful Project
Major Building Applications of BOSJ LGS Machine System
* Low Rise Residential Building Structures
* Mid Rise Residential Building Structures
* Student Staff Accommodation Facilities
* Floor Roof Truss production
* Portable Buildings Cabins
* Light Medium Column Beam Warehouse Structures
* Light Medium Modular Building Structures
* Light Medium Commercial and Industrial Building Structures
* Mid Rise Residential Building Structures
* Student Staff Accommodation Facilities
* Floor Roof Truss production
* Portable Buildings Cabins
* Light Medium Column Beam Warehouse Structures
* Light Medium Modular Building Structures
* Light Medium Commercial and Industrial Building Structures
