Паровой бойлер для горячей воды с защитой окружающей среды
US $4000-$5000
Промышленный вертикальный тепловой Масляный нагреватель на биомассе масляный
- Категория: Boilers >>>
- Поставщик: Henan,Faith,Thermal,Energy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.83 $* |
| Aug-16-2025 | 0.29 $* | 0.84 $* |
| Jul-16-2025 | 0.81 $* | 0.47 $* |
| Jun-16-2025 | 0.49 $* | 0.17 $* |
| May-16-2025 | 0.52 $* | 0.49 $* |
| Apr-16-2025 | 0.43 $* | 0.7 $* |
| Mar-16-2025 | 0.11 $* | 0.87 $* |
| Feb-16-2025 | 0.12 $* | 0.23 $* |
| Jan-16-2025 | 0.0 $* | 0.77 $* |
Характеристики
1. Agriculture: Breeding, greenhouse planting, seed factory.
2. Chemical industry: Fertilizer Plant, refinery, feed factory, coating factory, plastic factory, glass factory.
3. Manufacturing: Paper Mill, textile factory, food factory, shoe factory, ceramic factory furniture factory.
4. Construction Industry: Highway Use, site use.
5.Others: Accommodation and catering, bath cente, hotel, disinfection of medical instruments and clothing.
3. Manufacturing: Paper Mill, textile factory, food factory, shoe factory, ceramic factory furniture factory.
4. Construction Industry: Highway Use, site use.
5.Others: Accommodation and catering, bath cente, hotel, disinfection of medical instruments and clothing.
Description | YGL-240MA | YGL-350MA | YGL-500MA | YGL-700MA | YGL-1000MA | YGL-1200MA | YGL-1400MA | |||||||
Rated Thermal Power | Kw | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 | ||||||
Heat Value | 10*4Kcal/h | 20 | 30 | 40 | 60 | 80 | 100 | 120 | ||||||
Heat Efficiency | % | 73.8 | 78 | 78 | 79.31 | 79.31 | 79.31 | 79.31 | ||||||
Rated Working Pressure | Mpa | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | ||||||
Rated Output Oil Temp. | ℃ | 290 | 320 | 310 | 320 | 320 | 300 | 290 | ||||||
Medium Circulation | m³/h | 15.41 | 36.78 | 40.267 | 44.956 | 71 | 70.58 | 82.35 | ||||||
Heating Area | m² | 25.87 | 29.26 | 44.7 | 53.47 | 71.07 | 73.29 | 86.83 | ||||||
Available fuel | II Type Soft Coal/Biomass pellet/Rice Husk/Bagasse etc | |||||||||||||
Medium Volume In Boiler | m³ | 0.24 | 0.32 | 0.34 | 0.51 | 0.75 | 0.72 | 0.83 | ||||||
Max Shipping Size | mm | 1695x1514x2927 | 1760×2044×4908 | 17490×2095×5517 | 3969×2234×7591 | 2034×2391×3164 Ø2034×1500 | 2235×2100×3098 2605×1990×1108 | 2235×2100×3308 2790×2155×1358 | ||||||
Name | Hydrogen Boiler for Heating waste Oil induction heating boiler |
Pressure | 0.7Mpa-2.5Mpa |
Fuel | Coal, Biomass pellet, Rice Husk, Bagasse, etc. |
Power | 350kw/h-1400kw/h (0.35mw/h - 1.4mw/h) |
Description:

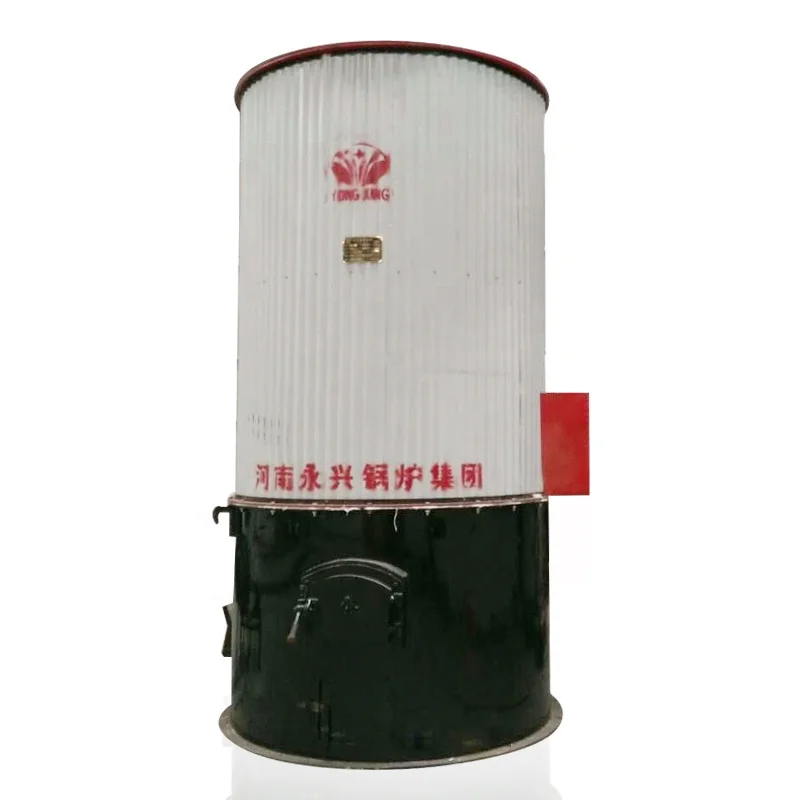

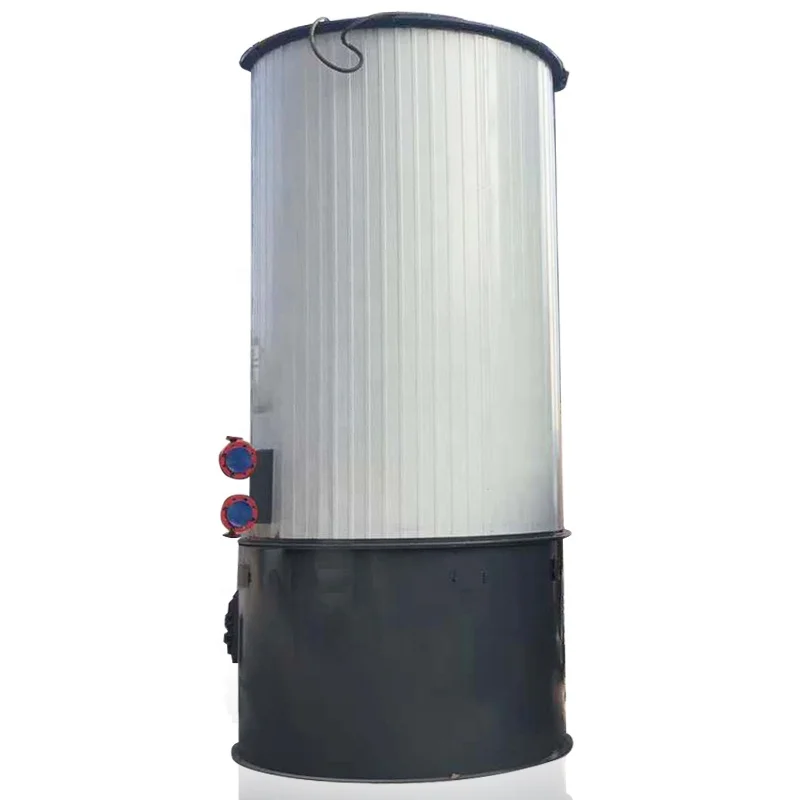

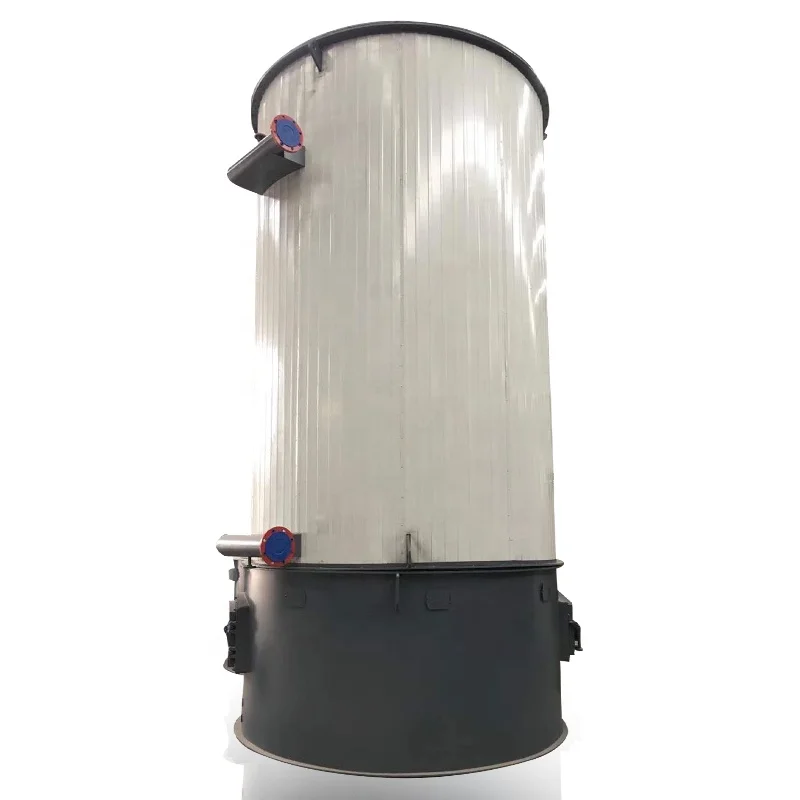

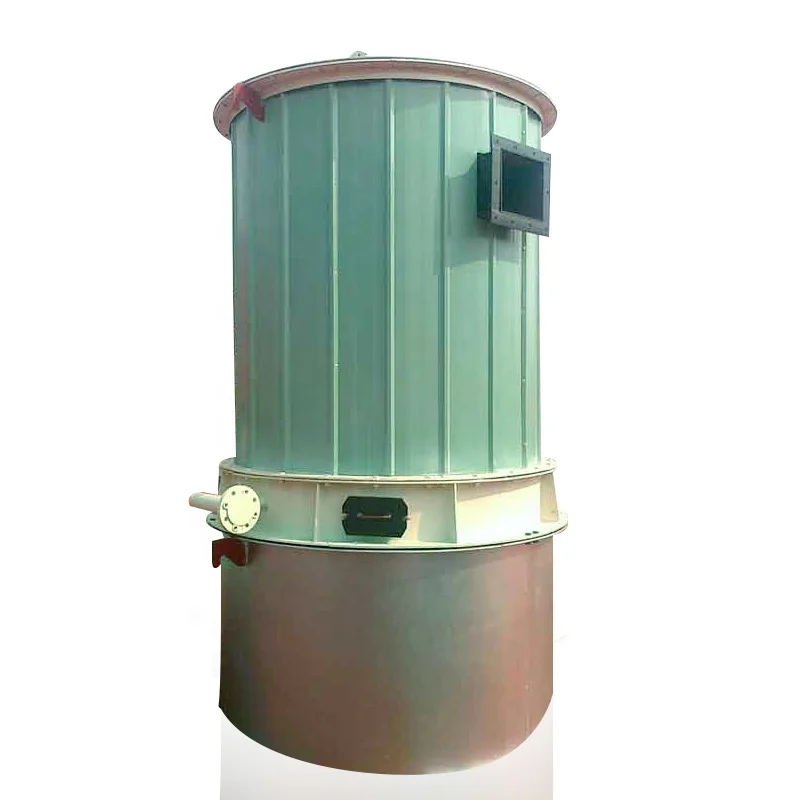

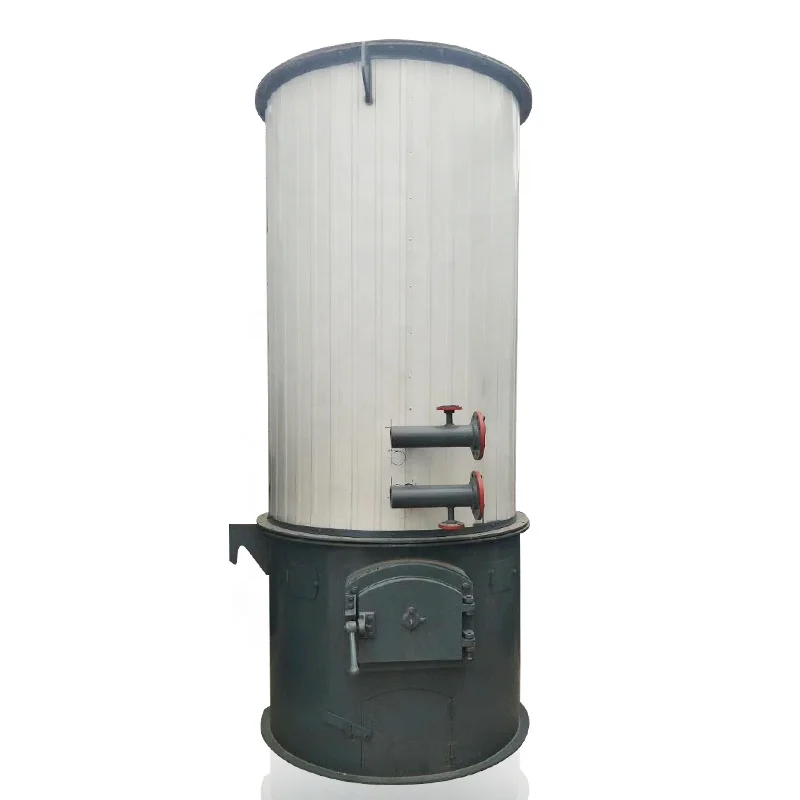

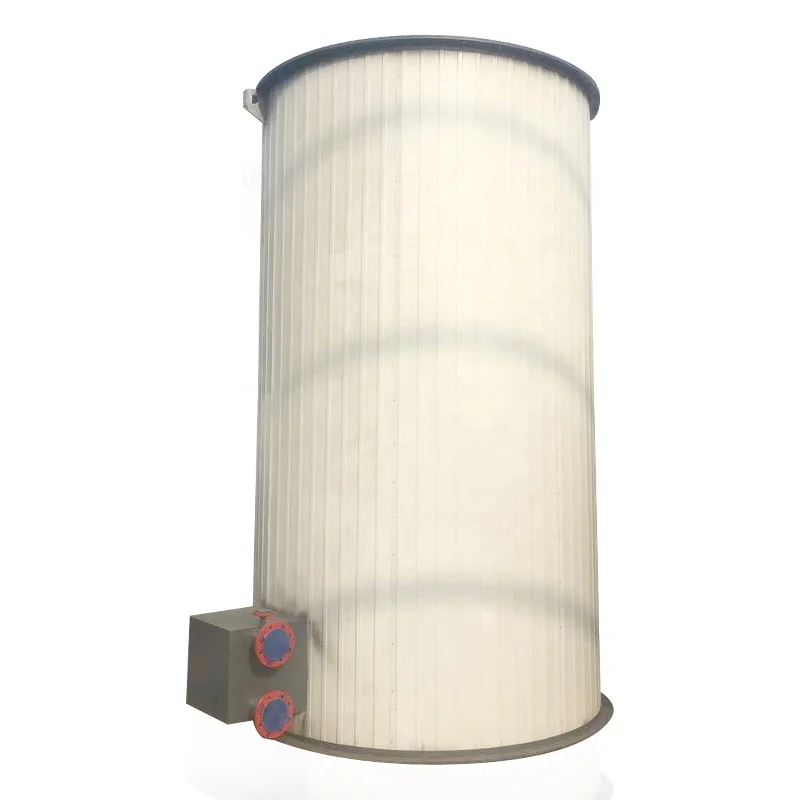

YGL series organic heat transfer material coal boilers are assembly type forced circulation vertical fixed grate manually feeding boilers. The boiler body structure is compact, heating surface is formed by the internal and external heating densely disc tube, inside pipe is for radiation heating, outside tube and the outer surface of inside tube form the convection heating surface. Boiler is made of the upper body and the lower part combustion chamber, field assembly. After fuel bum full in the combustion chamber, and radiation heating surface absorb most of the quantity of heat, flue gas of high temperature enter into the convection heating surface, the flue gas will be sent to chimney through the filter by induced draft fan and then will be discharged into the atmosphere.
The product heating surface uses densely disk tube, heating wall piping be distributed fully, reduce heat load of the heating tube surface, make the using of oil heat more safe. Medium flow is reasonable, heat conduction oil flow from low to high, gas produced during operation can be discharged out of the efficiency of the boiler. Organic heat transfer material has many other advantages of good performance of thermal stability, has good heat transfer performance, low pressure, avirulent insipidity, no corrosion of equipment. Organic heat transfer material heating system has the incomparable advantage in industrial applications, it can gain higher temperature under low working pressure. For the stability of heating and accurate temperature control, in all levels of load thermal efficiency can maintain in the best condition, and have complete operating control and safety monitoring devices.
YGL series coal organic heat carrier furnaces are mainly used in: chemical industry-polymerization industry, oil industry, asphalt melting, reaction tank, distillation, enrichment; plastic industry-plastic extruded to finalize the design; Textile industry-resin stenters, dyeing, vegetable oil refining; Wood industry-heating to finalize the design of chipboard, sandwich plate, Wamu board, fiber, Building materials industry, air conditioning industry, electroplating, steel picking and other surface treatment and various drying industry.
The product heating surface uses densely disk tube, heating wall piping be distributed fully, reduce heat load of the heating tube surface, make the using of oil heat more safe. Medium flow is reasonable, heat conduction oil flow from low to high, gas produced during operation can be discharged out of the efficiency of the boiler. Organic heat transfer material has many other advantages of good performance of thermal stability, has good heat transfer performance, low pressure, avirulent insipidity, no corrosion of equipment. Organic heat transfer material heating system has the incomparable advantage in industrial applications, it can gain higher temperature under low working pressure. For the stability of heating and accurate temperature control, in all levels of load thermal efficiency can maintain in the best condition, and have complete operating control and safety monitoring devices.
YGL series coal organic heat carrier furnaces are mainly used in: chemical industry-polymerization industry, oil industry, asphalt melting, reaction tank, distillation, enrichment; plastic industry-plastic extruded to finalize the design; Textile industry-resin stenters, dyeing, vegetable oil refining; Wood industry-heating to finalize the design of chipboard, sandwich plate, Wamu board, fiber, Building materials industry, air conditioning industry, electroplating, steel picking and other surface treatment and various drying industry.
Three coil pipes
Bigger heating surface to improve boiler efficiency and the third pipes protect front smoke box and whole box shell from burnt deformation.
Wet back structure
Reduce boiler tail temperature and protect rear smoke from burn out.
Convenient Installation and Shorter Installation Cycle
During installation just close together the upper body and the lower combustion chamber.
2tph steam boiler in UZ
4tph diesle steam boiler in Kenya
25tph steam boiler in Myanmar
Vertical coal fired steam boiler in Chile
3mkcalph coal fired thermal oil boiler in Vietnam
2tph biomass boiler in Togo
1200kw diesel fired thermal oil boiler in Zimbabwe
2tph coal steam boiler in Philippines
10tph steam boiler in Ukraine
25tph coal fired steam boiler in Bangladesh
Electrical steam boiler in Ethiopia
2x12m wood treatment equipment in Zambia
Q1: What is the highest temperature that thermal oil heater could achieve?
Our thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa) YY(Q)W series horizontal type oil gas fired thermal fluid heater.
Q2: What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃. The highest heat resistance temperature of furnace could be about 1700℃~1800℃.
Q3: What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
Q4: What about the delivery?
Q2: What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃. The highest heat resistance temperature of furnace could be about 1700℃~1800℃.
Q3: What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
Q4: What about the delivery?
We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no
problem for us.
problem for us.
Q5: What about the maintenance?
I will offer you the timely maintenance way sheet after installation of the boiler mainly part.
