Пластиковый гранулированный смеситель гравиметрический блендер для производства литья под давлением весы гравиметрическая
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Guangdong,Xiaojuren,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 9758.99 $* | 10246.86 $* |
| Aug-18-2025 | 9676.40 $* | 10160.99 $* |
| Jul-18-2025 | 8118.24 $* | 8524.35 $* |
| Jun-18-2025 | 9512.49 $* | 9988.83 $* |
| May-18-2025 | 8282.91 $* | 8696.67 $* |
| Apr-18-2025 | 9348.48 $* | 9815.48 $* |
| Mar-18-2025 | 9266.42 $* | 9729.62 $* |
| Feb-18-2025 | 9184.64 $* | 9643.86 $* |
| Jan-18-2025 | 9102.79 $* | 9557.10 $* |
Характеристики
Model | HGB-50 | HGB-100 | HGB-200 | HGB-400 | HGB-600 | HGB-800 | HGB-1200 | HGB-2000 | |||||||
Components | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||
Mixing Capacity (L/hr) | 50 | 100 | 200 | 400 | 600 | 800 | 1200 | 2000 | |||||||
Batch Weight (L) | 0.6 | 1.2 | 2.2 | 4.5 | 6 | 8 | 12 | 20 | |||||||
Main Material Dosing Range (%) | 5~100 | 5~100 | 5~100 | 5~100 | 5~100 | 5~100 | 5~100 | 5~100 | |||||||
Additive Dosing Range (%) | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | |||||||
Main Hopper Volume (L) | 18 | 25 | 32 | 45 | 70 | 100 | 130 | 160 | |||||||
Additive Hopper Volume (L) | 18 | 25 | 32 | 45 | 70 | 100 | 130 | 160 | |||||||
Mixing barrel Volume (L) | 6 | 6 | 20 | 20 | 40 | 40 | 80 | 80 | |||||||
Power Supply (V/Hz) | 1Φ | 1Φ | 1Φ | 1Φ | 1Φ | 1Φ | 3Φ | 3Φ | |||||||
230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 400/50 | 400/50 | 400/50 | ||||||||
Total Power (KW) | 0.12 | 0.12 | 0.25 | 0.25 | 0.55 | 0.55 | 1.5 | 1.5 | |||||||
Compressed Air (kgf/cm2) | 6~8 | ||||||||||||||
Max.Noise Level (dB) | <75 | ||||||||||||||

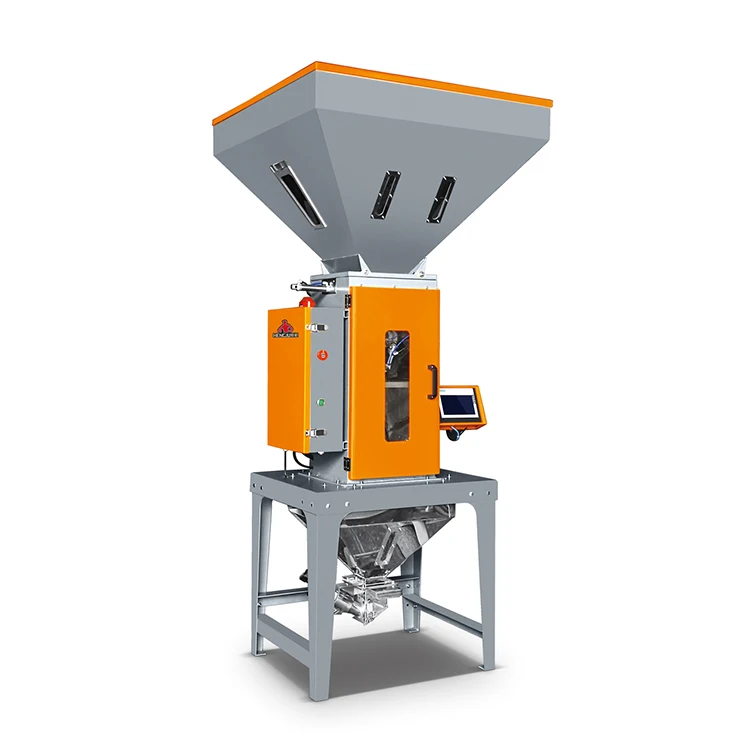

Gravimetric blender
Gravimetric blender is a kind of equipment for mixing various materials. It can automatically mix the main material, color
masterbatch, additive or outlet material of plastic raw materials in proportion. It is suitable for injection molding, extrusion
or blow molding production .
masterbatch, additive or outlet material of plastic raw materials in proportion. It is suitable for injection molding, extrusion
or blow molding production .
Feature:

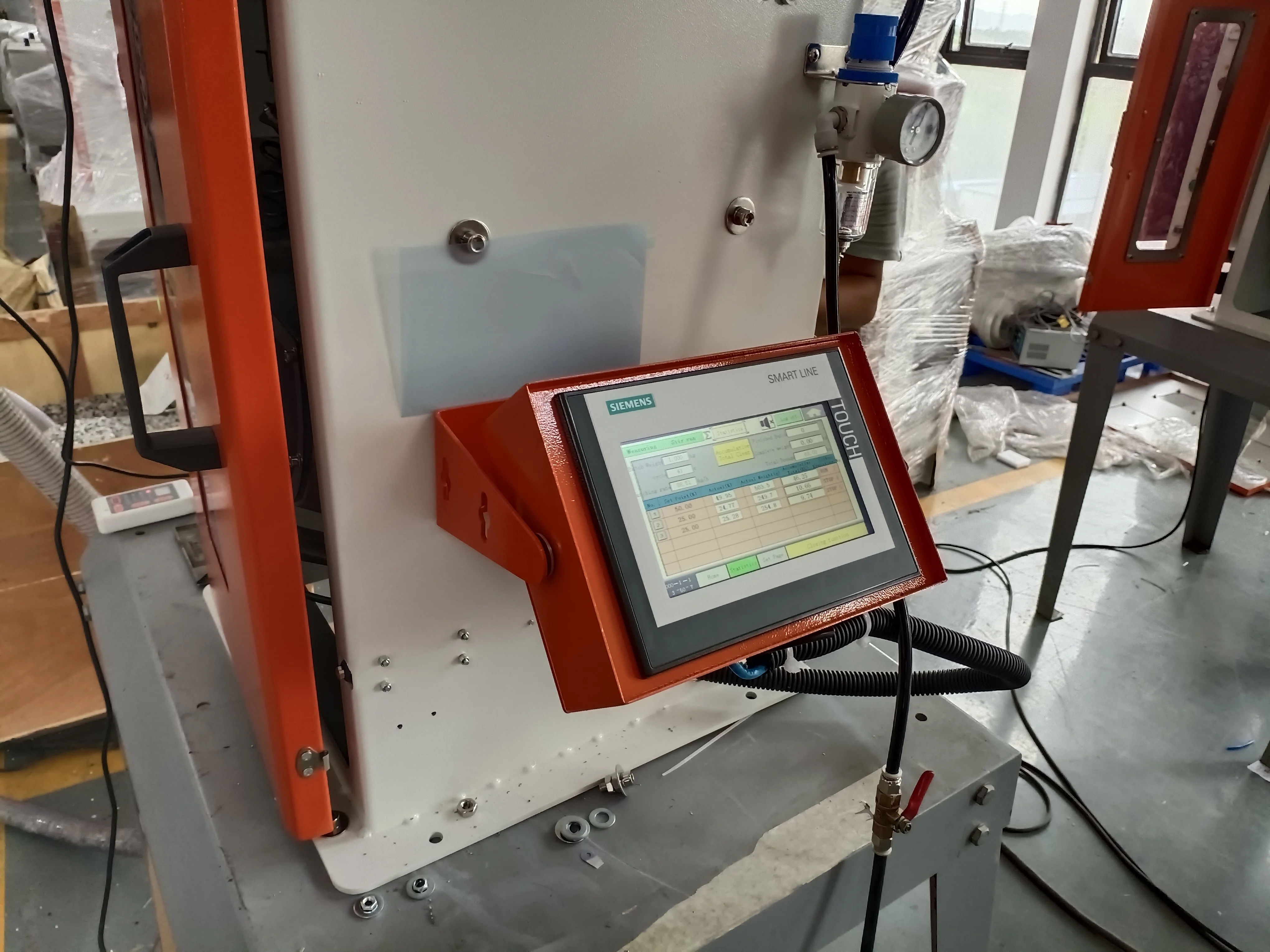

1.It is displayed in the form of color graphics and operated by touch screen.

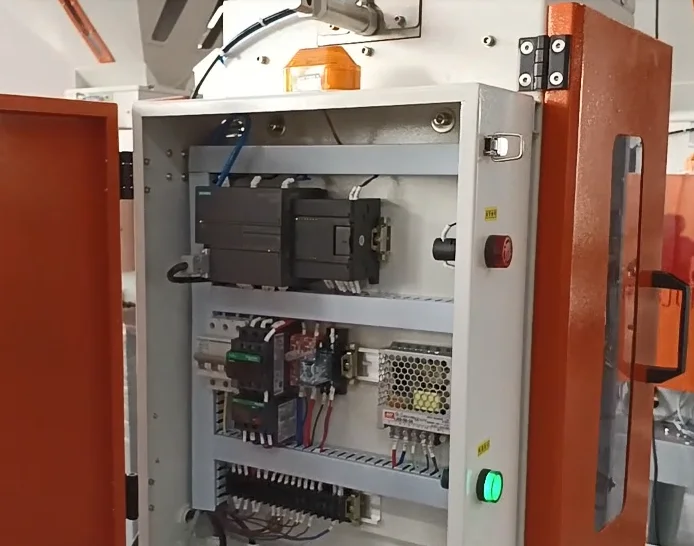

2.Adopted PLC controller, which is easy to operate, ensures stable and reliable performance, and is easy to maintain.
3.Using advanced control algorithm, self-optimized adjustment and compensation, the ingredients are highly accurate and evenly mixed, and the error is controlled at 0.05%.
4.It can dose 4-8 components raw materials, automatically record weight, time and other data during the mixing process, and support data export.
5.With more than 100 groups of formula storage function, can be hierarchical password management to achieve the secret function of the formula.
6.It has the alarm function of material shortage.
7.Modular and detachable structure design, saving space and easy to clean.
2.Adopted PLC controller, which is easy to operate, ensures stable and reliable performance, and is easy to maintain.
3.Using advanced control algorithm, self-optimized adjustment and compensation, the ingredients are highly accurate and evenly mixed, and the error is controlled at 0.05%.
4.It can dose 4-8 components raw materials, automatically record weight, time and other data during the mixing process, and support data export.
5.With more than 100 groups of formula storage function, can be hierarchical password management to achieve the secret function of the formula.
6.It has the alarm function of material shortage.
7.Modular and detachable structure design, saving space and easy to clean.
Working principle:

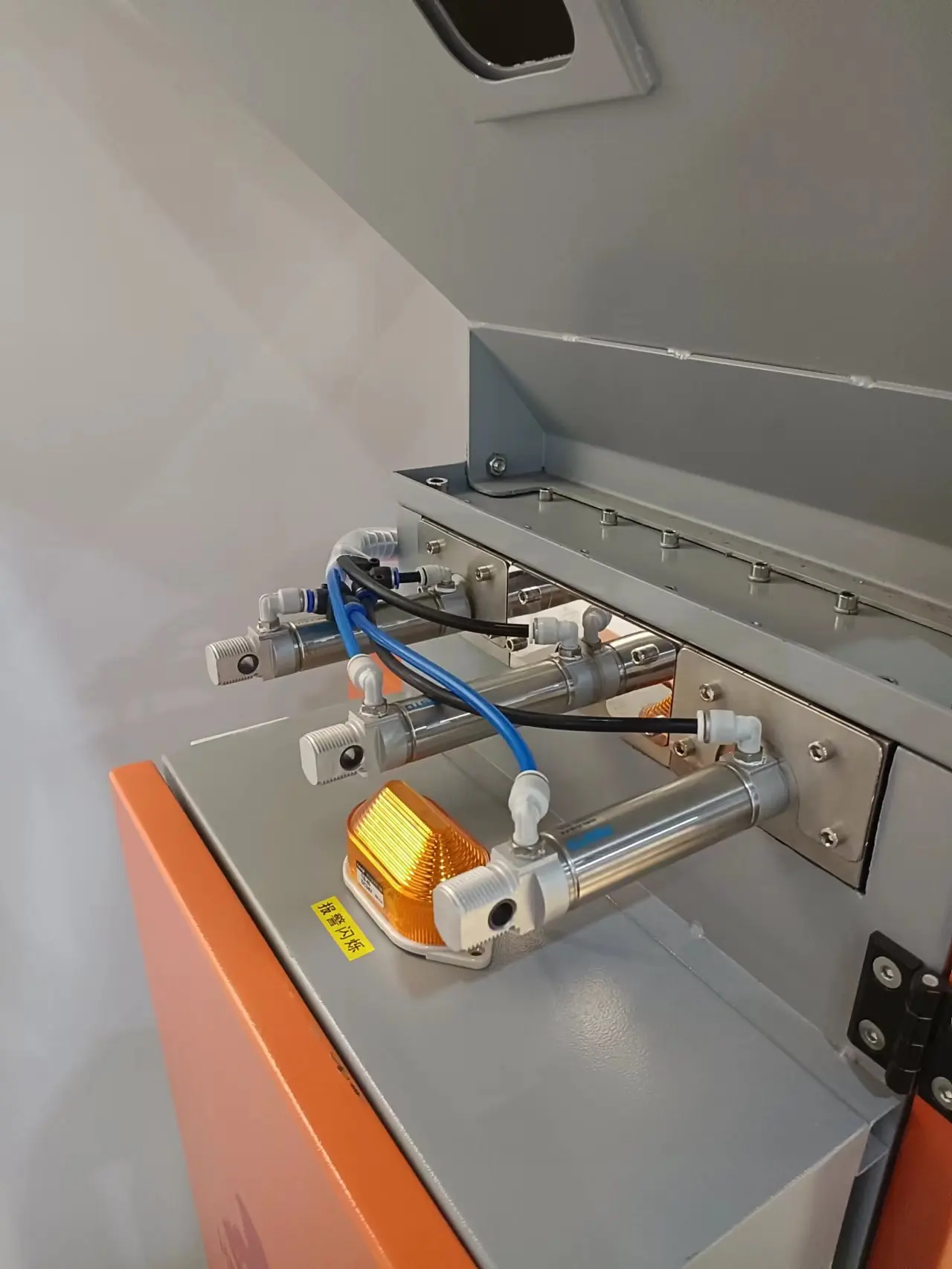

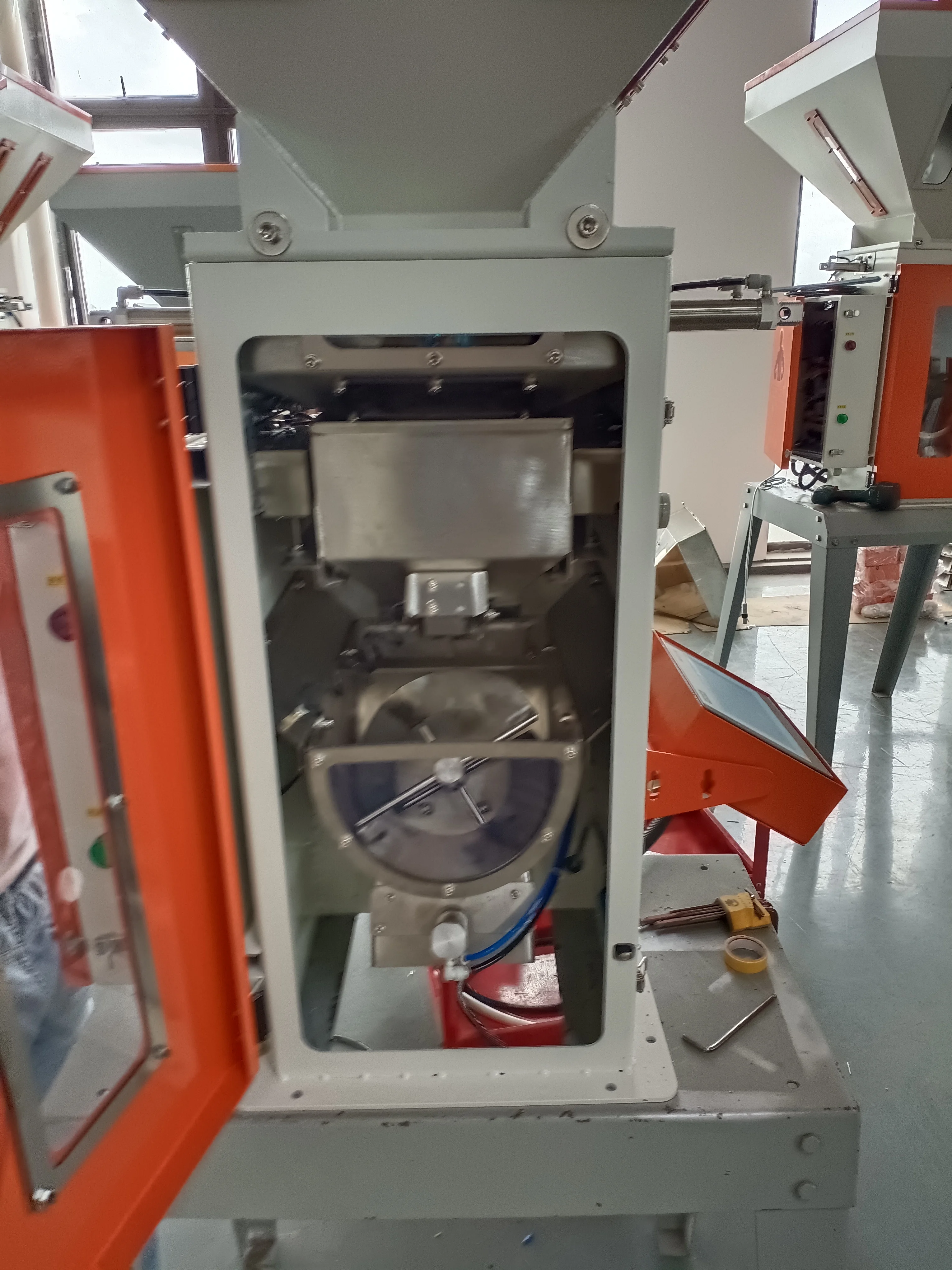

After the user enters the proportion of each raw material, gravimetric blender will automatically calculate the weight of the required proportion of various raw materials, and distribute the raw materials to the weighing hopper by controlling the metering valve. After calculating the proportion, the material is fed into the mixing chamber Mix, discharge and unload after the stirring is completed.
Company introduction:
Since its establishment, Hengju has been focusing on the research and development of dehumidifying & drying, dosing & mixing and central conveying systems to make products closer to customer’s demand and customize complete automation solutions for customers.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Relying on strong professional technology and stable quality, we have won high comments from customers at home and abroad.Covering industries include auto parts, chemical industry, pelletizing, new energy, new materials, etc., and excellent performance in bio-degradable plastics such as PLA, PBAT, and pipe/sheet/cable extrusion and other fields!
