GEETIEN Дрон распылитель T40 Combo agra сельское хозяйство
- Категория: Agricultural Machinery & Equipment >>>
- Поставщик: Jiangsu,Jitian,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 9639.85 $* | 10121.40 $* |
| Aug-16-2025 | 9558.14 $* | 10036.25 $* |
| Jul-16-2025 | 8019.50 $* | 8420.34 $* |
| Jun-16-2025 | 9396.31 $* | 9866.66 $* |
| May-16-2025 | 8181.38 $* | 8590.76 $* |
| Apr-16-2025 | 9234.97 $* | 9696.23 $* |
| Mar-16-2025 | 9153.50 $* | 9611.29 $* |
| Feb-16-2025 | 9072.81 $* | 9526.79 $* |
| Jan-16-2025 | 8991.36 $* | 9441.50 $* |
Характеристики
Drone Sprayer Factory
Welcome your Visit
FAQ
1-Flight Time / Speed /Height
Full-load Spraying Hover Time:8.5Min
Full-load Spread Hover Time:7Min
No-load Hover Time:21min
2-Battery
18S ,30000mAh , 68.4V, 21kwh Lithium Battery
can be cycled 1000 times
13 minutes to fully charge a battery

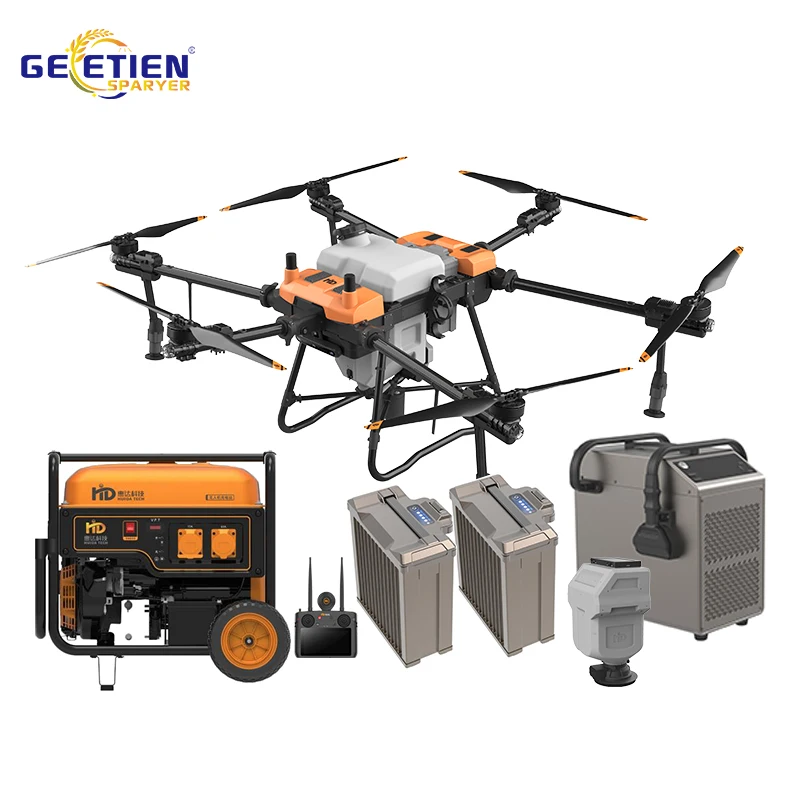

Recommended purchasing quantity
2 Batteries ,1pcs Generator and 1pcs Charger
4 batteries and 1pcs Charger
The Battery posses bigger eletric power and super charge capability,which is built smarter,stronger and safer.2 batteries charged at the same time realize non-stop operations in fields
3-Generator
Multiple selection: 220V / 380V input is supported
38L large fuel tank, the maximum rated power is 8500W
220V 8000W - Directly connect to the generator
220V 8000W - Directly connect to the generator
220V 2200W - Directly connect to the mains
4-Charger
Input Voltage :Support 220V / 380V
Maximum Power :8000W
5-Tank Capacity
We provide both 40L spray tank and 60L/50kg fertilizer tank.
6-Operation Efficienc
Max Operation efficiency:330Mu/h or 22Ha/h
7-Max Take-off Weight
Spraying:88Kg
Spreading:95kg
60L/50Kg Fertilizer Tank
40L Spray Tank
Nozzle Types
Centrifugal Nozzles
Number Of Nozzles:2 / 4 Nozzles
Max Flow:13.5L/Min
Maximum Spray Amplitude:12M
High Pressure Nozzles
Number Of Nozzles:4 Nozzles
Max Flow:8L/Min
Maximum Spray Amplitude:11M
Maximum Spray Amplitude:11M
FPV HD Camera
Equipped with the FPV HD camera and landing light to ensure night timeoperation safe and reach the real-time monitoring through the LCD Screen.
Product Paramenters
AIRCRAFT PARAMETERS | ||
Architecture Layout | Six-axis layout | |
Maximum Wheelbase | 2260mm | |
Overall Dimension | 3050mm X 2940mmX830mm (arm unfolded, blade unfolded) 1450mm×1000 mm×1000mm(packing) | |
Capacity Of Pesticide Container | 40L | |
Capacity Of Seed Container | 60L | |
Weight Of Machine | 34KG | |
FLIGHT PARAMETERS | ||
Hovering Accuracy | RTK: Horizontal ±10cm, Vertical ±10cm Radar: ±0.1m | |
Hovering Under Spraying And Full Load | 8.5min | |
Hovering Under Spreading And Full Load | 7min | |
No-load Hovering | 18min | |
Maximum Operation Efficiency | 22 ha/h | |
Ranging Accuracy Of Ground Simulating Radar | 0.1m | |
Fixed Height Range | 1-30m | |
Obstacle Avoidance Perception Range | 1-30m | |
Graphic Transmission | >1.5KM | |
Maximum Take-off Weight | Spraying:88kg Sowing:95kg | |
SPRAYING SYSTEM | ||
Nozzle Type | Centrifugal nozzle | |
Number Of Nozzles | 4 nozzles | |
Max. Flow | 13.5L/min | |
Maximum Spray Amplitude | 11m | |
GENERATOR | ||
Nominal Power | 220V/8000W (direct connection to generator) 220V/2200W (direct connection to mains)" | |
Tank Capacity | 38L | |
Reference Fuel Consumption | 500ml/kWh | |
SMART BATTERY | ||
Battery Weight | 13KG | |
Power Battery | 68.4V/30000mAh 2.1kwh | |
Charging Duration | Lithium battery 20%-95% about 13min | |
HD540PRO CHARGER | ||
Input Voltage | Input Voltage | |
Maximum Power | Maximum Power | |
Products Description
Remote control operation display
After-Sales Service
Product packaging
Overseas technical support, lifetime online after-sales service;
Warranty: 3 years for agriculture drone frame; 12 months formain accessories;
Free training in our factory, including operation and maintenance, will takes 2 days; We can deliver the drone sprayer by sea, air or courier service according to your request.
If you want to know the exact freight, please send an inquiry with your address.
Company Profile
