Германия 600 Вт MPPT комплект солнечной системы гибкая панель для балкона и сада сетчатая домашняя система с 800
- Категория: Solar Energy Products >>>
- Поставщик: Xiamen,Empery,Solar,Technology,Co.,Ltd.Xiamen,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 33908.27 $* | 34586.37 $* |
| Jul-18-2025 | 27500.99 $* | 28050.52 $* |
| Jun-18-2025 | 33374.87 $* | 34041.6 $* |
| May-18-2025 | 33107.22 $* | 33769.3 $* |
| Apr-18-2025 | 26432.60 $* | 26961.56 $* |
| Mar-18-2025 | 32573.65 $* | 33224.94 $* |
| Feb-18-2025 | 32306.85 $* | 32952.9 $* |
| Jan-18-2025 | 32039.3 $* | 32680.57 $* |
Характеристики
Product Description
Balcony installation system kit parameters
| Product name | Description | Quantity |

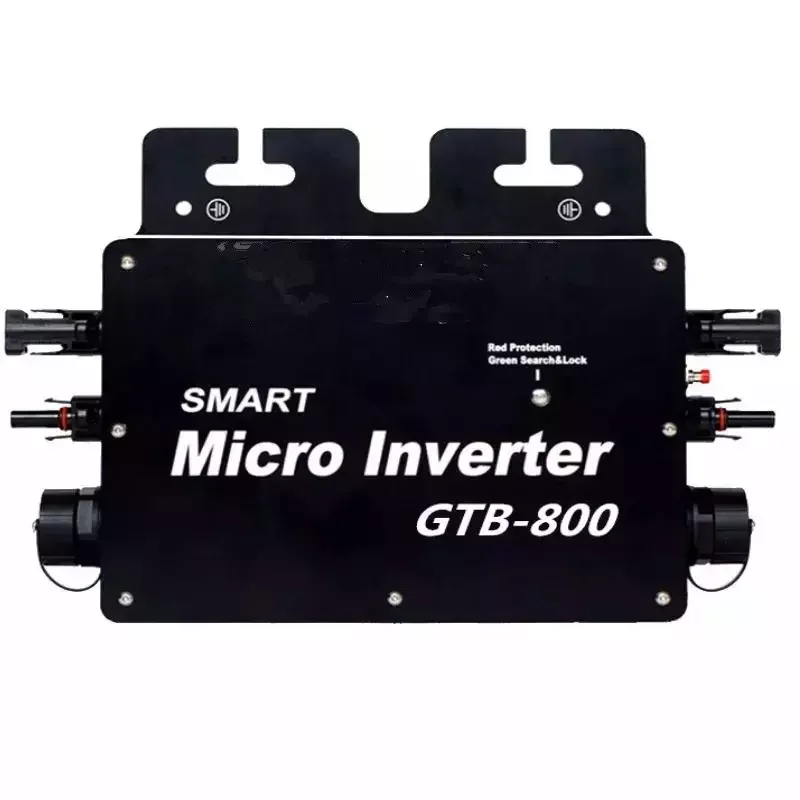

| Grid tied micro inverter | GTB-800 Smart 800W micro inverter | 1PCS |

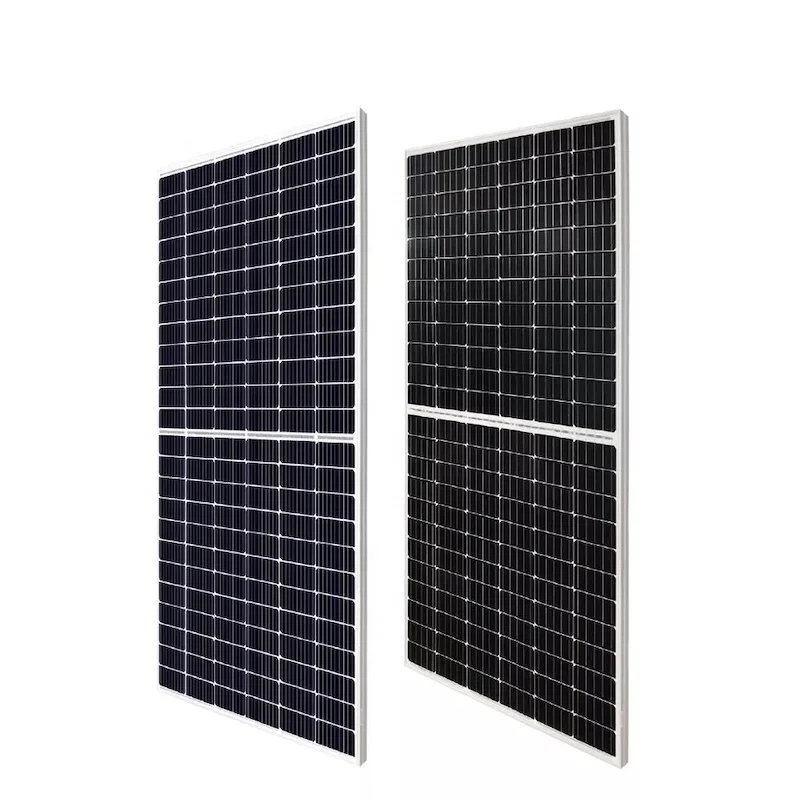

| Mono solar panel | STC400 Mono 400W solar panel | 2PCS |
| Balcony Mount Bracket | Inclined mounting(vertical mounting optional) | 2PCS |
| Grid tied micro inverter Input Voltage:22/50V Output Voltage:80/160VAC-180/280VAC Output Current:5/2.6A Output Frequency:48-51HZ/58-61HZ Size:310X200X40mm Inverter Efficiency:95% Certificate:CE Warranty:5 Years Weight:1.8KG Protection:IP65 |  |
Mono-crystalline silicon solar cells Maximum power at STC(Pmax):400W Optimum operating voltage(Vmp):37.78V Optimum operating current(Imp):10.59A Open-circuit voltage(Voc):43.50V Short-circuit current(Isc):11.33A Short-circuit current temperature coefficient:(0.065±0.015)%/℃ Open-circuit voltage temperature coefficient:-(80±10)mV/℃ Peak power temperature coefficient: -(0.5±0.05)%/℃ NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s): 47±2℃ Operating temperature :-40℃ to 85℃ Maximum system voltage :1000V DC Power tolerance :±3% Dimension of module: 1723mm×1134mm×35mm Weight :20.90kg |  |
| Balcony Mount Bracket(vertical mounting) Installation Site: Balcony Panels: Solar panel for any size Structural materials: Aluminum Survival wind speed:Up to 50m/s Design snow pressure: Up to 1.4KN /m2 Inclination:0°-60deg Certificate: CE TUV UL Warranty: 15 years Life: Design Life for 25 years |  |
Project Case
Project Categories
Company Information

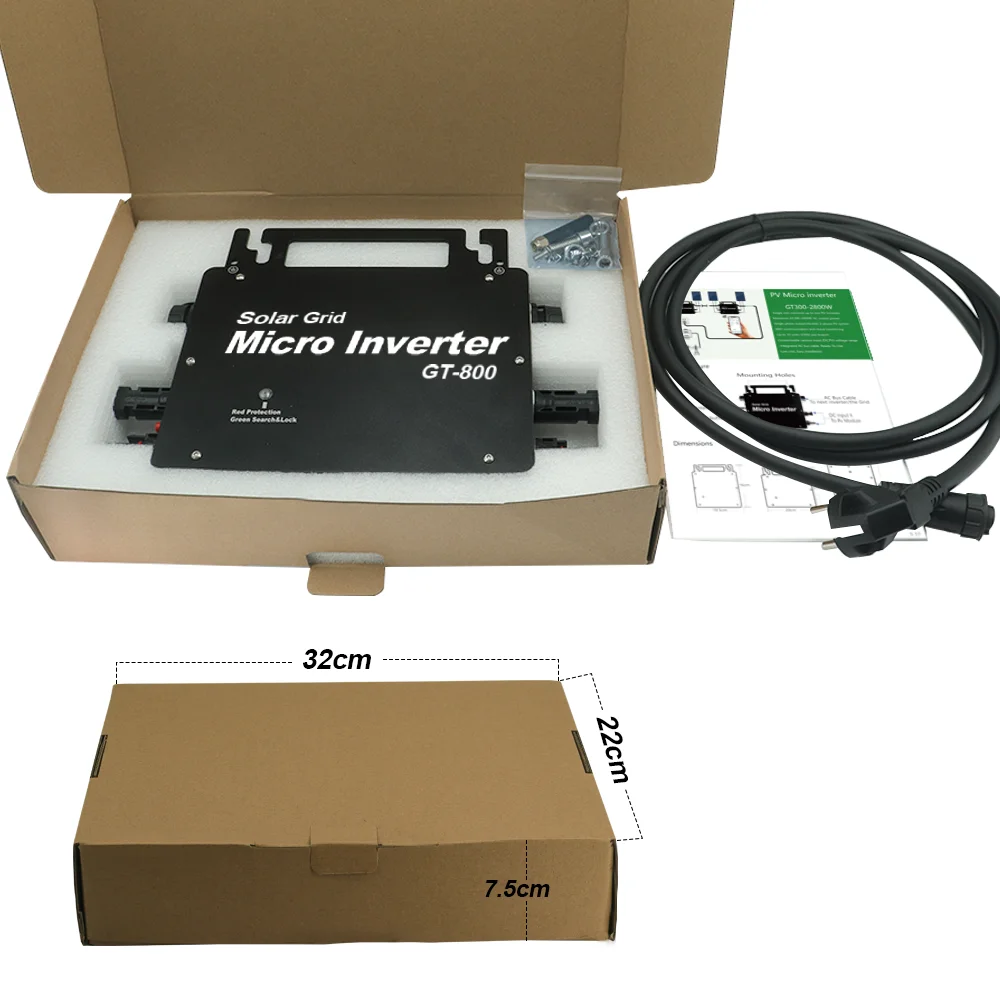

Packaging & Shipping
FAQ
