Полностью автоматический паровой котел на сжиженном

Полностью автоматический паровой котел на сжиженном

Категория: Boilers >>>
Поставщик: Xinxiang,Xinda,Boiler,Container,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.5 $*	0.49 $*
Aug-15-2025	0.49 $*	0.52 $*
Jul-15-2025	0.20 $*	0.43 $*
Jun-15-2025	0.43 $*	0.94 $*
May-15-2025	0.60 $*	0.48 $*
Apr-15-2025	0.6 $*	0.90 $*
Mar-15-2025	0.54 $*	0.74 $*
Feb-15-2025	0.50 $*	0.76 $*
Jan-15-2025	0.26 $*	0.19 $*

Характеристики

Products Description

Product description:

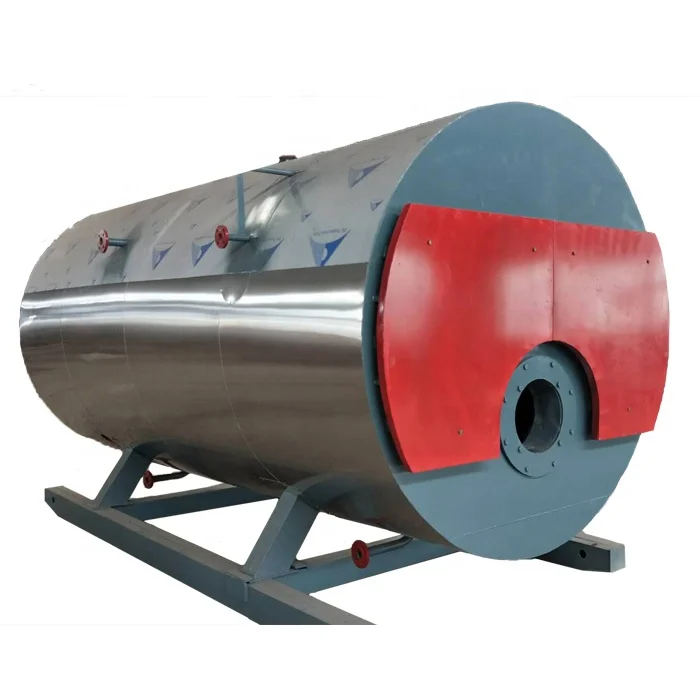

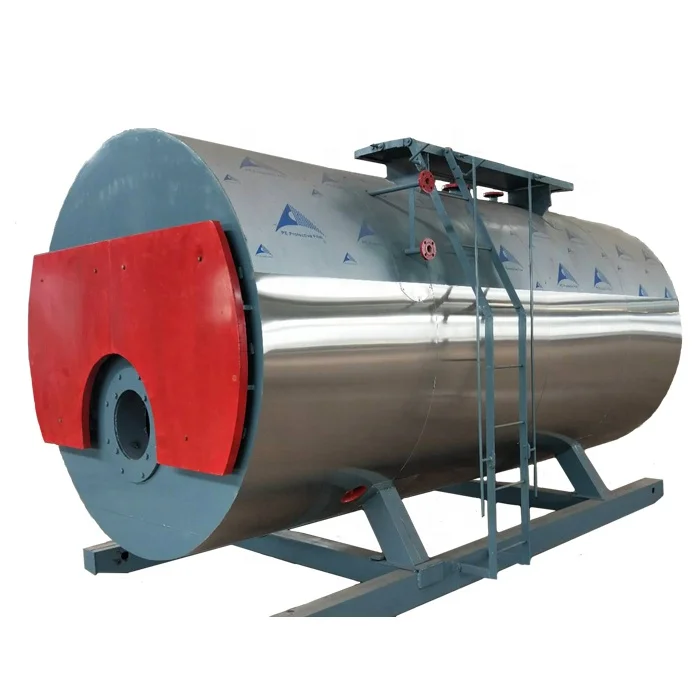

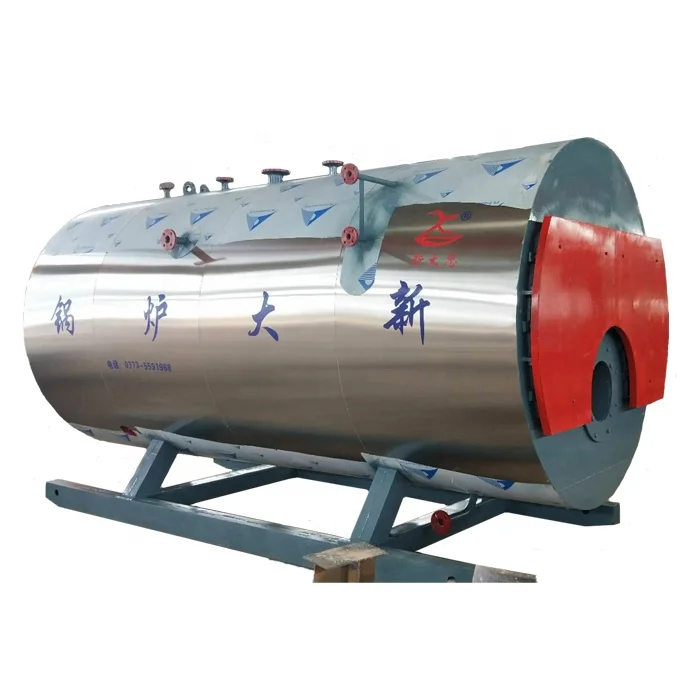

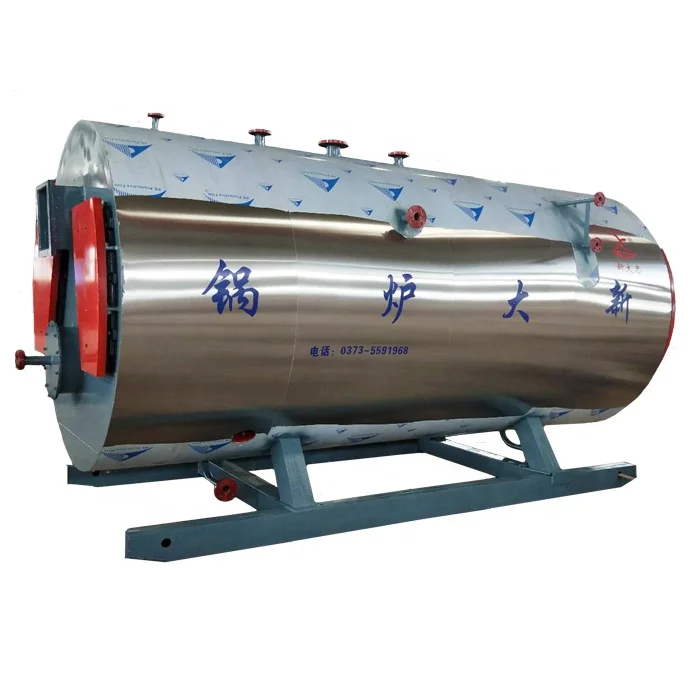

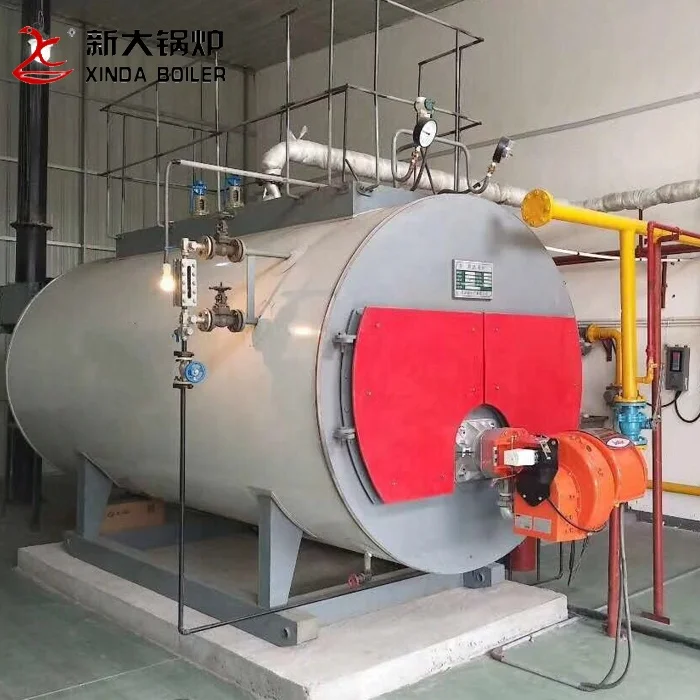

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Technical Parameters

Model	Rated	Rated	Rated	Thermal	Fuel Consumption
Model		Capacity (t/h)	Pressure (Mpa)	Temp. (C)	Efficiency (%)	Light oil (Kg/h)	Natural gas (Nm³/h)
WNS1	1	0.7/1.0/1.25	170/184/194	>96	45-100	18-100
WNS1.5	1.5	0.7/1.0/1.25	170/184/194			>96.2	101.73	123.47
WNS2	2	1.0/1.25/1.6	184/194/204	>96.2	137.09	165.97
WNS3	3					>96	205.75	249.6
WNS4	4					>96	272.3	329.5
WNS5	5					>96	134-402	80-500
WNS6	6					>96	134-402	80-500
WN8	8	1.25/1.6/2.5	194/204/225	>96	523.4	631.5
WNS10	10					>96	212-890	150-1085
WNS12	12					>96	915.5	1090
WNS15	15					>96	931.5	1094.4
WNS20	20					>96	1380.33	1598.44
