Гидросеяльная машина для восстановления лесов гидросеялка с контролем дизельного топлива
- Категория: Municipal Machinery >>>
- Поставщик: Henan,Qingshan,Lvshui,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 26180.58 $* | 27489.66 $* |
| Aug-15-2025 | 25960.95 $* | 27258.38 $* |
| Jul-15-2025 | 21780.13 $* | 22869.97 $* |
| Jun-15-2025 | 25520.79 $* | 26796.76 $* |
| May-15-2025 | 22220.45 $* | 23331.86 $* |
| Apr-15-2025 | 25080.51 $* | 26334.74 $* |
| Mar-15-2025 | 24860.36 $* | 26103.12 $* |
| Feb-15-2025 | 24640.0 $* | 25872.45 $* |
| Jan-15-2025 | 24420.74 $* | 25641.25 $* |
Характеристики
Product Overview

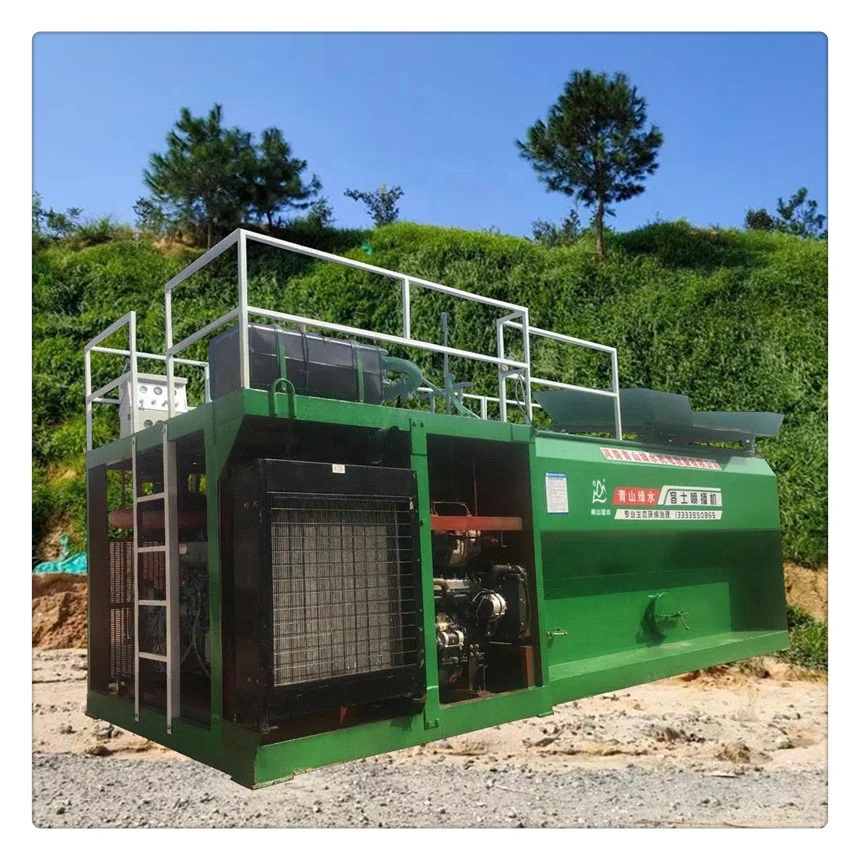

ZKP-80125 hydroseeeding machine
This hydroseeding machine use high power diesel engine and performance to help you work in the slope greening ,Its ability to fit distance spray makes it an excellent machine for mining ecological restoration,which is suitable for high steep slope.
FEATURES AT A GLANCE
LARGE VOLUME TANK
TRUCK STYLE
SAFETY FRAME
SIMPLE CONTROL
VERSATILITY
EXTENDING SPRAY GUN
EXCELLENT GENERAL SERVICE SEAL
HIGH-QUALITY ENGINE
SPRAY PERFORMANCE
Right elevation
Left elevation
construction site
PRODUCT SPECIFICATIONS
Box | Model | ZKP-80165(Truck load style |
Overall size | 5300×2000×2400mm | |
Volume | 8000L | |
Engine | Diesel Engine | DONGFANGHONG(china brand engine) |
Power | 125KW | |
Mixing Power | 40KW | |
Spray System | Spray Pressure | About 2.5Mpa |
Spray Pump Speed | 2000r/min Adjustable | |
Direct Spray Distance | Horizontal:60-80m Vertical:40-50m | |
Spray distance after connect pipe | Horizontal:120-200m Vertical:80-120m | |
Spray pump speed change | Clutch dirve | |
Mixing System | Mixing Way | Lie axle + circulate shooting flow |
Driving Way | Clutch drive | |
Mixing Speed | 0-60r/min Adjustable | |
Mixing Direction | Double direction three way(FWD/Reversal/N) | |
Mixing Speed Change | Clutch drive | |
Material | Weight Rate | 60% |
Material solid diameter | ≤20mm | |
Tools | Long distance spray gun | 1set |
Conical straight spray header | 2unit | |
Sector spray header | 1unit | |
Pipe | 20m | |
Random tool box | 1set(common tools and related parts) | |
Weight | 5500kg |
Performance and Feature:
1. Qingshan Lushui passenger soil spraying machine is divided into two types: mechanical and hydraulic;
2. The mixing mode of spiral blade stirring and reflux scour stirring is adopted to form three-dimensional stirring mix;
3. Driven by a single diesel engine, low fuel consumption, easy operation and maintenance, reduce the use cost and work cost;
4. 360° rotating universal sprinkler head, equipped with combined sprinkler head and pipe valve, easy to change the working surface;
5. Now we have single-stage pump and multi-stage pump specially pressurized core pump of the passenger-soil spraying machine Customers can have a large choice, which can spray the sticky material from the nozzle at high speed, with a direct range of 50m-80m.
2. The mixing mode of spiral blade stirring and reflux scour stirring is adopted to form three-dimensional stirring mix;
3. Driven by a single diesel engine, low fuel consumption, easy operation and maintenance, reduce the use cost and work cost;
4. 360° rotating universal sprinkler head, equipped with combined sprinkler head and pipe valve, easy to change the working surface;
5. Now we have single-stage pump and multi-stage pump specially pressurized core pump of the passenger-soil spraying machine Customers can have a large choice, which can spray the sticky material from the nozzle at high speed, with a direct range of 50m-80m.
PRODUCT CONFIGURATION
Dongfanghong high power engine
wear proof pump
spray gun

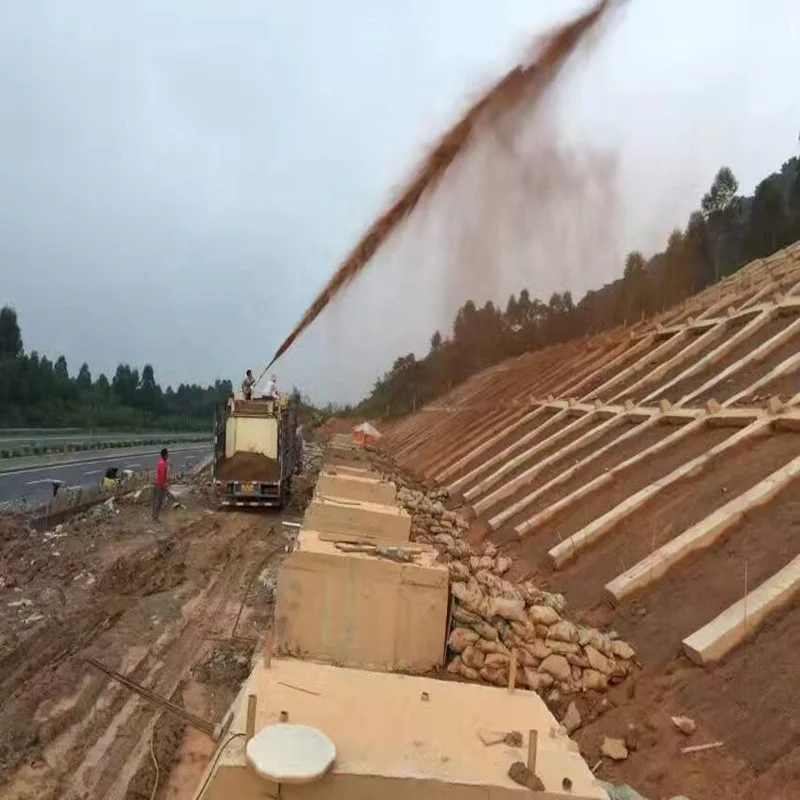

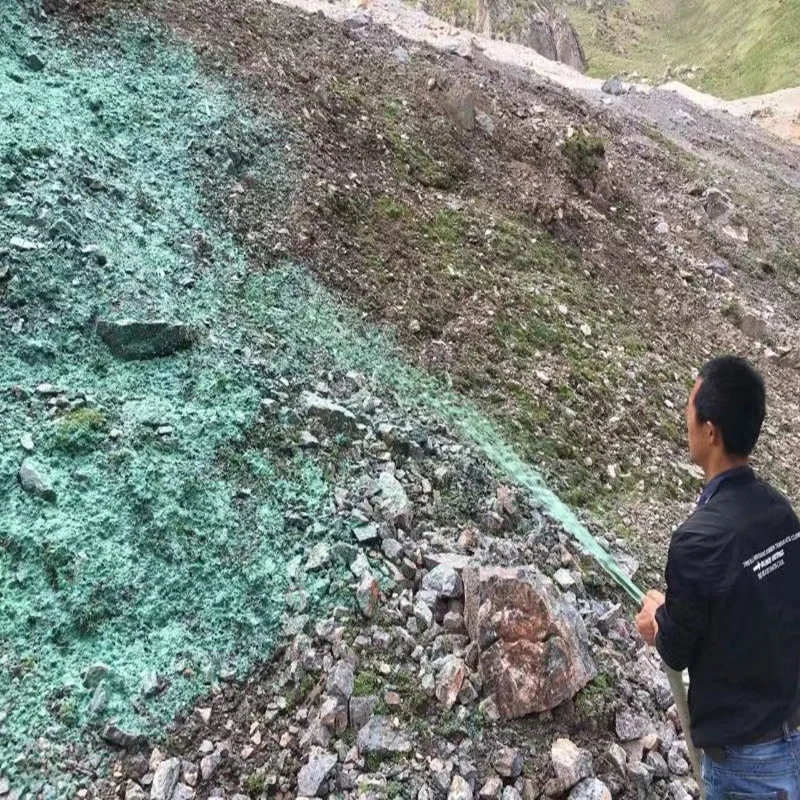

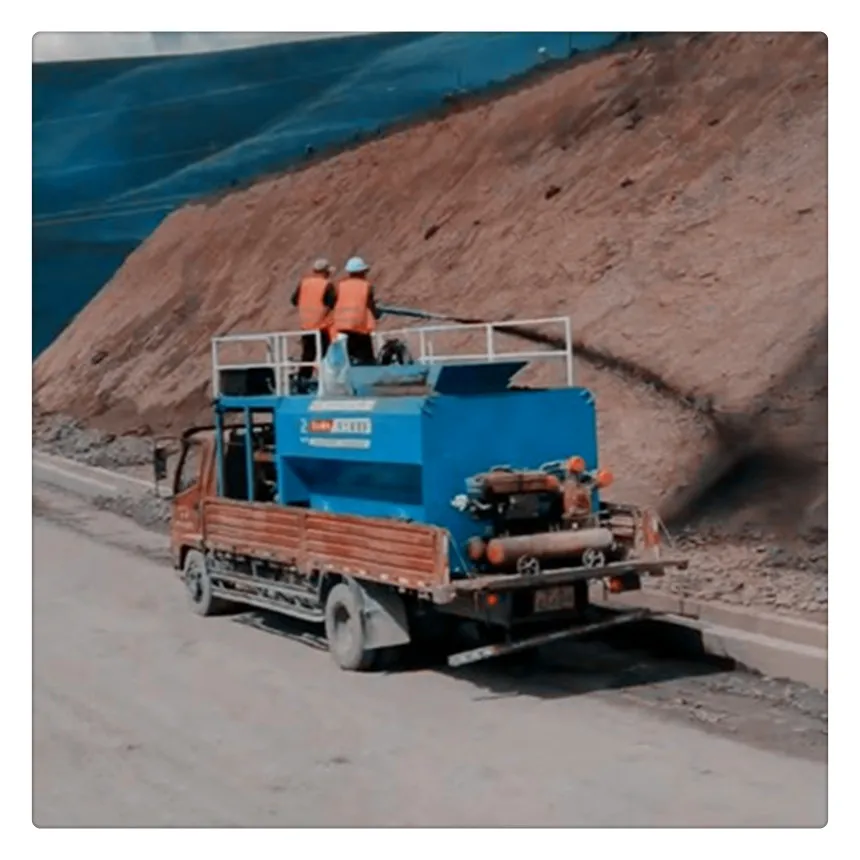

Successful Project
Project in Thailand
Project in India
Project in Russia
How to use
The spraying and sowing machine will spray soil, organic fertilizer, grass/shrub species, water retaining agent, adhesive and other organic substrates onto the slope. Under the action of pressure, the organic materials are closely combined with the slope to form a matrix layer for plant growth and development. Grass/shrub species germinate and grow on the substrate layer, and their roots play a role in slope protection.
Warm Prompt
1. According to the conveying material proportion is different, the conveying distance is different;
2. Suggested ingredient ratio: water: soil: rice husk and other spraying substrate =1:1.5-2.5:1 (Including soil The proportion is determined on the basis of sandy soil in Zhengzhou,China,and the clay needs to be appropriate according to the specific situation Reduce the proportion of adding);
3. The adding ratio of water retaining agent and adhesive in each tank is 0.5kg-3kg,(due to the difference of soil quality, the
adding ratio is greatly different), and the adding ratio of grass seed is 20kg-30kg in each tank.
2. Suggested ingredient ratio: water: soil: rice husk and other spraying substrate =1:1.5-2.5:1 (Including soil The proportion is determined on the basis of sandy soil in Zhengzhou,China,and the clay needs to be appropriate according to the specific situation Reduce the proportion of adding);
3. The adding ratio of water retaining agent and adhesive in each tank is 0.5kg-3kg,(due to the difference of soil quality, the
adding ratio is greatly different), and the adding ratio of grass seed is 20kg-30kg in each tank.
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Applications:
1.ZKP series hydroseeder, slope hydromulching equipment, spray seeding machine be widely used for highway side-slope afforestation,vegetation restoration and slope protection project etc.
2. It is applicable to the rock slope, poor soil, sandy soil and so on. plant growth so difficult to place spray seeding and
greening.
3. The technology of planting grass by spraying seeds is a new concept eco-technology.
4. This is a technology of suspended net soil spray-sowing technology.
2. It is applicable to the rock slope, poor soil, sandy soil and so on. plant growth so difficult to place spray seeding and
greening.
3. The technology of planting grass by spraying seeds is a new concept eco-technology.
4. This is a technology of suspended net soil spray-sowing technology.
hydromulch machine is ideal equipment for ground & soil management, could be used for: Seeding, Golf courses,Turf, Landscaping,
Our company is a professional hydroseeder manufacturers We've also sell second-hand equipment for large machine. If you are interested in it, welcome to contact me at any time. I will provide you with the proper machine quotation for your project.
