Характеристики
Product Description

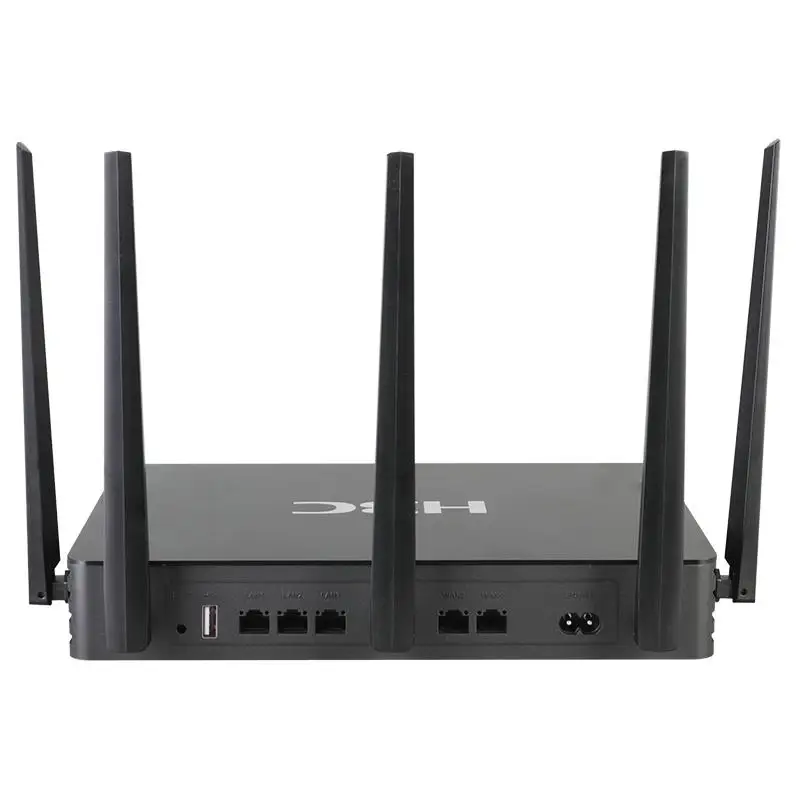

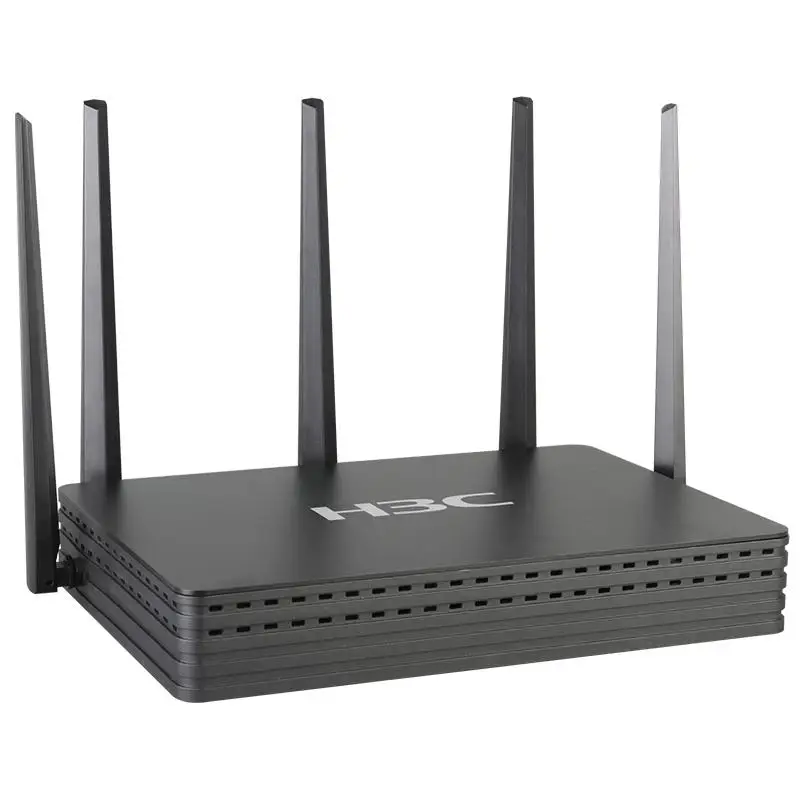

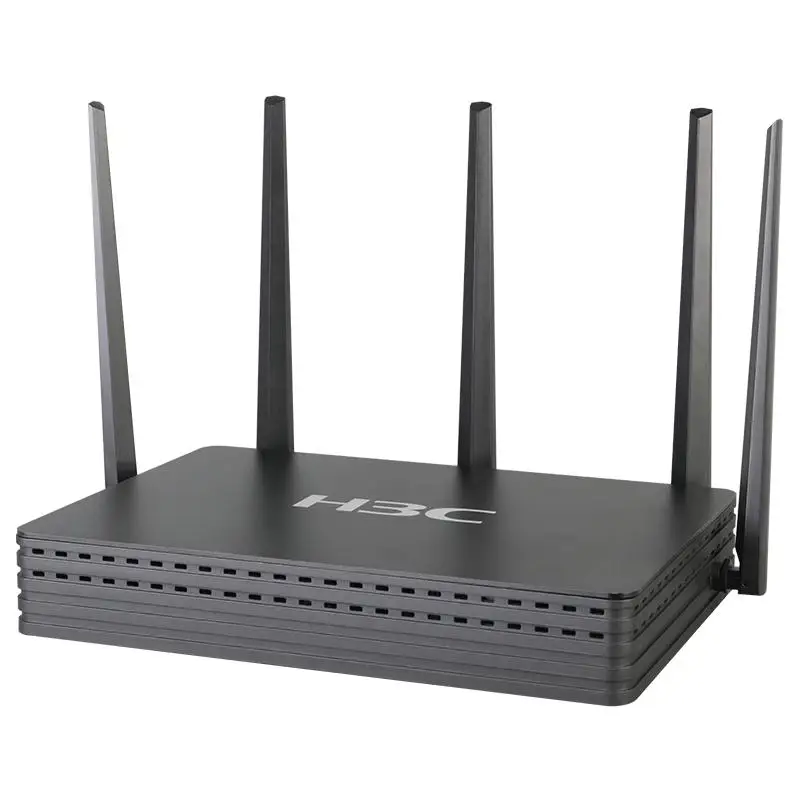

H3C ERG2-1350W enterprise-level gigabit router is an enterprise-level wireless gateway for small and micro enterprises independently developed by H3C company. Users can purchase according to actual needs.
Super wireless coverage, 2.4G/5G dual-band access
* 2.4GHz and 5GHz dual-frequency coverage, providing up to 1350Mbps wireless rate, faster speed, more access users
* Built-in enterprise-level wireless signal amplifier (PA) and independent low-noise power amplifier receiving circuit (LNA), which makes the wireless signal stronger and effectively filters environmental noise.
* 5 external high-gain omnidirectional antennas can realize wireless coverage in a large office area.
* H3C's unique wireless optimization technology makes the wireless signal more robust and stable, meeting the needs of wireless signal coverage in different complex environments
Full gigabit high-speed Internet experience
* Using a professional network processor, full Gigabit ports.
* The default dual WAN ports support LAN/WAN switching, which is convenient for multi-operator access and improves the egress Internet access rate.
* Support load balancing, which allows users to allocate network traffic according to the actual bandwidth of the line and make full use of the bandwidth.
* Support bandwidth guarantee, when one of the operator's lines fails, the rest of the lines can also work normally, and the Internet access will not be affected.
Enterprise-class IPSec VPN/L2TP VPN function
* Support IPSec VPN, realize end-to-end secure VPN connection through simple WEB configuration, support multiple encryption algorithms, and is an ideal access device for branch nodes.
* Support L2TP VPN. At the same time, it supports LNS (server mode) and LAC (client mode), making the network of headquarters + branches more convenient and safer.
Professional online behavior management, intelligent traffic management
* Supports a brand-new user online behavior management module, supports group policy configuration, and can easily formulate enterprise user access rights and policies through this module.
* Support website filtering, and support application control of various instant messaging software and financial software, such as QQ/Great Wisdom/Analyst/Flush Flush/GF Xeon/Everbright Securities/Guoyuan Securities and other financial software application control functions.
* Through the IP-based network traffic speed limit mechanism and NAT entry limit mechanism, it can effectively control the excessive occupation of network bandwidth by P2P software such as BT/Thunder.
* Supports QoS policy configuration for IP network segments/IP ranges in a shared and exclusive manner according to specific time periods to meet users' flexible business configuration requirements.
Enterprise-level security protection
* Built-in professional firewall, which can protect against various external professional attack methods, such as: ARP attack, DDOS attack, port scanning...etc.
* Support ARP anti-counterfeiting authentication function, which can effectively avoid network interruption caused by internal PC poisoning, and effectively guarantee the online experience.
Rich extension features
* Built-in wireless AC function, supporting unified management of H3C Mini series wireless APs.
* Support H3C commercial marketing platform, support WeChat authentication, realize advertisement push and WeChat attention.
* 2.4GHz and 5GHz dual-frequency coverage, providing up to 1350Mbps wireless rate, faster speed, more access users
* Built-in enterprise-level wireless signal amplifier (PA) and independent low-noise power amplifier receiving circuit (LNA), which makes the wireless signal stronger and effectively filters environmental noise.
* 5 external high-gain omnidirectional antennas can realize wireless coverage in a large office area.
* H3C's unique wireless optimization technology makes the wireless signal more robust and stable, meeting the needs of wireless signal coverage in different complex environments
Full gigabit high-speed Internet experience
* Using a professional network processor, full Gigabit ports.
* The default dual WAN ports support LAN/WAN switching, which is convenient for multi-operator access and improves the egress Internet access rate.
* Support load balancing, which allows users to allocate network traffic according to the actual bandwidth of the line and make full use of the bandwidth.
* Support bandwidth guarantee, when one of the operator's lines fails, the rest of the lines can also work normally, and the Internet access will not be affected.
Enterprise-class IPSec VPN/L2TP VPN function
* Support IPSec VPN, realize end-to-end secure VPN connection through simple WEB configuration, support multiple encryption algorithms, and is an ideal access device for branch nodes.
* Support L2TP VPN. At the same time, it supports LNS (server mode) and LAC (client mode), making the network of headquarters + branches more convenient and safer.
Professional online behavior management, intelligent traffic management
* Supports a brand-new user online behavior management module, supports group policy configuration, and can easily formulate enterprise user access rights and policies through this module.
* Support website filtering, and support application control of various instant messaging software and financial software, such as QQ/Great Wisdom/Analyst/Flush Flush/GF Xeon/Everbright Securities/Guoyuan Securities and other financial software application control functions.
* Through the IP-based network traffic speed limit mechanism and NAT entry limit mechanism, it can effectively control the excessive occupation of network bandwidth by P2P software such as BT/Thunder.
* Supports QoS policy configuration for IP network segments/IP ranges in a shared and exclusive manner according to specific time periods to meet users' flexible business configuration requirements.
Enterprise-level security protection
* Built-in professional firewall, which can protect against various external professional attack methods, such as: ARP attack, DDOS attack, port scanning...etc.
* Support ARP anti-counterfeiting authentication function, which can effectively avoid network interruption caused by internal PC poisoning, and effectively guarantee the online experience.
Rich extension features
* Built-in wireless AC function, supporting unified management of H3C Mini series wireless APs.
* Support H3C commercial marketing platform, support WeChat authentication, realize advertisement push and WeChat attention.
Hardware Specifications
Attributes | ERG2-1350W |
Dimensions (H×W×D) mm | 270mm X 180mm X 43mm |
fixed port | WAN port: 2 10/100/1000Base-T Ethernet ports LAN port: 3 10/100/1000Base-T Ethernet ports 1 USB interface |
wireless rate | 1350 Mbps |
Working frequency | 802.11n,802.11b/g:2.4GHz 802.11ac,802.11a:5GHz |
antenna | 5 external 5dbi gain omnidirectional antennas |
transmit power | 23dBm |
power supply | 100~240V |
fan | No fan, natural heat dissipation |
Operating temperature/Storage temperature | 0ºC~40ºC/-40ºC~70ºC |
Operating Humidity/Storage Humidity | 5%~95% (non-condensing) |
Machine power consumption | <25W |
Certification | Type Approval Certificate for Radio Transmission Equipment |
MTBF | >50000H |
Software Specifications
Attributes | ERG2-1350W |
Network protocol | PPP CHAP PAP PPPoE DHCP client DHCP server NPT NTP DDNS |
firewall | Outbound communication policy (source IP/destination IP/protocol/port/time period) Inbound communication policy (source IP/destination IP/protocol/port/time period) |
VLAN | Support 8 VLANs (8 VLAN virtual interfaces + 8 Layer 2 VLANs) |
IPSec VPN | Support 50 IPSec connections Support AH, ESP protocol Support manual or automatic establishment of SA through IKE ESP supports DES, 3DES, AES multiple encryption algorithms Support MD5 and SHA-1 authentication algorithms Support IKE main mode and aggressive mode Support NAT-T traversal Supports configuring IPSec connections by domain name (DDNS) |
L2TP VPN | LAC support LNS support |
LAN/WAN switching | Support LAN/WAN switching, support up to 4 WAN ports Support multi-WAN port load balancing |
wireless function | Supports multiple SSIDs, the number of SSIDs: 8 Support HT20/HT40/HT80 mode Support automatic channel selection or manual channel selection Support access user limit Support client isolation Support SSID broadcast on or off Support multiple encryption methods (unencrypted, WPA, WPA2) Support wireless MAC access control (whitelist, blacklist) Support setting wireless transmit power by percentage Support wireless access client list display Support SSID and VLAN binding |
cyber security | Static ARP (IP<->MAC address binding) DHCP-authorized ARP (automatically bind IP assigned by DHCP) ARP attack defense/gratuitous ARP Stateful Packet Inspection Prevent ping of WAN port Prevent TCP syn scan Prevent Stealth FIN Scanning Prevent TCP Xmas Tree Scanning Prevent TCP Null Scanning Prevent UDP scan function Land attack prevention function Smurf attack prevention function Prevent WinNuke attack function Prevent Ping of Death attacks SYN Flood attack prevention function UDP flood attack prevention function Prevent ICMP flood attack function Prevent IP Spoofing function Prevent fragmented packet attacks Prevent TearDrop attacks Fraggle attack prevention function |
User online behavior management | Group policy management (support IP/MAC/time period-based group policy configuration) HTTP download file type filtering URL Filtering (Black and White List) MAC address filtering QQ access control Financial software control Great Wisdom/Analyst/Flush/GF Xeon/Everbright Securities/Guoyuan Securities |
QoS | Support a variety of intelligent elastic bandwidth methods (Allow each IP channel to borrow idle bandwidth, and each IP channel can only use the preset bandwidth) Support exclusive/shared traffic limit (Shared: share a given bandwidth within a restricted address range; exclusive: each IP within a restricted address range occupies a given bandwidth) Supports traffic restrictions based on time periods Support green channel function (provide priority fast forwarding for proprietary services) Support limited channel management (limit the maximum flow of some services to go online) The limit of the number of network connections of the whole machine VLAN-based network connection limit |
AC function | Support centralized management of H3C Mini series wireless AP Support AP automatic discovery Support for AP transmit power adjustment Support for AP channel adjustment Support for AP address assignment Support for AP software upgrade Support for AP configuration synchronization Support disconnection detection of AP Support AP information display Support multiple SSID configuration Support SSID binding to different VLANs Support restarting a single AP Support AP configuration template management Support wireless client status display on AP |
data monitoring | Physical port-based traffic statistics IP-based traffic statistics, support automatic sorting function Statistics on IP-based NAT Links |
system service | ALG port trigger UPnP virtual server DMZ host VPN transparent transmission (L2TP, IPSec) DNS Server (20 items) |
Configuration management | Web-based user management interface (remote management/local management) HTTPS remote management System software upgrade via HTTP Support U disk recovery configuration |
routing | Static routes (50) Policy routing (100 entries) |
Troubleshooting | Ping / Traceroute Equipment self-test One-click export of fault information |
