Sabvoton 72200 контроллер SVMC72200 72v 200A синусовый контроль волн на BLDC мотор с BT адаптер Электрический

Sabvoton 72200 контроллер SVMC72200 72v 200A синусовый контроль волн на BLDC мотор с BT адаптер Электрический

Категория: Motor Controllers >>>
Поставщик: Taizhou,Sia,Science,And,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.62 $*	0.31 $*
Aug-19-2025	0.68 $*	0.99 $*
Jul-19-2025	0.7 $*	0.63 $*
Jun-19-2025	0.34 $*	0.58 $*
May-19-2025	0.47 $*	0.72 $*
Apr-19-2025	0.25 $*	0.71 $*
Mar-19-2025	0.94 $*	0.16 $*
Feb-19-2025	0.42 $*	0.70 $*
Jan-19-2025	0.30 $*	0.55 $*

Характеристики

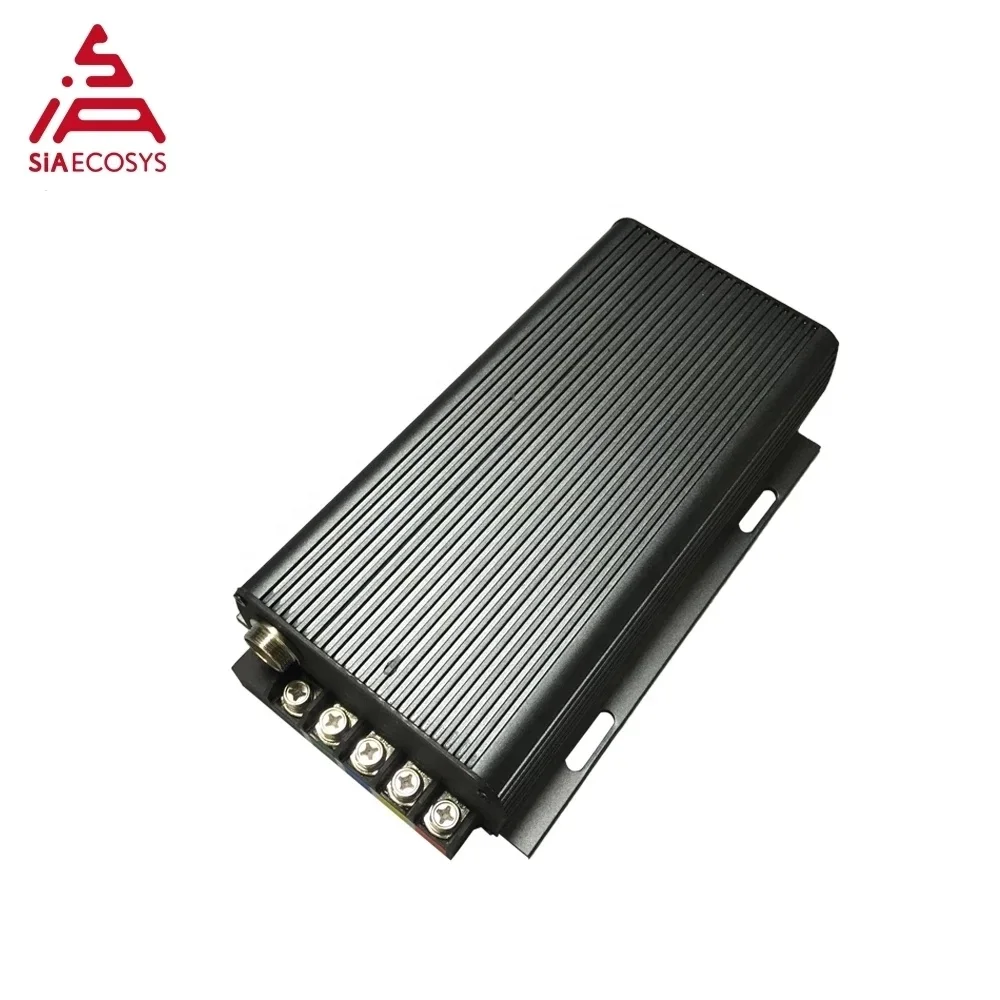

Sabvoton SVMC72200 72v 200A sine wave controller forBLDC Motor ControllerElectric Scooter hub motor with BT adapter

It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR.if you want to match with new brand motor, some parameters should be tested by yourself.

Key Features

1). Cost-effective

2). It can match with almost brushless BLDC motor

3). Programmable

4). Sine wave without noise, silence during the usage

Product description

1. Specification

1). sine wave controller, programmable, with regen function

2). DC Current Limit: 200A

3). Max. Phase Current: 450A

4). Battery Voltage: 24V-72V rated, Max. 90V

5). Thermic Probe: KTY83-122

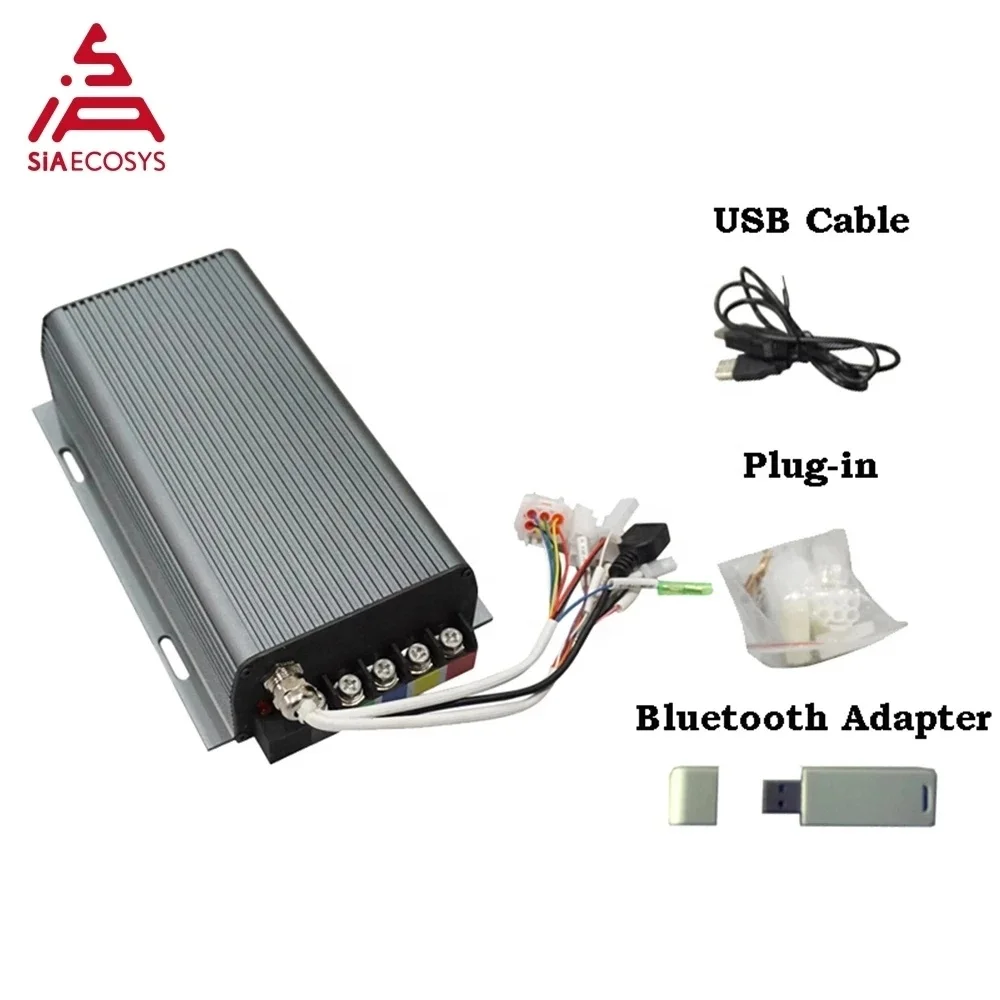

6). Including one controller + USB convertor cable + matched plug

7). controller size: 283mm*147mm*62mm

8). Net weight: 3.0kg

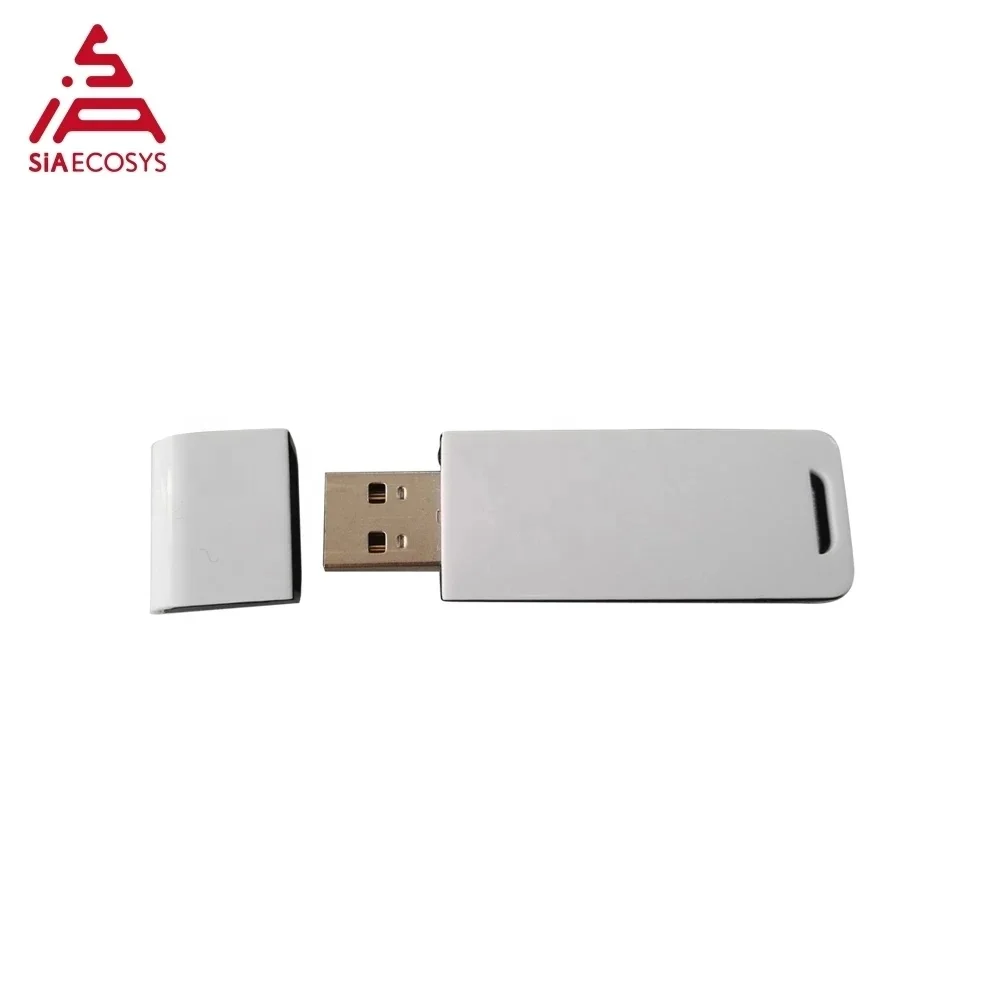

9). Default including BT adapter.

10). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed switch, Hall speedometer,

Reverse, Cruise,

11). Special functions: Waterproof, Anti-theft optional, if need, please contact seller.

Notes:

1). We have updated the 0-5v e-brake function.

Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.

Update: you can achieve 0-5v e-brake function without press the brake switch.

2). For unlock type controller(higher amps), there is no warranty service, but we could offer our suggestions for you.

3). CA function not support anymore. You could customize the controller according to our provided drawing.

4). Pls. make sure all the connection is correct before power on.

PS:

1). There is no warrant for unlocked type controller and 96100 controller(even though normal type).

2). For SVMC 60A model, only support classic function.

3). Customzied CA function not support anymore from May of 2017, but we will offer the drawing for you to guide how to connect with your CA displayer.

SVMC Normal Size: 247mm*146mm*62mm

SVMCxx060 Size: 215mm*146mm*62mm

SVMC96120 Size: 283mm*147mm*62mm

2.Drawing of controller:
