Инвертор солнечного насоса изготовленный в Германии
- Категория: Solar Energy Products >>>
- Поставщик: JIANGSU,CXTECH,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 536.94 $* | 563.98 $* |
| Aug-20-2025 | 531.15 $* | 558.45 $* |
| Jul-20-2025 | 446.67 $* | 468.69 $* |
| Jun-20-2025 | 522.70 $* | 548.21 $* |
| May-20-2025 | 455.44 $* | 478.78 $* |
| Apr-20-2025 | 513.27 $* | 539.52 $* |
| Mar-20-2025 | 509.70 $* | 534.35 $* |
| Feb-20-2025 | 504.21 $* | 529.72 $* |
| Jan-20-2025 | 500.55 $* | 525.82 $* |
Характеристики
Product Description
Technical Specifications
Datasheet | SPF 3500 ES | SPF 5000 ES | ||
Battery Voltage | 48VDC | |||
Battery Type | Lithium/Lead-acid | |||
INVERTER OUTPUT | ||||
Rated Power | 3500VA/ 3500W | 5000VA/ 5000W | ||
Parallel Capability | Yes, 6 units maximum | |||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||
Surge Power | 7000VA | 10000VA | ||
Efficiency (Peak) | 93% | |||
Waveform | Pure sine wave | |||
Transfer Time | 10ms typical, 20ms Max | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 4500W | 6000W | ||
MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |||
Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/1 | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Solar Charge Current | 80A | 100A | ||
AC CHARGER | ||||
Charge Current | 60A | 80A | ||
AC Input Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
PHYSICAL | ||||
Protection Degree | IP20 | |||
Dimension (W/H/D) | 330/485/135mm | 330/485/135mm | ||
Net Weight | 11.5kgs | 12kgs | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Altitude | <2000m | |||
Operating Temperature | 0°C - 55°C | |||
Storage Temperature | -15°C - 60°C | |||

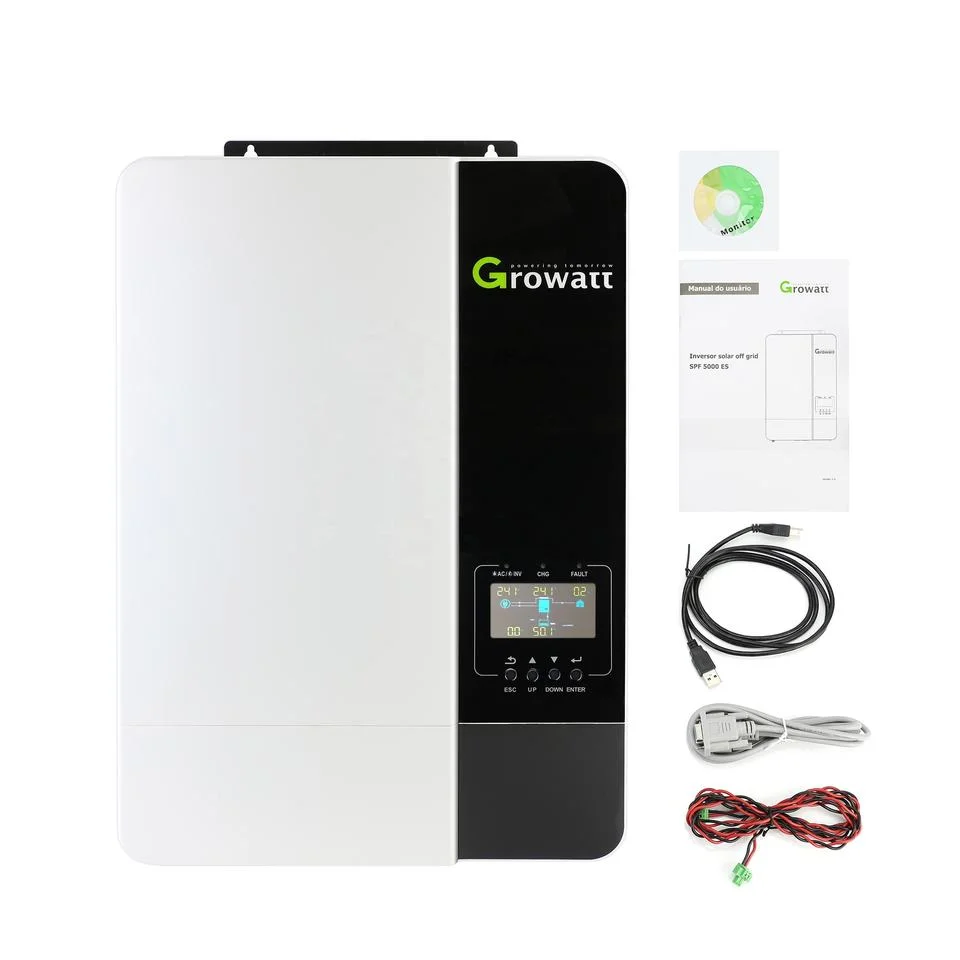

Professional Packing

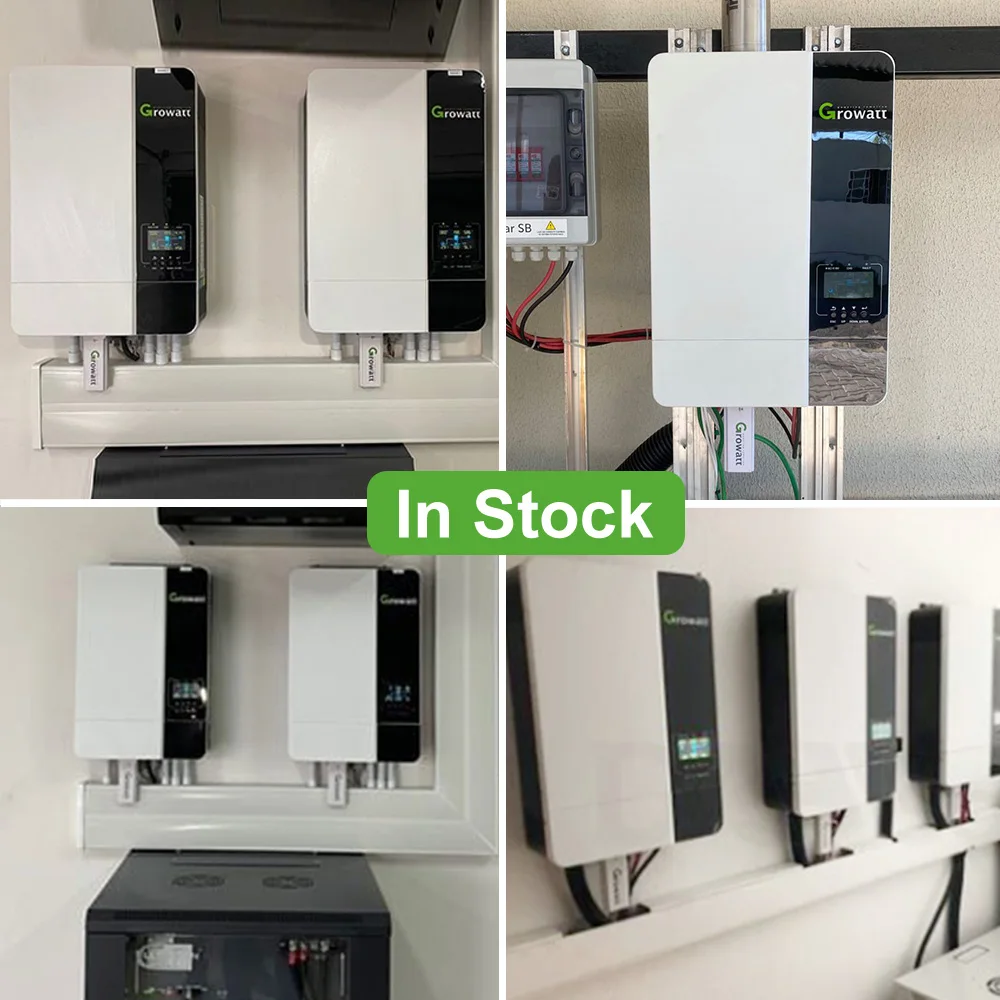

Projects Cases
You May Like
FAQ
Q: Who are we?
We are a professional manufacturer of solar panels with many years of experience. Our factory and business office are located in Wuxi, China, which is ONE hour driving from our factory to the airport, we can provide pick-up service once you confirmed your flight information with us.
Q: What can VISTA provide?
We can provide solar panels, solar inverters, lithium batteries, and solar energy systems.
Q: Why choose us?
We are a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service
Q: Can I make my own design and logo for the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
The common products we always have the stock, it can be sent out within 15 days. While the big order takes 45 days to finish production.
We are a professional manufacturer of solar panels with many years of experience. Our factory and business office are located in Wuxi, China, which is ONE hour driving from our factory to the airport, we can provide pick-up service once you confirmed your flight information with us.
Q: What can VISTA provide?
We can provide solar panels, solar inverters, lithium batteries, and solar energy systems.
Q: Why choose us?
We are a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service
Q: Can I make my own design and logo for the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
The common products we always have the stock, it can be sent out within 15 days. While the big order takes 45 days to finish production.
Contact Us
