Заводская цена термостойкие оптические диски UV JGS2 JGS1 прозрачные плавленые
- Категория: Quartz Plate >>>
- Поставщик: Qingdao,Vatti,Glass,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5.88 $* | 5.68 $* |
| Aug-15-2025 | 5.24 $* | 5.23 $* |
| Jul-15-2025 | 4.83 $* | 4.89 $* |
| Jun-15-2025 | 5.87 $* | 5.57 $* |
| May-15-2025 | 4.98 $* | 4.47 $* |
| Apr-15-2025 | 5.72 $* | 5.58 $* |
| Mar-15-2025 | 5.14 $* | 5.74 $* |
| Feb-15-2025 | 4.14 $* | 4.53 $* |
| Jan-15-2025 | 4.93 $* | 4.61 $* |
Характеристики
Products Description

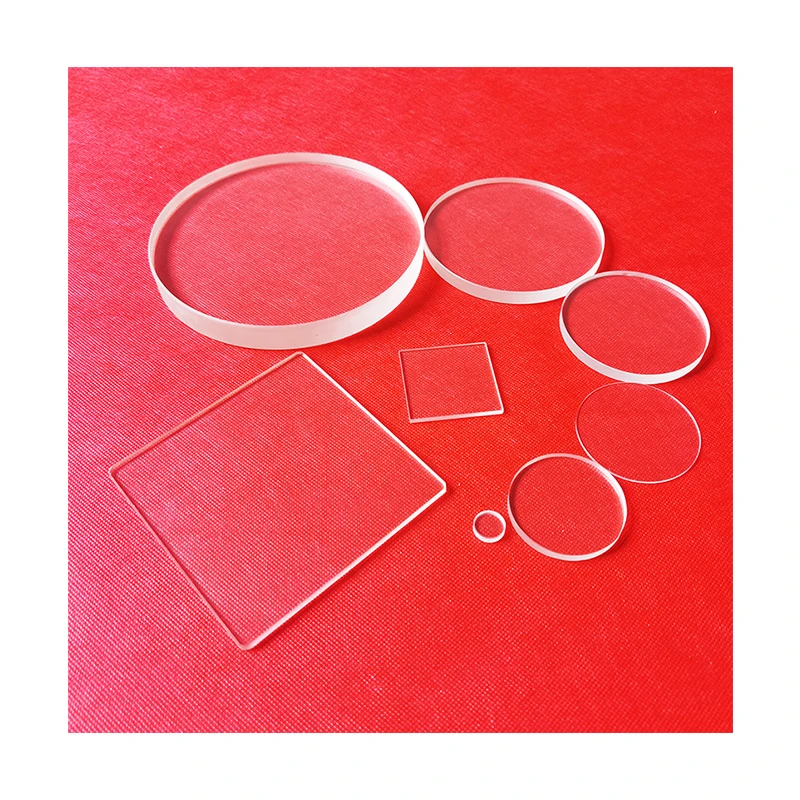

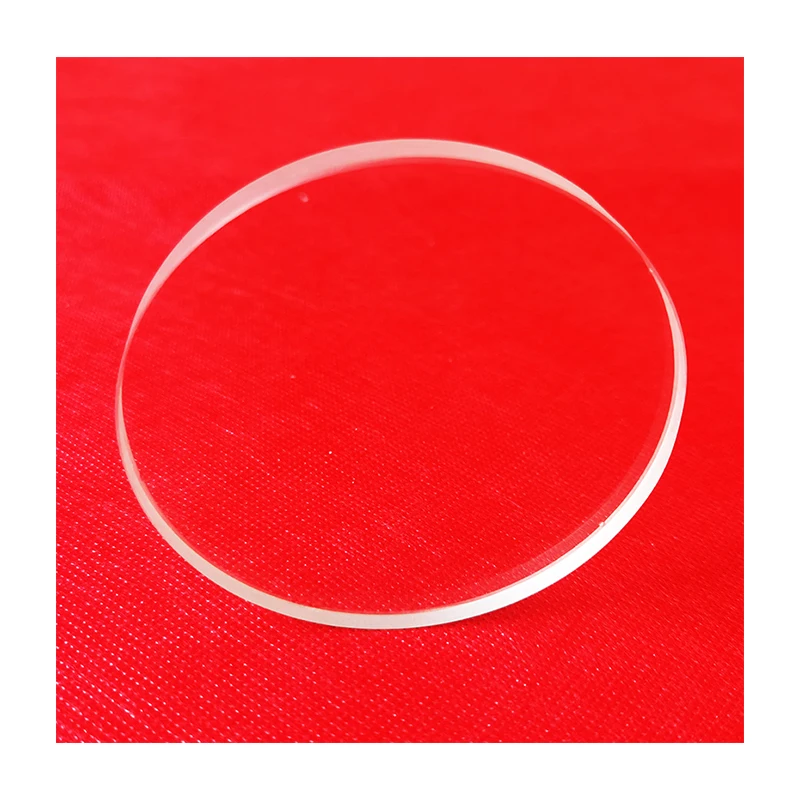

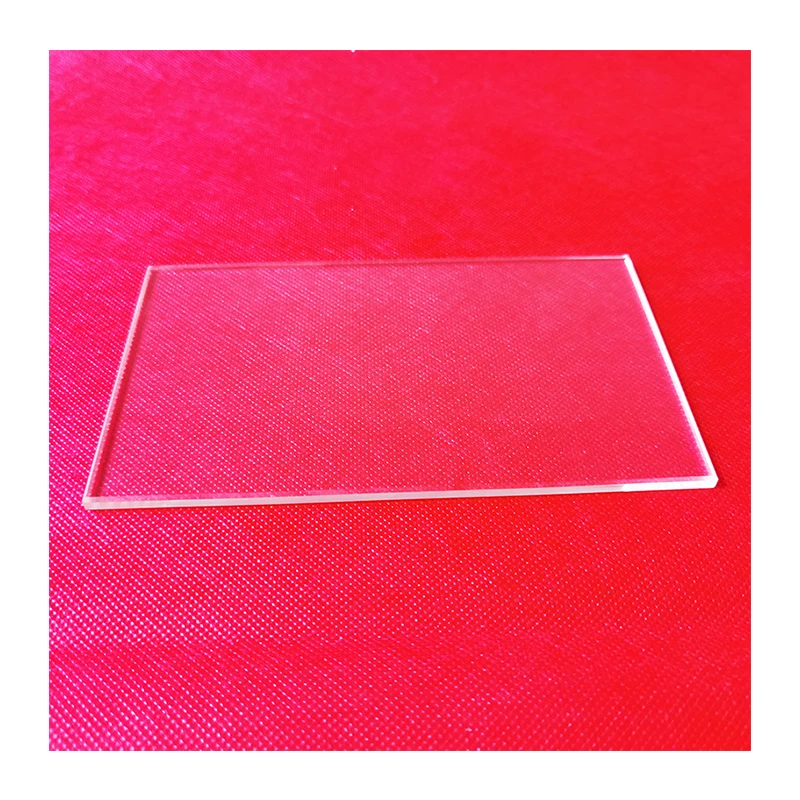

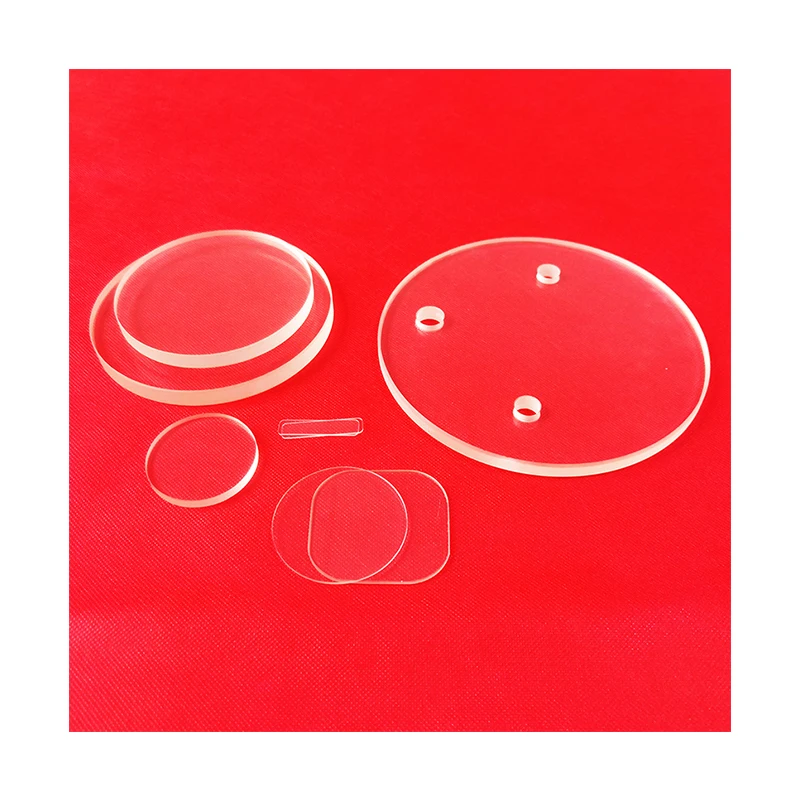

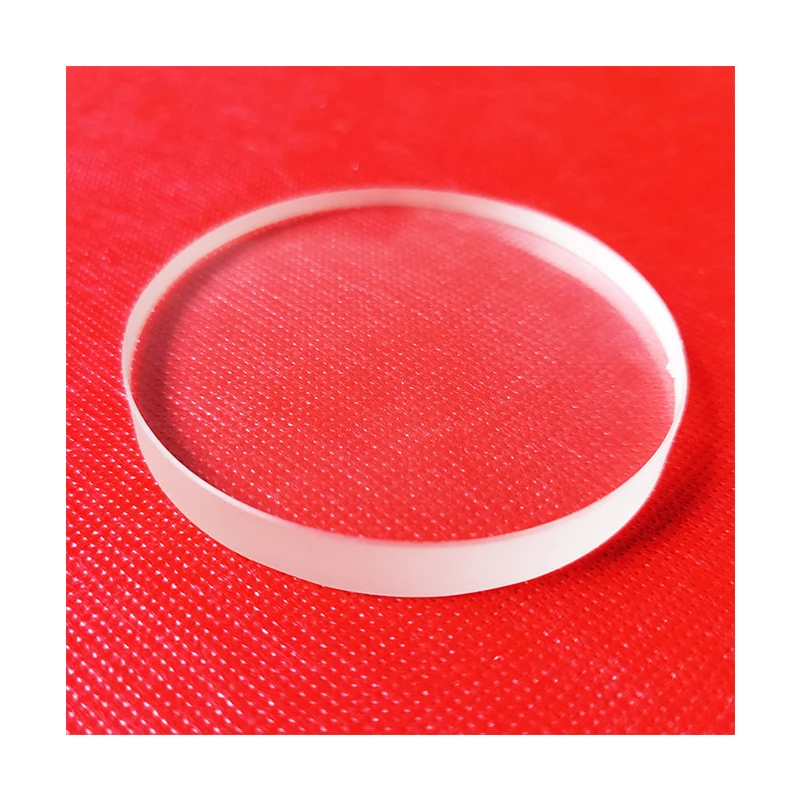

Clear Fused Silica Quartz Glass Plate
Quartz glass fused silica plate/sheet , we can customized the size anf quartz type you want, we can sure the high quality and best service,please contact with us!
The raw material of quartz glass is a natural crystal mined from the earth as rock crystal or pegmatite quartz. The raw material is pulverized to a fine-particle granulate and melted to quartz.
The raw material of quartz glass is a natural crystal mined from the earth as rock crystal or pegmatite quartz. The raw material is pulverized to a fine-particle granulate and melted to quartz.
Quartz Glass Is Made from Pure Silicon Tetrachloride (SiCl4)
Clear fused quartz tubing is a high purity (99.99%+) quartz glass suitable for temperatures up to 1300 C. Resistance to thermal shock is another important property of quartz tubing. Most sizes shown are furnace cuts. Trim cuts are available on request at no additional charge .They are widely used in optical instrument, sight glass, observation window for furnace, semiconductor, photoelectron, military industry, metallurgy, lab glassware and many other fields.
Specification
Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
Product Details
1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical
performance .
4. without surface coating and infectant.
5. Health care and environmental protection. 6. Any dimension can be made.
7. CE.RoHs SGS approved.
1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical
performance .
4. without surface coating and infectant.
5. Health care and environmental protection. 6. Any dimension can be made.
7. CE.RoHs SGS approved.
JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
The average transmittance | 90% | 85% | 85% |
Bubble class | 0 | 2 | 2 |
Birefringence | 1-2 | 1-2 | 1-2 |
Grain structure | 1 | 2 | 2 |
Fringe | 1-2 | 2 | 2 |
Uniformity | 1-2 | 2 | 2 |
Fluorescence | 1 | 2 | 2 |
Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Application of quartz glass plate/disc:
Electric light,Laser,Lenses,Military,Metallurgical,optical instrument,high temperature window ,environmental protection and other fields. Glass boat Glass tube Glass Sheet and so on.
Package&Shipping
Packing Details : Packing the quartz plate in a carton or wooden case well.
Delivery Details : Ship the quartz plate in 3-10 days after payment.
Delivery Details : Ship the quartz plate in 3-10 days after payment.
Company Profile
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also
available.
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also
available.
Certifications
