Product Description
Specification

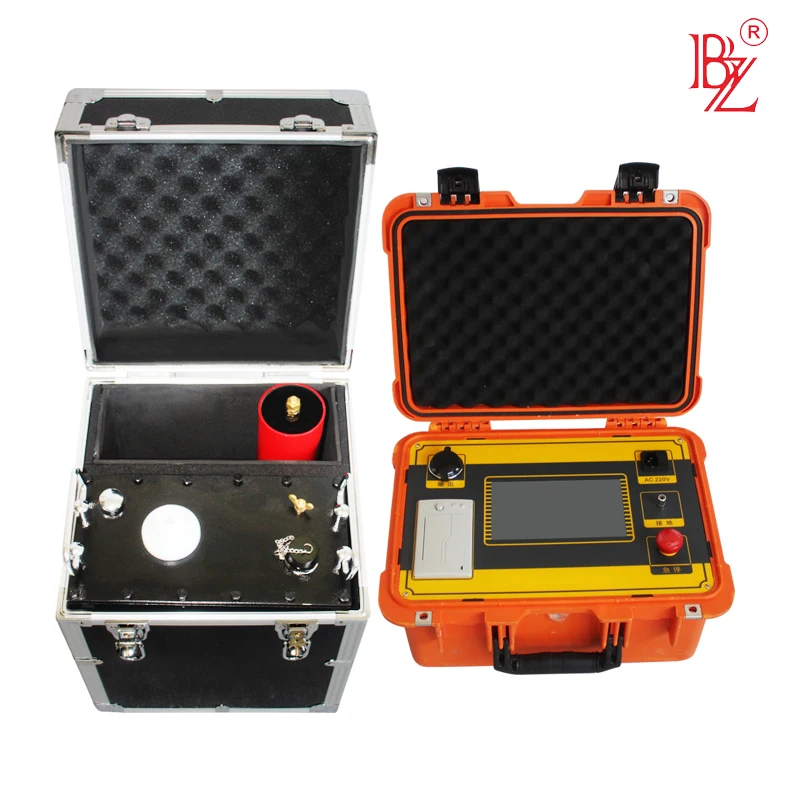

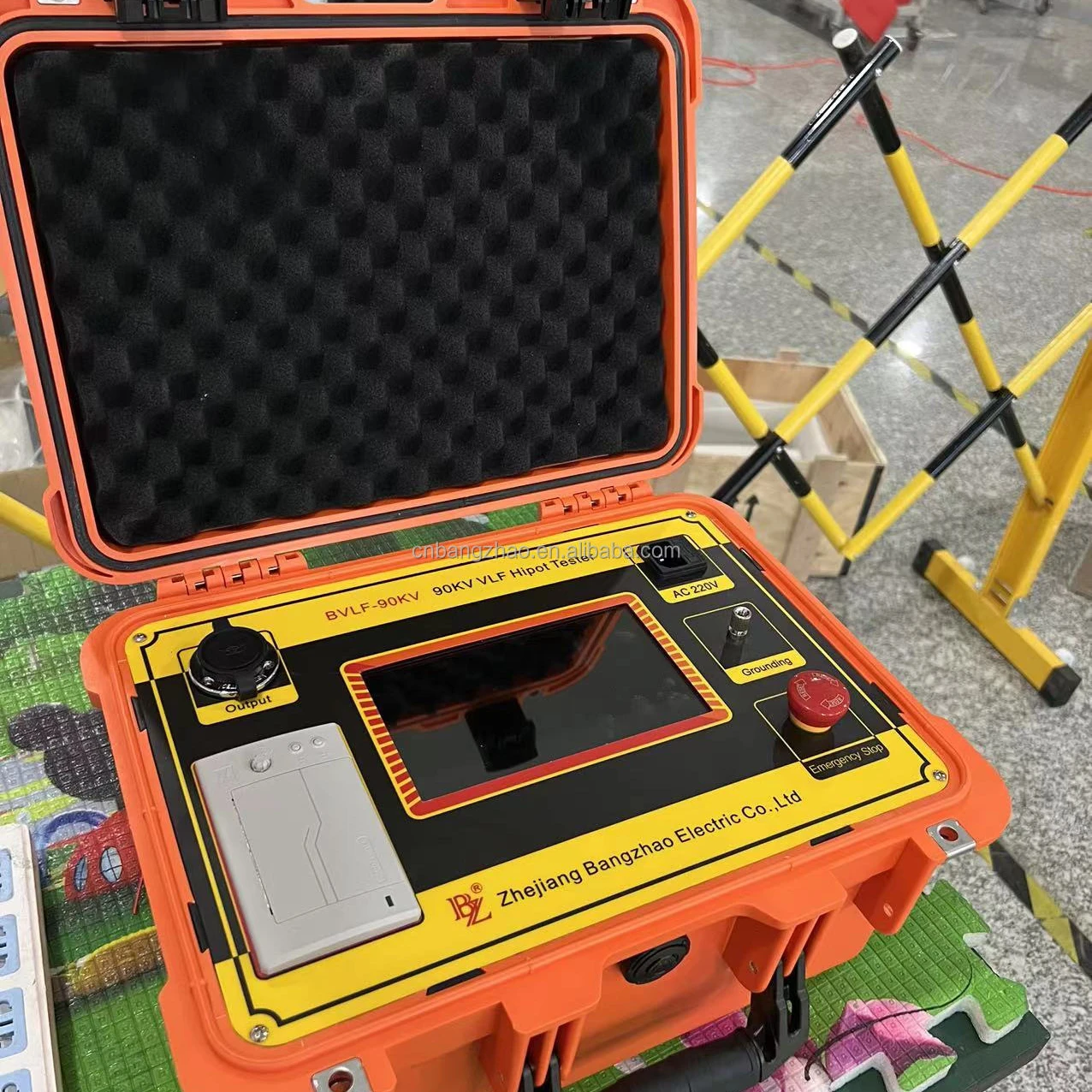

VLF-50Kv Very Low Frequency Ac High Voltage Test Instrument For Testing High Voltage Cables
BVLF (Very Low Frequency) Testers are suitable for testing power cables, transformers, switchgear, rotating machinery and other electrical apparatus.
The product combines modern advanced digital variable frequency technology and micro computer control together, therefore, it can realize the full automatic voltage boost, stepdown, measurement and protection as well as the manual intervention in the process
of automatic voltage boost. The full electronic design ensures the small size and light weight. The big LCD screen ensures the clear and visual display, and can display the output sinusoidal wave form. The printer outputs test reports. In addition, the product has features as follows:
Features

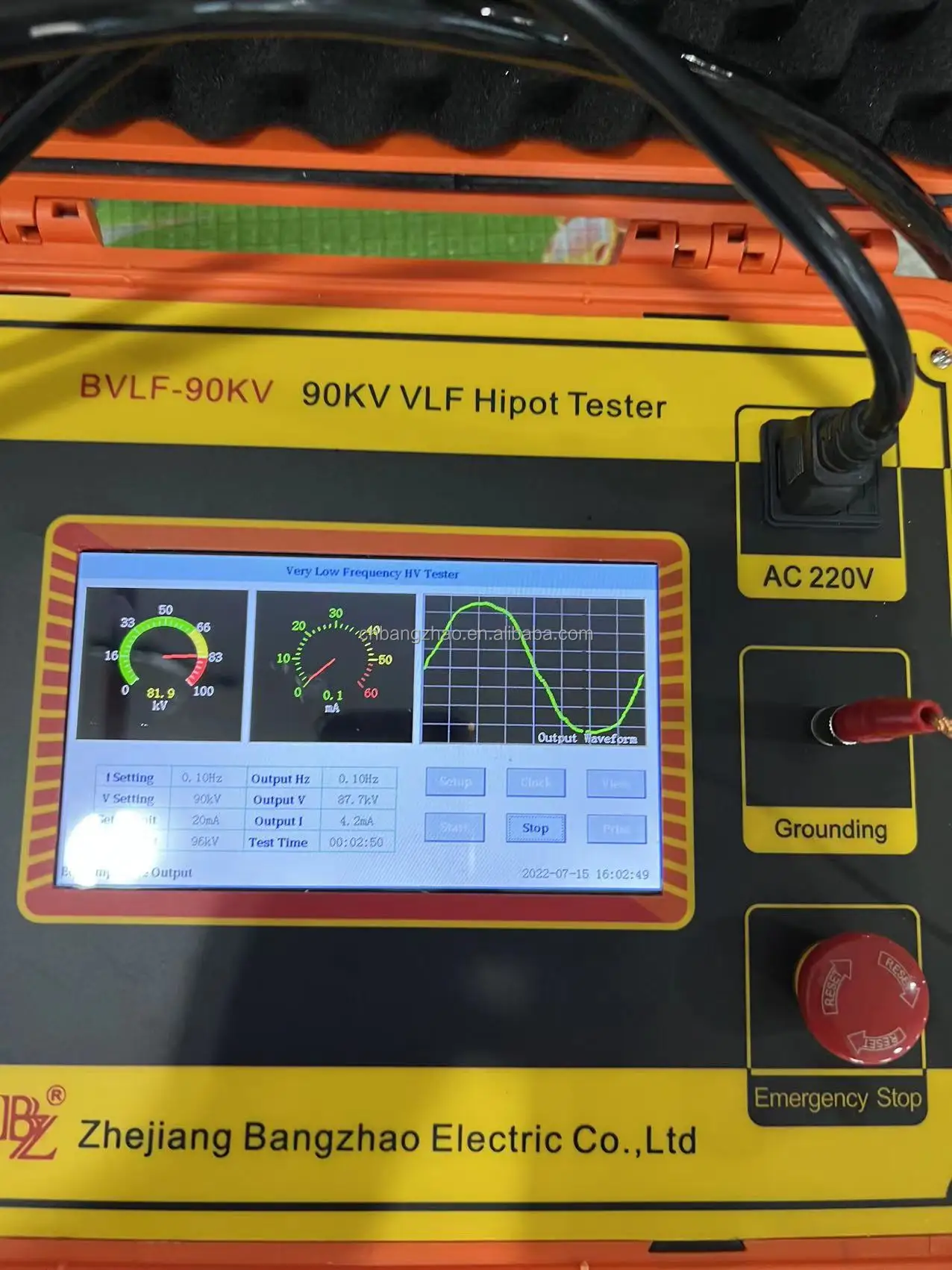

Large touch screen：It adopts 7-inch touch screen and the latest ARM7 microcontroller.
Advanced technology：Using digital frequency conversion technology, microcomputer control, step-up, step-down, measurement,
protection and other testing processes are fully automated.
Easy to operate：The wiring is simple and fool-proof operation.
Comprehensive protection: Multiple protections (overvoltage protection, high and low voltage side overcurrent protection), rapidaction (action time ≤ 10ms), the instrument is safe and reliable.
Safe and reliable：The controller and the high-voltage generator are connected with low voltage, photoelectric control, safe and reliable to use.
High and low voltage closed loop circuit：High and low voltage closed-loop negative feedback control circuit is adopted, and the output has no capacity increase effect.
Complete configuration：Capacitive touch screen, LCD Chinese character display, automatic storage, automatic printing.
Large test range：0.1Hz,0.05Hz and 0.02Hz Multiple frequency selection, large test range.
Small size and light weight：Very conducive to outdoor operations.
Chinese-English switching function：Chinese-English switching, using imported high-voltage electronic switch to switch polarity.
High-speed AD acquisition circuit, and equipped with USB background management software.
Longer life and lower failure rate.
BVLF (Very Low Frequency) Testers are suitable for testing power cables, transformers, switchgear, rotating machinery and other electrical apparatus.
The product combines modern advanced digital variable frequency technology and micro computer control together, therefore, it can realize the full automatic voltage boost, stepdown, measurement and protection as well as the manual intervention in the process
of automatic voltage boost. The full electronic design ensures the small size and light weight. The big LCD screen ensures the clear and visual display, and can display the output sinusoidal wave form. The printer outputs test reports. In addition, the product has features as follows:
Features
Large touch screen：It adopts 7-inch touch screen and the latest ARM7 microcontroller.
Advanced technology：Using digital frequency conversion technology, microcomputer control, step-up, step-down, measurement,
protection and other testing processes are fully automated.
Easy to operate：The wiring is simple and fool-proof operation.
Comprehensive protection: Multiple protections (overvoltage protection, high and low voltage side overcurrent protection), rapidaction (action time ≤ 10ms), the instrument is safe and reliable.
Safe and reliable：The controller and the high-voltage generator are connected with low voltage, photoelectric control, safe and reliable to use.
High and low voltage closed loop circuit：High and low voltage closed-loop negative feedback control circuit is adopted, and the output has no capacity increase effect.
Complete configuration：Capacitive touch screen, LCD Chinese character display, automatic storage, automatic printing.
Large test range：0.1Hz,0.05Hz and 0.02Hz Multiple frequency selection, large test range.
Small size and light weight：Very conducive to outdoor operations.
Chinese-English switching function：Chinese-English switching, using imported high-voltage electronic switch to switch polarity.
High-speed AD acquisition circuit, and equipped with USB background management software.
Longer life and lower failure rate.
Output frequency：0.1Hz，0.05Hz，0.02Hz
Load capacity：
0.1Hz max 1.1μF
0.05Hz max 2.2μF
0.02Hz max 5.5μF
Measurement accuracy：3%
Voltage positive and negative peak error：≤3%
Voltage waveform distortion：≤5%
Conditions of Use：indoor，outdoor；
Temperature：-10℃-+40℃
Humidity：≤85%RH
Power：110KV-260KV(+-5%)
Load capacity：
0.1Hz max 1.1μF
0.05Hz max 2.2μF
0.02Hz max 5.5μF
Measurement accuracy：3%
Voltage positive and negative peak error：≤3%
Voltage waveform distortion：≤5%
Conditions of Use：indoor，outdoor；
Temperature：-10℃-+40℃
Humidity：≤85%RH
Power：110KV-260KV(+-5%)
Model | Peak voltage | Measuring range | Weight | Purpose |
BVLF-30 | 30KV | 0.1Hz,≤1.1µF | Controller: 4 kg Booster: 25 kg Size: L*W*H 323*174*323 | 10KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF-40 | 40KV | 0.1Hz,≤1.1µF | Controller: 5 kg Booster: 30 kg Size: L*W*H 357*208*343 | 13.8KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF-50 | 50KV | 0.1Hz,≤1.1µF | Controller: 6 kg Booster: 45 kg Size: L*W*H 357*210*365 | 15.75KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF-60 | 60KV | 0.1Hz,≤1.1µF | Controller: 6 kg Booster: 50 kg Size: L*W*H 357*220*370 | 18KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF- 90 | 90KV | 0.1Hz,≤1.1µF | Controller: 8 kg Booster: 90 kg Size: L*W*H 357*240*390 | 35KV and below voltage cable, generator |
Compare content | Power frequency withstand voltage | Frequency withstand voltage | 0.1Hz Withstand voltage | DC withstand voltage |
Equivalence | Good | Good | good | poor |
Insulation destructive | small | small | small | big |
Operational safety | Lower | Lower | high | Lower |
Test wiring | complex | most complicated | the easiest | complex |
Equipment volume | maximum | larger | small | least |
0.1Hz Pressure equipment type | High voltage control method | High voltage waveform | Energy saving | noise | Mechanical life | Electric life |
Mechanical | High voltage mechanical switch to switch polarity | Square wave | Not energy efficient： Use high-power resistors to consume excess energy | high-up | short | short |
Electronic | High voltage electronic switch to switch polarity | Sine wave | Energy saving：Feed excess power back to the grid | slight | No | long |
