Лидер продаж бесшумный дизельный генератор мощностью 120 кВт звукоизоляционный 150 кВА

Лидер продаж бесшумный дизельный генератор мощностью 120 кВт звукоизоляционный 150 кВА

Категория: Diesel Generators >>>
Поставщик: Jiangsu,Hengtong,Generator,Manufacture,Co.,Ltd

Цена:5 800,00 $ - 6 400,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	6902.2 $*	7247.77 $*
Aug-20-2025	6844.78 $*	7186.89 $*
Jul-20-2025	5742.17 $*	6029.54 $*
Jun-20-2025	6728.17 $*	7064.99 $*
May-20-2025	5858.23 $*	6151.84 $*
Apr-20-2025	6612.76 $*	6943.47 $*
Mar-20-2025	6554.10 $*	6882.48 $*
Feb-20-2025	6496.96 $*	6821.18 $*
Jan-20-2025	6438.92 $*	6760.81 $*

Характеристики

120kw Silent 3 Phase Diesel Generator Supplier 150kva Soundproof Generator Powered By Yuchai Factory High Efficiency

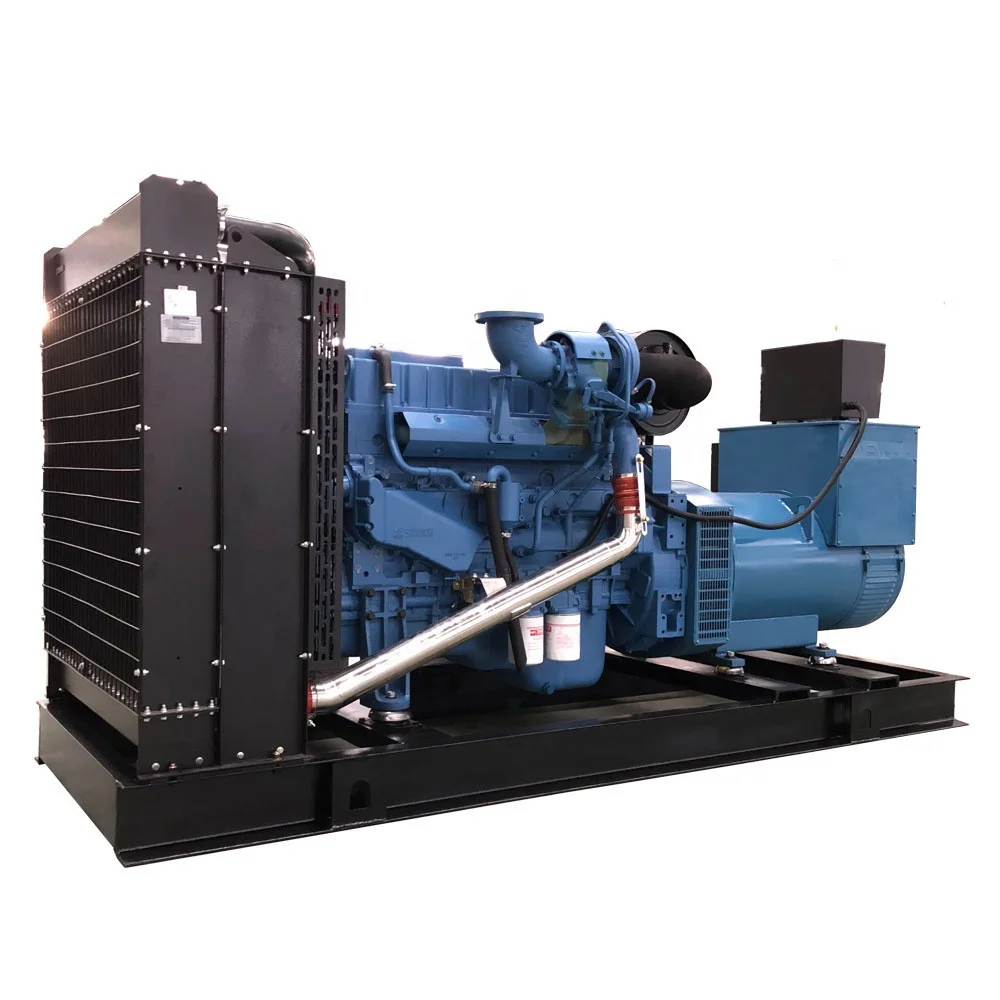

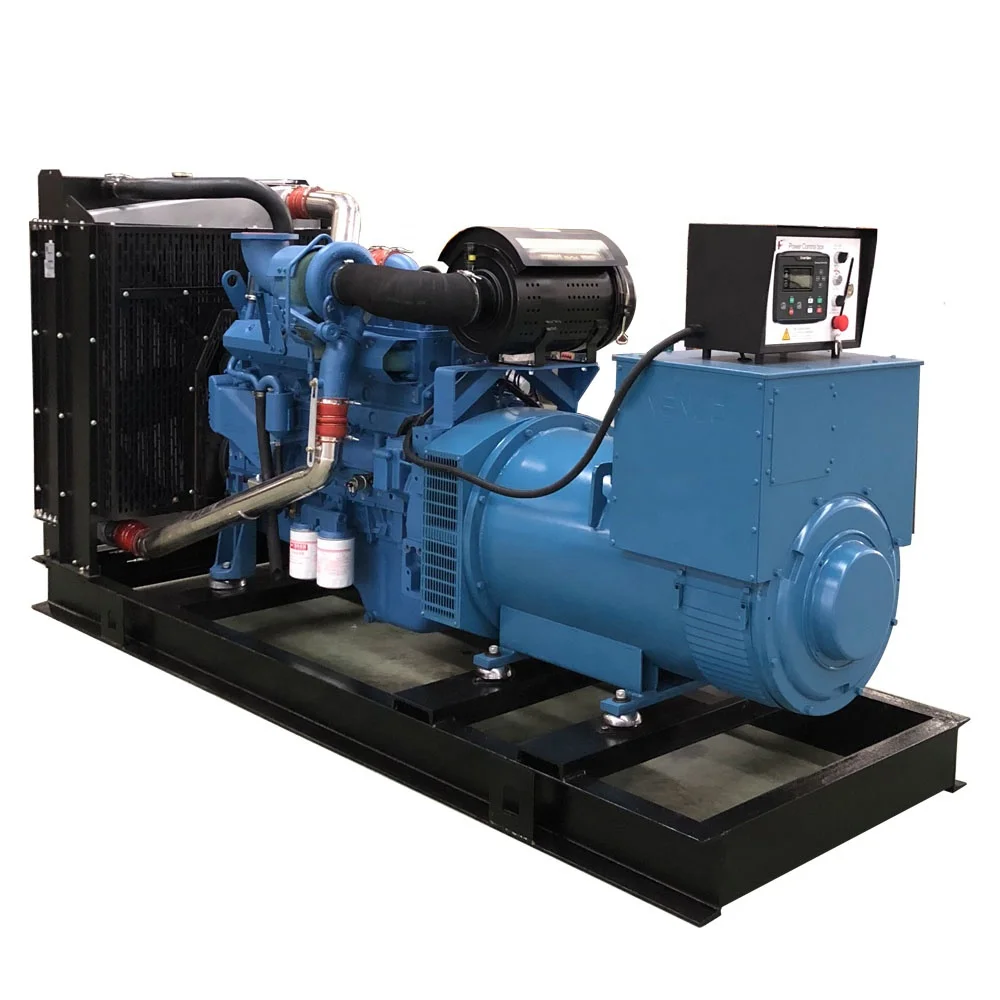

Diesel Generator Set Data Sheet
Generator Model					GF120YC
Power					120kw/150kva
Rated Voltage					400V
Frequency					50HZ
Power Factor					0.8(Lagging)
Dimension(LWH)					24008001320mm
Weight					1680kg
Diesel Engine Data Sheet
Brand					YUCHAI
Model					YC6B205L-D20
Number of Cylinder					6
Speed					1500RPM
Cycle					Four Stroke
Cooling Method					Water Cooling
Bore*Stroke					108*125mm
Speed Governor					Electronic
Power					152kw
Lubrication oil Capacity					200L
Fuel Consumption					200g/kw.h
Starting Method					24V Electrical Starting
Alternator Data Sheet
Brand					HENGTONG
Model					HTI-120
Power					120kw/150kva
Connecting Type					3 Phase and 4 Wires
Number of Bearing					Single
Protection Grade					IP23
Insulation Class					H
Exciter Type					Brushless, Self-excited, AVR Controller
Altitude					≤1000M
Controller
Optional Controller Brand					Smartgen/Deepsea/ComAp etc.

Control System

Manual Controller

- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.

Automatic controller
Brand: Smartgen, ComAp or Deepsea

- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.

ATS Control System(Suyang, Aisikai, Schneider，ABB)

- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;

Synchronous Parallel Controller
Brand: Smartgen, ComAp or Deepsea

- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..

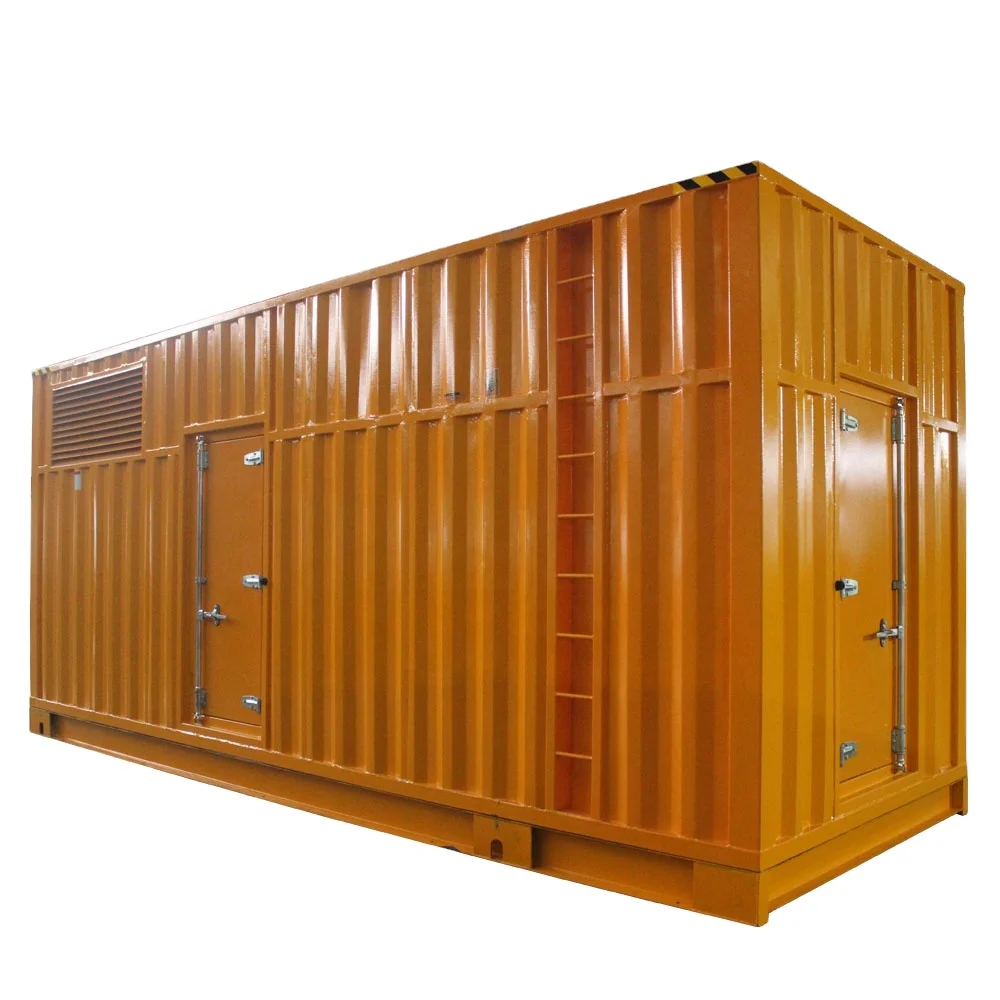

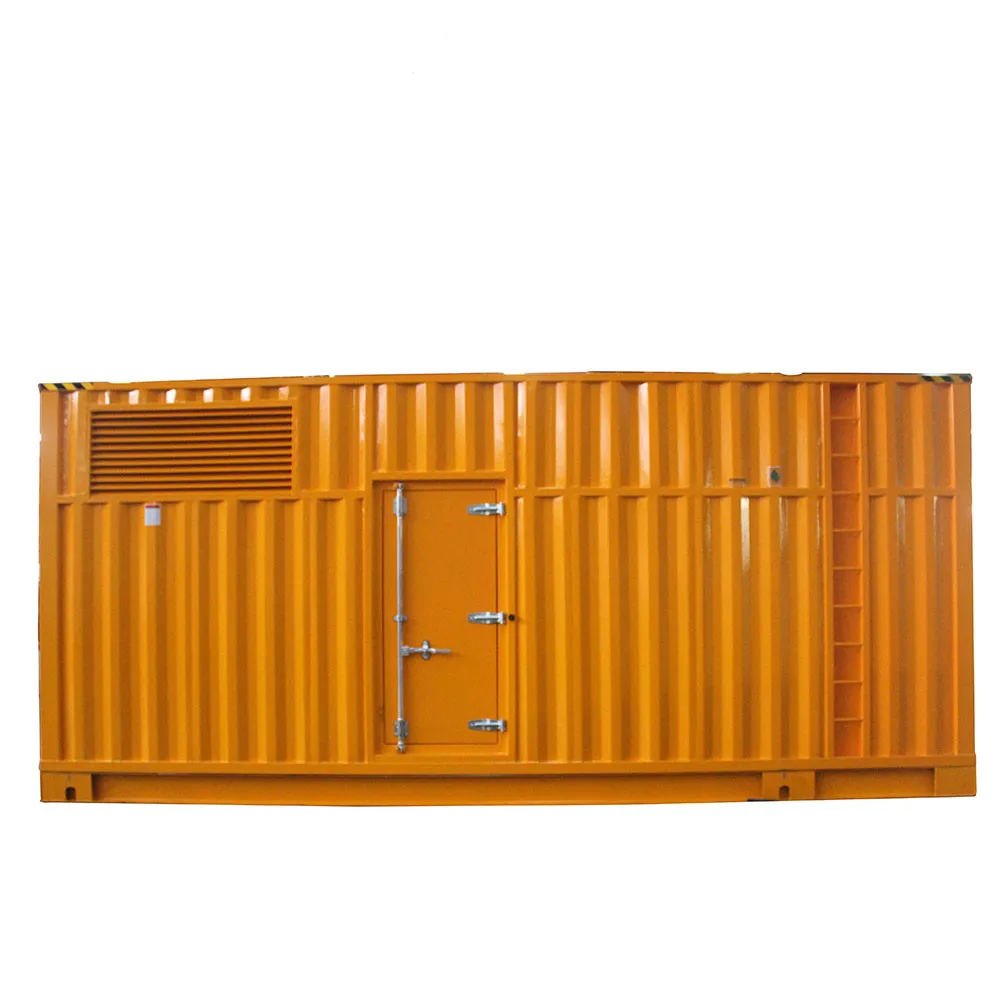

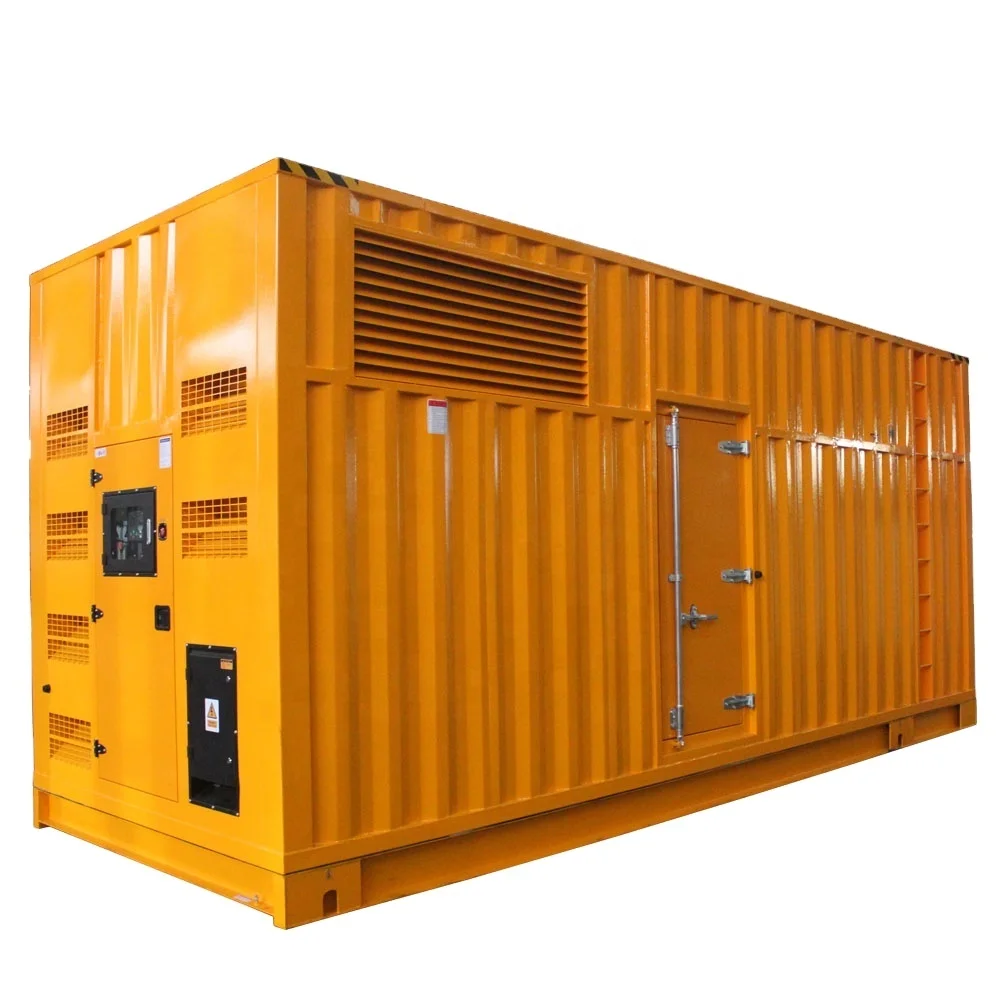

Silent Canopy Details

-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch

-40-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
