Лидер продаж буровые установки аксессуары и детали API ZQ DP Power

Лидер продаж буровые установки аксессуары и детали API ZQ DP Power

Категория: Oil Field Equipment >>>
Поставщик: Shandong,Beyond,Petroleum,Equipment,Co.,Ltd.

Цена:2 900,00 $ - 3 100,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	3451.54 $*	3624.20 $*
Aug-15-2025	3422.52 $*	3593.18 $*
Jul-15-2025	2871.51 $*	3015.68 $*
Jun-15-2025	3364.41 $*	3532.79 $*
May-15-2025	2929.59 $*	3075.35 $*
Apr-15-2025	3306.14 $*	3471.33 $*
Mar-15-2025	3277.12 $*	3441.7 $*
Feb-15-2025	3248.87 $*	3410.71 $*
Jan-15-2025	3219.43 $*	3380.59 $*

Характеристики

Product Parameters

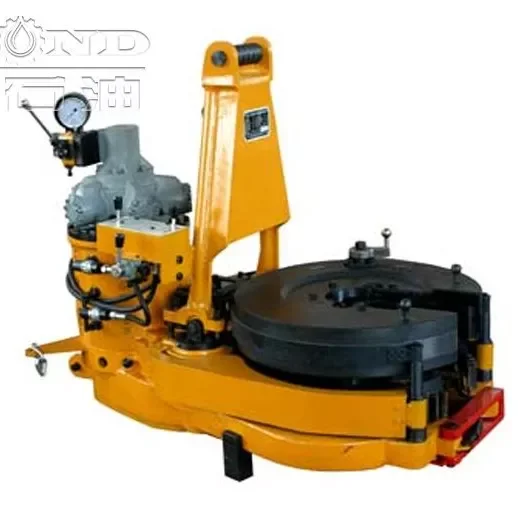

This series of casing power tongs is a professional equipment for lifting all kinds of bushing.

The best cutting diameter ratio design, reliable clamping, no slippage;
The brake band brake, the righting mechanism under the;

The hydraulic, two gear speed, using gear gear;
The automatic control system of the optional torque. The installation of torque automatic control system is better.

Model	TQ245/20Y	TQ340/35Y	TQ508/70Y
Application Range of Master Tong	Φ102～Φ245mm	Φ140～Φ340mm	Φ245～Φ508mm
Application Range of Backup Tong	Φ121～Φ270mm	Φ154～Φ365mm	Φ270～Φ533mm
High Gear Rated Torque	2600N.m	4800N.m	10160N.m
Low Gear Rated Torque	20000N.m	35000N.m	70000N.m
High Gear Rotation Speed	67 rpm	42 rpm	23 rpm
Low Gear Rotation Speed	9 rpm	6 rpm	3 rpm
Rated Operation Pressure	14 MPa	14 MPa	17 MPa
Max. Flow	120 L/min	120 L/min	120 L/min
Dimension：L×W×H mm	1500×630×650	1450×980×650	1980×1219×690
Weight（With Backup）	650kg	1050 kg	2250 kg
