Фильтр обратного осмоса для очистки
- Категория: Water Treatment Machinery >>>
- Поставщик: Guangzhou,Chunke,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3570.77 $* | 3749.92 $* |
| Aug-18-2025 | 3540.54 $* | 3717.99 $* |
| Jul-18-2025 | 2970.77 $* | 3119.94 $* |
| Jun-18-2025 | 3480.85 $* | 3654.79 $* |
| May-18-2025 | 3030.71 $* | 3182.18 $* |
| Apr-18-2025 | 3420.73 $* | 3591.77 $* |
| Mar-18-2025 | 3390.79 $* | 3560.91 $* |
| Feb-18-2025 | 3360.94 $* | 3528.78 $* |
| Jan-18-2025 | 3330.99 $* | 3497.47 $* |
Характеристики
Product Description
Specification
Model | CK-10T RO | Remark |
Production Capacity | 10000 Liter Per Hour | |
Power Supply | 220V/380V 50Hz | Customization |
Raw Water Pump | CNP | Optional |
Quartz Sand Filter | φ1000×2400MM | FRP |
Activated Carbon Filter | φ1000×2400MM | FRP |
Cartridge Filter | 40‘’ X 5μm pp filter | China |
UF Membrane | CK-RO | China |
Membrane Type | 8040 | |
CIP Cleaning System | Cleaning tank, filter, pump | |
Sterilize Device | UV |

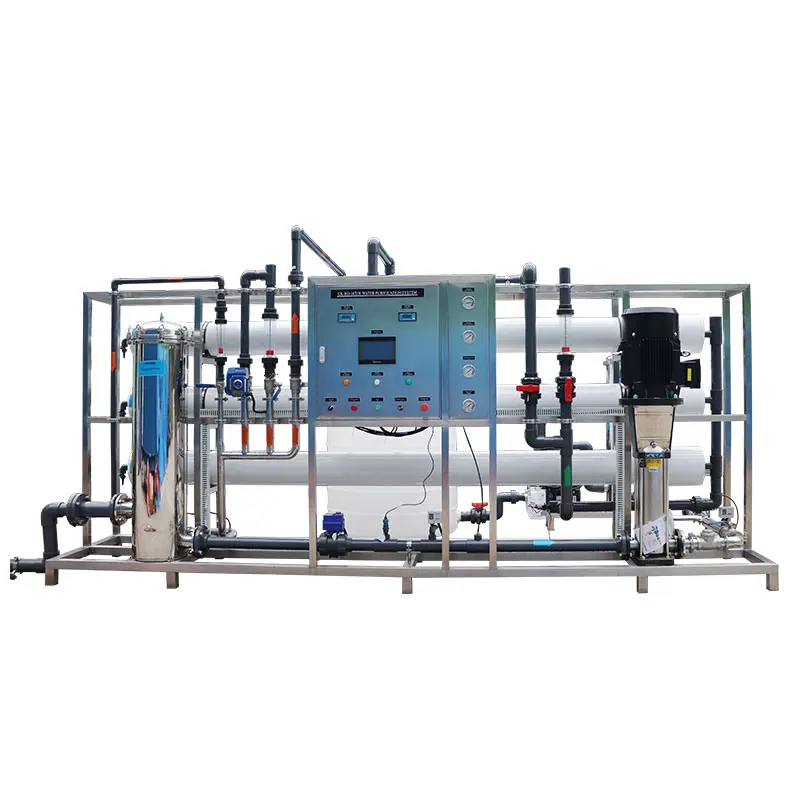

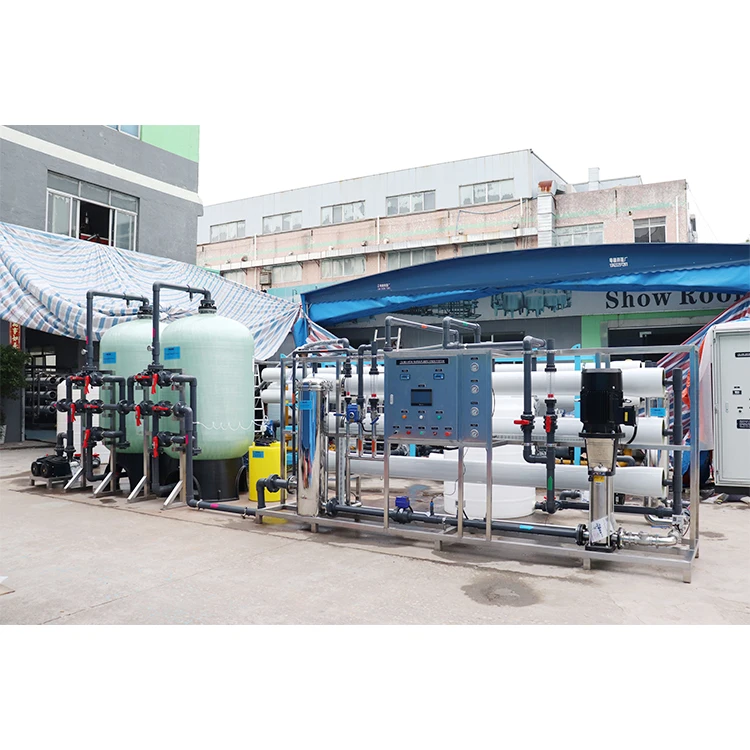

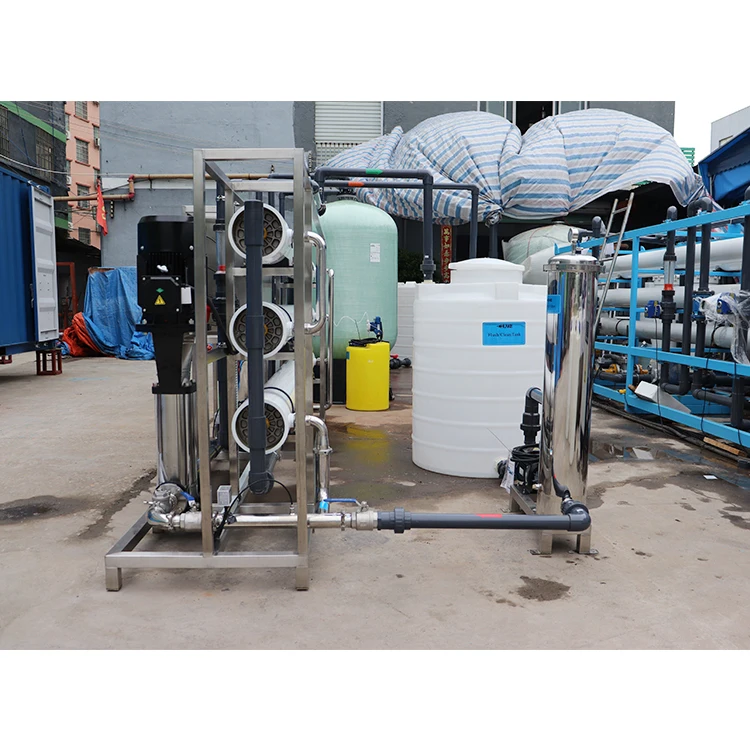

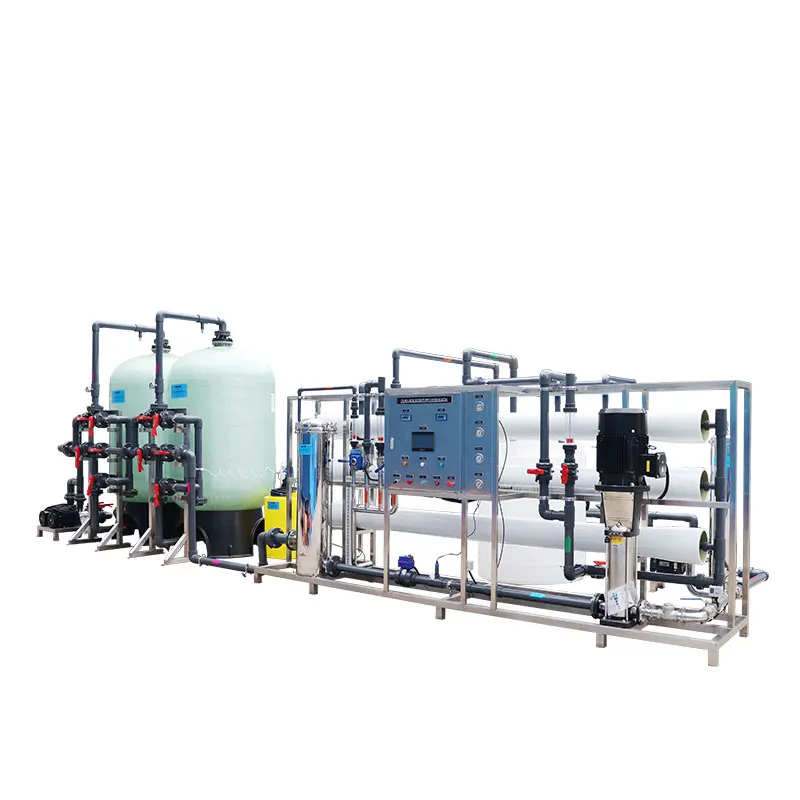

Industrial Reverse Osmosis Water Purification Systems
Industrial Reverse Osmosis Water Purification Systems is used to purify water. This system consists of booster pump, FRP pretreatment tanks (sand filter, activated carbon filter), SS304 cartridge filter housing, chemical dosing systems, high pressure pump, FRP membrane pressure vessel, 8040 membranes, control panel and touch screen control.
Material and parts brand can be changes as regards to raw water quality and customer demand.
From touch screen panel, you can see all system flow diagram and automatic or manual control the system.
Membranes do not allow small particles, virus, bacteria to pass permeate water as a result your water becomes very clean and safe.
Industrial Reverse Osmosis Water Purification Systems is used to purify water. This system consists of booster pump, FRP pretreatment tanks (sand filter, activated carbon filter), SS304 cartridge filter housing, chemical dosing systems, high pressure pump, FRP membrane pressure vessel, 8040 membranes, control panel and touch screen control.
Material and parts brand can be changes as regards to raw water quality and customer demand.
From touch screen panel, you can see all system flow diagram and automatic or manual control the system.
Membranes do not allow small particles, virus, bacteria to pass permeate water as a result your water becomes very clean and safe.
Industrial Seawater Reverse Osmosis Desalination System Capacity Range:
Industrial Water Purification System Capacity range between 38m3/day to 7500m3/day. If you need smaller than this capacity please see our commercial water treatment systems. All industrial reverse osmosis water treatment systems are started from booster pump, it feeds raw water to pretreatment tanks.Depends on capacity pretreatment tank size and numbers can be changed. Also depend on raw water source and TDS (Total Dissolved Solid) material can be changed. In Chunke if water source is Tap or low TDS fresh water, we can use FRP, Stainless Steel 304 or
316. If salt content and TDS high, because of the corrosion, we are using FRP or Carbon Steel material for pretreatment tanks.

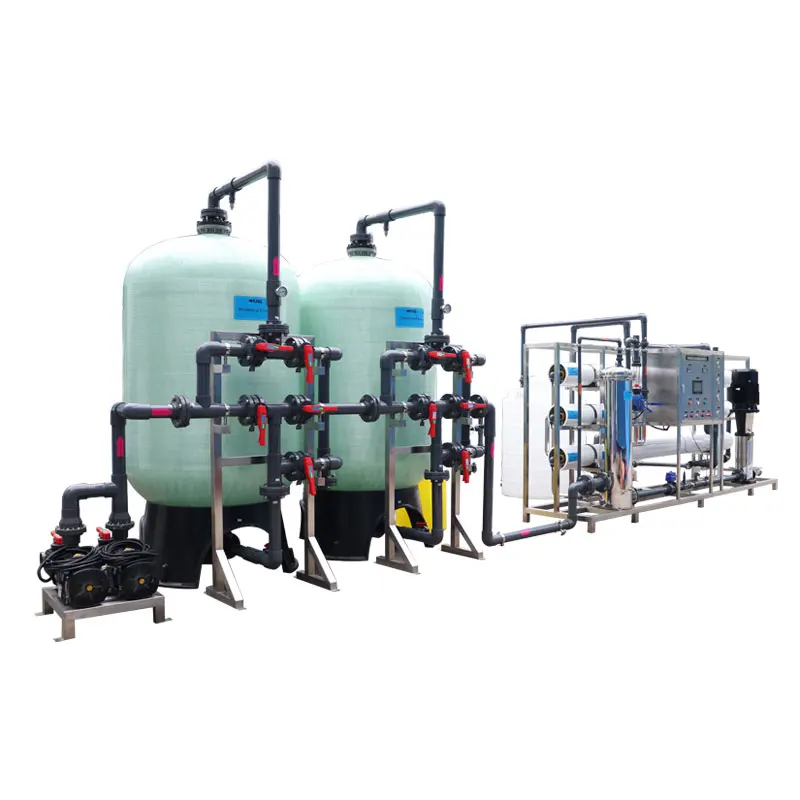

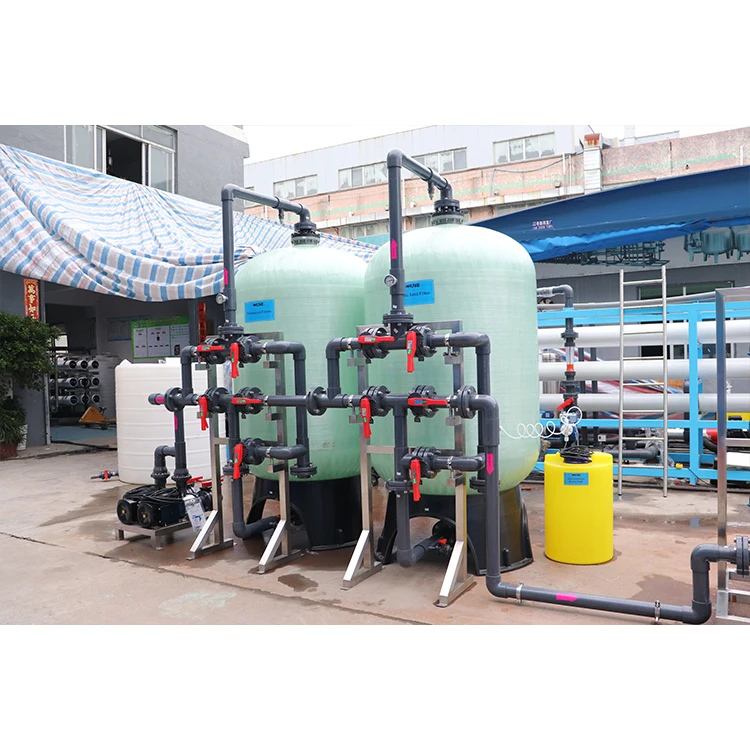

Pretreatment consists of Sand Media Filter Tank, Activated Carbon Filter Media Tank and Softener Tank which has ion exchange resin
inside, they are very important for reverse osmosis water filtration.
Pretreatment is used to remove large number of suspended solids, iron, turbidity, unwanted color, unpleasant taste, chlorine,sediment, organic contaminants, odors. In pretreatment we can control the flow manual or automatic for industrial water purification.
316. If salt content and TDS high, because of the corrosion, we are using FRP or Carbon Steel material for pretreatment tanks.
Pretreatment consists of Sand Media Filter Tank, Activated Carbon Filter Media Tank and Softener Tank which has ion exchange resin
inside, they are very important for reverse osmosis water filtration.
Pretreatment is used to remove large number of suspended solids, iron, turbidity, unwanted color, unpleasant taste, chlorine,sediment, organic contaminants, odors. In pretreatment we can control the flow manual or automatic for industrial water purification.
After pretreatment water goes to cartridge filter housing, we call it as security filter, most of industrial water treatment
system application we are using stainless steel 304 or 316 material, but if water is very salty like brackish or seawater, we can use carbon steel, FRP or PVC Plastic Cartridge Filter Housing or Bag Filter Housing. There is 1µm or 5 µm PP filter in cartridge filter housing at industrial water treatment system.
After cartridge filter housing, water goes to membrane pressure vessel with High Pressure Pump, you have brand option for High Pressure Pump and it allows you to adjust your budget. Membrane housing shell inside depends on capacity we have 4040 or 8040 Membranes. Most of our project we are using DOW Filmtec, Toray, Vontron, Hydranautics, LG brand as ro membrane.
system application we are using stainless steel 304 or 316 material, but if water is very salty like brackish or seawater, we can use carbon steel, FRP or PVC Plastic Cartridge Filter Housing or Bag Filter Housing. There is 1µm or 5 µm PP filter in cartridge filter housing at industrial water treatment system.
After cartridge filter housing, water goes to membrane pressure vessel with High Pressure Pump, you have brand option for High Pressure Pump and it allows you to adjust your budget. Membrane housing shell inside depends on capacity we have 4040 or 8040 Membranes. Most of our project we are using DOW Filmtec, Toray, Vontron, Hydranautics, LG brand as ro membrane.
Membranes, in industrial reverse osmosis water purification systems, are most important part. They block matters size bigger than 0.001µm and molecular weight up to 150-250Dalton. It consists of impurities, particles, sugars, proteins, bacteria, dyes, organic and inorganic solids.
Also, reverse osmosis water filtration system can have chemical dosing at pretreatment or post treatment, like antiscaling (antiscalant), antifouling, pH adjustment, Sterilization Disinfection chemicals.In Chunke when we check customer water analysis report, sometimes because of scaling and fouling problems, we can use CIP (Clean
In Place) System, it wash membrane in membrane housing and make membrane clean so on membrane life longer.
Also, reverse osmosis water filtration system can have chemical dosing at pretreatment or post treatment, like antiscaling (antiscalant), antifouling, pH adjustment, Sterilization Disinfection chemicals.In Chunke when we check customer water analysis report, sometimes because of scaling and fouling problems, we can use CIP (Clean
In Place) System, it wash membrane in membrane housing and make membrane clean so on membrane life longer.
Electrical Power of industrial water treatment system
For industrial water purification plant needs 220-380V/50Hz/60Hz. For bigger capacity, because of high pressure pump, it needs
380V 50/60Hz. As regards to your reverse osmosis water filtration machine design, we will check your electrical supply and decide
fix power to you.
For industrial water purification plant needs 220-380V/50Hz/60Hz. For bigger capacity, because of high pressure pump, it needs
380V 50/60Hz. As regards to your reverse osmosis water filtration machine design, we will check your electrical supply and decide
fix power to you.
Before Buying Industrial Water Purification System, you should know:
1. Pure Water Production Capacity (L/day, L/Hour, GPD).
2. Feed Water TDS and Raw Water Analysis Report (prevent fouling and scalling problem)
3. Iron and Manganese must be removed before raw water enter reverse osmosis water filtration membrane
4. TSS (Total Suspended Solid) must remove before industrial water purification system’s membrane.
5. SDI (Silt Density Index) must be less than 3
6. Must be sure your water source does not have oil and grease
7. Chlorine must be removed before industrial water treatment system
8. Available electrical power voltage and phase
9. Layout of place for industrial RO reverse osmosis system
1. Pure Water Production Capacity (L/day, L/Hour, GPD).
2. Feed Water TDS and Raw Water Analysis Report (prevent fouling and scalling problem)
3. Iron and Manganese must be removed before raw water enter reverse osmosis water filtration membrane
4. TSS (Total Suspended Solid) must remove before industrial water purification system’s membrane.
5. SDI (Silt Density Index) must be less than 3
6. Must be sure your water source does not have oil and grease
7. Chlorine must be removed before industrial water treatment system
8. Available electrical power voltage and phase
9. Layout of place for industrial RO reverse osmosis system
FAQ
Q1.Are you a factory or trading company?
A1:We are a professional water treatment equipment and accessories manufacturing factorythat set up for over 10 years. We always pay attention to the development of the industry!We can give a discount according to the quantity of the machine you purchase.
B1:At the same time,we take effective measures to control the production process for ensuring the quality of products. Our products are certified.And we can supply SGS,ISO9001,CE certification.
Q2.Where is your factory located?How can I visit there?
A2:Our factory is located in No.8,Suyuanzhuang,Qinghu Village,Junhe Street,Baiyun District,Guangzhou,Guangdong,China. All our clients.from home or abroad,are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in reverse osmosis equipment,ultrafiltration equipment,EDI electric desalination system,sea water
desalination system,water treatment spares,water treatment accessories etc.
Q4.How can I know your machine works well?
A4:Before delivery,we shall test the machine working condition for you.
Q5.What's the information you need to know before order?
A1:What's your raw water?
B1:What's the capacity per hour of the equipment?
C1:What's the application of purifier water?
D1:Do you have raw water quality test report?What's your raw water TDS and hardness? E1:What is the power supply?(Such as 380V/50HZ,220V/50HZ etc;)
B1:At the same time,we take effective measures to control the production process for ensuring the quality of products. Our products are certified.And we can supply SGS,ISO9001,CE certification.
Q2.Where is your factory located?How can I visit there?
A2:Our factory is located in No.8,Suyuanzhuang,Qinghu Village,Junhe Street,Baiyun District,Guangzhou,Guangdong,China. All our clients.from home or abroad,are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in reverse osmosis equipment,ultrafiltration equipment,EDI electric desalination system,sea water
desalination system,water treatment spares,water treatment accessories etc.
Q4.How can I know your machine works well?
A4:Before delivery,we shall test the machine working condition for you.
Q5.What's the information you need to know before order?
A1:What's your raw water?
B1:What's the capacity per hour of the equipment?
C1:What's the application of purifier water?
D1:Do you have raw water quality test report?What's your raw water TDS and hardness? E1:What is the power supply?(Such as 380V/50HZ,220V/50HZ etc;)
