Тканевая конвейерная лента двойная рамка вулканизирующая машина вулканизатор
- Категория: >>>
- Поставщик: Qingdao,Antai,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.15 $* | 0.3 $* |
| Aug-18-2025 | 0.30 $* | 0.6 $* |
| Jul-18-2025 | 0.15 $* | 0.24 $* |
| Jun-18-2025 | 0.98 $* | 0.32 $* |
| May-18-2025 | 0.58 $* | 0.65 $* |
| Apr-18-2025 | 0.85 $* | 0.6 $* |
| Mar-18-2025 | 0.85 $* | 0.98 $* |
| Feb-18-2025 | 0.85 $* | 0.4 $* |
| Jan-18-2025 | 0.10 $* | 0.87 $* |
Характеристики
fabric conveyor belt two pieces frame vulcanizing Machine Vulcanizer with good quality
fabric conveyor belt two pieces frame vulcanizing Machine Vulcanizer with good quality
Product Display

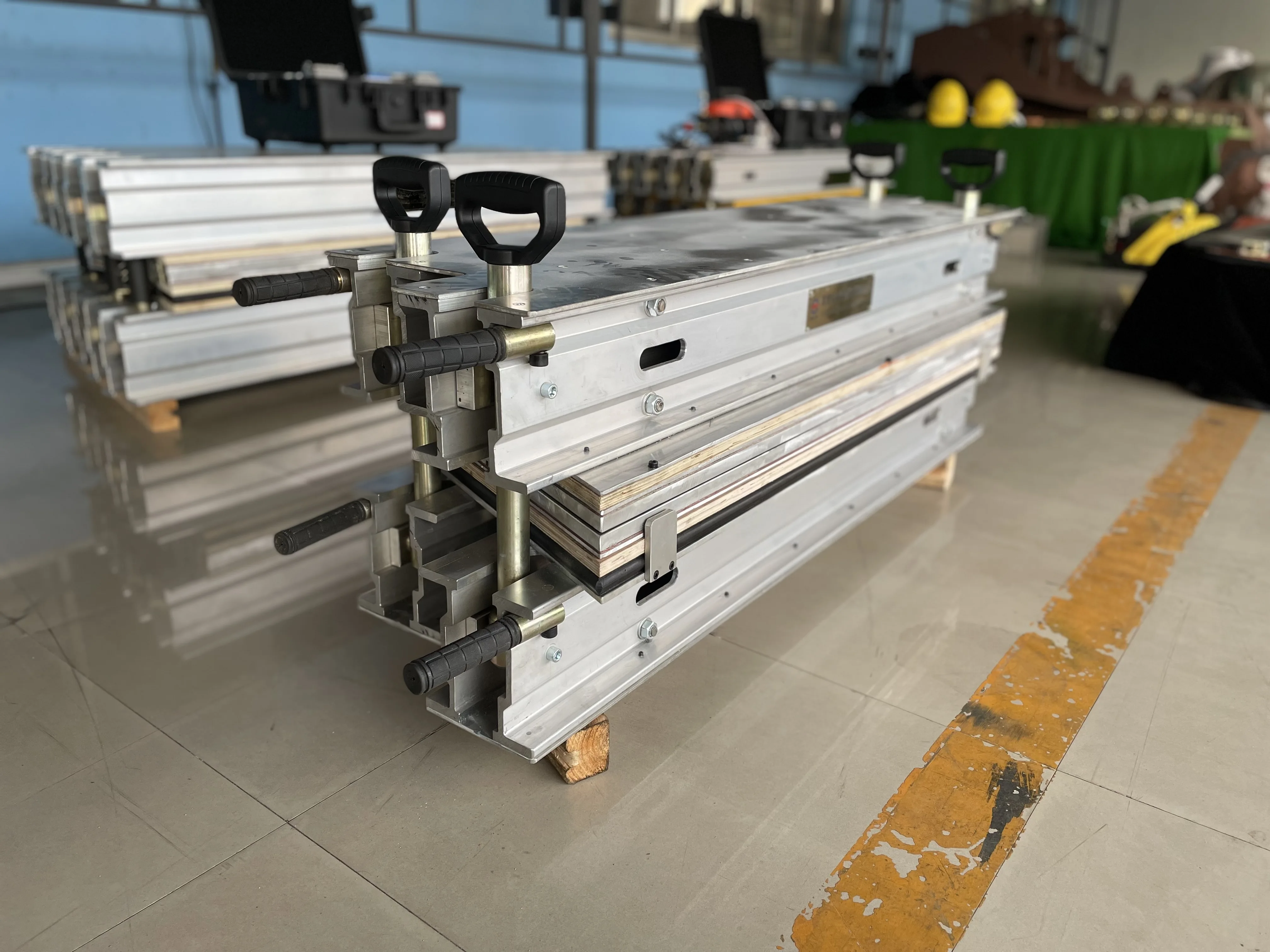

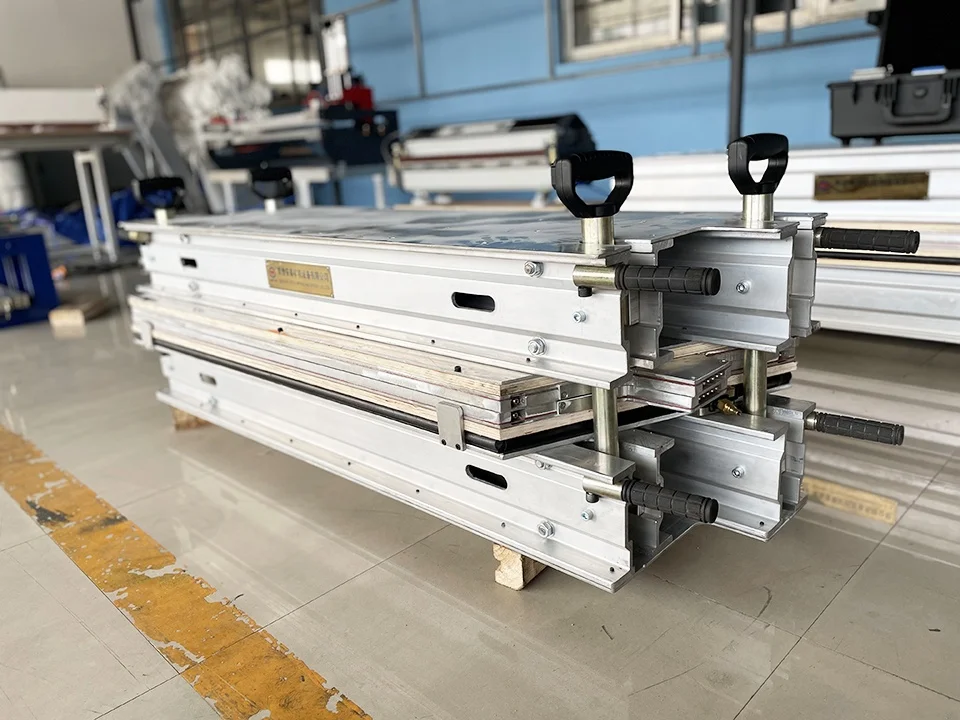

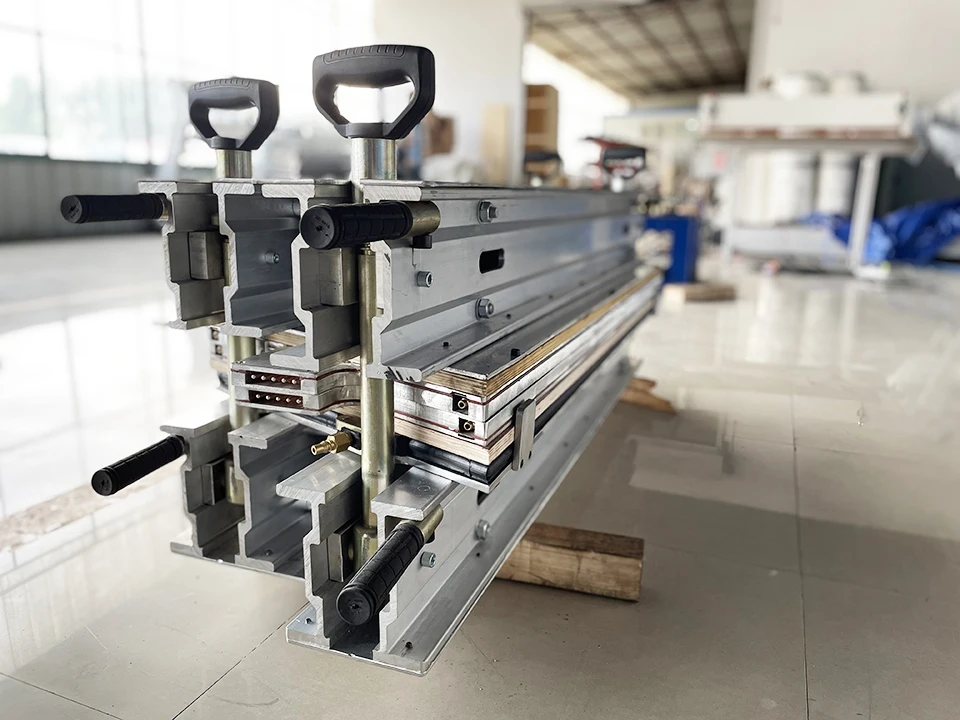

This type of frame type conveyor belt joint vulcanizing press consists of 2 pieces press, aluminum frame style, designed for quick and easy operation, easy to move to any position, lightweight and high working efficiency.
Application:
Frame type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.
Specifications:
1. This type of conveyor belt joint vulcanizing press is designed for fast and dependable belt splicing
2. Lightweight, portable frame press
3. Use uniform pressure system, new style pressure bag, pls refer to below details.
4. Rapid cooling system within platens, cooling down from 145C to 75C, only 5mins.
5. Lightweight aluminum nut & bolt set
6. Some units can work together
7. Pressure bag system, can used for both water and air, one time molding, without metal frame, light weight, testing pressure out of our factory is 2.5MPA

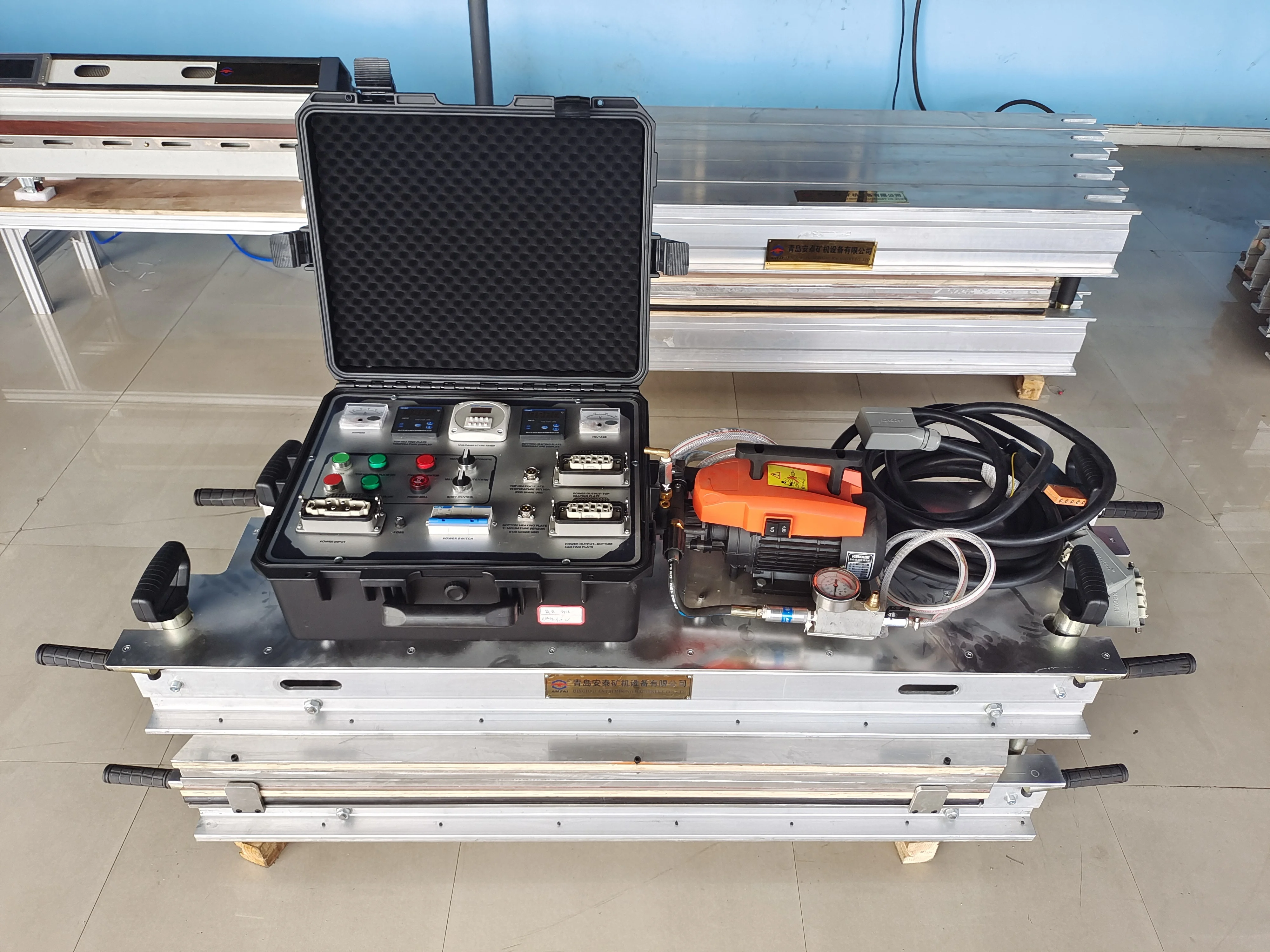

8. Automatic control panel: with time control and digital temperature control. All the parts use high quality electric devices with CE certificated.
9. In case of electronic controller failure, manual operation is possible as well.
Detailed Images:
Item | Heating Board Size | Belt Width | Power | Overall Dimension | Weight |
TP-650 | 830x810mm | 650mm | 9.2kw | 1130x830x750mm | 450kgs |
TP-800 | 830x1020mm | 800mm | 11.2kw | 1220x830x750mm | 550kgs |
TP-1000 | 830x1220mm | 1000mm | 16.5kw | 1480x830x750mm | 650kgs |
TP-1200 | 830x1420mm | 1200mm | 18.6kw | 1680x830x800mm | 800kgs |
TP-1400 | 830x1620mm | 1400mm | 20.8kw | 1880x830x900mm | 950kgs |
TP-1600 | 830x1820mm | 1600mm | 22.2kw | 2080x830x900mm | 1150kgs |
TP-1800 | 830x2020mm | 1800mm | 24.8kw | 2280x830x900mm | 1250kgs |
TP-2000 | 830x2220mm | 2000mm | 27kw | 2480x830x1200mm | 1400kgs |
TP-2200 | 830x2420mm | 2200mm | 28.8kw | 2680x830x1200mm | 1500kgs |
TP-2400 | 830x2620mm | 2400mm | 30.2kw | 2880x830x1200mm | 1700kgs |
Delivery &payment:
· Delivery lead time: 35-40 days since receiving the deposit
· Packing way:
· 1) wrapped with stretch film, avoid rubbing the paint off thesurface
· 2)wooden packaging can be customized
· 3) key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
· Term of payment: T/T (30% deposit, 70% balance of B/L) ; L/C
Our workshop:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
About us:
Company Information
Qingdao Antai Mining Machinery Co., Ltd. is a professional manufacturer of conveyor belt vulcanizer. We have more than 20 years of experience in this field, with more than 40 employees, and are the direct manufacturer of conveyor belt vulcanization equipment. Our company is the only supplier of rubber pressure bags except ALMEX in China. We have our own factory. Welcome to Qingdao to visit us. Qingdao is really a beautiful city.
![JN%R3)`~3$%%7ON9[Z7]JJ7](http://sc02.alicdn.com/kf/HTB1Z97fUxTpK1RjSZR0q6zEwXXar/223452626/HTB1Z97fUxTpK1RjSZR0q6zEwXXar.jpg)
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast Economic Zone. The nearest airport is Qingdao Liuting International Airport. Kindly send flight information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other relevant equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control department. We will make a strict inspectin before the machines leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machines according to the client's requirement.
