Резак для бумаги, диаметр 44 мм
US $61.00-$64.00
Машина для продольной резки пластиковой пленки машина из нетканого
- Категория: Paper Production Machinery >>>
- Поставщик: Wenzhou,Sanhui,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 9520.48 $* | 9996.45 $* |
| Aug-15-2025 | 9440.96 $* | 9912.92 $* |
| Jul-15-2025 | 7920.49 $* | 8316.81 $* |
| Jun-15-2025 | 9280.39 $* | 9744.58 $* |
| May-15-2025 | 8080.34 $* | 8484.77 $* |
| Apr-15-2025 | 9120.59 $* | 9576.94 $* |
| Mar-15-2025 | 9040.46 $* | 9492.2 $* |
| Feb-15-2025 | 8960.46 $* | 9408.85 $* |
| Jan-15-2025 | 8880.83 $* | 9324.52 $* |
Характеристики
Products Description
product presentation
1. The whole machine frame is made of iron plate, with extremely high precision and stability.
2. Main motor adopts single-phase asynchronous motor.
3. PhotoelectricEPC system.
4. Inverter : Delta
5. Automatic constant tension of unwinding and rewindingby magnetic powder brake and clutch.
6. Rewinding and unwinding adopts air shaft.
7. Guide roller is plated with hard chromium, which makes the guide roller hard, wear-resistant,
2. Main motor adopts single-phase asynchronous motor.
3. PhotoelectricEPC system.
4. Inverter : Delta
5. Automatic constant tension of unwinding and rewindingby magnetic powder brake and clutch.
6. Rewinding and unwinding adopts air shaft.
7. Guide roller is plated with hard chromium, which makes the guide roller hard, wear-resistant,
mild and corrosion-resistant
8. Electrical equipment
9. The standard machine equipped with 1 set(10 pcs)circular knives, razor knife is optional.
10. The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.
8. Electrical equipment
9. The standard machine equipped with 1 set(10 pcs)circular knives, razor knife is optional.
10. The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.
Machine Model | DBFQY500 | DBFQY500 | DBFQY500 |
Max Unwinding material width | 800mm | 1100mm | 1300mm |
Max. Unwinding dia | 800mm | 800mm | 800mm |
Slitting width | 30mm-800mm | 30mm-1100mm | 30mm-1300mm |
Slitting speed | 10-500m/min | 10-500m/min | 10-500m/min |
Max. Rewinding dia | 中600mm | 中600mm | 中600mm |
Inner dia of paper core | 3 | 3 | 3 |
Power | 10kw | 12kw | 15kw |
Machine size(L*WH) | 2.2x2.8x2.13m | 2.2x3.0x2.13m | 2.2x3.3x2.13m |
Machine weight | 2600kg | 2800kg | 3100kg |

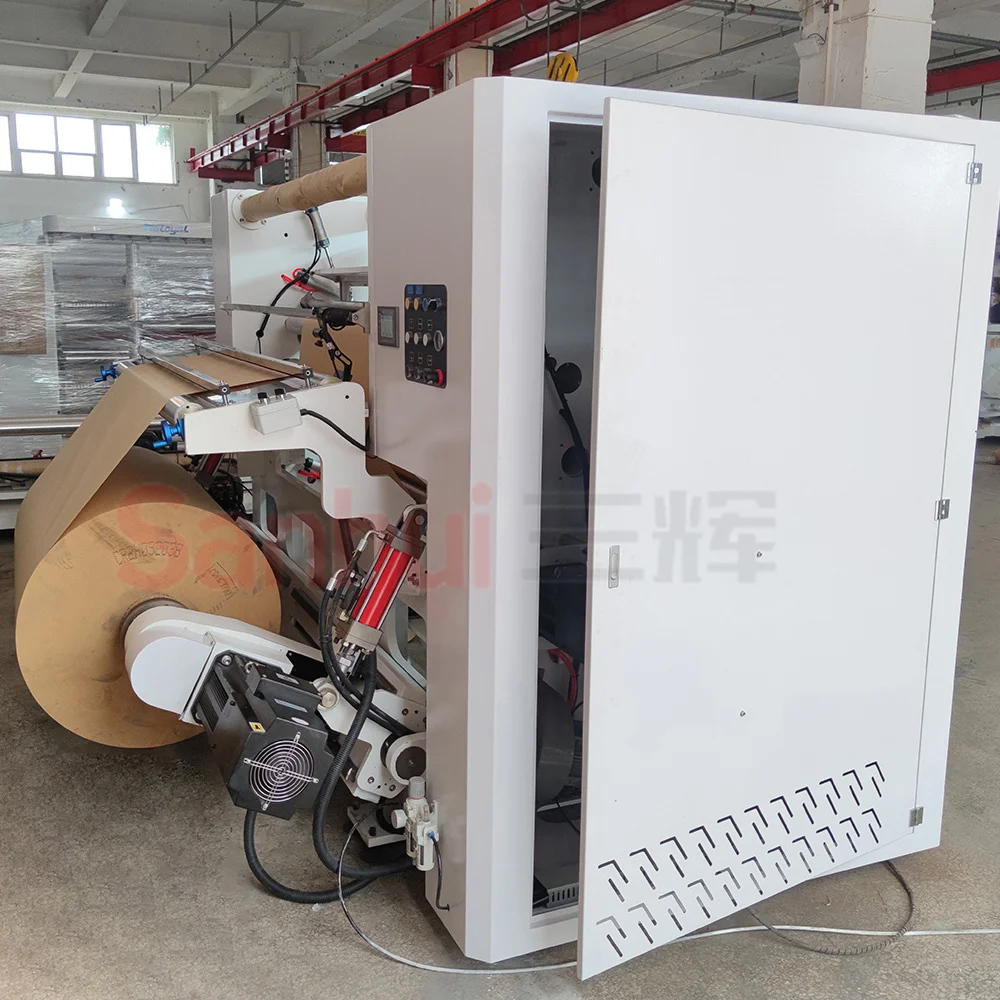

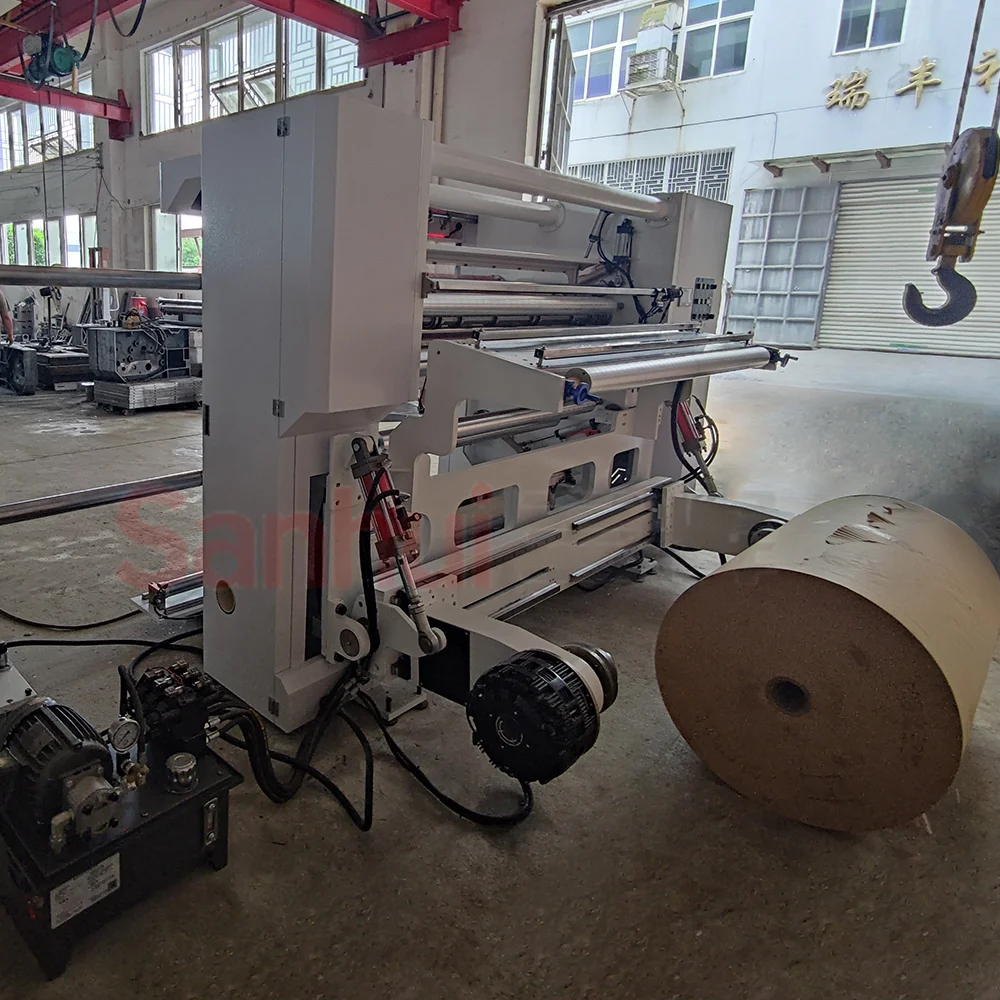

Machine Details
1.Unwinding part 2.Spice Plate 3.Rewinding Part 4.Discharging Part 5.Control Panel 6.EPC/LPC System Displayer

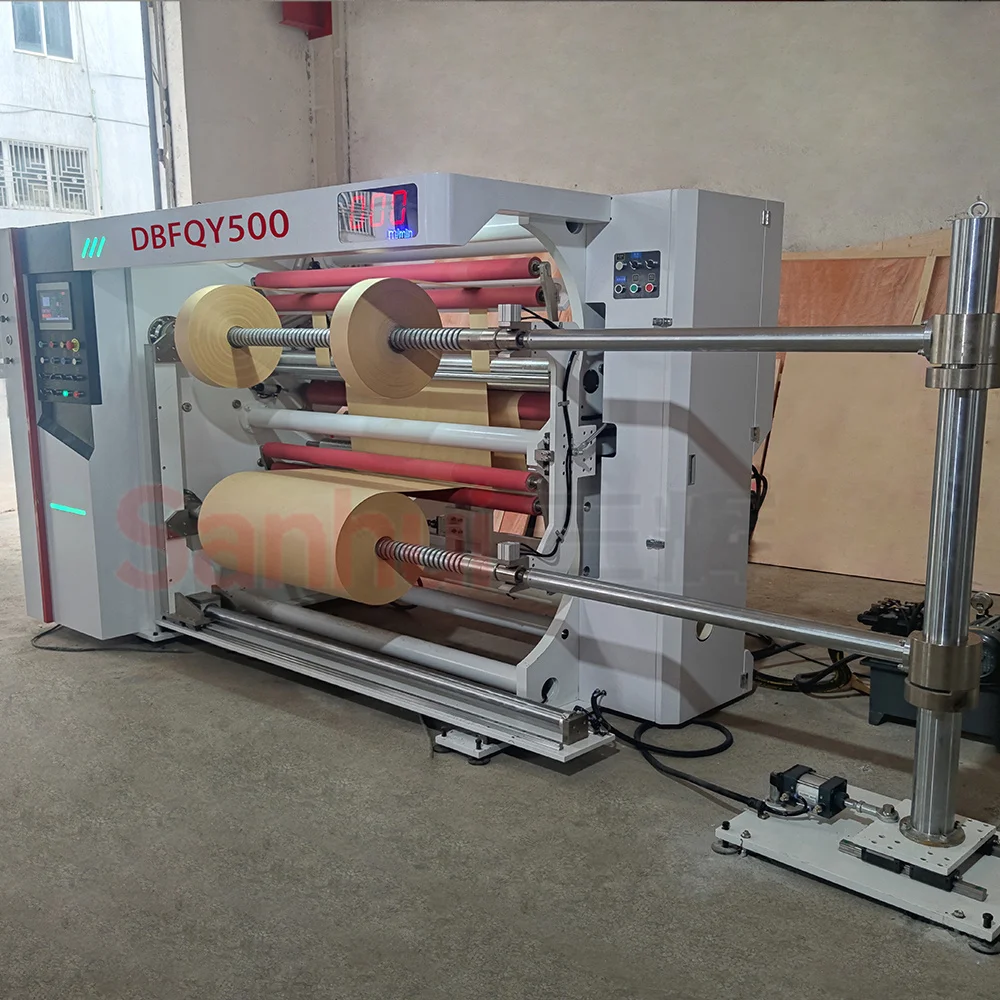

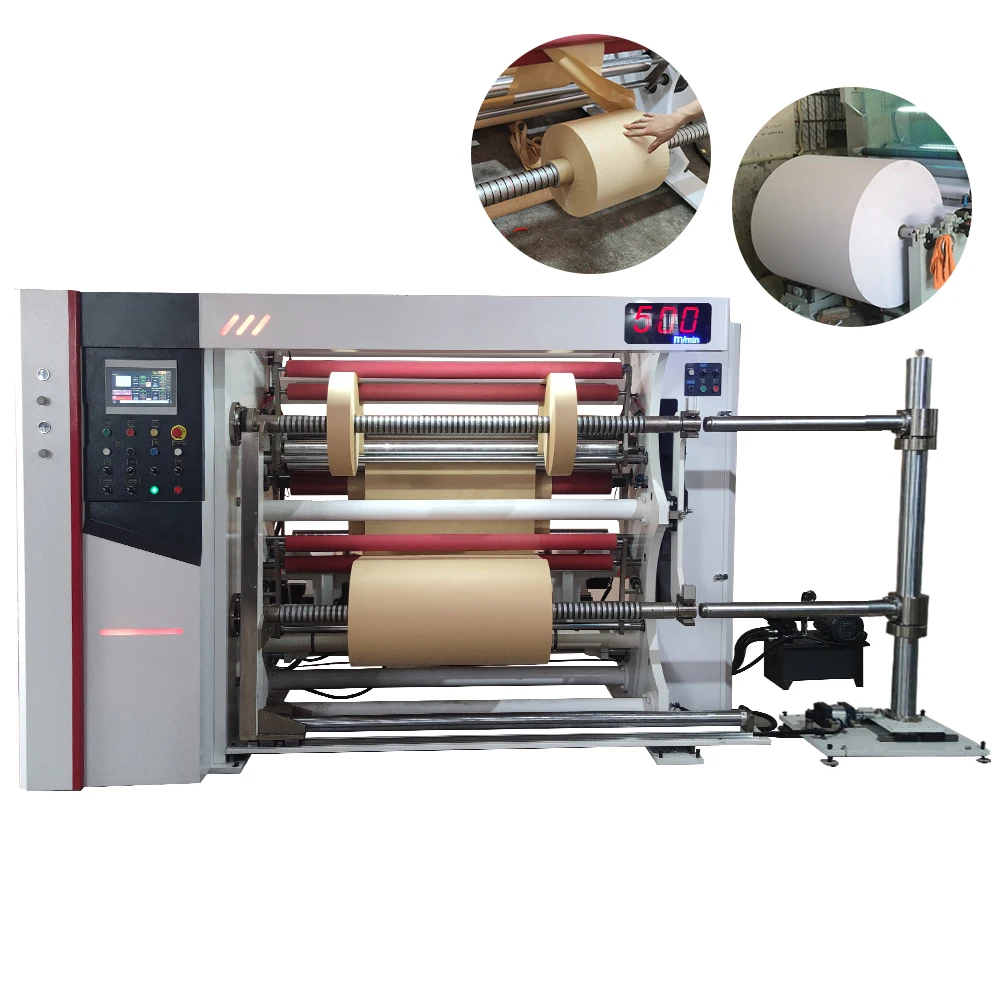

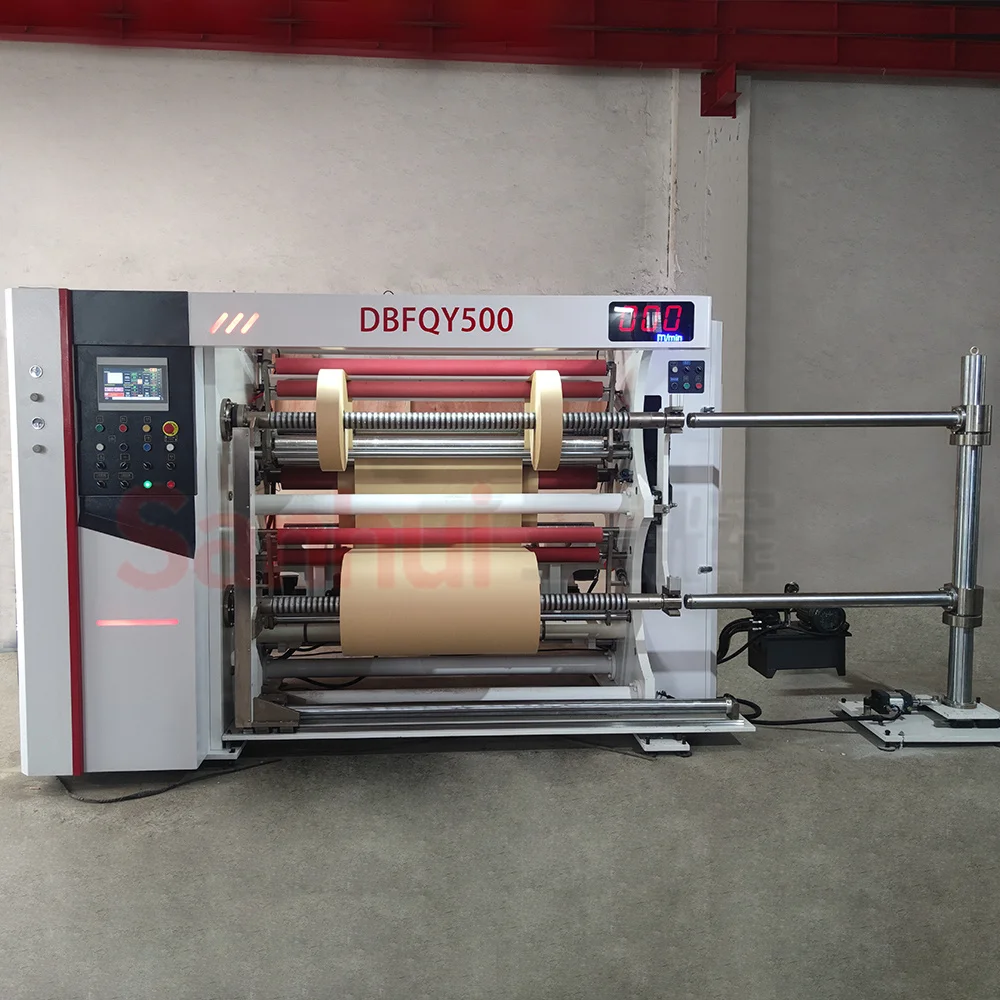

Machine Display
Sample Display
Our Company
Packaging and Shipping
