Солнечные энергетические системы 3 кВт 5 10 20 30 на сетке гибридная солнечная панель для
- Категория: Solar Energy Products >>>
- Поставщик: Sunevo,Solar,Co.,Ltd.Sunevo,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 40.27 $* | 42.85 $* |
| Aug-17-2025 | 40.15 $* | 42.37 $* |
| Jul-17-2025 | 34.25 $* | 36.9 $* |
| Jun-17-2025 | 39.26 $* | 41.21 $* |
| May-17-2025 | 34.59 $* | 36.5 $* |
| Apr-17-2025 | 39.14 $* | 41.80 $* |
| Mar-17-2025 | 38.93 $* | 40.52 $* |
| Feb-17-2025 | 38.28 $* | 40.11 $* |
| Jan-17-2025 | 38.37 $* | 40.49 $* |
Характеристики
Products Description
Datasheet

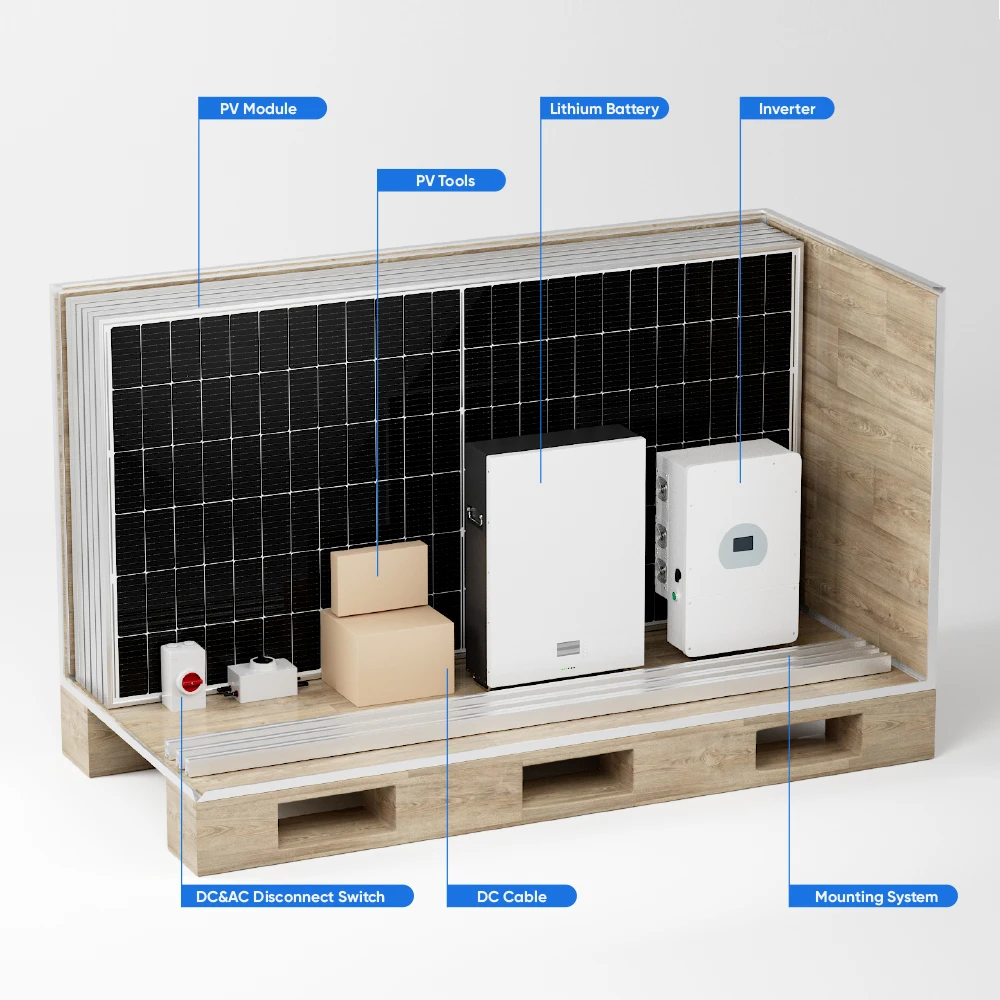

Model | SE-3KW-HY | SE-3KW-HY | SE-10KW-HY | ||
Half Cut Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 21 Pieces | ||
DC Disconnect Switch | 1 Piece | 2 Pieces | 3 Pieces | ||
Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU | ||
Wall Mounted LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh | ||
DC Cable 4mm2 | 100 meter | 200 meter | 400 meter | ||
AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece | ||
MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | 1 Set | ||||
Model | SE-15KW-HY | SE-20KW-HY | SE-30KW-HY | ||
Half Cut Mono 550W Solar Panel | 30 Pieces | 42 Pieces | 63 Pieces | ||
DC Disconnect Switch | 4 Pieces | 6 Pieces | 9 Pieces | ||
Hybrid Inverter | SUN-5K-SG03LP1-EU 3 Pieces | SUN-10K-SG04LP3-EU 2 Pieces | SUN-10K-SG04LP3-EU 3 Pieces | ||
Wall Mounted LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh | ||
DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | 1 Set | ||||
Warranty
How it works
Peak Power Watts: 550W
Maximum Power Voltage: 42.06VMaximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
6 time periods for battery charging and discharging.
Max. charging/discharging current of 240A
Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system
Open station supports one-click installation and registration
Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
IP Rating: IP66
Rated Voltage: 1000VDCConnection Type: M20,M25,MC4
Rated Current: 16A,20A
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper MC4 Connectors Assembly
Disassembly Tool
Product Packaging
Applications

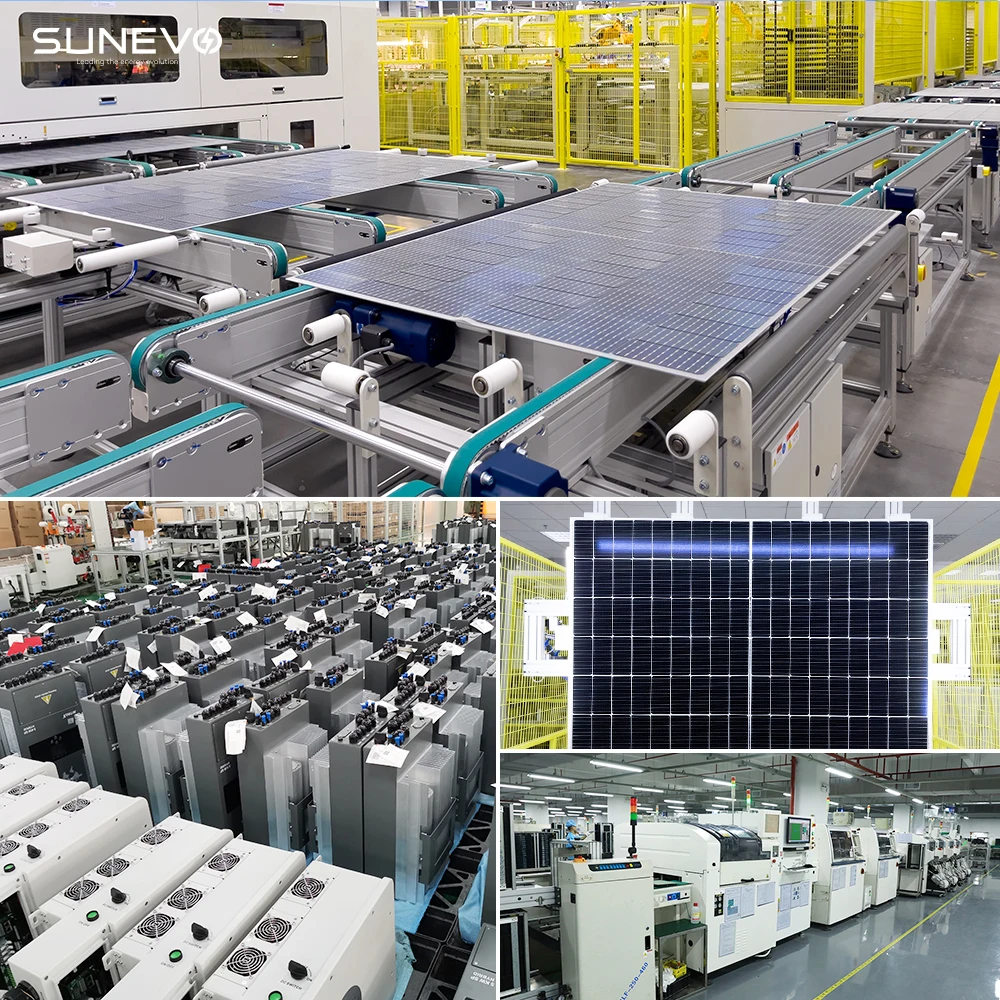

Our Factory

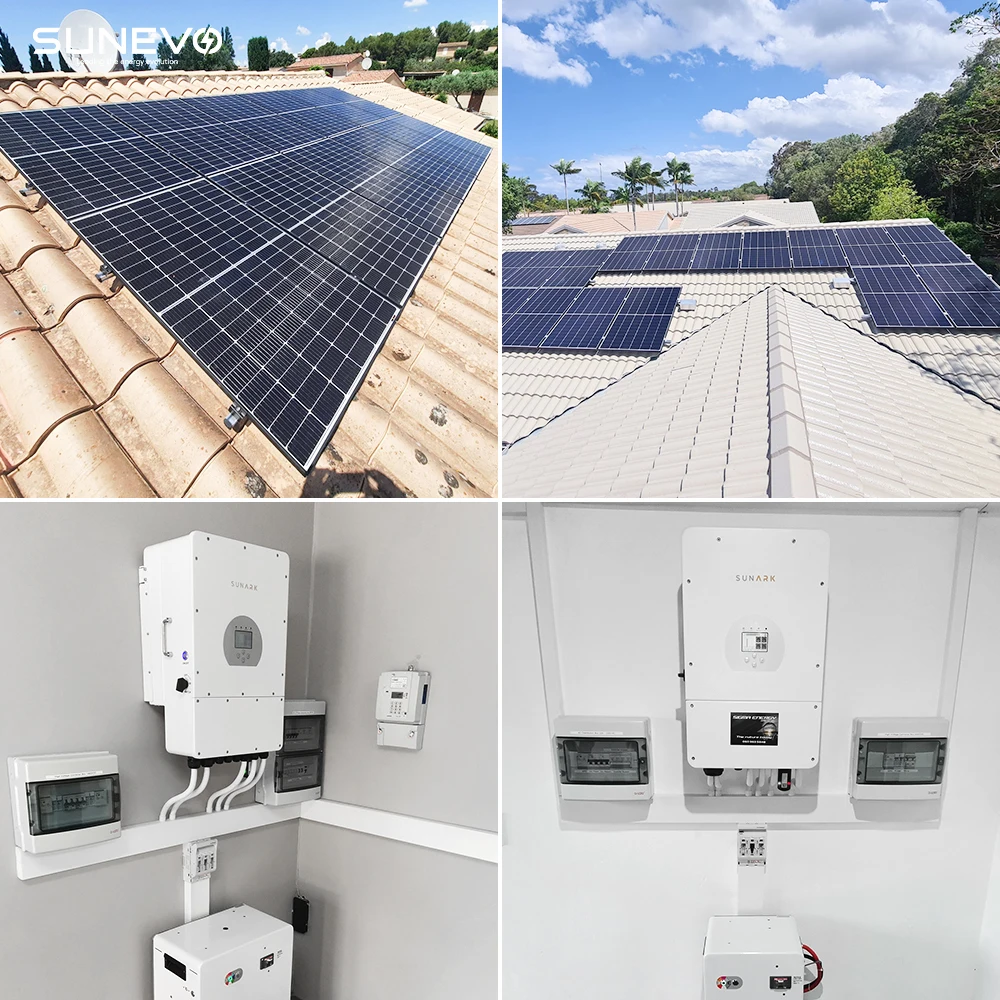

Project Case
