Products Description
Introduction

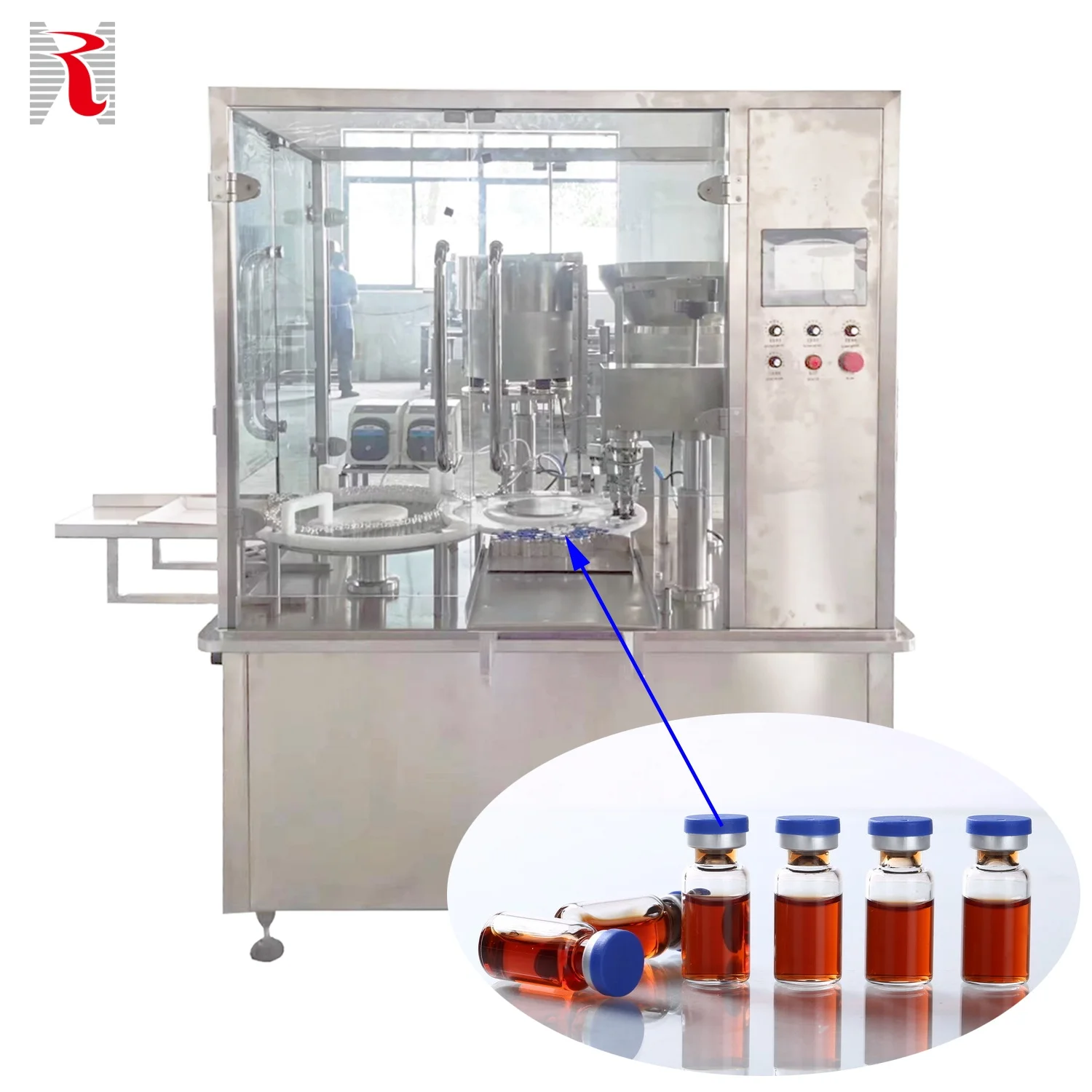

This machine is the main machine of the liquid filling line, which can complete the actions of
filling, feeding, plugging, capping, etc. The main machine is filled with stainless steel pump, accurate measurement, with
positioning and stopper function, reliable stopper, automatic cover , Three-blade forced capping. Meets GMP requirements and is
easy to operate.
filling, feeding, plugging, capping, etc. The main machine is filled with stainless steel pump, accurate measurement, with
positioning and stopper function, reliable stopper, automatic cover , Three-blade forced capping. Meets GMP requirements and is
easy to operate.
Product Paramenters

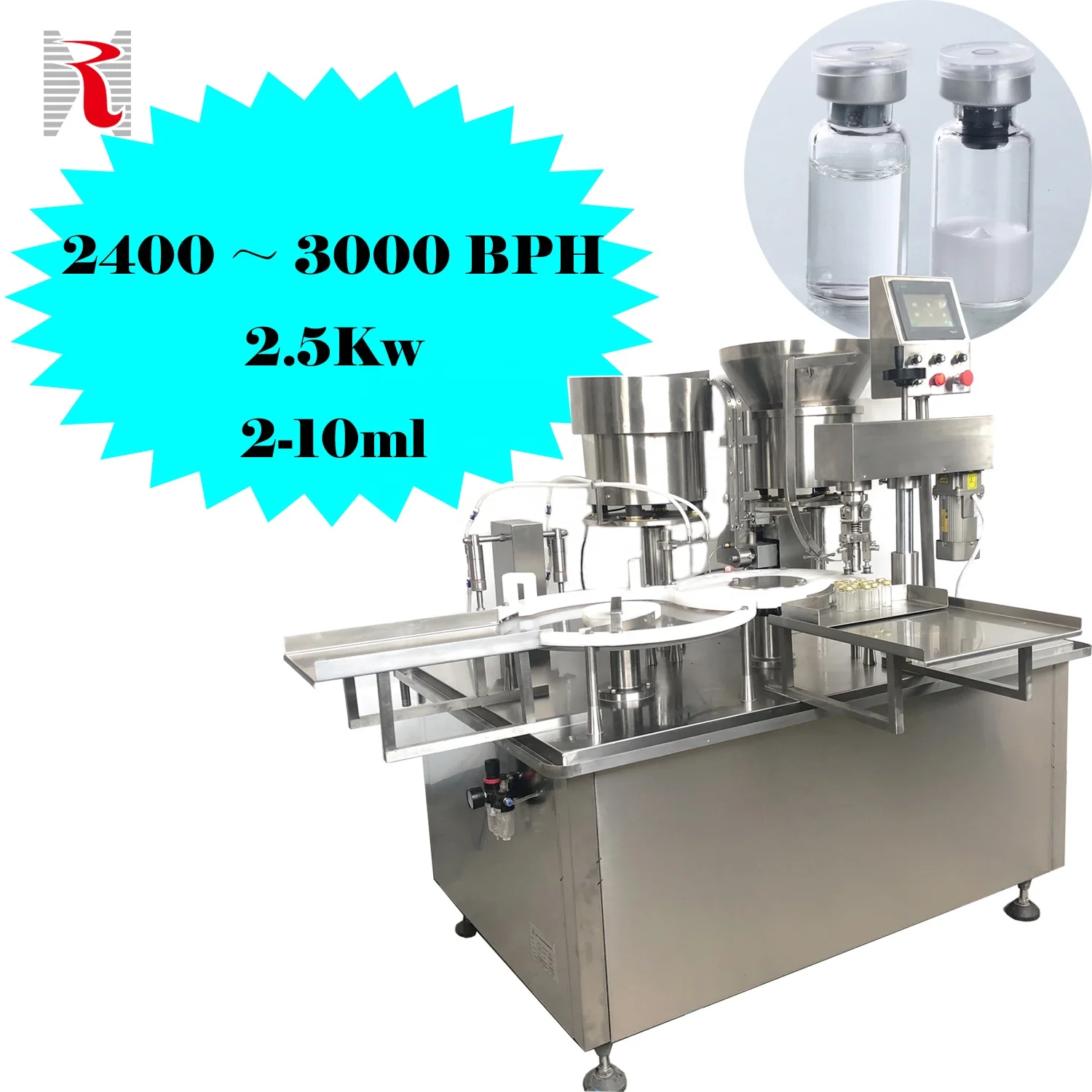

Production capacity: | 2600 ～ 3000 bottles / hour (frequency control) |
Applicable bottle: | 1-10ml vial |
On the way: | full stop |
Capping method: | three-knife compulsory |
Measurement accuracy: | ± 1% |
Power supply: | 380V, 50Hz, three-phase four-wire system |
Power: | 2.5Kw |
Dimensions: | 2500mm*900mm*1600mm |
Configuration List
List | Component name | model | Manufacturer | Note |
1 | Filling machine body | KGF | HERUN | Shell stainless steel wire drawing board, others are stainless steel and 1010 nylon |
2 | Main control system | custom made | Chint Group | Stable performance and reliable movement |

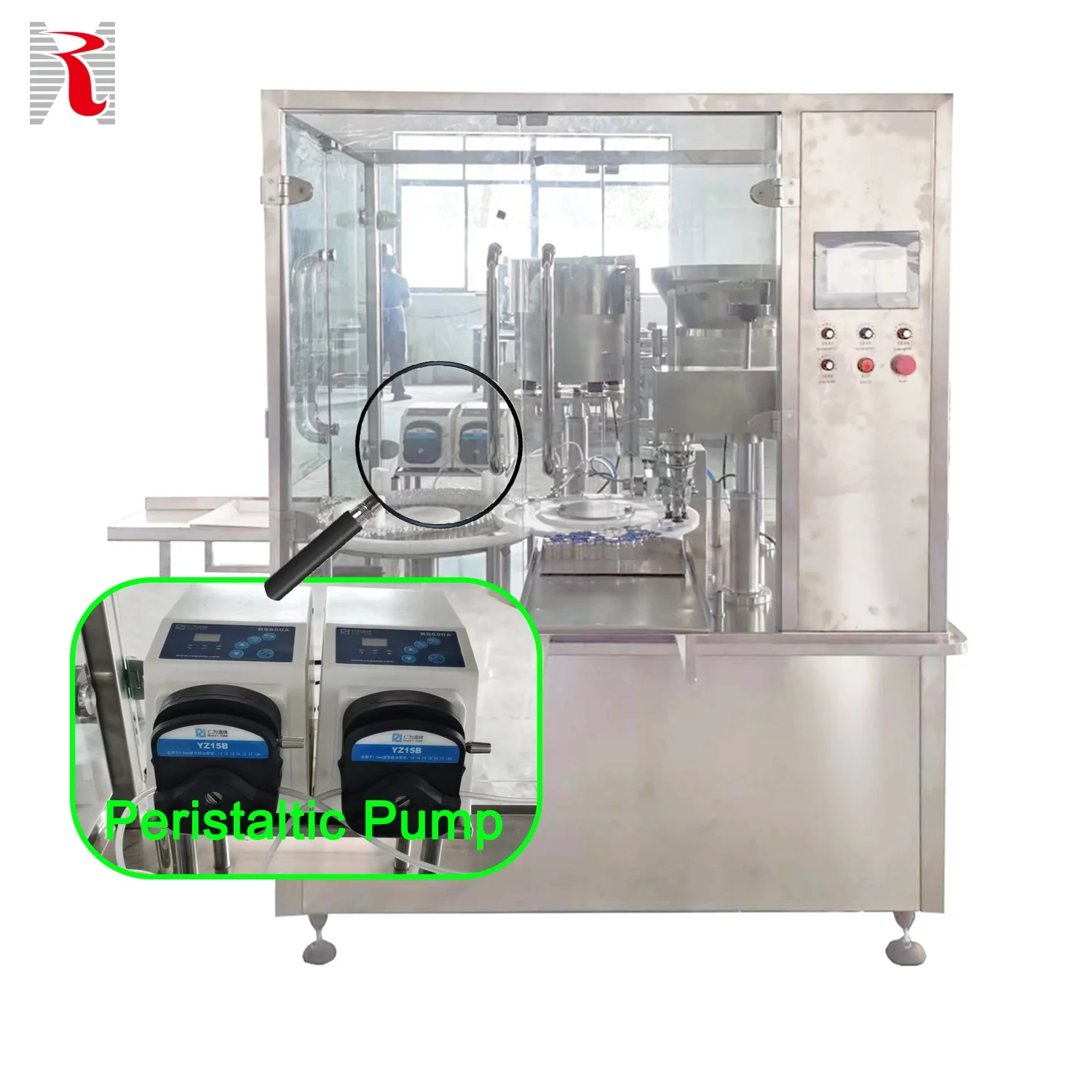

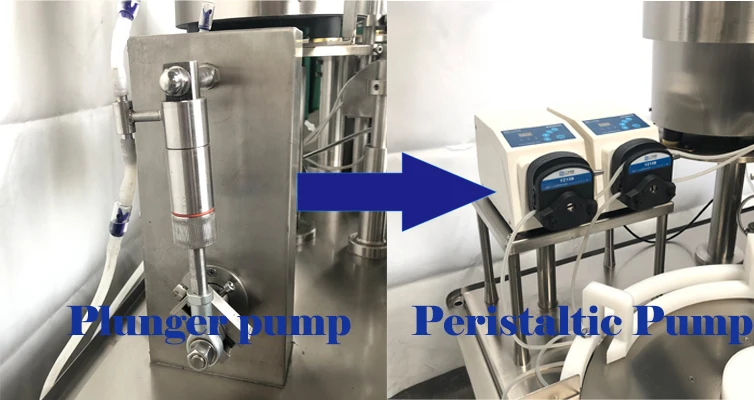

3 | Stainless steel pump | Smooth running and high precision. | ||
4 | Plug system | HERUN | ||
5 | Split | 12 divisions | HERUN | Nylon 1010 |
6 | Capping motor | 90YYJT90 | Wenzhou | Low noise and small temperature difference |
7 | Cover feeder | 400 type | HERUN | stainless steel |
8 | Cover feeding coil | 220V, 1.2KW | HERUN | Stable performance |
9 | Geared motor | 100YYJT120 | Shanghai | Low noise and small temperature difference |
10 | Main pneumatic components | Zhejiang | ||
11 | Main transmission parts | AirTAC | Made to standard | |
12 | Main parts | HERUN | Made to standard |
