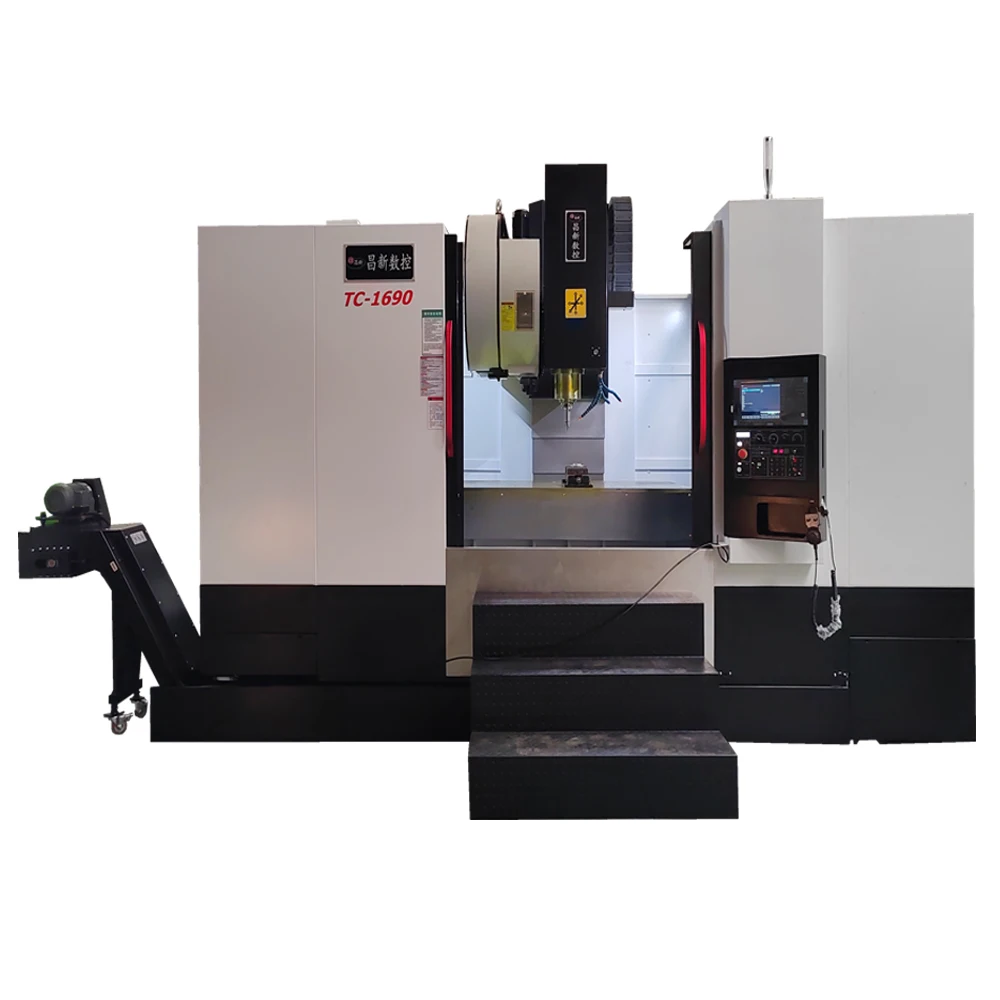

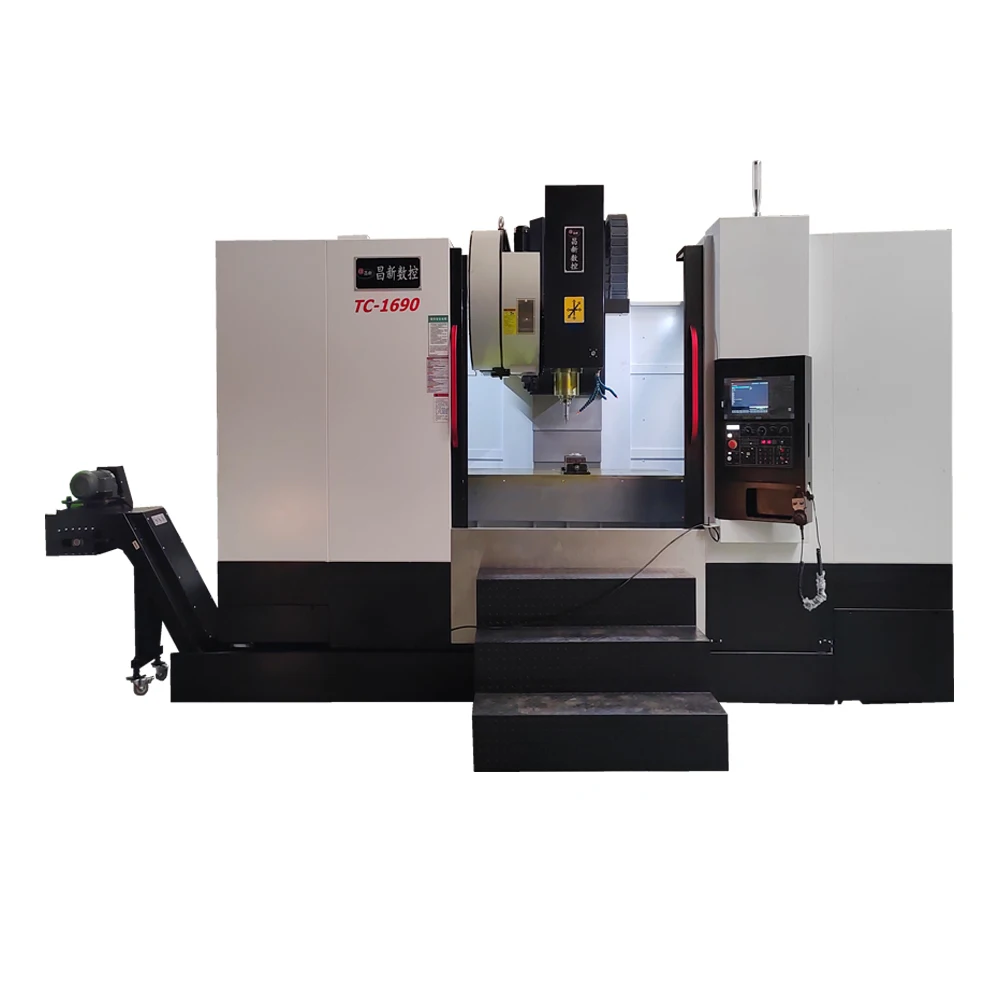

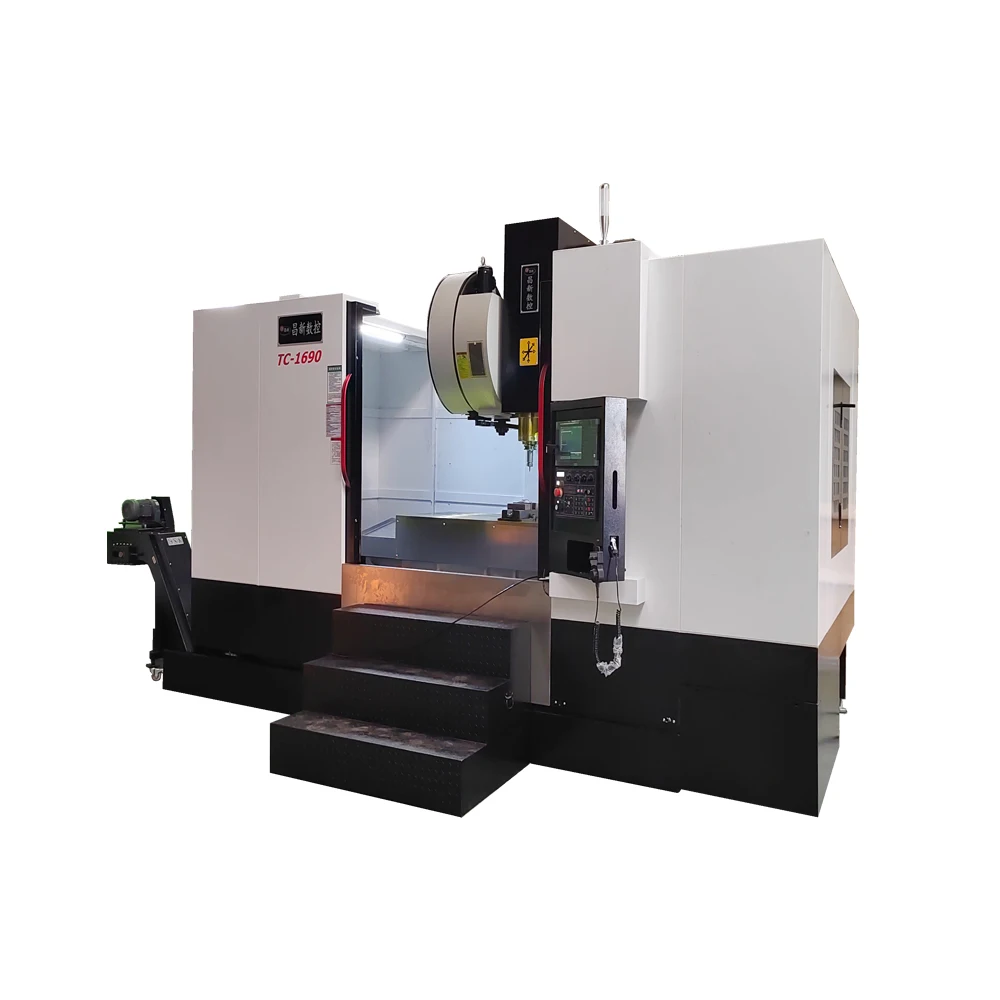

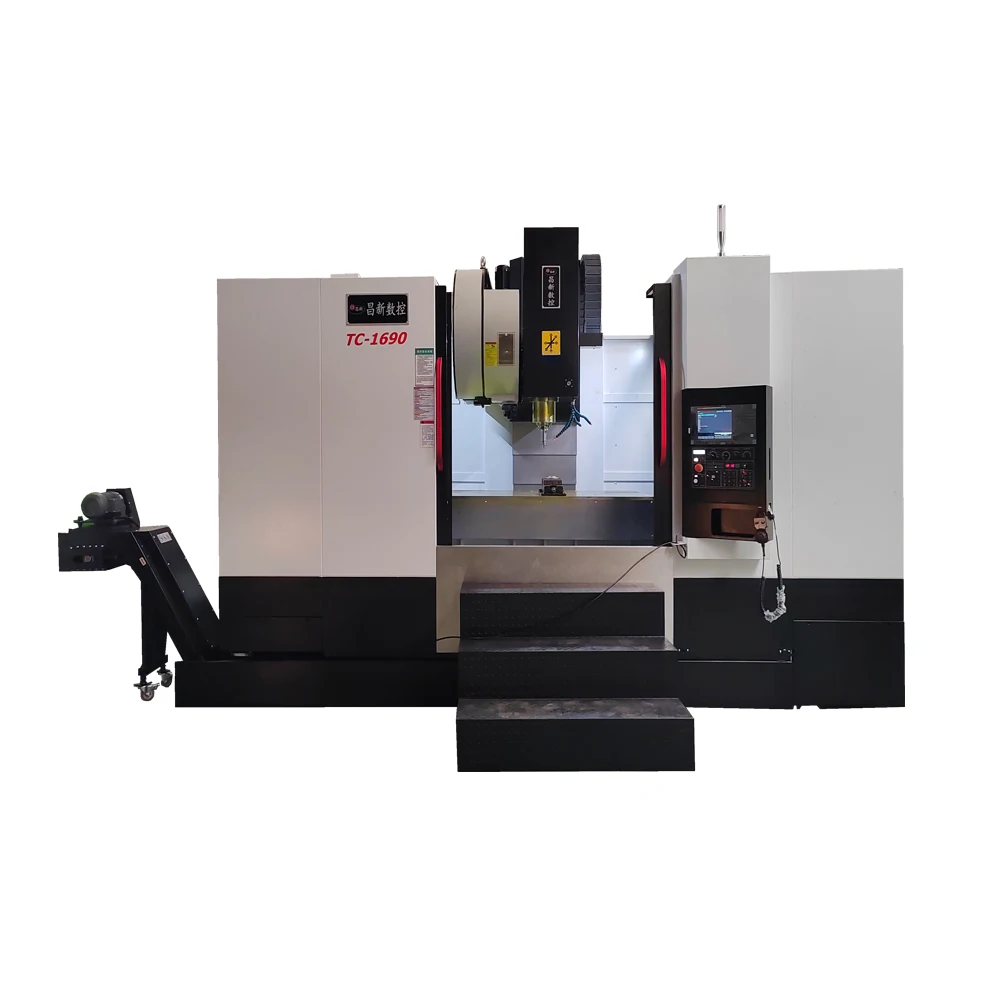

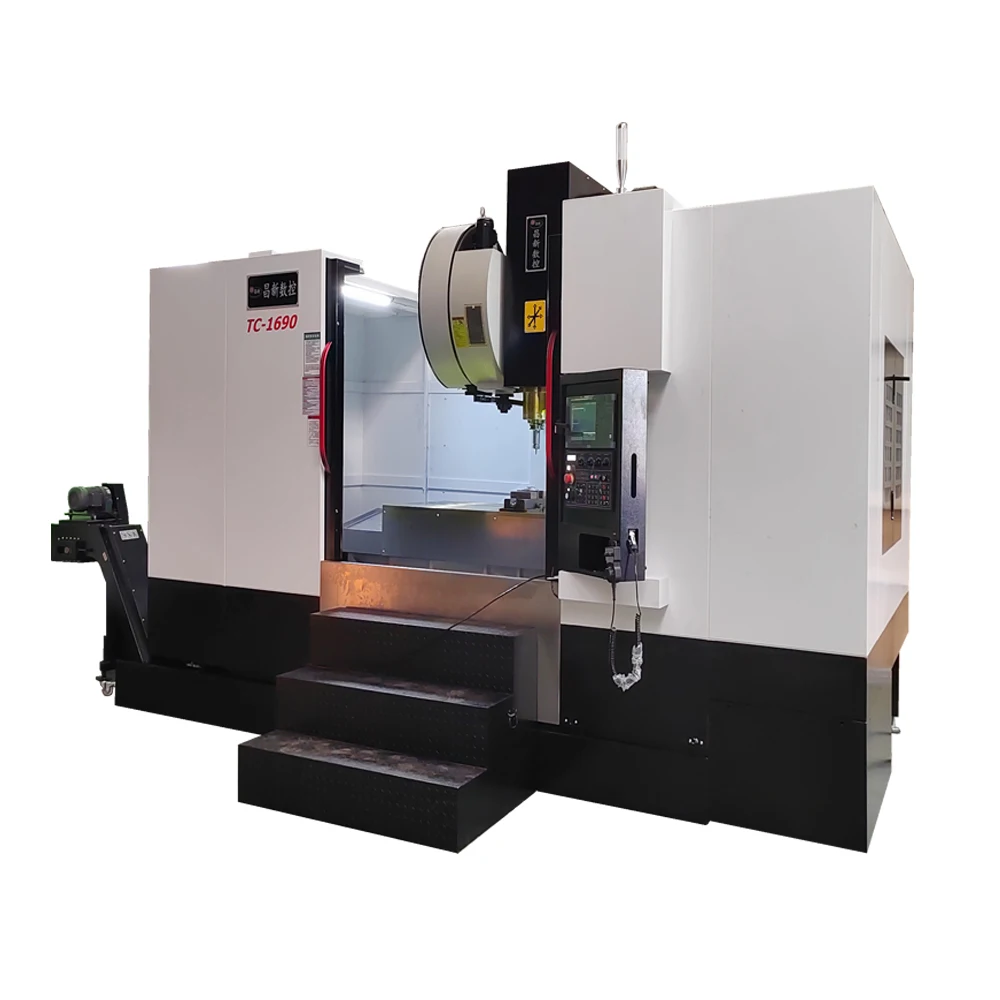

Китай завод cnc вертикальный обрабатывающий центр с ЧПУ машины TC-1690 характеризующийся высокопрочными конструкциями фрезерный станок Vmc


Поделиться:


Цена:74 800,00 $ - 76 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 89012.49 $* 93463.1 $*
Aug-16-2025 88264.19 $* 92677.59 $*
Jul-16-2025 74052.59 $* 77755.92 $*
Jun-16-2025 86768.60 $* 91106.66 $*
May-16-2025 75548.72 $* 79325.11 $*
Apr-16-2025 85272.84 $* 89536.47 $*
Mar-16-2025 84524.9 $* 88750.63 $*
Feb-16-2025 83776.1 $* 87965.70 $*
Jan-16-2025 83028.10 $* 87179.53 $*

Характеристики


                      CNC Vertical Machine  Center TC-1690








                                                  1690-1.jpg1690-2.jpg1690-3.jpg1690-4.jpg1690-5.jpg1690-6.jpg1690-7.jpg1690-8.jpg1690-9.jpg1690-10.jpg






























































































































System Fanuc
Motor Fanuc
Tool Magazine CapacityAutomatic Tool Changer
Tool Number:24
Lubrication SystemAutomatic
Cooling SystemOil Cooling
X/Y/Z-axis Travel1600mm/900mm/680mm
Distance from Spindle Nose to Table160mm-890mm
Distance Spindle Center to Column Guide Rail980mm
Working Table Size1800*900mm
Table Max Load2000kg
T Slot5*22T*165 mm
Spindle Rotation Speed6000-8000rpm
Spindle Motor Power18.5kw
X/Y/Z-axis Motor Power5.5/5.5/7.5kw
Rapid Traverse(X/Y/Z-axis)20000/20000/15000mm/min
Cutting Speed0-10000mm/min
Spinldle Taper BT50/190mm
Positioning Accuracy±0.008mm/300mm
Repeat Positioning Accuracy±0.005mm/300mm
Machine Size4300mm*3300mm*3400mm
Machine Weight15.5 ton
WarrantyOne Year
Main Component Brand
 Machine body  X,Y-axis  are roller guide rail Z axis is hard box rail
Spindlespinder/Royal/TD/Waylong in Taiwan
Tool MagazineOkada/Sanjet/Deta in Taiwan 24-BT50
BearingNSK in Japan or FAG in Germany
Lead screw/Guide RailHiwin/PMI in Taiwan
Coolant TankTaiwan Brand

  QQ20170701150653.jpg650 pic2.jpgscraping...780pixel.jpg



Machine Working










Our Partners


page 1.jpgpage 2.jpgpage 3.jpgpage 5.jpg





Company information







Certifications


Certificate 02-07-2018.jpg





Packaging & Shipping


package and shipping.jpg





FAQ





Q1: Are you a factory?


A1: Yes,we are a professional factory that was founded in 1998.





Q2: Payment term


A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.





Q3:Production time


A3: 20 days upon order confirmation





Q4:Check the acceptance


A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.





Q5:Warranty time


A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.





Q6:OEM Service


A6: We accept purchase orders with customers' brand or trade mark.
