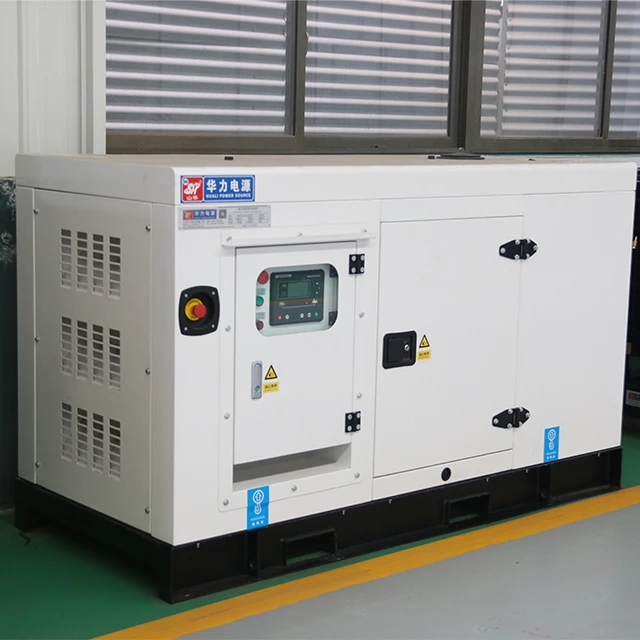

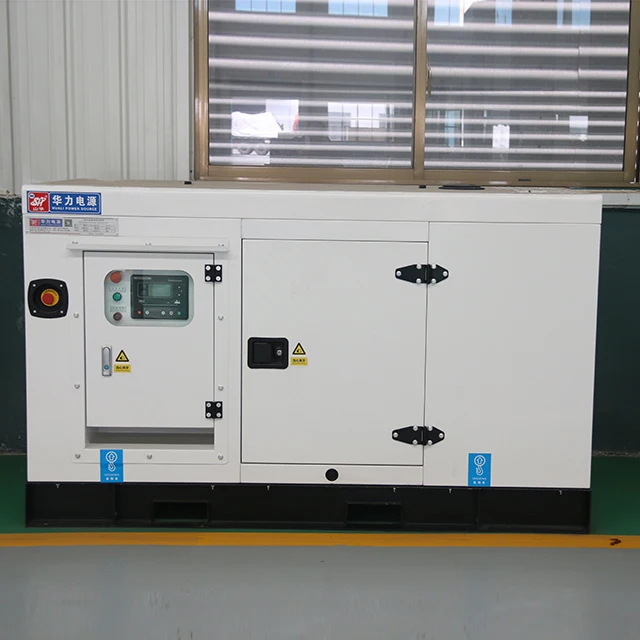

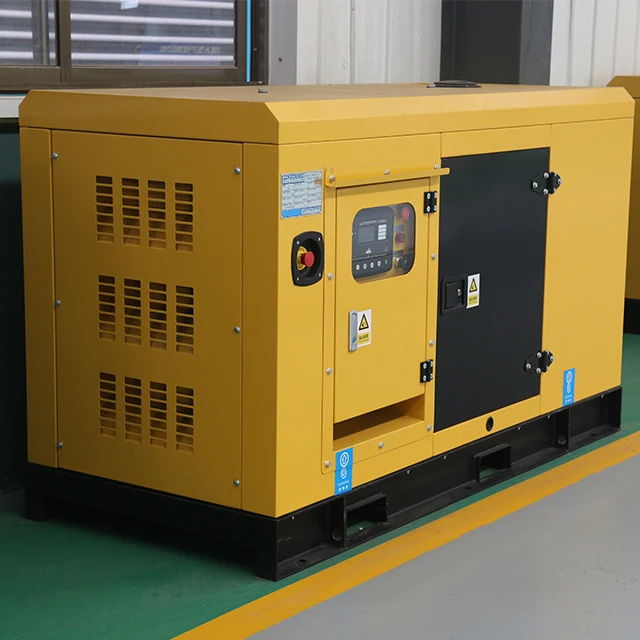

Заводская цена 20 кВт 25 кВА Cummiins Perkins Silent дизельный

Цена:1 800,00 $ - 2 500,00 $*

Количество:

Generators set model	CN220GF	Speed mode	Electronic
Prime power（KW）	20	Full load fuel consumption rate（g/kwh）	192.8
Standby power（KW）	22	Fuel model	Normal temperature
Genset capacity (KVA)	25	Coolant flow（m3/min）	/
Related speed (RPM)	1500	Gas volume（m3/min）	/
Related voltage (V)	400	Smoke exhaust（m3/min）	/
Rated current (A)	396	Speed mode	/
Related frequency(Hz)	50	cooling method	Closed water cooling
Rated power factor	0.8	Oil capacity(L)	38.6
Phase	3	Coolant capacity (L)	61
Reference weight（Kg）	2500	reference weight（Kg）	1510（Dry weight）
Reference size (L × W × H)	315010001780（mm）	Alternator model	HLF-220
Engine model	NTA855-G1A	Rated voltage (V)	400
Engine related power（KW）	264	Rated frequency(Hz)	50
Engine standby powe（KW）	291	Rated speed(RPM)	1500
Engine structural features	Four-stroke, turbocharged	Power factor	0.8
Cylinders / arrangement	6 cylinders/In-line	Phase and wiring	Three phase Y type
Bore × stroke（mm）	140×152	efficiency(%)	95.19
Displacement(L)	14	Excitation method	Brushless excitation
Compression ratio	14.5：1	Insulation class	H
Start method	Electric	Protection level	IP21
