Профилирующая машина LM Din Rail для электрического монтажного распределительного
- Категория: Building Material Machinery >>>
- Поставщик: Hebei,Liming,Stamping,Form,Machine,Co.,LtdHebei,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1172061.50 $* | 1195502.78 $* |
| Jul-18-2025 | 950569.1 $* | 969580.51 $* |
| Jun-18-2025 | 1153604.65 $* | 1176676.12 $* |
| May-18-2025 | 1144375.20 $* | 1167263.24 $* |
| Apr-18-2025 | 913654.75 $* | 931927.40 $* |
| Mar-18-2025 | 1125917.63 $* | 1148435.23 $* |
| Feb-18-2025 | 1116688.3 $* | 1139022.60 $* |
| Jan-18-2025 | 1107460.83 $* | 1129609.97 $* |
Характеристики
Products Description

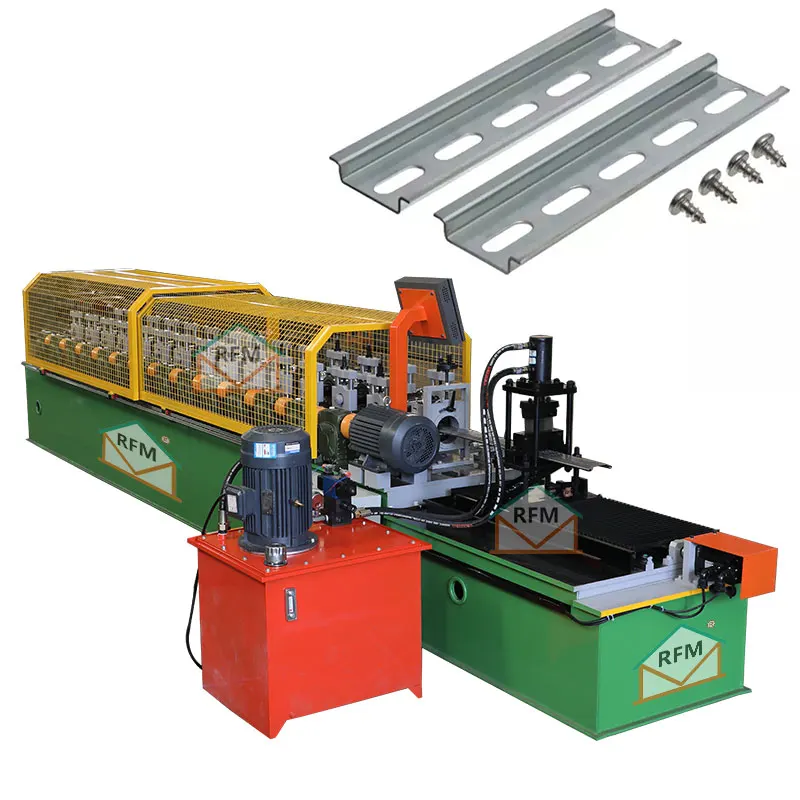

Din Rail Roll Forming Machine

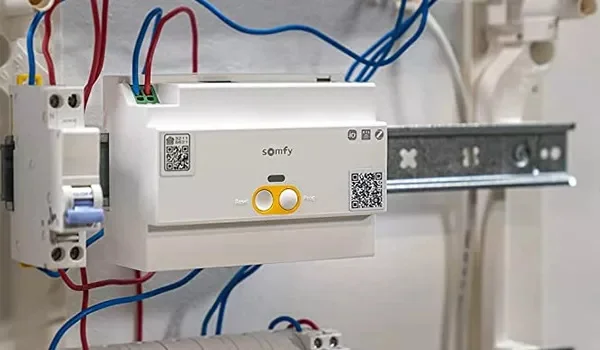

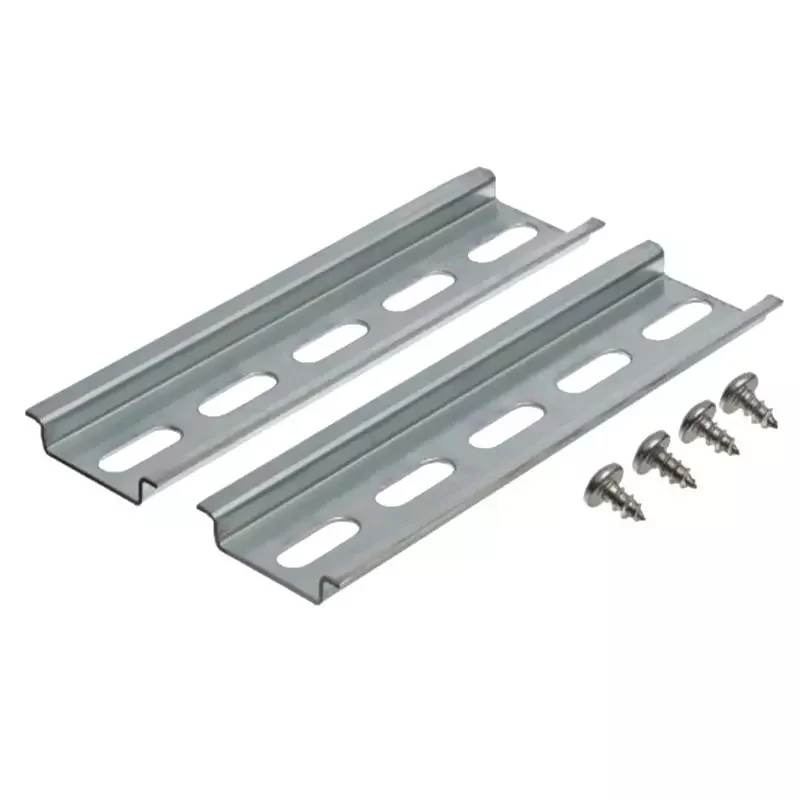

Din rail roll forming machine is used to produce din rail which is the long metal strips that form the core part of a global industry standard component rail-mounting system in equipment cabinet racks. Din rails are designed for securely attaching electrical and industrial control products - such as circuit breakers, terminal blocks, power supplies, actuators, solenoids and so on - inside a typical equipment rack housing cabinet or frame.
Din Rail Roll Forming Machine | ||||
Machinable Material | A) Zinc-plated steel | Thickness(MM): 1-1.5 or as per customer | ||
B) Aluminum | ||||
C) Stainless Steel | ||||
Yield Strength | 250 - 550 Mpa | |||
Tensil Stress | G250 Mpa-G550 Mpa | |||

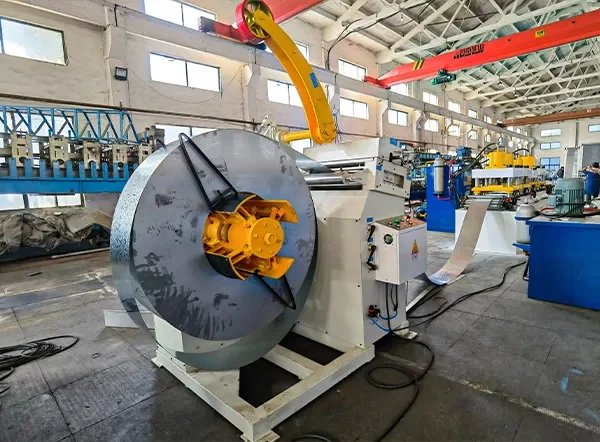

Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) | ||

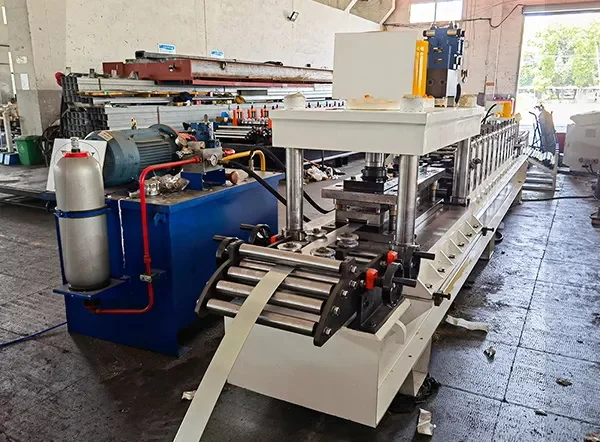

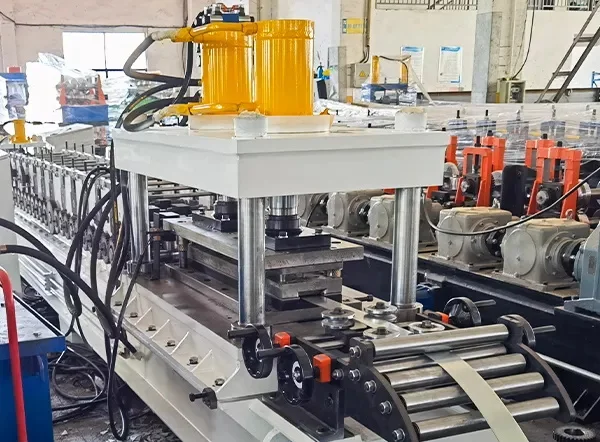

Punching System | Hydraulic Punching Station | * Punching Press (Optional) | ||
Forming Station | 10 Stands | * According To Your Profile Drawings | ||
Driving System | Chain Drive | * Gearbox Drive (Optional) | ||
Machine Structure | Wall Panel Station | * Cast Iron (Optional) | ||
Forming Speed | 10-20 (M/MIN) | * Or According To Your Profile Drawings | ||
Rollers’ Material | Steel #45 | * GCr 15 (Optional) | ||
Cutting System | Post-cutting | * Pre-cutting (Optional) | ||
Frequency Changer Brand | Yaskawa | * Siemens (Optional) | ||
PLC Brand | Panasonic | * Siemens (Optional) | ||
Power Supply | 380V 50Hz 3ph | * Or According To Your Requirment | ||
Machine Color | Industrial Blue | * Or According To Your Requirment | ||
