BEKE 200Ton 3200 мм гидравлический листостамповочный пресс с SNC53 системы ЧПУ листовой стали
- Категория: >>>
- Поставщик: Nanjing,Beke,Cnc,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 14875.61 $* | 15619.52 $* |
| Aug-19-2025 | 14750.15 $* | 15488.80 $* |
| Jul-19-2025 | 12375.84 $* | 12994.59 $* |
| Jun-19-2025 | 14500.1 $* | 15225.15 $* |
| May-19-2025 | 12625.17 $* | 13256.75 $* |
| Apr-19-2025 | 14250.33 $* | 14963.69 $* |
| Mar-19-2025 | 14125.57 $* | 14831.28 $* |
| Feb-19-2025 | 14000.35 $* | 14700.42 $* |
| Jan-19-2025 | 13875.88 $* | 14569.12 $* |
Характеристики
Product Description

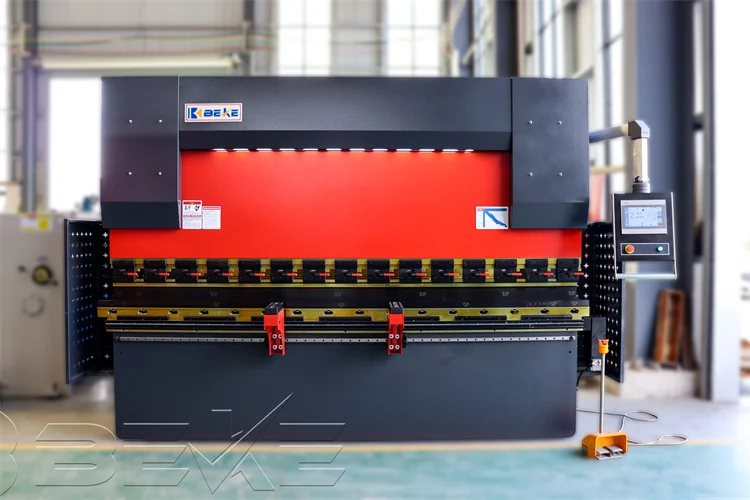

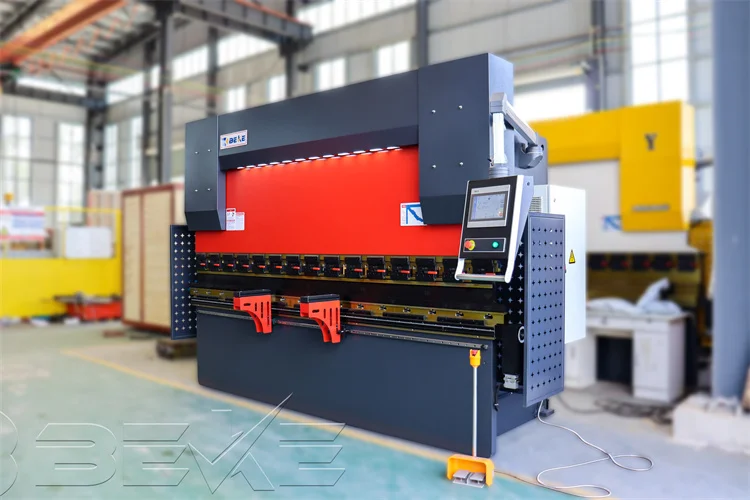

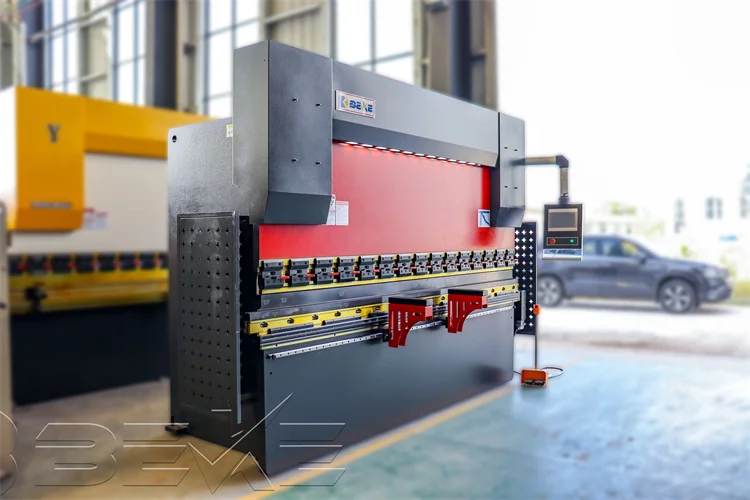

BEKE WC67K Series NC press brake..
BEKE WC67K Series NC press brake adopts the torsion axis to link the left and right pendulum rods to form a torsion axis forcing synchronization mechanism to move up and down the oil cylinders on both sides. This type of bending machine is the best choice if the bending accuracy of the sheet is not high, and it is equipped with a simple numerical control system, which is economical and practical.
Specification
Model | WC67K 100T3200 |
Bending pressure | 100ton |
Max bending width | 3200mm |
Max bending thickness for 3m sheet | 4mm |
Throat depth | 320mm |
Slide stroke | 120mm |
Max opening height | 380mm |
Main motor power | 7.5kw |
Size | 3800x1800x2500mm |
Weight | 6600kg |
Control system | SNC53 |
Axes | Y1, Y2, X |
Main motor | SIEMENS |
Hydraulic valave | Bosch-Rexroth |
Servo motor | INOVANCE |
Oil pump | SUNNY |

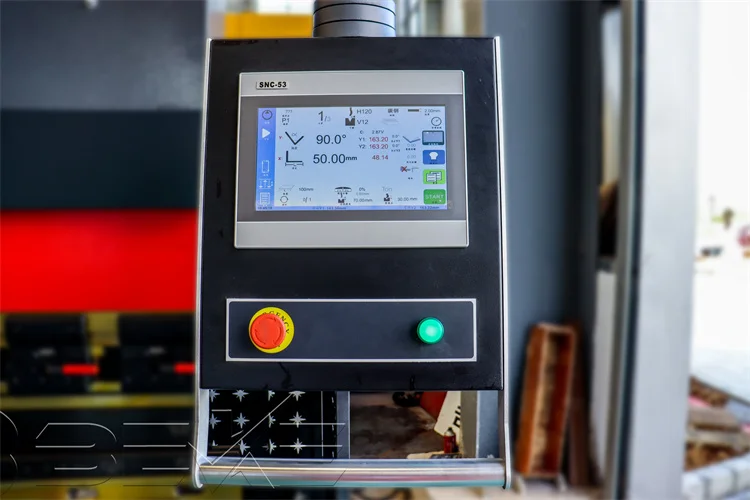

Chinese brand SNC53 CNC control system introduction.
1. For the backing material (X) of the bending machine, the position of the block in the left and right cylinders (Y1, Y2), the lifting position of the rear block (R), the left and right gears (Z1, Z2), the pressure (P) and the deflection compensation(Hydraulic, mechanical) (V) for automatic positioning control.
2. The parameters can be set to single side and bilateral positioning mode, and the single side positioning mode can effectively eliminate the screw drive gap.
3. The system has a soft limit function.
4. Power-off position memory function.
5. The display scale factor can be set according to the screw pitch and the transmission ratio. The display scale factor can be automatically calculated by the numerical control system through the teaching operation function, and the operation is very simple.
6, single step insert mode, very practical and convenient.
7, multi-step programming function, can achieve multi-step automatic operation.
8. Retreat the escape function to avoid interference between the back gauge device and the workpiece to reduce wear.
9, integrated pump start and switch adjustment, single, continuous function in
the system.
the system.
10. With password protection.
11, large arc programming function.
12, IO port flexible configuration and valve group
configuration function.
configuration function.
13. The raster real-time feedback slider position.

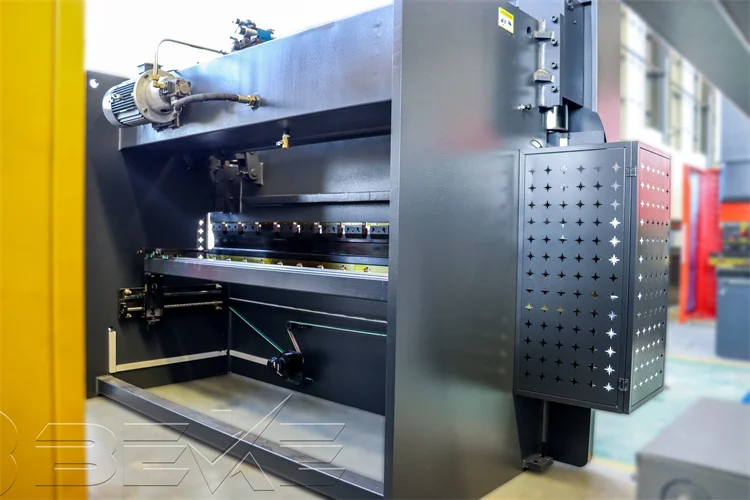

The backgauge
1. Standard backgauge is with servo motor controlled X axis
2. Taiwan brand ball screw and linear guide rail for high X moving position
3. Finger blocks are with double linear guide rail
3. Finger blocks are with double linear guide rail
Title goes here.
Material is 42CrMo, with heat treatment.
Standard is 2V grooves, can also be other multi V grooves according to customer's requirement
Punch can be designed according to customer's product.
Punch can be designed according to customer's product.
Quick Clamping system.
For easy and fast too changing, very convenient.
Front Supporting Arms.
The supporting arms can be moved along the rail for convenience.
Greating Ruler.
Main Motor
SIEMENS main motor with long service life, stable performance
Hydraulic Valve.
Bosch-Rexroth hydraulic valve is well-known brands, reliable quality, compact structure, beautiful appearance Convenient and quick maintenance
Oil Pump.
SUNNY brand, well known, stable
Electrics.
Schneider main electrical components, long service life and stable performance
Servo drive
Foot switch.
Easy and fast press down
Title goes here.
The local deflection compensation mechanism uses a mechanical interference table compensation structure. CNC automatic calculation control.
Each group consists of several groups of three-dimensional curved surfaces with different slopes. The compensation curve is closer to the deformation curve of the slide plate, which greatly improves the machining accuracy of the bending machine.
Y1, Y2, servo motor motor controlled.
Y1Y2 oil cylinder mechanical stop and servo control can be adjusted separately, which solves the problem of inconsistent left and right angles of traditional torsion axis machine tools and manual climbing up and down. Twisted shaft synchronization, high precision.
Packing & Delivery
Company Profile
Customer Photos
