Характеристики
Products Description
Wide Coverage of Power Range: 48Vdc-240Vdc | 400-2500 Amps | 1KW-30KW
The EZkontrol BLDC motor (Field Oriented Control) controller series are finally here. The flagship “E” series is capable of delivering up to 30KWs of power at a maximum of 240V(dc) or 2000 Amps. You can always find suitable EZ controllers here to drive your brushless DC motors smoothly and efficiently, quick and easy! Modularized product design and effective production offers the best value for your money!
Get firmware updates online the same EZ way! It doesn’t get any EZ-ier than this! It fully supports OTA firmware upgrade via your smart phones. You can even choose Sinewave control or Square control in the same EZ controller by uploading the respective firmware over the air (OTA).
The EZkontrol BLDC motor (Field Oriented Control) controller series are finally here. The flagship “E” series is capable of delivering up to 30KWs of power at a maximum of 240V(dc) or 2000 Amps. You can always find suitable EZ controllers here to drive your brushless DC motors smoothly and efficiently, quick and easy! Modularized product design and effective production offers the best value for your money!
What lag?
Armed with powerful ARM 32-bit Cortex-M4 core processors, it will chew through vector control algorithms at lightning speed, delivering Real-Time torque, excitation, speed and power control as well as zero-delay monitoring functions via Bluetooth.
Armed with powerful ARM 32-bit Cortex-M4 core processors, it will chew through vector control algorithms at lightning speed, delivering Real-Time torque, excitation, speed and power control as well as zero-delay monitoring functions via Bluetooth.
“Why won’t it spin?”
Gone are the days of a dedicated programming device, old USB cables and confused interfaces. The EZkontrol’s simple and intuitive automatic self-learning calibration of motor parameters allows you to get your motors up and running in no time…
… on your Mobile Phone!
… via built-in Bluetooth!
… on a floating App!
… obtained via QR code!
Gone are the days of a dedicated programming device, old USB cables and confused interfaces. The EZkontrol’s simple and intuitive automatic self-learning calibration of motor parameters allows you to get your motors up and running in no time…
… on your Mobile Phone!
… via built-in Bluetooth!
… on a floating App!
… obtained via QR code!
There are hundreds of programmable control parameters for you to play around and fine tune your drive system to satisfy your expectations!
Get firmware updates online the same EZ way! It doesn’t get any EZ-ier than this! It fully supports OTA firmware upgrade via your smart phones. You can even choose Sinewave control or Square control in the same EZ controller by uploading the respective firmware over the air (OTA).
Can it CAN?
EZkontrol supports multiple communication protocols and interfaces such as CAN-BUS, RS485, UART etc, so yes it CAN enabled. We are willing to provide free sample source codes for your quick-start CAN-BUS application development.
EZkontrol controllers are Liquid-Cooling Ready with 4 extruded through holes with standard water tap threads openings, in its flat bottom aluminum base for the best cooling effect. User can choose any 2 of these 4 holes to create water circulation via external cooling pump in case the liquid cooling is required in your drive system.
FREE downloadable professional looking Speedometer Apps for Android and iOS, quick connecting your smartphone to EZ controller via blue-tooth component (built-in your controller). The Apps also create very useful log file to record motor and controller status, running data (date-time, voltage, current, rpm, motor temperature, ..., etc.) with date-time stamp at each time interval (user definable in seconds).
Product Photos
Product Features
The EZkontrol series permanent magnet synchronous motor (PMSM) controllers, built with the ARM 32-bit Cortex-M4 core processor and by Field Oriented Control (FOC) vector control technology, can achieve real time and efficient control of the motor’s torque, field excitation, speed and power.
The voltage range is 24Vdc-240Vdc and the power range is 1KW-30KW.
Because of deep cultivation in the field of motor control for more than ten years, our company has accumulated rich application experience in industries of electric vehicles, ships, machinery and etc., and also has mastered the core technologies to meet customer's special requirements.
The voltage range is 24Vdc-240Vdc and the power range is 1KW-30KW.
Because of deep cultivation in the field of motor control for more than ten years, our company has accumulated rich application experience in industries of electric vehicles, ships, machinery and etc., and also has mastered the core technologies to meet customer's special requirements.
222
Monitor controller and motor working status in real-time
Flexibly set up as many as hundreds of control parameters
Update firmware online.
2. Support communication protocols and interfaces: CAN-BUS, R485, UART, etc.
3. Self -learning function, match the motor parameters automatically.
4. Compatible with a variety of motor position sensors: Hall, photoelectric encoder, magnetic encoder and etc.
5. Compatible with a variety of motor temperature sensors, protect the motor from overheating damage.
6. Precise bus current control, protect the battery life from over discharge.
7. Five-level torque, speed, and power can be set separately.
8. Integrated DC contactor controls the circuit, and also other modes available.
9. Advanced and efficient software algorithms, guaranteed hardware circuits, excellent mechanical structure and thermal structure, ensure the stable and reliable quality.
10. PC material V-0 flame-retardant casing cover.
11. IP66 protection grade.
Product Parameters and Drawings
EZkontrol complete product list with specifications
Item No. | Rated Voltage (V) | Max. Voltage (V) | Max. Phase Current (A) | Rated Phase Current (A) | Max. Bus Current (A) | Motor Rated Power (KW) |
EZ-A48400 | 48V | 75V | 400 | 160 | 200 | 2-4 |
EZ-A48500 | 500 | 200 | 250 | 3-5 | ||
EZ-B48800 | 800 | 320 | 400 | 5-8 | ||
EZ-B481000 | 1000 | 400 | 500 | 6-10 | ||
EZ-C481200 | 1200 | 480 | 600 | 7-12 | ||
EZ-C481500 | 1500 | 600 | 750 | 9-14 | ||
EZ-D481600 | 1600 | 640 | 800 | 9-15 | ||
EZ-E482000 | 2000 | 800 | 1000 | 12-19 | ||
EZ-E482500 | 2500 | 1000 | 1250 | 14-24 | ||
EZ-A72400 | 72V | 95V | 400 | 160 | 200 | 3-6 |
EZ-A72500 | 500 | 200 | 250 | 4-7 | ||
EZ-B72800 | 800 | 320 | 400 | 7-12 | ||
EZ-B721000 | 1000 | 400 | 500 | 9-14 | ||
EZ-C721200 | 1200 | 480 | 600 | 10-17 | ||
EZ-C721500 | 1500 | 600 | 750 | 13-22 | ||
EZ-D722000 | 2000 | 800 | 1000 | 17-29 | ||
EZ-E722500 | 2500 | 1000 | 1250 | 22-36 | ||
EZ-A96300 | 96V | 120V-130V | 300 | 120 | 150 | 3-6 |
EZ-A96400 | 400 | 160 | 200 | 5-8 | ||
EZ-B96600 | 600 | 240 | 300 | 7-12 | ||
EZ-B96800 | 800 | 320 | 400 | 9-15 | ||
EZ-C96900 | 900 | 360 | 450 | 10-17 | ||
EZ-C961200 | 1200 | 480 | 600 | 14-23 | ||
EZ-E961500 | 1500 | 600 | 750 | 17-29 | ||
EZ-E962000 | 2000 | 800 | 1000 | 23-38 | ||
EZ-A120300 | 120V | 145V | 300 | 120 | 150 | 4-7 |
EZ-B120600 | 600 | 240 | 300 | 9-14 | ||
EZ-C120900 | 900 | 360 | 450 | 13-22 | ||
EZ-D1201200 | 1200 | 480 | 600 | 17-29 | ||
EZ-E1201500 | 1500 | 600 | 750 | 22-36 | ||
EZ-A144200 | 144V | 190V | 200 | 80 | 100 | 3-6 |
EZ-B144400 | 400 | 160 | 200 | 7-12 | ||
EZ-C144600 | 600 | 240 | 300 | 10-17 | ||
EZ-D144800 | 800 | 320 | 400 | 14-23 | ||
EZ-E1441000 | 1000 | 400 | 500 | 17-29 | ||
EZ-A240100 | 240V | 290V | 100 | 40 | 50 | 3-5 |
EZ-B240200 | 200 | 80 | 100 | 6-10 | ||
EZ-C240300 | 300 | 120 | 150 | 9-14 | ||
EZ-D240400 | 400 | 160 | 200 | 12-19 | ||
EZ-E240500 | 500 | 200 | 250 | 14-24 |

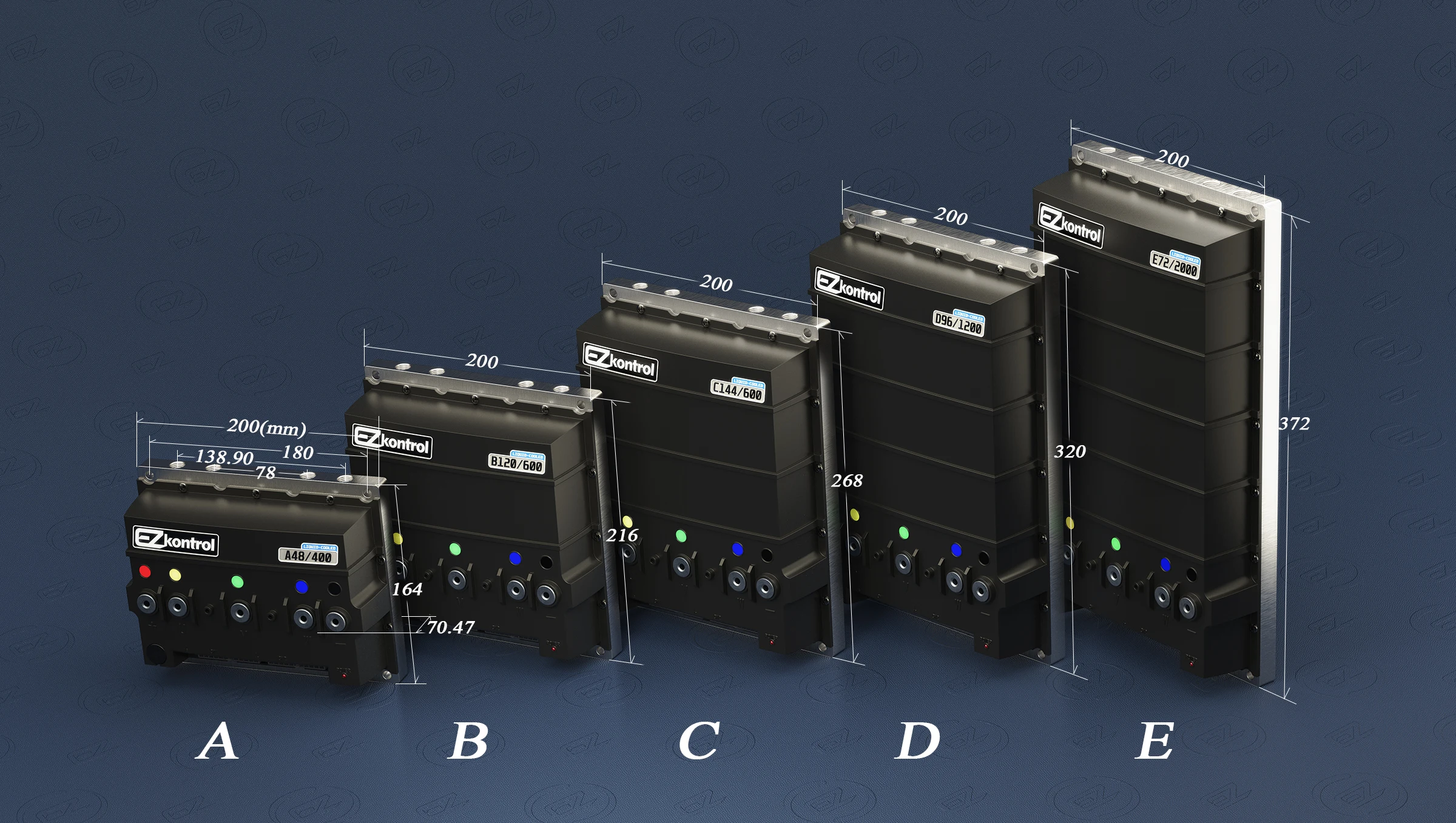

EZkontrol-A Series Dimensions
EZkontrol-B Series Dimensions
EZkontrol-C Series Dimensions
EZkontrol-D Series Dimensions
EZkontrol-E Series Dimensions
Wiring Diagram without DC Contactor
Wiring Diagram with DC Contactor
