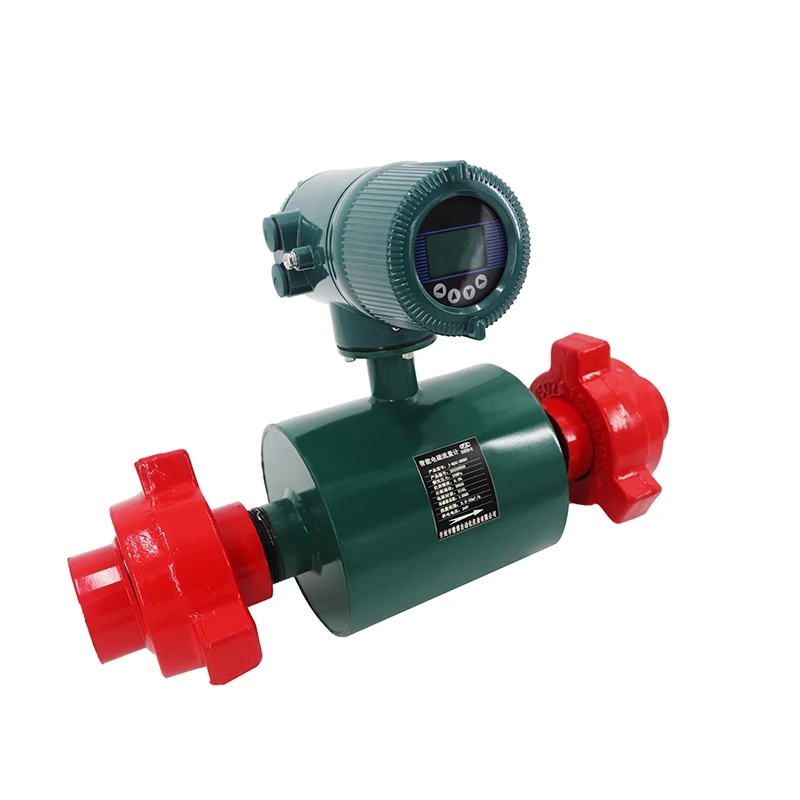

Магнитный расходомер высокого давления с
- Категория: >>>
- Поставщик: Kaifeng,Jingbo,Automation,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 190.78 $* | 200.74 $* |
| Aug-16-2025 | 189.85 $* | 198.37 $* |
| Jul-16-2025 | 158.70 $* | 166.33 $* |
| Jun-16-2025 | 186.85 $* | 195.24 $* |
| May-16-2025 | 162.97 $* | 170.56 $* |
| Apr-16-2025 | 182.3 $* | 191.76 $* |
| Mar-16-2025 | 181.86 $* | 190.0 $* |
| Feb-16-2025 | 179.58 $* | 188.88 $* |
| Jan-16-2025 | 178.51 $* | 187.58 $* |
Характеристики
Features
1. The electromagnetic flowmeter sensor has a simple structure, no moving parts in the measuring tube, and no throttling parts that hinder the flow of fluid;
2. It can measure the flow rate of dirty medium, corrosive medium and suspended liquid-solid two-phase flow;
3. During the measurement process, it is not affected by the temperature, viscosity, density and conductivity (within a certain range) of the measured medium;
4. The output of the electromagnetic flowmeter is only proportional to the average flow velocity of the measured medium, and has nothing to do with the flow state (laminar flow or turbulent flow) under symmetrical distribution;
5. The electromagnetic flowmeter has no mechanical inertia and has a sensitive response. It can measure the instantaneous pulsating flow, and can also measure the flow in both positive and negative directions;
6. The caliber selection range of industrial electromagnetic flowmeter is wide.
2. It can measure the flow rate of dirty medium, corrosive medium and suspended liquid-solid two-phase flow;
3. During the measurement process, it is not affected by the temperature, viscosity, density and conductivity (within a certain range) of the measured medium;
4. The output of the electromagnetic flowmeter is only proportional to the average flow velocity of the measured medium, and has nothing to do with the flow state (laminar flow or turbulent flow) under symmetrical distribution;
5. The electromagnetic flowmeter has no mechanical inertia and has a sensitive response. It can measure the instantaneous pulsating flow, and can also measure the flow in both positive and negative directions;
6. The caliber selection range of industrial electromagnetic flowmeter is wide.
Performance | Technical Parameters |
Nominal diameter | DN25mm——DN250mm |
Accuracy | ±0.5%,±0.3%或±0.2% optional |
lining material | PUR,F46 |
Electrode material | SUS316,HB/C,Ti,Ta,Pt/Ir |
Electrode form | Standard |
Connection method | Flange connector,Union Connector |
Medium temperature | Integrated Type -20℃～+60℃ |
Split type -10℃～+160℃ | |
Nominal pressure | 6.3Mpa-42Mpa（special pressure customized） |
ambient temperature | -25℃～+60℃ |
environment humidity | 5～100%RH（Relative humidity） |
dielectric conductivity | ≥20μs/cm |
Measuring range | 1500：1 Flow rate setting<15m/s |
structure type | Integrated type, split type, immersion type, explosion-proof type |
Protective poles | IP65、IP68(optional) |
Explosion-proof mark | Ex d ia [ ia Ga] q IIC T6 Gb |
Product Standards | JB/T9248-2015Electromagnetic flow meter |
