AFP асептическая система наполнения и уплотнения для пластиковых контейнеров парэнтеральных (LVP) производственная линия растворов
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Liaoyang,Xianglong,Pharmaceutical,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1261400.54 $* | 1324470.46 $* |
| Aug-19-2025 | 1250800.87 $* | 1313340.59 $* |
| Jul-19-2025 | 1049400.80 $* | 1101870.14 $* |
| Jun-19-2025 | 1229600.82 $* | 1291080.6 $* |
| May-19-2025 | 1070600.43 $* | 1124130.96 $* |
| Apr-19-2025 | 1208400.5 $* | 1268820.83 $* |
| Mar-19-2025 | 1197800.32 $* | 1257690.90 $* |
| Feb-19-2025 | 1187200.57 $* | 1246560.64 $* |
| Jan-19-2025 | 1176600.26 $* | 1235430.57 $* |
Характеристики
Product Description
Aseptic Blow-Fill-Seal System
BFS is short for Blow-Fill-Seal technique. It has been developed so that formation for the container, filling and sealing takes place in a single machine under a controlled environment that enables the packaging of a pharmaceutical liquid in an aseptic manner. As the container is made, filled and sealed within a single machine and protected by sterile laminar air, the chance of contamination is very remote. Moreover, during the whole cycle, all process media like solution, air & etc. are previously sterile filtered and open containers remain exposed to the clean room air for less than 1.5 seconds. The Blow-Fill-Seal technology become the process of choice when contamination of particle and microbial are primary concerns in a production.
Blow-Fill-Seal Technique
The Blow Fill Seal Technique has been developed so that formation of the container, filling and sealing takes place in a single machine under a controlled environment that enables the packaging of a pharmaceutical liquid in an aseptic manner. The following picture show the major phases in the integrated packaging of parenteral solutions using the AFP® system. Aseptic packaging process As the container is made, filled and sealed within a single machine and the process is protected using a sterile air shower and additionally, all process media (solution, air etc.) are sterile filtered, the chance of contamination is very remote. Adding to the fact that during the whole cycle, open containers remain exposed to the
clean room air for less than 1.5 seconds, the Blow-Fill-Seal technology becomes the process of choice where contamination of particle matter and microbial contamination is a primary concern.
clean room air for less than 1.5 seconds, the Blow-Fill-Seal technology becomes the process of choice where contamination of particle matter and microbial contamination is a primary concern.
Extrusion
With high speed screw rod, thermoplastic material is continuously extruded in a tubular shape. Aseptic air blows to the plastic
tube parison, and the parison goes through the forming mould.
tube parison, and the parison goes through the forming mould.

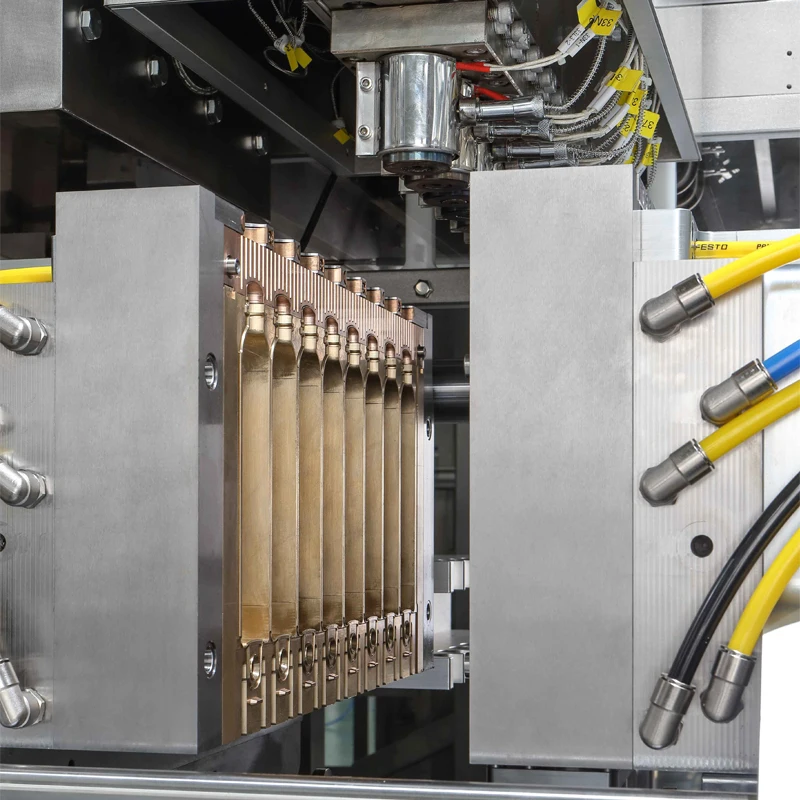

Blowing
The main forming mould closes and the bottom of plastic parison is sealed. The cutting knife cut the parison.The top of plastic
parison is located by the open protecting clamp.Aseptic air continuously protects the open tube parison.The plastic material is
formed into containers as determined by the design of the mould by vacuum and/or aseptic compressed air
parison is located by the open protecting clamp.Aseptic air continuously protects the open tube parison.The plastic material is
formed into containers as determined by the design of the mould by vacuum and/or aseptic compressed air
Filling
The containers are filled immediately and the air in the container is displaced .In the filling process,the containers are protected by the aseptic air as Grade A.
Sealing
At the same time,the tube parison between top of plastic mould and the open protecting clamp remains semi-melting condition,and
then the sealed mould closes and forms the top of the container and keeps the container sealed.
then the sealed mould closes and forms the top of the container and keeps the container sealed.
Outfeeding
After sealed, the mould is opened, and the containers are totally formed, filled, sealed and is ready to outfeed. Then the machine
starts the next cycle.
starts the next cycle.
Details Images
Technical parameters
Model | Specification | No.of Extruding Heads | Distribution of Cavity | Total Cavities | Capacity(pcs/h) |
AFPL6 | 500ml | 6 | 6 | 6 | 1150 |
1000ml | 6 | 6 | 6 | 1080 | |
AFPL8 | 100ml | 8 | 8 | 8 | 1950 |
250ml | 8 | 8 | 8 | 1800 | |
500ml | 8 | 8 | 8 | 1550 | |
AFPL6D | 500ml | 6 | 2*6 | 12 | 2350 |
1000ml | 6 | 2*6 | 12 | 2460 | |
AFPL8D | 100ml | 8 | 2*8 | 16 | 4000 |
250ml | 8 | 2*8 | 16 | 3600 | |
500ml | 8 | 2*8 | 16 | 3100 |

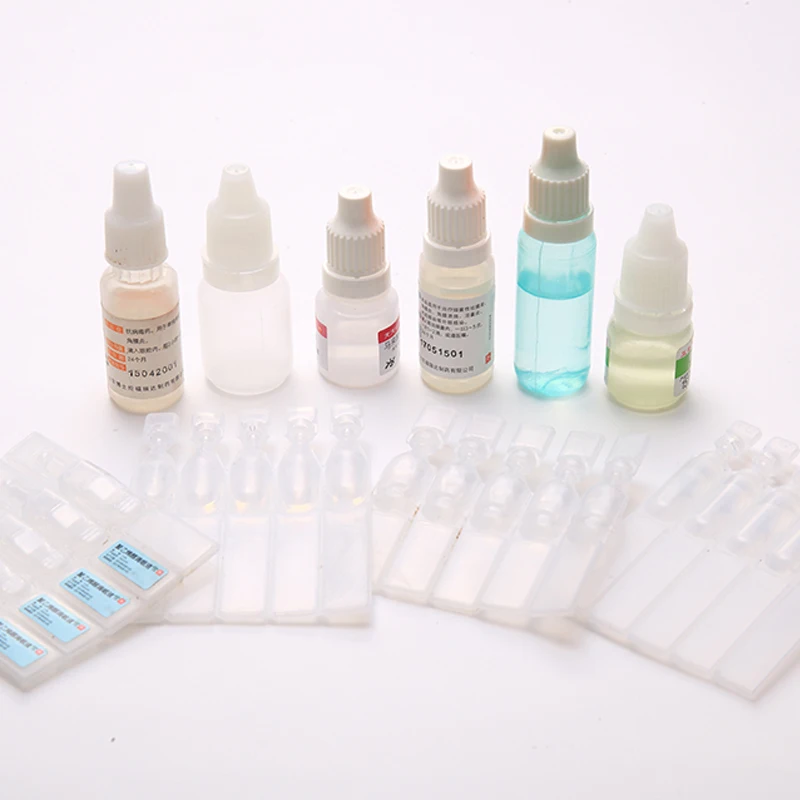

Product Application
This product biological preparation hyaluronic acid human and animal vaccine eye drops for injection drug sterile preparation and other fields are applicable.
Old style optical, aural, nasal care products need adding preservative in order to assure a controllable shelf life after opening.
Whereas no preservatives needed for the dispos-able&quantitative ampoules produced by BFS machine, therefore there is no allergy
risk for patients.
Whereas no preservatives needed for the dispos-able&quantitative ampoules produced by BFS machine, therefore there is no allergy
risk for patients.
