Лучший инвертор 12 в 3000 Вт с зарядным устройством для аккумуляторов постоянного тока переменный ток автоматический переключатель
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Zlpower,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 39092.89 $* | 39874.33 $* |
| Jul-19-2025 | 31704.92 $* | 32338.47 $* |
| Jun-19-2025 | 38476.21 $* | 39246.40 $* |
| May-19-2025 | 38168.6 $* | 38931.33 $* |
| Apr-19-2025 | 30473.79 $* | 31082.77 $* |
| Mar-19-2025 | 37553.35 $* | 38304.69 $* |
| Feb-19-2025 | 37245.3 $* | 37990.87 $* |
| Jan-19-2025 | 36937.65 $* | 37676.60 $* |
Характеристики
Product Description
Product Name
1KW 2KW 3KW 4KW 5KW 6KW Low Frequency Power Star Inverter with LCD display
Product Application
LW 500W-10000W Pure Sine Wave, low frequency Inverter
It is widely applied in wind generator, solar power system, house, vehicle, ship, navigation and placeswhere lack of city power, mobile electricity work and telecommunications device, launch station, emergency EPS.
Main Features
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is three times of rated power.
3. Can work with inductive loads such as air conditioner, motor door and so on
4. Accept generator's energy output.
5. Pure sine wave output, available for sensitive loads.
6. Microprocessor control with 3-step progressive charging, 7 battery type selector.
7. Fast and powerful charger with 35A and 70A.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Custom-made communication port USB/RS-232/SNMP
11. Remote control function.
12. Protection against overload, over temperature, over charging, low battery.

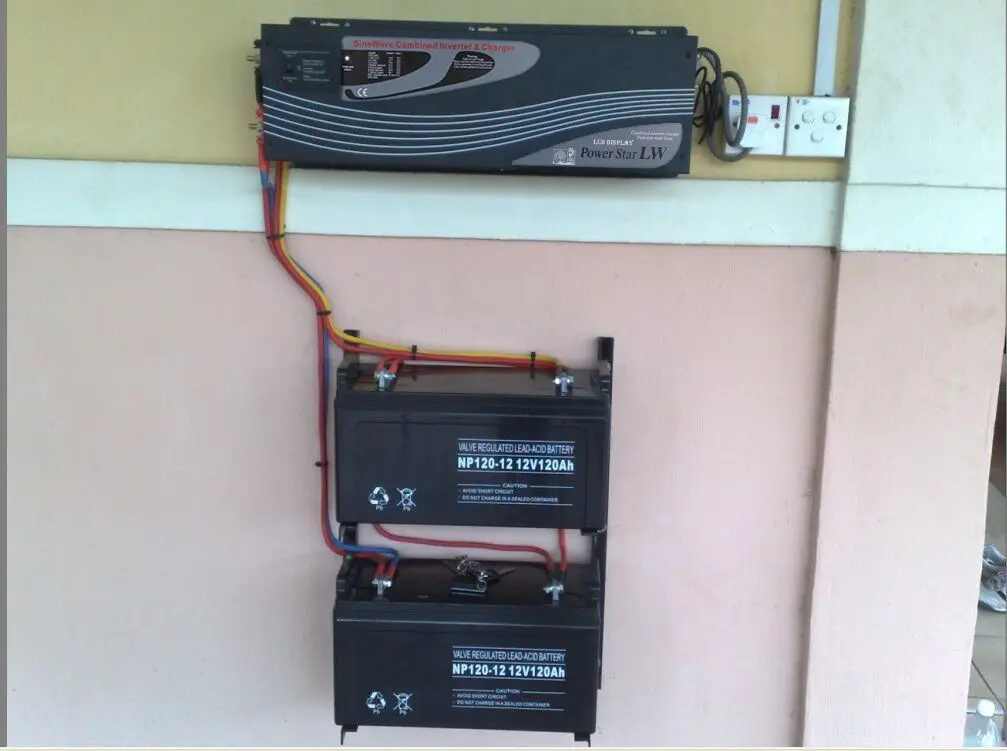

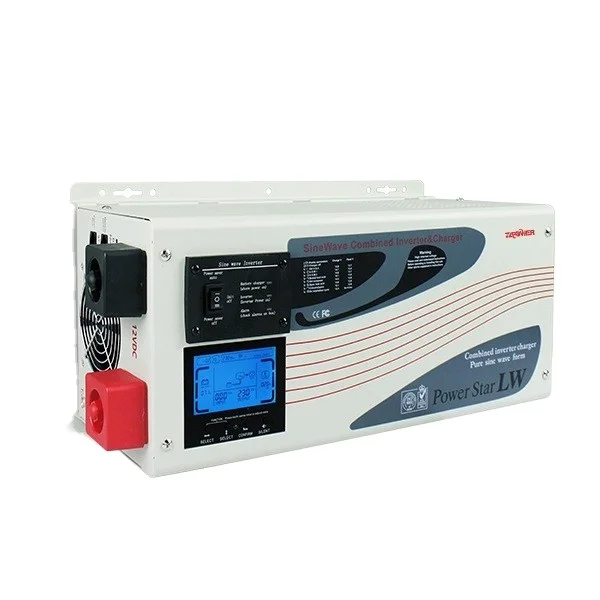

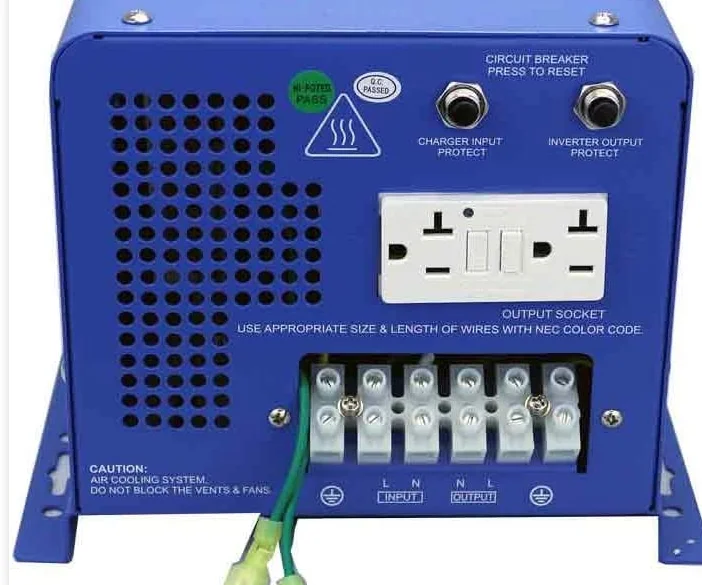

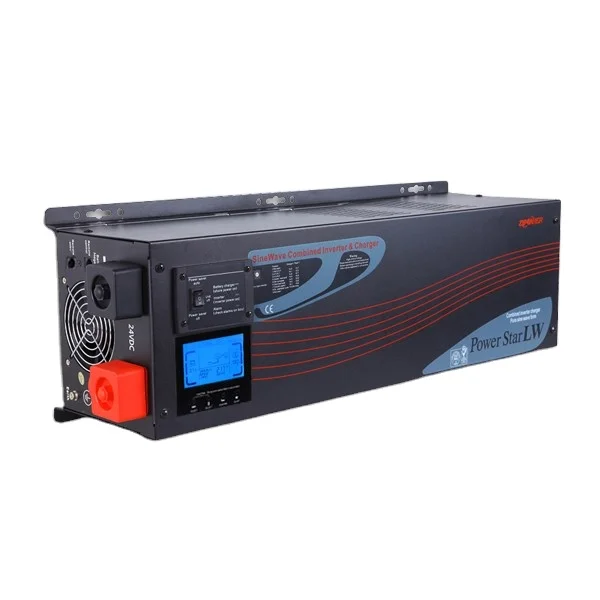

Detailed Images
AC Input
Phase & waveform\tSingle Phase & Pure Sine Wave
Norminal Voltage\t120VAC/230VAC OR 220/230/240VAC
Acceptable Voltage\t95-126VAC OR 194-253VAC±4%
Line Low Disconnect\t85V±4% OR 184±4% (154 wide mode±4%)
Line Low Reconnect\t95V±4% OR 194 ±4%(164 wide mode±4%)
Line High Disconnect\t136V±4%/274±4%
Line High Reconnect\t126V±4%/264±4%
Frequency\t50Hz(41-54) or 60Hz(51-64) (auto sensing)
Output
Phase & Waveform\tSingle Phase & Pure Sine Wave (bypass mode sync to input)
Voltage\t110/120/130VAC OR 220/230/240VAC±10%rms (bypass mode sync to input)
Voltage Regulation\t±10%rms (bypass mode sync to input)
Frequency\t50Hz±0.3Hz OR 60Hz±0.3Hz (bypass mode sync to input)
Peak Power\t3 times of rating power
Short Circuit Protection\tYes, shutdown after 10ms
Power Factor\t0.9-1.0
DC Input
Battery Voltage\t12/24Vdc\t12/24/48Vdc\t24/48Vdc\t48/72Vdc
Minimum Start Voltage\t10V for 12V, 20V for 24V, 40V for 48V
Low Battery Alarm\t10.5±0.3Vdc for 12V, 21±0.6Vdc for 24V, 42V±1.2for 48V
Low Battery Transfer\t10V±0.3Vdc for 12Vdc, 20V ±0.6Vdcfor 24V, 40V ±1.2Vdcfor 48V
High Voltage Alarm\t16V±0.3 for 12V, 32V ±0.6for 24V, 64±1.2V for 48V
High DC Input Recovery\t15.5±0.3Vdc or 31±0.6Vdc or 62V±1.2Vdc
Max Charge Current\t20A/35A/50A/75A/90A(According to the inverter model)
System Parameter
Power Saver\tLoad<=25W(Enabled on "P/S auto"setting of Remote Control
Audible Alarm\tSouding when the heat sink 's temperature is over 100℃and shut down after 30 seconds
Over Load Protection\t110%<Load<150%,beep 0.5s every 1s,and fault after 60s
\tLoad>150%,beeps 0.5s every 1s,and fault after 20s
Protections\tlow battery,over charging,over temp,over load
Communications\tRS-232/USB/SNMP(custom-made)
Operating Environment\t0-40℃,0-90%RH(non-condensing)
Audible Noise\t<60dB\t
Net Weight(KG)\t15.5\t18\t20\t25.5\t36\t39.5\t48\t55\t60
Dimension, L X W X H(mm)\t470×223×185mm\t650×223×185mm
Our company
Shenzhen ZLPOWER Electronics Co., Ltd is a professional manufacturer and exporter in the field of UPS power supply and Solar power system for more than 13 years. Our aim is to create a national brand of UPS and power supply products.
We are a technical enterprise which research, manufacture and export UPS systems,Inverters, Solar products, AVR, DC power and Free maintenance lead acid battery.
We Own:
8 Production lines, 13Years of experience
68 Countries and markets over the world
300 Experienced Workers, 50 Professional Engineers
Free OEM Service, Fast Lead Time 7-15 days, High Quality (CE&ISO)
Our experienced R&D team enables us to build customized product lines for clients.
Beside OEM and ODM customizations, we also provide complete after sales service and technical support for any customer who need.
We are eager to be your expert UPS power supplier and protect your power in real time. We can supply you not only 400~2000VA small
UPS for computer market, Big Online UPS with capacities up to 600KVA/540KW, but also pure sine wave inverter with capacities up to 20KW. Besides that, we can always offer you lead acid battery with long expected life, Solar products to protect your power with solar and so on.
And we are looking for agents worldwide to distribute ZLPOWER UPS and power supply products to their local markets.
Any interests please welcome to contact us today to look for best power solution.
We are a technical enterprise which research, manufacture and export UPS systems,Inverters, Solar products, AVR, DC power and Free maintenance lead acid battery.
We Own:
8 Production lines, 13Years of experience
68 Countries and markets over the world
300 Experienced Workers, 50 Professional Engineers
Free OEM Service, Fast Lead Time 7-15 days, High Quality (CE&ISO)
Our experienced R&D team enables us to build customized product lines for clients.
Beside OEM and ODM customizations, we also provide complete after sales service and technical support for any customer who need.
We are eager to be your expert UPS power supplier and protect your power in real time. We can supply you not only 400~2000VA small
UPS for computer market, Big Online UPS with capacities up to 600KVA/540KW, but also pure sine wave inverter with capacities up to 20KW. Besides that, we can always offer you lead acid battery with long expected life, Solar products to protect your power with solar and so on.
And we are looking for agents worldwide to distribute ZLPOWER UPS and power supply products to their local markets.
Any interests please welcome to contact us today to look for best power solution.
Certifications
Our Service
Pre-Sales Service
* Provide professional OEM/ODM service.
* years Warranty, lifelong technical support and 2% free boards for bulk order With CE certificate & EMC report.* Best competitive factory price.
* Fast delivery with stock.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 480*225*190-660*225*200mm | |
Weight | 14.5-45.0kg | |
Packaging Details | ||
Delivery | 7-10 days after receice payments | |
Related Products
PSK series
GS series
PSC PLUS series
FAQ
Questions & Answers:
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk production
Q 3. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
Q4. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.
Q5. We want to know month capacity.
A. It depends on different model. Total capacity is upto 10000 pieces.
Q6. Where is your market?
A. Our products are popular all over the world as their cost-effictive perfermance. We hope you can join us and make mutual benefit from our long-term and co-win cooperation.
Q7. Does the inverter connect with utility?
A.Yes.it is solar and utility complementary inverter. it combine invert, charge and AC auto-transfer switch into one complete case, it also can charge the battery by utility and generator.
