Финальная-распродажас ЧПУ 3 оси фрезерный станок для дерева с 1330 3D фасонно-фрезерный резки по дереву машины скульптура мебель ванной комнаты ванная
- Категория: Woodworking Machinery >>>
- Поставщик: Shandong,Hausser,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5831.63 $* | 6123.0 $* |
| Aug-19-2025 | 5782.58 $* | 6071.65 $* |
| Jul-19-2025 | 4851.38 $* | 5094.47 $* |
| Jun-19-2025 | 5684.10 $* | 5968.95 $* |
| May-19-2025 | 4949.16 $* | 5196.0 $* |
| Apr-19-2025 | 5586.1 $* | 5865.17 $* |
| Mar-19-2025 | 5537.89 $* | 5814.98 $* |
| Feb-19-2025 | 5488.16 $* | 5762.54 $* |
| Jan-19-2025 | 5439.58 $* | 5711.85 $* |
Характеристики
An automatic CNC tool changer has numerous significant benefits in the workshop, including:
Ability to switch between a large number of tools without requiring a human operator
Increased accuracy
Increased efficiency
Reduced labor cost
Reduced downtime and total production time
Increased tool storage capacity
Increased machine versatility
Increased safety for employees and equipment
Ability to change larger and heavier tools with ease
Increased edge finish due to more appropriate tooling per process

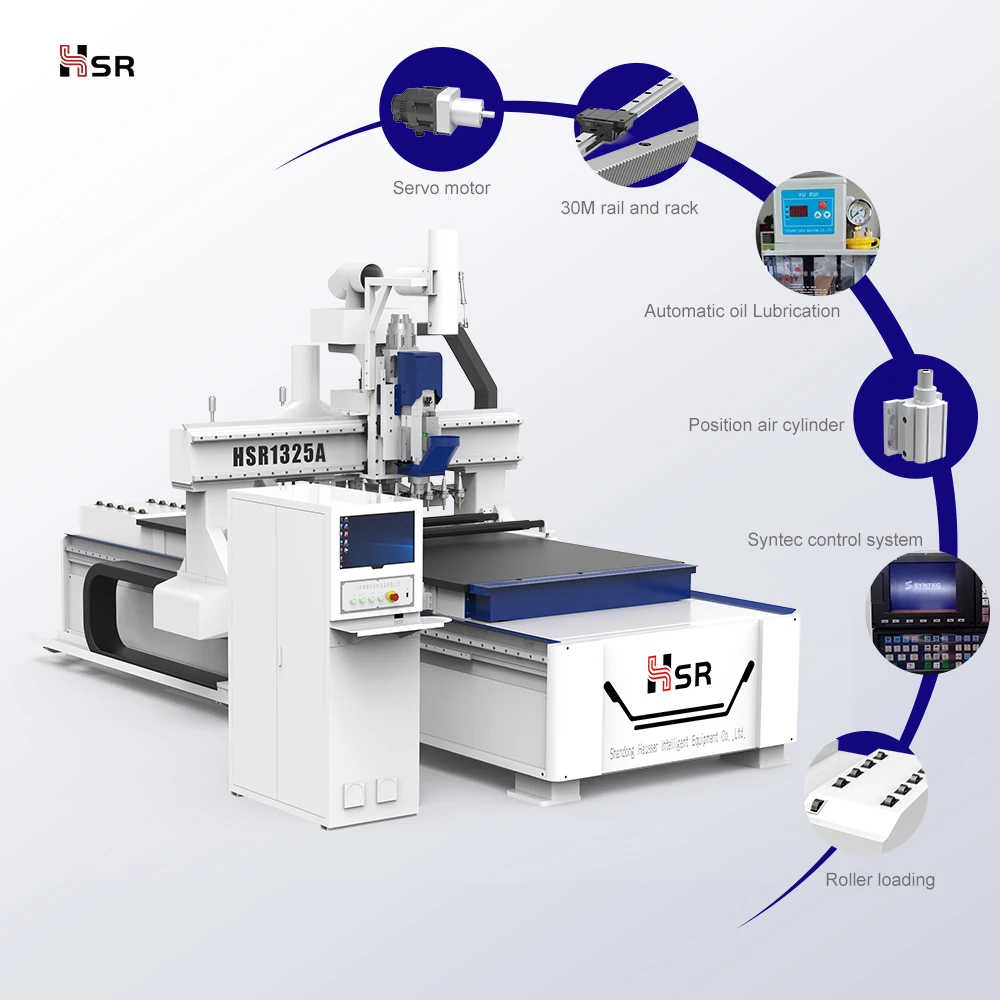

Product's Configuration
9 KW ATC Spindle, it is the “heart of the machine tool”, which has higher speed, more powerful power, smaller spindle runout, and
fewer failures.
It can control speed, so that it can meet the requirements of different cutting process
fewer failures.
It can control speed, so that it can meet the requirements of different cutting process
We have two types tool magazine, one is linear tool magazine, which can hold 16 knives.
Another is disc tool magazine, it can hold 20 knives, and we also can customize tool magazine according to your needs.
Another is disc tool magazine, it can hold 20 knives, and we also can customize tool magazine according to your needs.
Made from thick square tube and processed by imported CNC processing center, so the
machine have high precision and working stability.
We can also do other sizes, we have high flexibility, so if you have requirements, we will definitely meet your needs.
machine have high precision and working stability.
We can also do other sizes, we have high flexibility, so if you have requirements, we will definitely meet your needs.
Our CNC Router machine is equipped with servo motor, which has many advantages of high efficiency, high output power, more constant torque at higher speed, quiet operation, high acceleration and high accuracy..
Syntec specializes in PC-based CNC controllers. Our machine is equipped with Syntec control system, which is easy to operate and durable
Those device can help you to load and unload the sheet, Humanized design, greatly improve the work efficiency.
Rail and Rack
30M PEK guide rail, the wide guide rail and its straightness can ensure the accuracy of
our machine, which has high rigidity
our machine, which has high rigidity

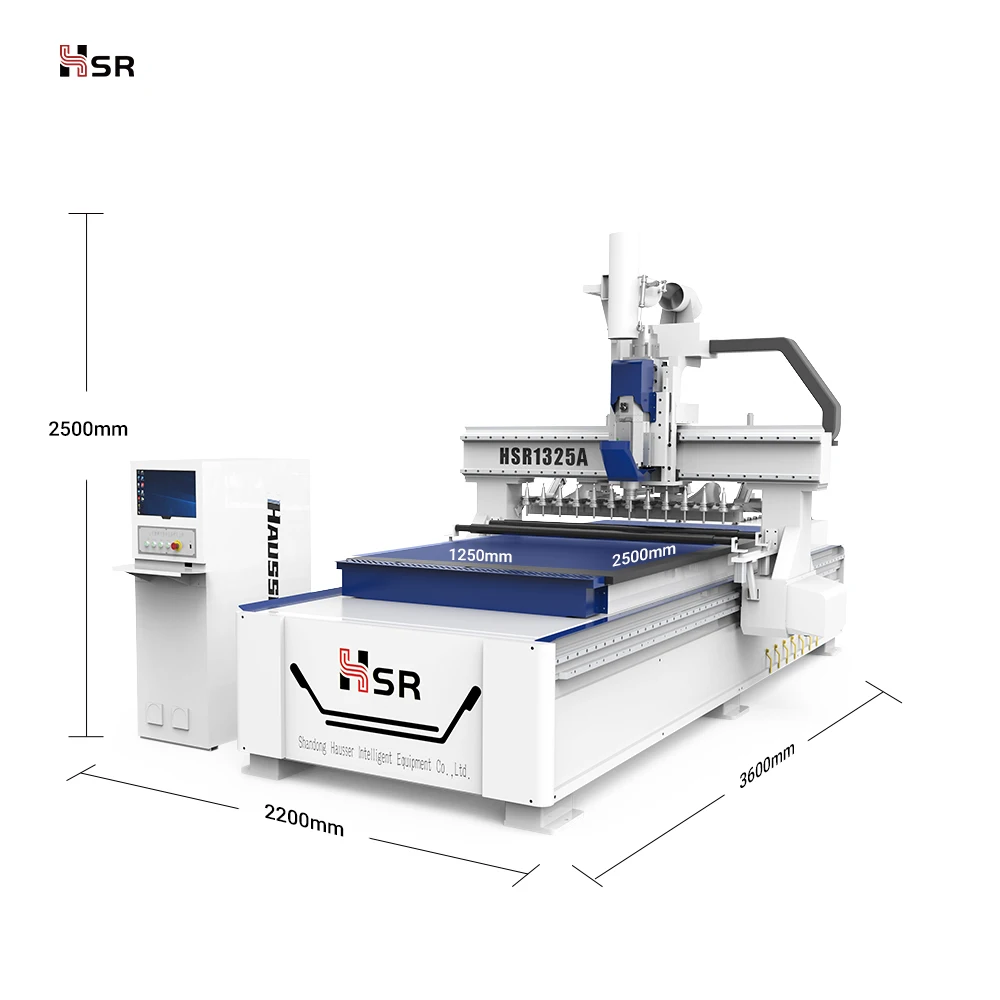

Product Paramenters
Model | HSR1325A |
Working area | 1500*3000*200mm (can be customized) |
Working Voltage | 380V, 3PHASE, 50HZ (can be customized) |
Control System | Taiwan SYNTEC controller, support 4 axis |
Spindle | 9KW ATC air cooling spindle |
Spindle speed | 0-18000RPM |
Motor and Driver | Syntec servo motor and driver |
Inverter | 11KW Folinn inverter |
Structure | Heavy duty thicker and bigger welded frame and gantry |
Table surface | Aluminum Working Table with T-slot |
Gantry structure | Thicker steel tube, Gantry Moving |
Calibration | Auto tool sensor calibration |
Transmission | X,Y Axis: Helical rack pinion, Z Axis: Taiwan TBI Ball Screw, Taiwan HIWIN/PMI/CSK 25# Rail Linear Bearing, |
Command language | G Code |
Tool magazine | 14-16 pieces knives |
Software | ArtCam, Ucancam,Type3 |
Voltage | 380V-3PH-50/60HZ |
Optional | Rotary device/Dust Collector |
Re-positioning accuracy | ±0.03mm |
Working accuracy | ±0.03mm |
Working voltage | 220V 3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |

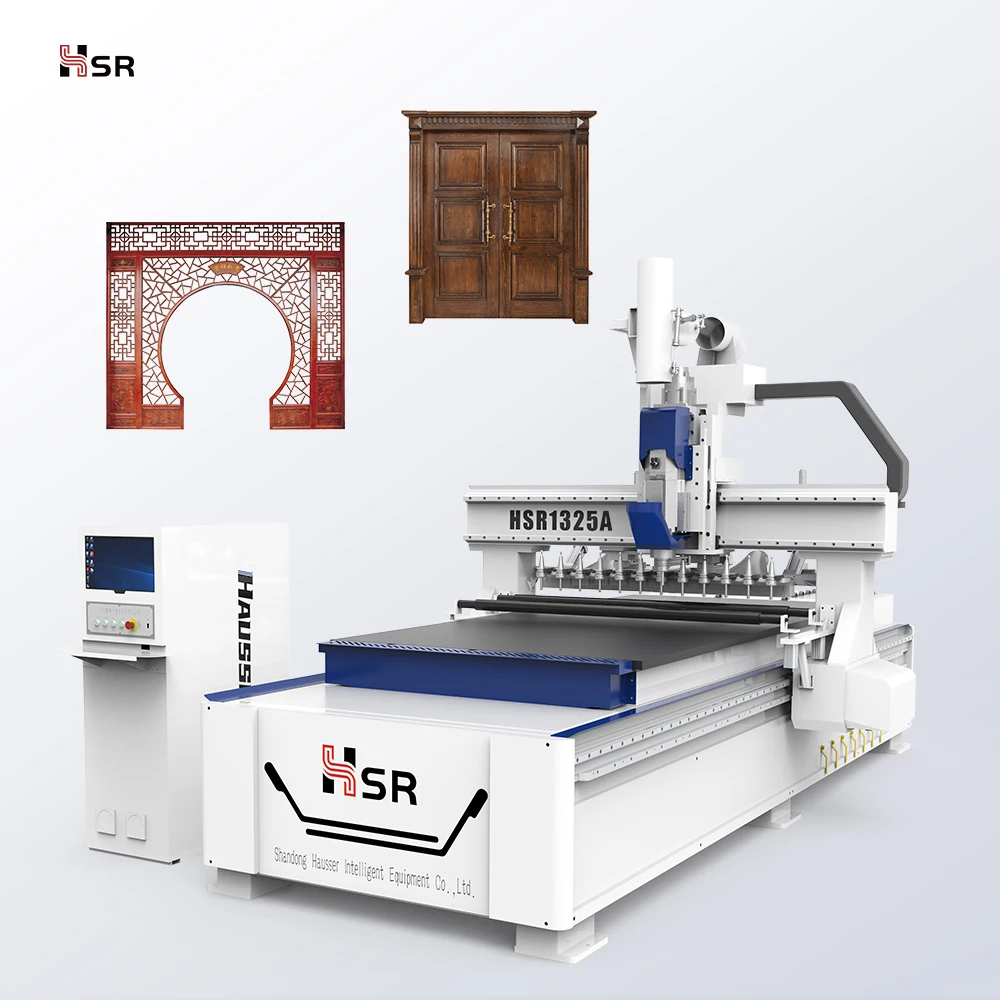

Application
The production Line
Provide the whole production Line
We have many kinds of Furniture Production Line, including CNC Router Machine, edge banding machine, wood drilling machine, auto loading and unloading system, etc.
We can do customized service, so if you are not sure which machine or which production line is suitable for you, we can give you suggestion and support you the whole Furniture Production Line.
