Характеристики

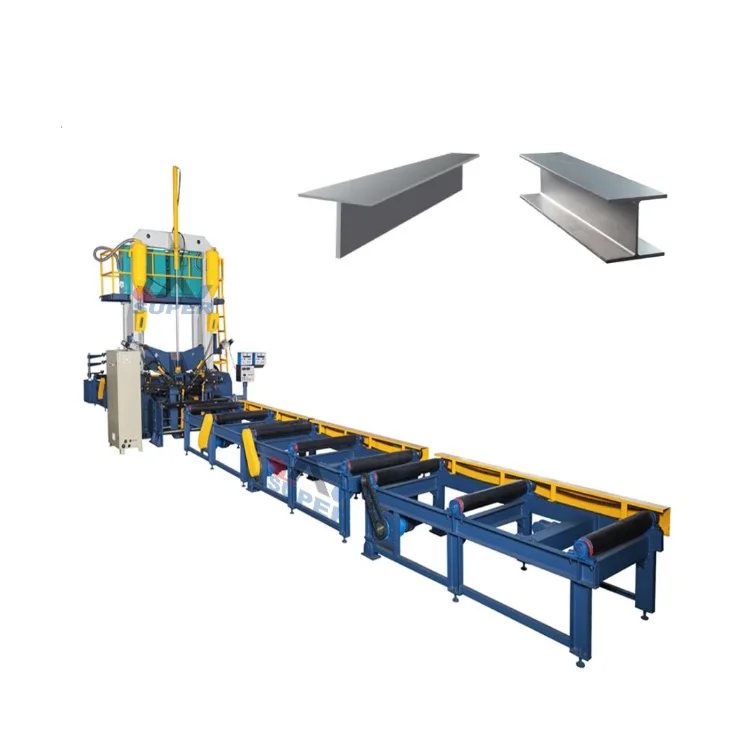

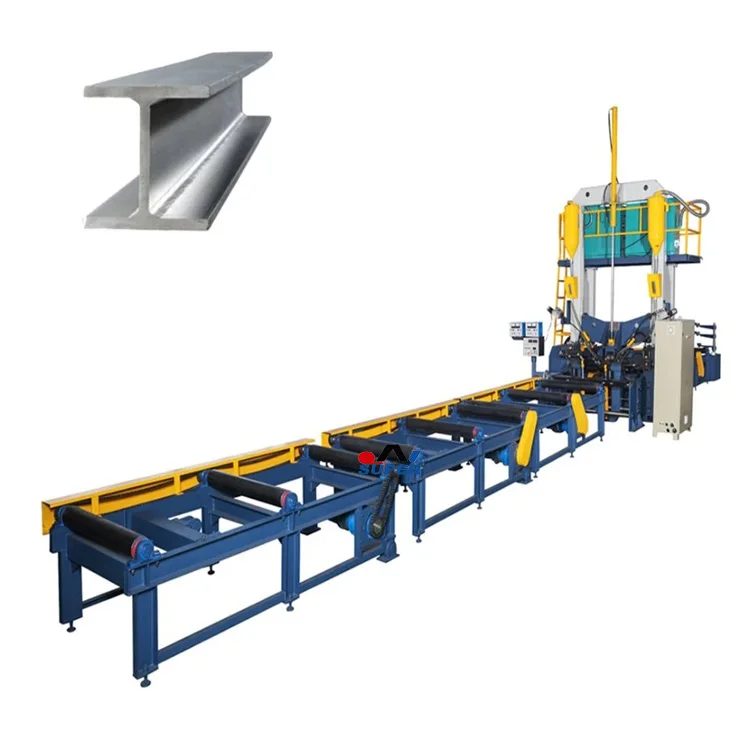

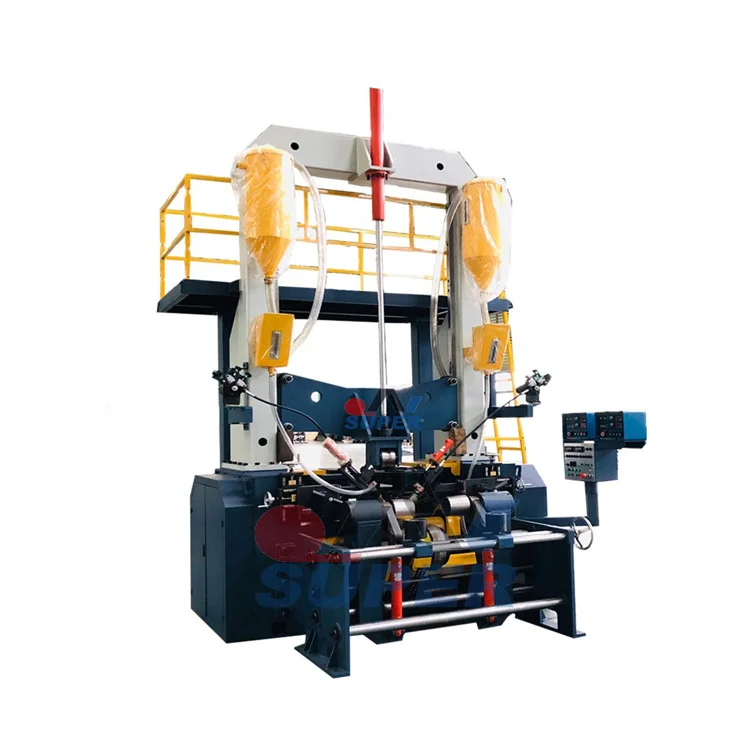

Automatic Assembly Welding Straightening 3 in 1 Integrated for H Beam Machine
Machine Name:Automatic Assembly Welding Straightening 3 in 1 Intergrated Machine for H Beam
Products Description
1.Main Features of 3 in 1 Intergrated for H Beam Machine
3 in 1 Integrated for H Beam Machine:
change the traditional process, to workpiece walking, double-sided butt welding.
Great production with efficiency
Highly cost effective
Save labor and time
web below 20MM without beveling, direct penetration.
Production Introduction:
H beam production line is specially designed for the welding of H beam.It is mainly composed of cnc strips cutting
machine,assembling machine ,gantry welding machines. flange straightening machine and ball blasting machine.The who
The whole line adopts advanced technology of head assembling,horizontal leveling stand welding,single arc and
machine,assembling machine ,gantry welding machines. flange straightening machine and ball blasting machine.The who
The whole line adopts advanced technology of head assembling,horizontal leveling stand welding,single arc and
double wire welding,and realizes fast welding of H beam with welding distortion greatly reduced. It is the perfect device for producing large quantity of H beam.

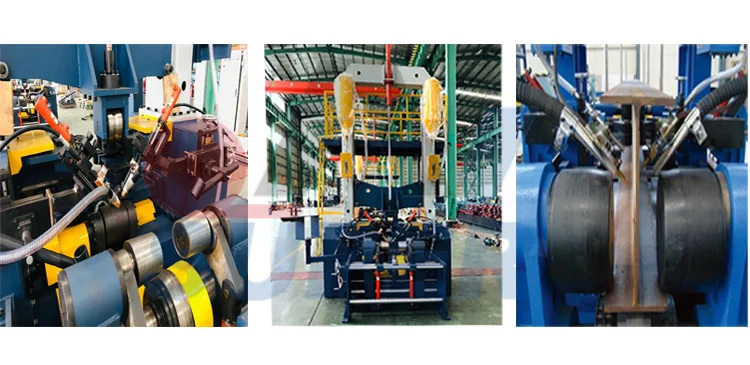

2.Detailed Images of 3 in 1 Intergrated for H Beam Machine
3.Main Technical Parameters of 3 in 1 Intergrated for H Beam Machine
Item | Parameters |
Web Height(mm) | 300-1500(customizable) |
Web Thickness(mm) | 5-30 |
Flange width(mm) | 150-800 |
Flange thickness(mm) | 5-30 |
Workpiece length(m) | 5-15 |
Welding Speed(m/min) | 350-4000mm/min((step less speed adjustment)) |
Control System | Frequency inverter |
Weight(ton) | 15 |
Welder type | standard type or (customized) |
Welding name | USA Lincoln DC1000(customizable) |
Inclination of H beam | ≤8° |
Total Power | 150kw |
Wire dimension | φ3.2-φ5mm |
Welding position | fillet welding in down position |
Frame moving speed | 240-2400mm/min(according to the welding fillet height) |
Company Profile
