Ручной цифровой датчик силы EFG10E измеритель нажима ЦИФРОВОЙ динамометр портативный прибор для измерения сделано

Ручной цифровой датчик силы EFG10E измеритель нажима ЦИФРОВОЙ динамометр портативный прибор для измерения сделано

Категория: Force Measuring Instruments >>>
Поставщик: Mikrometry,instruments,limited

Цена:132,00 $ - 143,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	157.12 $*	165.11 $*
Aug-17-2025	156.4 $*	164.59 $*
Jul-17-2025	131.97 $*	138.17 $*
Jun-17-2025	153.13 $*	161.2 $*
May-17-2025	133.13 $*	140.0 $*
Apr-17-2025	150.5 $*	158.62 $*
Mar-17-2025	149.51 $*	156.94 $*
Feb-17-2025	148.55 $*	155.80 $*
Jan-17-2025	147.9 $*	154.61 $*

Характеристики

Features

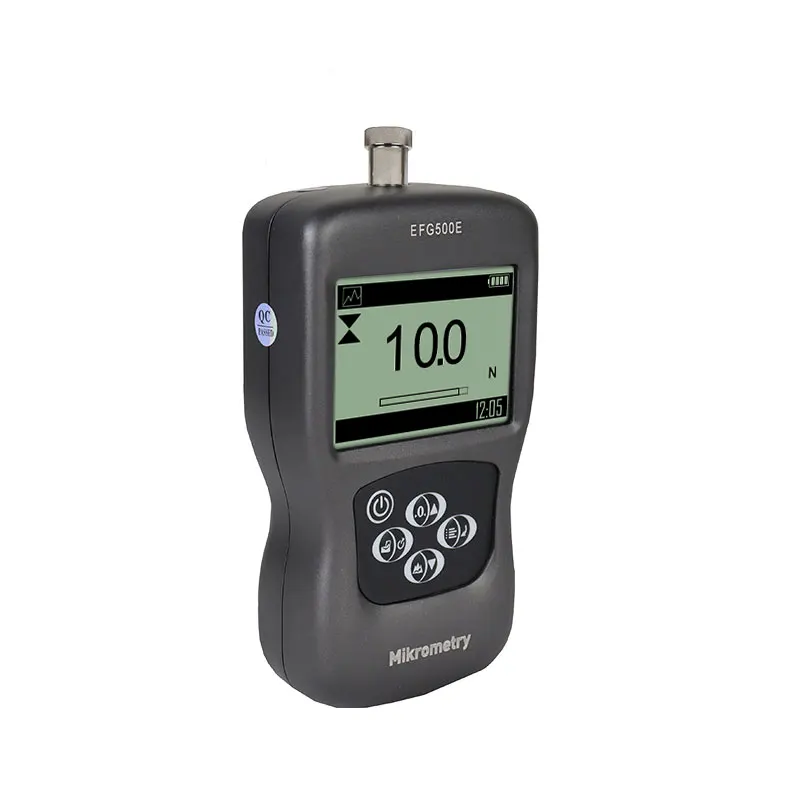

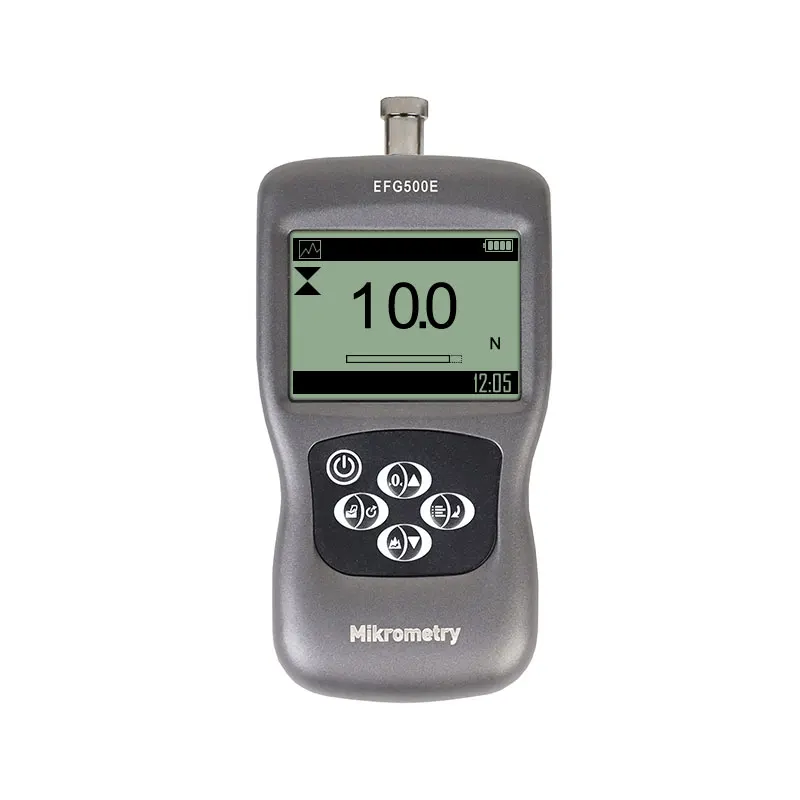

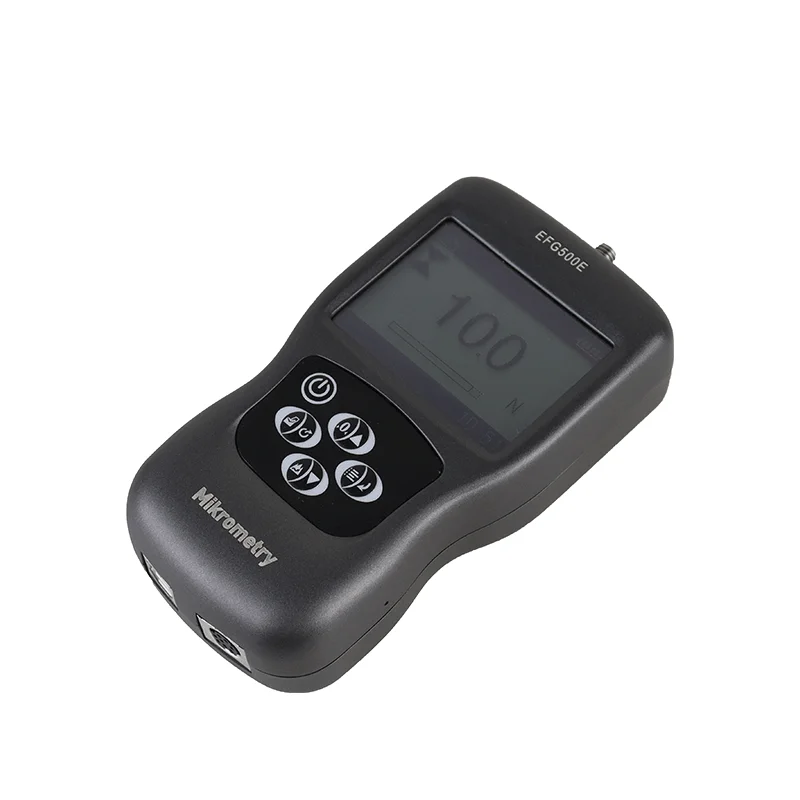

Force Gauge 1000n Test Equipment dynamometer EFGE from Mikrometry
Mikrometry force gauge 1000n with compact size, high accuracy, they are easy to operate and handy to carry out. Widely applied in
electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry,
mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive
experience. This digital force gauge is new generation pulls the pressure measuring instrument.

Features:
Durable metal case
Reverse display setting
Mechanical overload protection
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Support low battery alarm
Accuracy: ± 0.3% FS
Sampling Rate: up to 1KHz

Product Description

Accuracy	± 0.3% F.S.
Selectable Units	N、gf、 kgf、 ozf and lbf
Display	160*128 dot matrix LCD(2.8 inch) with LED Backlight
Overload Capacity	150% of F.S. (LCD blinks beyond 110%)
Overload Protection	Overload Protection Mechanism to prevent to be damaged
Measurement Mode	Track 、Peak、Preset Peak
Data Sampling Rate	1KHz
Display Update Rate	10 times/second
Memory	500 data
Set Point	Programmable high and low limits
Battery Indicator	Display flashes battery icon when battery is low
Power	3.6VDC 400mAH Ni-Mh rechargeable batteries
Battery Life	Approx. 7 hours per charge
Charger / Adaptor	Universal USB/BM charger, Input:110~240VAC
Temperature Effects	<0.03% FS per °C

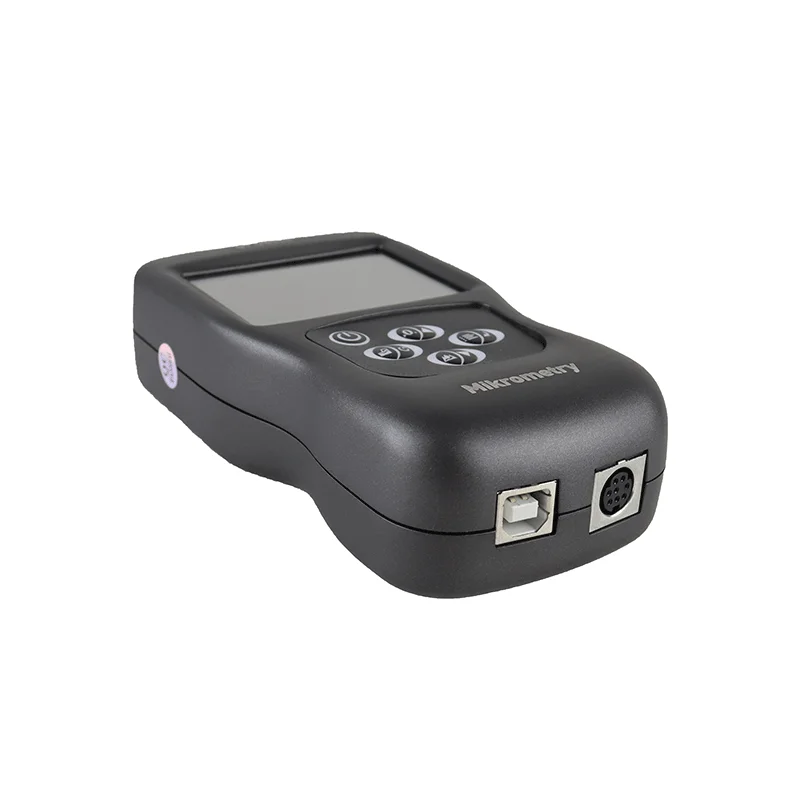

Communication	USB or RS-232
Software	Free software for USB communication
Outputs	RS-232, "Within" set point output， "Under or over" set point output
Operating environment	Temperature: -10 to 40°C
Operating environment		Relative Humidity: 20 to 80%
Storage environment	Temperature: -20 to +50°C
Storage environment		Relative Humidity: 5 to 90%
Dimensions	1507233mm
Weight:	0.45 kg (1 lb)

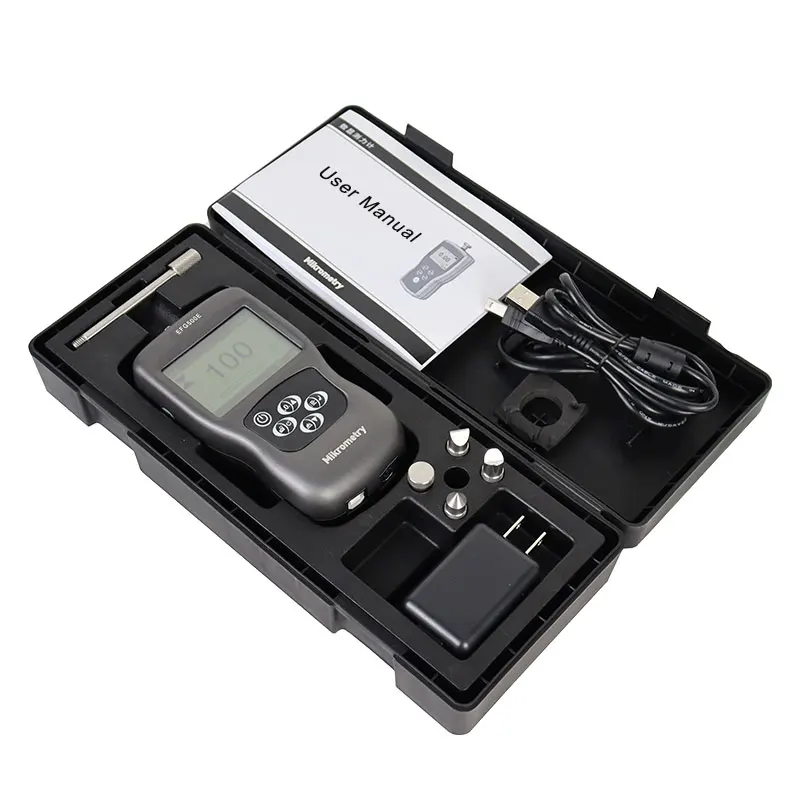

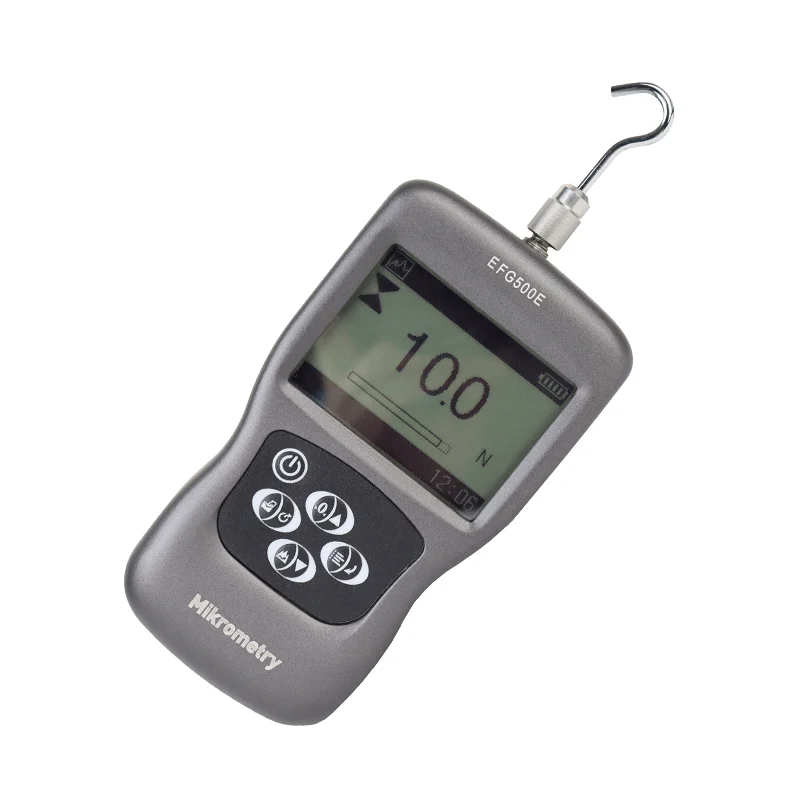

Accessories	AC adapter/charger，6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
Options	Mini-printer, Measuring Adapter, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.

Our Advantage

Company Profile

Founded in 2007 and located in Shenzhen,a special economic zone,Mikrometry is a professional- altimeter,Leeb hardness tester,precision digital dynamometer,precision torque tester,coating thickness gauge , Shore hardness tester and other instruments. Have the ability of independent research and development and independent production.

The company has a R&D team with rich experience,comprehensive knowledge and efficient work.The products are developed and designed by R&D personnel with many years of industry application and design experience.The integration of rich practical experience and professional technology has won the widespread trust and support of a large number of customers.
