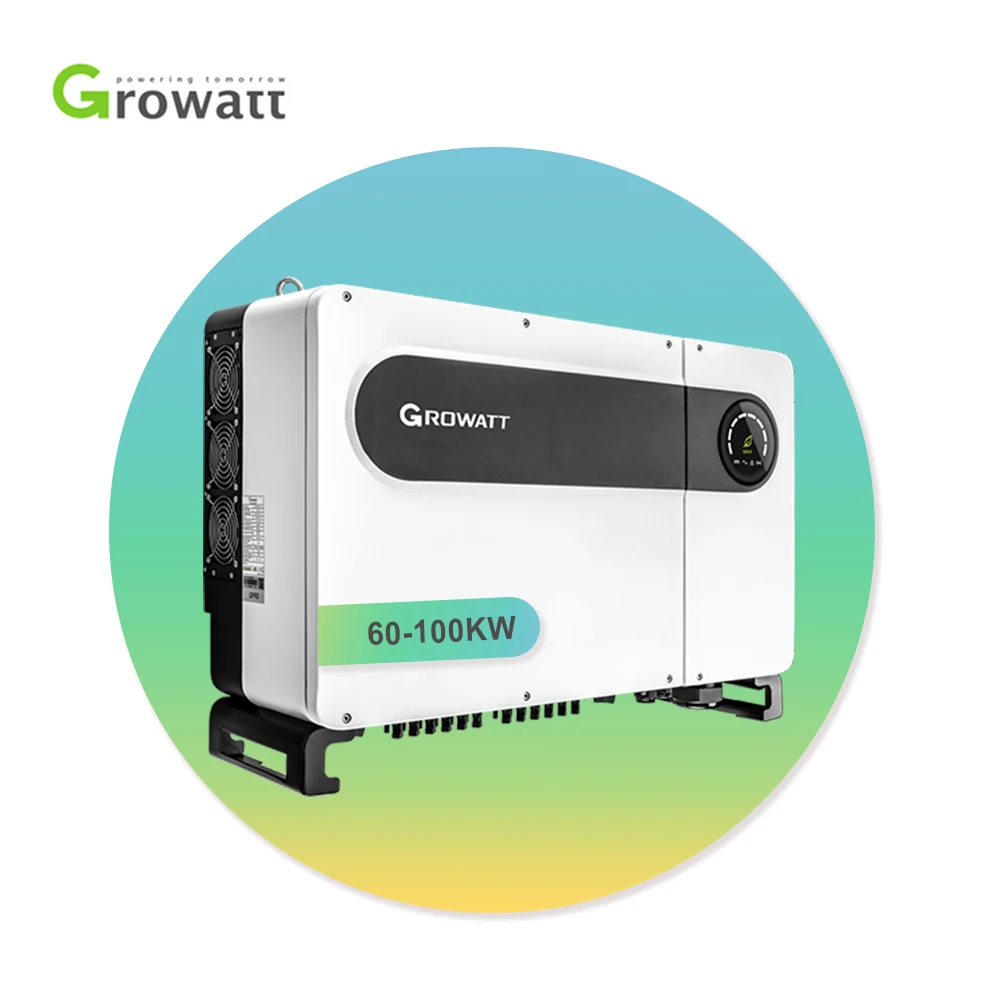

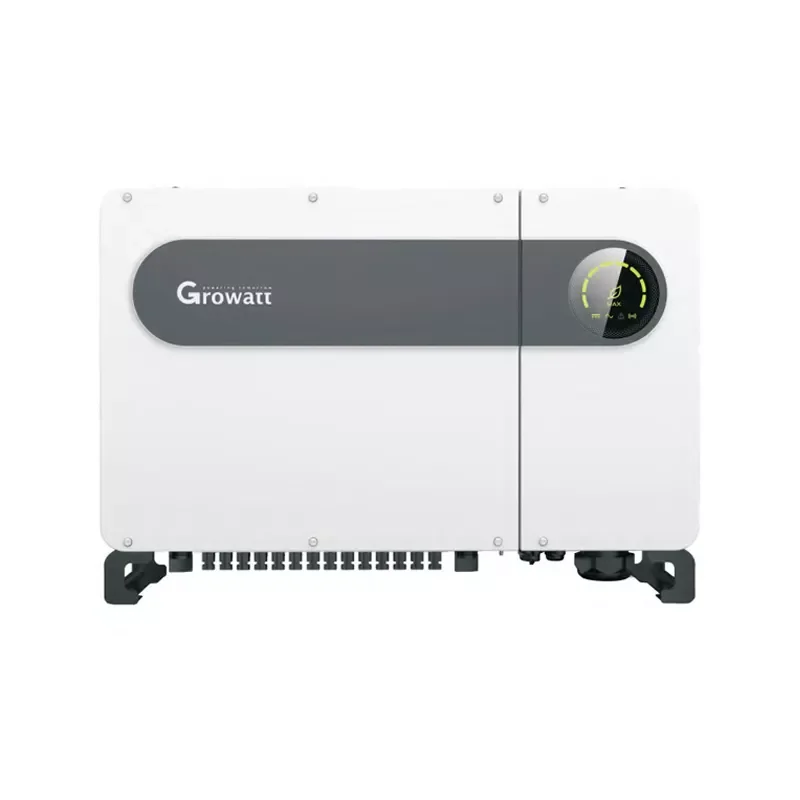

Инвертор для солнечной энергии growatt 60 кВт 70 80 90 100 110 3 фазы 380
- Категория: >>>
- Поставщик: Nonivia,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 3567.63 $* | 3638.65 $* |
| Jul-20-2025 | 2893.24 $* | 2951.41 $* |
| Jun-20-2025 | 3511.72 $* | 3581.93 $* |
| May-20-2025 | 3483.63 $* | 3553.64 $* |
| Apr-20-2025 | 2781.54 $* | 2837.50 $* |
| Mar-20-2025 | 3427.79 $* | 3496.25 $* |
| Feb-20-2025 | 3399.93 $* | 3467.6 $* |
| Jan-20-2025 | 3371.65 $* | 3438.1 $* |
Характеристики
Product Description
Smart Monitoring System
Technical Specifications
Model | MAX 50KTL3 LV | MAX 60KTL3 LV | MAX 70KTL3 LV | MAX 80KTL3 LV | ||||
Input Data (DC) | ||||||||
Max. recommended PV power (for module STC) | 75000W | 90000W | 105000W | 120000W | ||||
Max. DC voltage | 1100V | |||||||
Start voltage | 250V | |||||||
MPP voltage range | 200V-1000V | |||||||
Nominal voltage | 585V | 585V | 600V | 600V | ||||
No. of PV strings per MPP tracker | 2 | |||||||
Max. input current per MPP tracker | 26A | |||||||
Max. short-circuit current per MPP tracker | 32A | |||||||
Output data (AC) | ||||||||
AC nominal power | 50000W | 60000W | 70000W | 80000W | ||||
Max. AC apparent power | 55500VA | 66600VA | 77700VA | 88800VA | ||||
AC nominal voltage | 220V/380V, 230V/400V (340-440V) | |||||||
Max. output current | 80.5A | 96.6A | 112.7A | 128.8A | ||||
AC grid frequency | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||
THDi | <3% | |||||||
AC grid connection type | 3W+N+PE | |||||||
Efficiency | ||||||||
Max.efficiency | 98.8% | 98.8% | 99% | 99% | ||||
European efficiency | 98.4% | 98.4% | 98.5% | 98.5% | ||||
MPPT efficiency | 99.9% | |||||||
Protection Devices | ||||||||
DC reverse polarity protection | Yes | |||||||
DC switch | Yes | |||||||
DC Surge protection | Type II | |||||||
Ground fault monitoring | Yes | |||||||
Output short circuit protection | Yes | |||||||
AC Surge protection | Type II | |||||||
String Fuse protection | Yes | |||||||
String fault monitoring | Yes | |||||||
AFCI protection | Optional | |||||||
Anti-PID protection | Optional | |||||||
General Data | ||||||||
Dimensions (W / H / D) | 860/600/300mm | |||||||
Weight | 82kg | 82kg | 86kg | 86kg | ||||
Operating temperature range | –25 °C ... +60 °C | |||||||
Noise emission (typical) | ≤60 dB(A) | |||||||
Self-consumption night | < 1W | |||||||
Topology | Transformerless | |||||||
Cooling | Smart air cooling | |||||||
Protection degree | IP65 | |||||||
Relative humidity | 0-100% | |||||||
Altitude | 4000m | |||||||
DC connection | H4/MC4(Optional) | |||||||
AC connection | Cable gland+OT terminal | |||||||
Display | LED/WIFI+APP | |||||||
Interfaces: RS485 / USB /WiFi/ RF/GPRS | Yes /Yes/Optional/Optional/Optional | |||||||
Warranty: 5 years / 10 years | Yes /Optional | |||||||
Model | MAX 60KTL3 MV | MAX 70KTL3 MV | MAX 80KTL3 MV | MAX 90KTL3 MV | MAX 100KTL3 MV | |||||
Input Data (DC) | ||||||||||
Max. recommended PV power (for module STC) | 90000W | 105000W | 120000W | 130000W | 130000W | |||||
Max. DC voltage | 1100V | |||||||||
Start voltage | 250V | |||||||||
Nominal voltage | 700V | 700V | 700V | 730V | 730V | |||||
MPP voltage range | 200V-1000V | |||||||||
No. of MPP trackers | 6 | 7 | 7 | 7 | 7 | |||||
No. of PV strings per MPP tracker | 2 | |||||||||
Max. input current per MPPT tracker | 26A | |||||||||
Max. short circuit current per MPPT | 32A | |||||||||
Output data (AC) | ||||||||||
Rated AC output power | 60000W | 70000W | 80000W | 90000W | 100000W | |||||
Max. AC apparent power | 66600VA | 77700VA | 88800VA | 100000VA | 11100VA | |||||
Nominal AC voltage（range*) | 277V/480V 425-540VAC | 277V/480V 425-540VAC | 277V/480V 425-540VAC | 288V/500V 425-540VAC | 288V/500V 425-540VAC | |||||
AC grid frequency（range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
Max. output current | 80.2A | 93.6A | 107.0A | 115.7A | 128.6A | |||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||
THDi | <3% | |||||||||
AC grid connection type | 3W+N+PE | |||||||||
Efficiency | ||||||||||
Max.efficiency | 99.0% | |||||||||
European efficiency | 98.5% | 98.5% | 98.6% | 98.6% | 98.6% | |||||
MPPT efficiency | 99.9% | |||||||||
Protection Devices | ||||||||||
DC reverse polarity protection | Yes | |||||||||
DC switch | Yes | |||||||||
AC/DC surge protection | TypeII/Type II | |||||||||
Insulation resistance monitoring | Yes | |||||||||
AC short-circuit protection | Yes | |||||||||
Ground fault monitoring | Yes | |||||||||
Grid monitoring | Yes | |||||||||
Anti-islanding protection | Yes | |||||||||
Residual-current monitoring unit | Yes | |||||||||
String monitoring | Yes | |||||||||
Anti-PID function | Optional | |||||||||
AFCI protection | Optional | |||||||||
General Data | ||||||||||
Dimensions (W / H / D) | 860/600/300mm | |||||||||
Weight | 82kg | 86kg | 86kg | 86kg | 86kg | |||||
Operating temperature range | –25°C ... +60°C | |||||||||
Noise emission (typical) | ≤60dB(A) | |||||||||
Self-consumption night | <1w | |||||||||
Topology | Transformerless | |||||||||
Cooling | Smart air cooling | |||||||||
Protection degree | IP65 | |||||||||
Relative humidity | 0-100% | |||||||||
Altitude | 4000m | |||||||||
DC connection | H4/MC4(Optional) | |||||||||
AC connection | Cable gland+OT terminal | |||||||||
Display | LED/WIFI+APP | |||||||||
Interfaces: RS485 / USB /WiFi/ RF/GPRS | Yes/Yes/Optional/Optional/Optional /Optional | |||||||||
Warranty: 5 years / 10 years | Yes /Optional | |||||||||

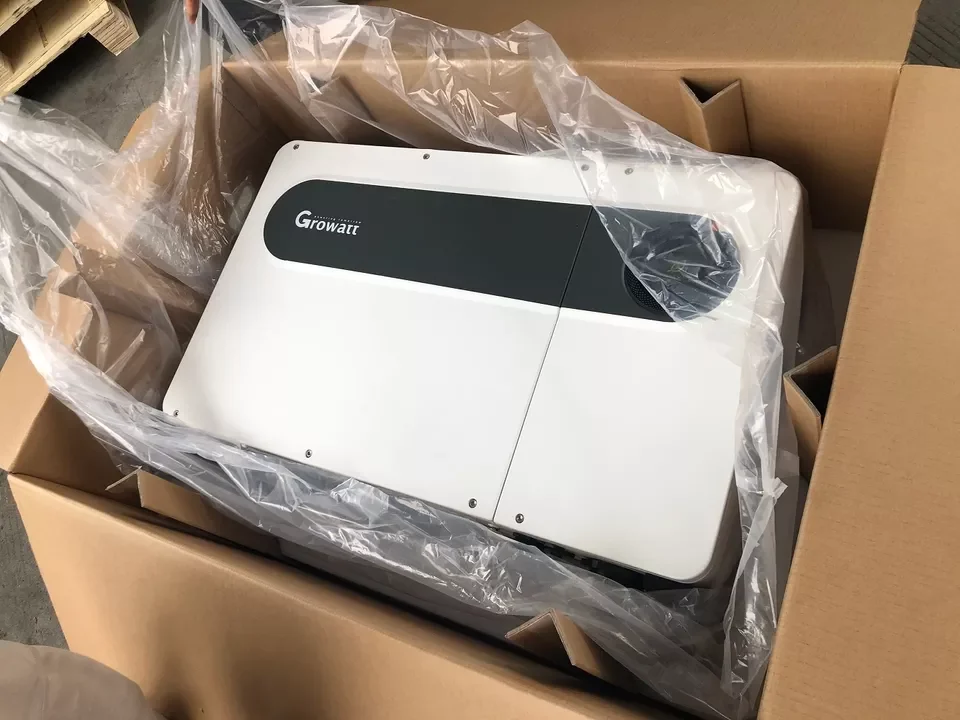

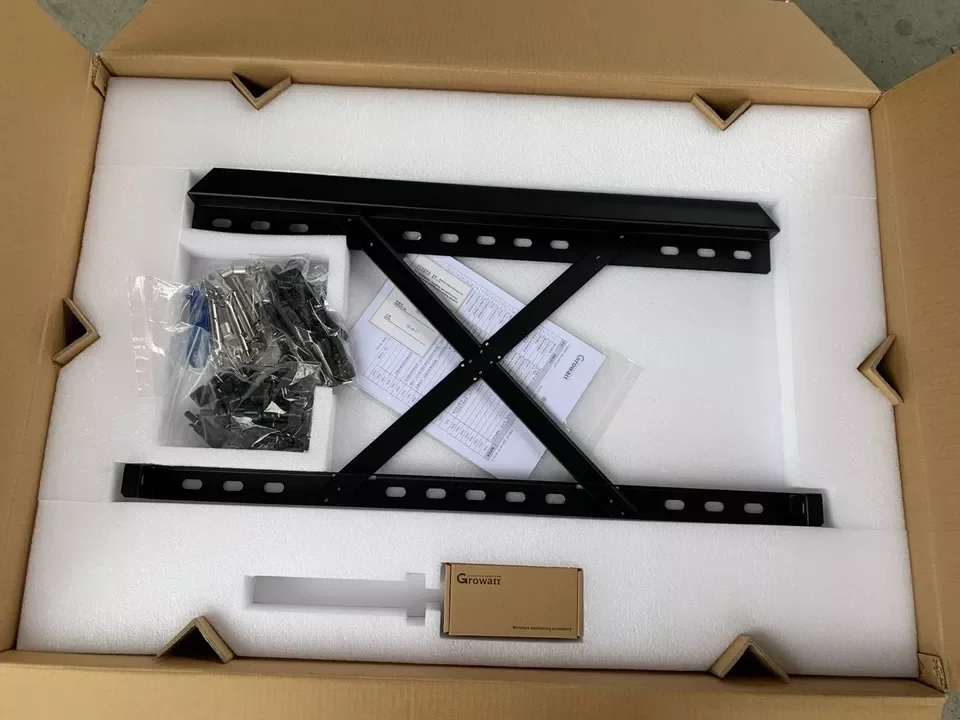

Packing
