Малый размер токарные автоматы для приварки болтов платформа автоматические аппарат шпилек студийной съемки с изображением сварочный
- Категория: Other Welding Equipment >>>
- Поставщик: Luoyang,Ruichuang,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 11900.60 $* | 12495.39 $* |
| Aug-18-2025 | 11800.87 $* | 12390.68 $* |
| Jul-18-2025 | 9900.92 $* | 10395.25 $* |
| Jun-18-2025 | 11600.19 $* | 12180.11 $* |
| May-18-2025 | 10100.92 $* | 10605.67 $* |
| Apr-18-2025 | 11400.94 $* | 11970.12 $* |
| Mar-18-2025 | 11300.2 $* | 11865.13 $* |
| Feb-18-2025 | 11200.65 $* | 11760.36 $* |
| Jan-18-2025 | 11100.93 $* | 11655.51 $* |
Характеристики
Applications

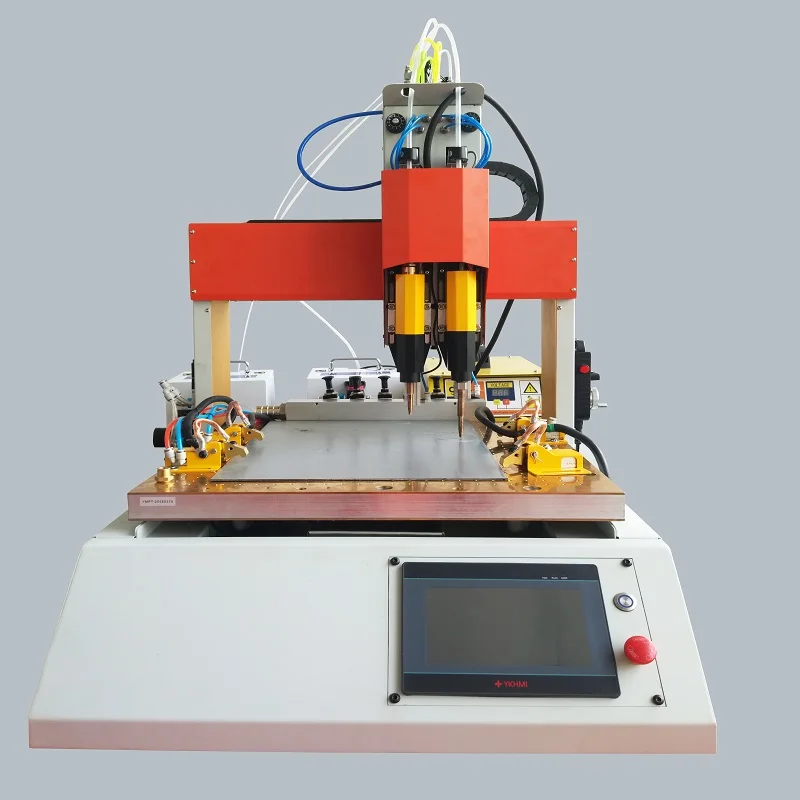

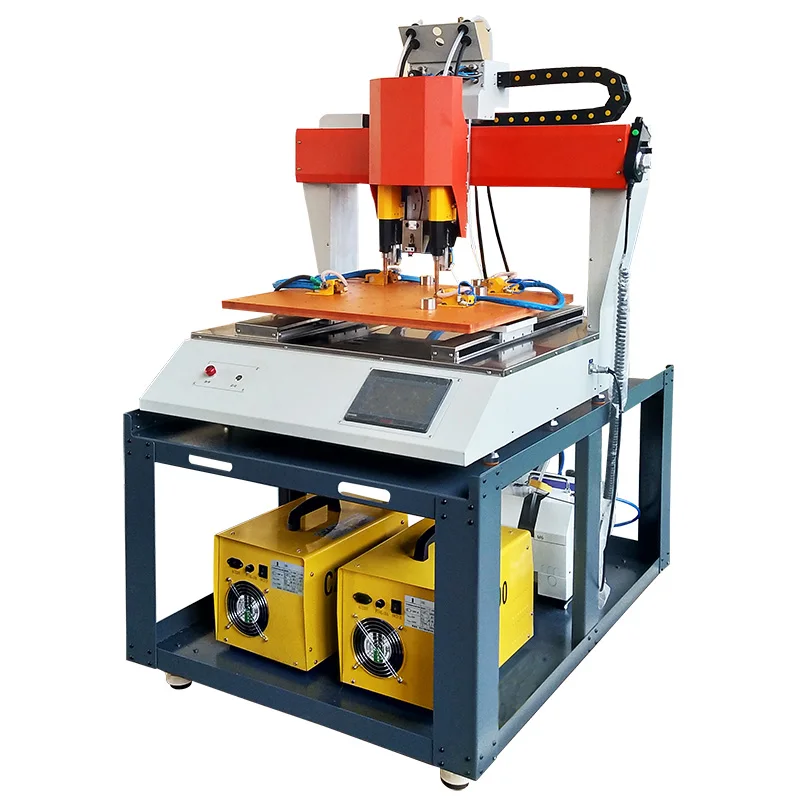

CNC stud welding automation equipment can replace the traditional manual stud welding machine for nailing, automatic nail feeding and automatic welding. It can be equipped with multiple welding guns and can weld multiple specifications of screws at the same time. The positioning is accurate, the welding is firm, and it is suitable for a wide range of materials: cold plates, stainless steel, aluminum plates, galvanized plates, titanium plates and other materials can be welded.
Welding screws of various specifications can be quickly and firmly welded to the metal surface; the back of the welding plate has no traces, no obvious depressions and protrusions, and there is no need for drilling, riveting, arc welding and post-weld processing and other cumbersome traditional processes; CNC Programming can achieve more complex welding scheme requirements.
Products Description
Technical Data | RC-Z-1612 | RC-Z-2212 | |||
Working Stroke(X*Y*Z) | 1200*600*100mm | 1600*1200*300mm | 2200*1200*300mm | ||
Machine Size(L*W*H) | 2000*1200*1800mm | 2900*2200*2000mm | 4100*2200*2400mm | ||
Numbers of Welding Head | 1-3 | 1-4 | 1-8 | ||
Y Fastest Moving Speed | 40m/min | ||||
X Fastest Moving Speed | 60m/min | ||||
Stud Diameter/mm | M3-M10（customizable） | ||||
Stud Length/mm | 8-40mm | ||||
Stud Feeding Method | Automatic feeding | ||||
Welding Speed | 25-35pcs/minute | ||||
Application Plate | Cold plate, stainless steel, aluminum, galvanized plate, titanium plate | ||||
Our Advantages
Rack Structure
The X-axis aluminum profile beam has good rigidity, stability, and durability, and ensures the accuracy of control walking.
Walking Structure
The transmission part adopts high-precision belt transmission and linear guide rail to ensure high-precision and high-speed
operation.
operation.
Drive System
The traveling mechanism is all driven by high-precision servo motors to achieve precise positioning.

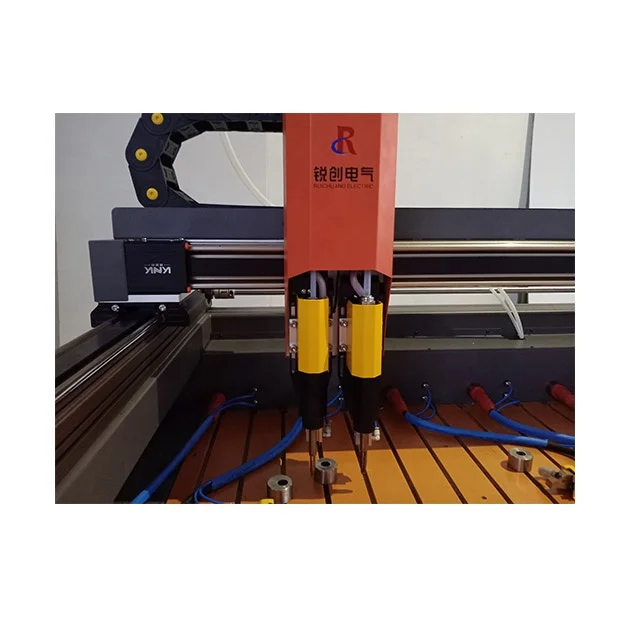

Welding Torch
Welding gun can be configured with 1-6 heads according to customer’s need.
Special gun head also can be customized.
Special gun head also can be customized.
Operating Interface
The system also has a parameter data saving function, which can save the point size data of the entire process, the welding
position data, etc. to a custom file, which is convenient for the next time the same product is called and directly welded.
position data, etc. to a custom file, which is convenient for the next time the same product is called and directly welded.
Welding Torch

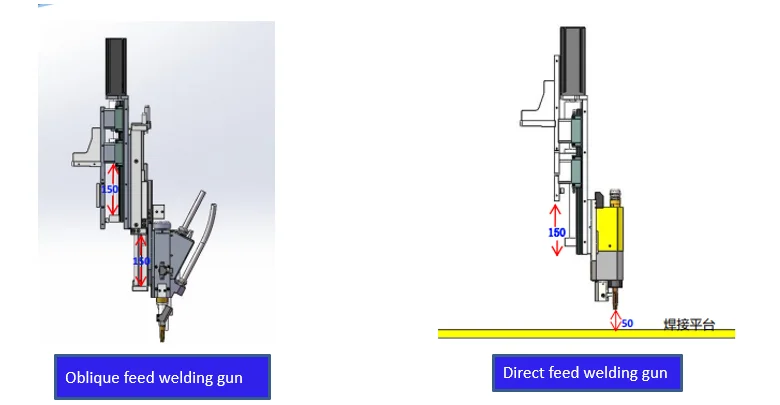

The gap between the nails and the plate of different welding lengths can be fine-tuned to ensure the welding speed, the pressure is stable and adjustable, and it can adapt to the uneven deformation of the plate surface. The welding height of the torch head can be adjusted in the range of 150+150 or 150+50 by two adjustment methods.
Stud Feeding Mechanism
Roller type
Roller type: Suitable for ordinary screws; Manual adjustment range 10-25mm.(Standard configuration)
Vibrating plate
Vibrating plate: Suitable for long big screws; Manual adjustment range 10-35mm. (Optional)
Title goes here.
The nail delivery specification is M3-M8 (non-standard can be customized).

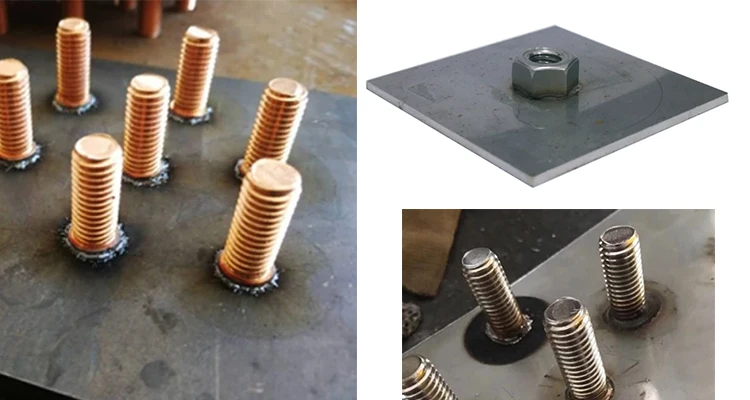

Application examples
