Характеристики

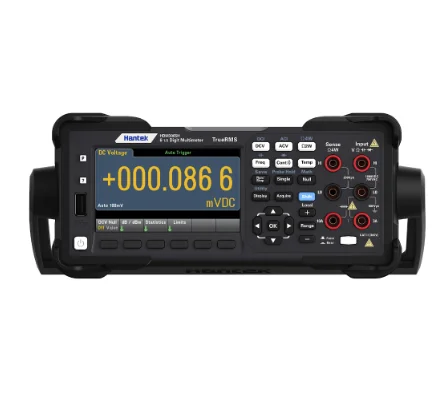

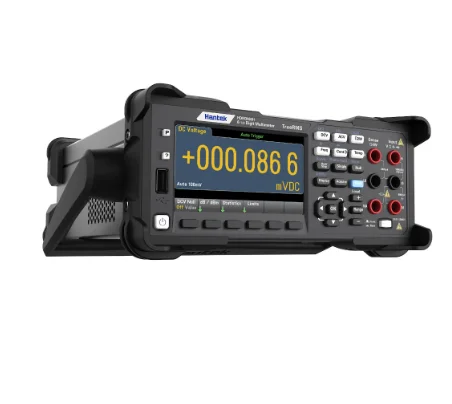

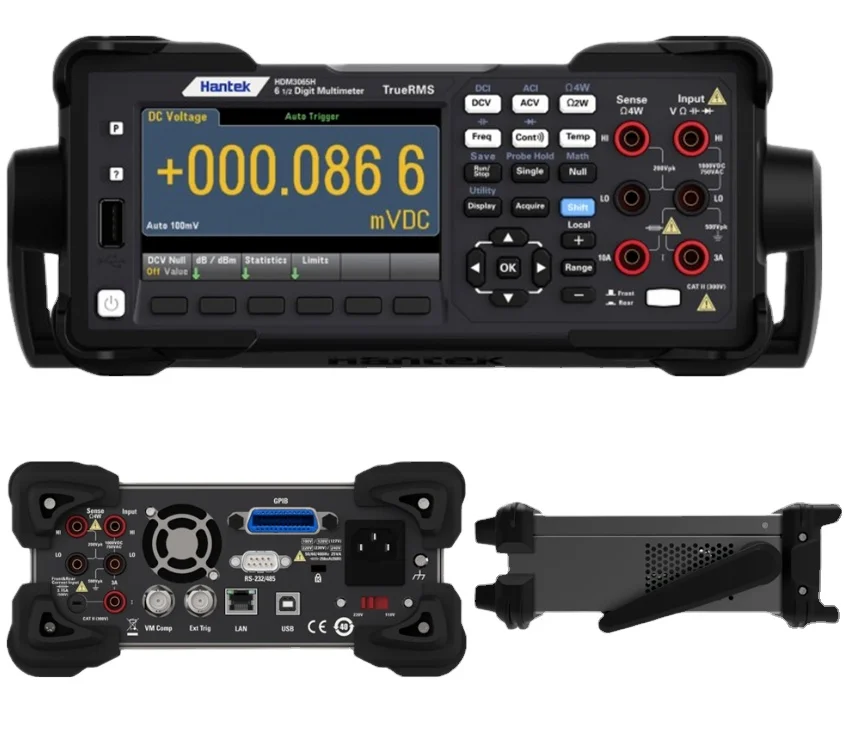

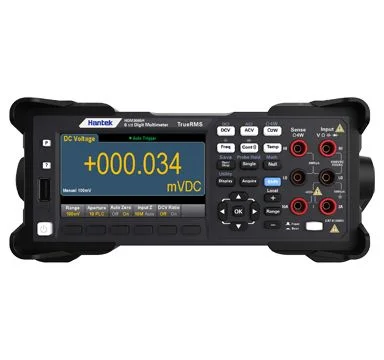

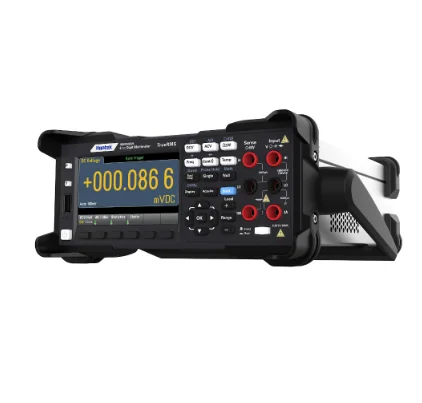

Hantek Hdm3065b Digital Multimeters True Rms Ac Dc Voltalge Current Tester Desktop Multimeter
Feature:
* Real 6 1/2 bit reading resolution;
* Front and back 2 sets of multimeter input interface,measure can a key switch;
* Up to 30,000 rdgs/s reading;
* Graph display function, trenddrawing function to paperless record teating data,statistic information and histogram;
* Double display measurement function,display 2 kinds of signal parameters at the same time;
* True RMS AC voltage and AC current measure;
* 0.1μV resolution,easy to use, parameters can be setted easily;
* Support dual display, Chinese and English menu;
* Built in help system, convenient access to information;
* 13 kinds of measure functions:DC Voltage, AC Voltage, DC current, AC current, 2 line resistance, 4 line resistance,
capacitance, diode, connectivity, frequency, period, current range can be 10A;
* 4.3 inch 64K LCD;
* Safety standards: CAT II 300 V;
* Support standard SCPI Remote control command,upper computer software,Compatible with the latest mainstream multimeter command
set;
* Configration interface: USB Device, USB Host, LAN (HDM3065B) , GPIB (HDM3065H) .
* Real 6 1/2 bit reading resolution;
* Front and back 2 sets of multimeter input interface,measure can a key switch;
* Up to 30,000 rdgs/s reading;
* Graph display function, trenddrawing function to paperless record teating data,statistic information and histogram;
* Double display measurement function,display 2 kinds of signal parameters at the same time;
* True RMS AC voltage and AC current measure;
* 0.1μV resolution,easy to use, parameters can be setted easily;
* Support dual display, Chinese and English menu;
* Built in help system, convenient access to information;
* 13 kinds of measure functions:DC Voltage, AC Voltage, DC current, AC current, 2 line resistance, 4 line resistance,
capacitance, diode, connectivity, frequency, period, current range can be 10A;
* 4.3 inch 64K LCD;
* Safety standards: CAT II 300 V;
* Support standard SCPI Remote control command,upper computer software,Compatible with the latest mainstream multimeter command
set;
* Configration interface: USB Device, USB Host, LAN (HDM3065B) , GPIB (HDM3065H) .
Model | HDM3065H | HDM3065B | HDM3065A | HDM3065S | HDM3065 | |||||
Resolution bit | 6 1/2 | 6 1/2 | 6 1/2 | 6 1/2 | 6 1/2 | |||||
DCV basic precision | 35 ppm | 35 ppm | 35 ppm | 35 ppm | 35 ppm | |||||
Maximum reading rate | 30,000 rdgs/s | 30,000 rdgs/s | 30,000 rdgs/s | 30,000 rdgs/s | 30,000 rdgs/s | |||||
Memory | 10,000 readings | 10,000 readings | 10,000 readings | 10,000 readings | 10,000 readings | |||||
Double-display measurement function | √ | √ | √ | √ | √ | |||||
Statistical graph | Histogram, bar graph, trend graph | Histogram, bar graph, trend graph | Histogram, bar graph, trend graph | Histogram, bar graph, trend graph | Histogram, bar graph, trend graph | |||||
Interface | ||||||||||
USB | √ | √ | √ | √ | √ | |||||
232/485 | √ | √ | √ | √ | √ | |||||
LAN | √ | √ | × | × | × | |||||
GPIB | √ | × | × | × | × | |||||

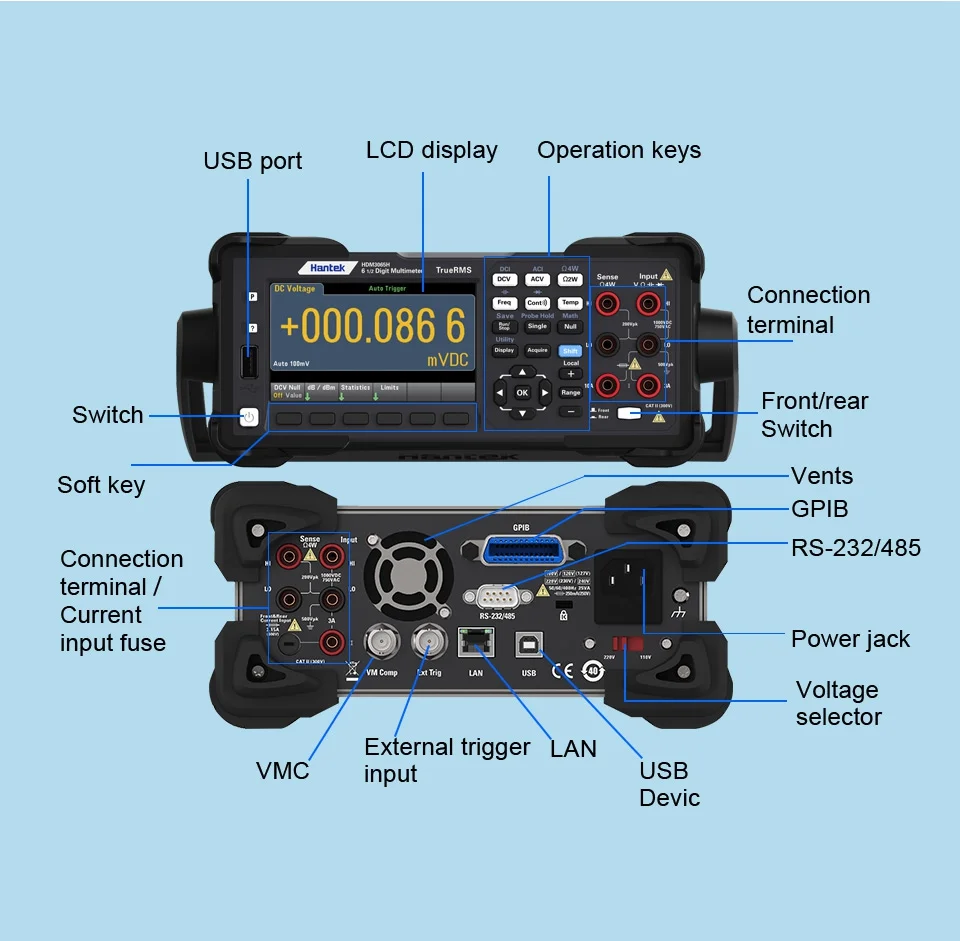

Front-panel input terminal | √ | √ | √ | × | √ | |||||
Rear-panel input terminal | √ | √ | √ | √ | × | |||||
