Инвертор системы солнечной энергии GOOTU 6 кВт преобразователь 220 В переменного тока 380 48 гибридный солнечный инвертор с контроллером зарядки
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Jiesaiyuan,Electricity,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 591.98 $* | 603.24 $* |
| Jul-20-2025 | 479.95 $* | 489.52 $* |
| Jun-20-2025 | 581.4 $* | 593.26 $* |
| May-20-2025 | 577.35 $* | 589.0 $* |
| Apr-20-2025 | 460.65 $* | 469.63 $* |
| Mar-20-2025 | 567.97 $* | 578.25 $* |
| Feb-20-2025 | 563.10 $* | 574.0 $* |
| Jan-20-2025 | 558.79 $* | 569.3 $* |
Характеристики
Product Description
6KW PWM Single / Three Phase 120A MPPT 48V Hybrid Solar Inverter Support Parallel No Battery
Main Features

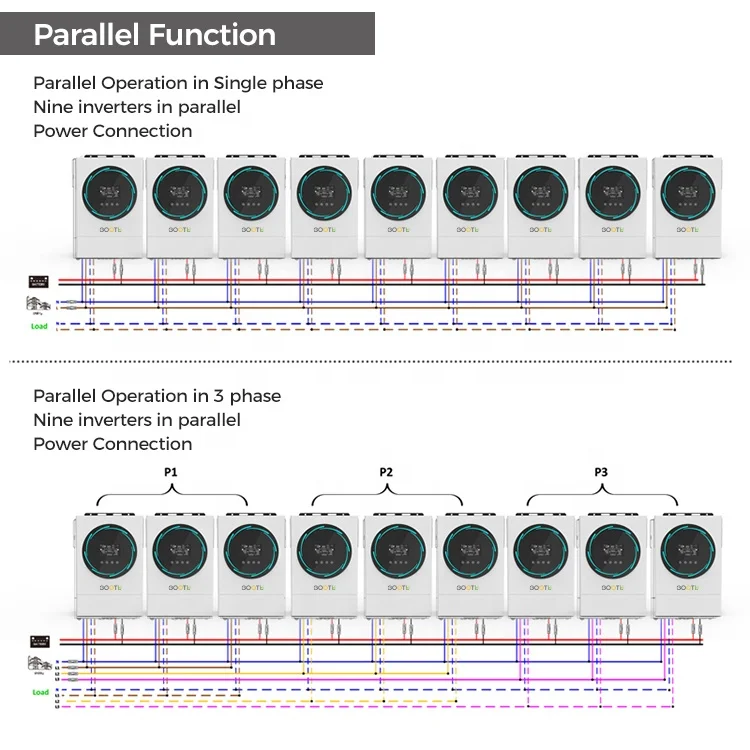

1. 120A MPPT solar charger inside, max pv input 6kw+ (27A ) 2. With local wifi built inside (Requires App. Remote Wifi optional) 3. USB on-the-go function 4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.

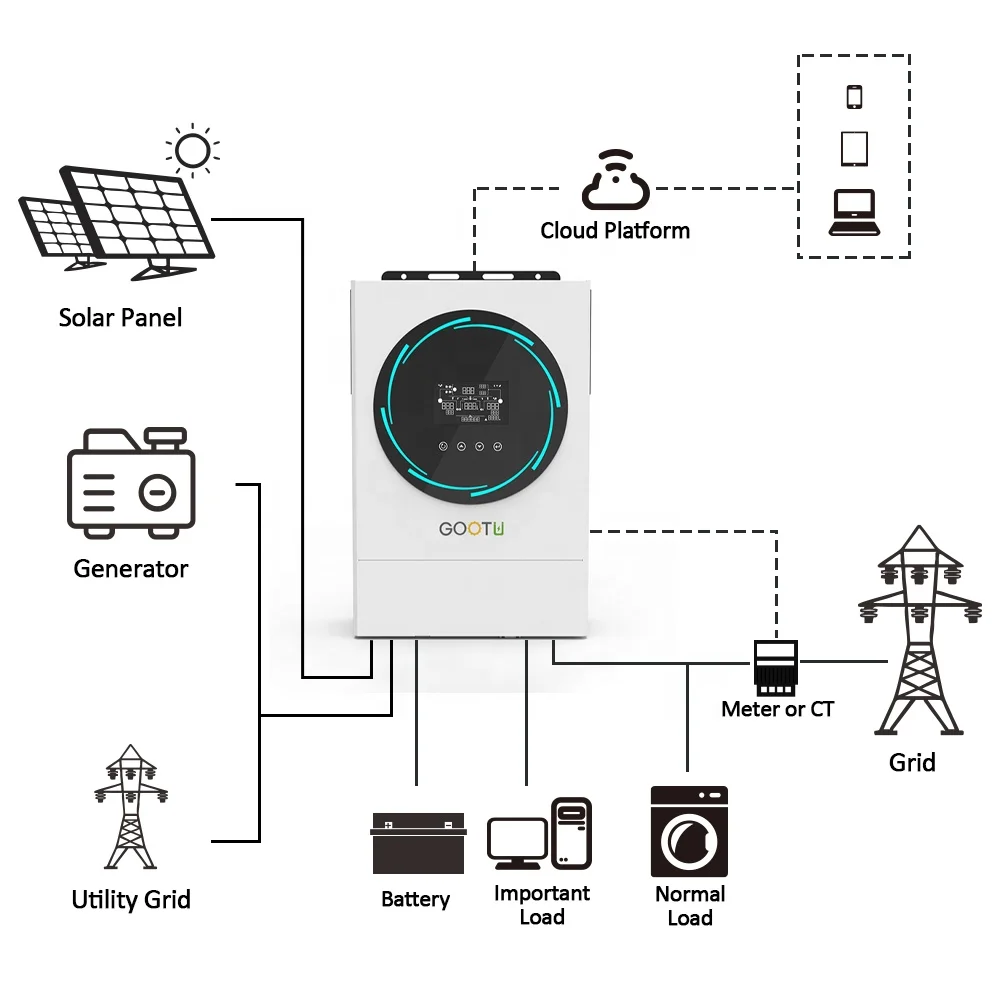

6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded, tubular,LiFePo4 7. On grid and off grid solar inverter, support self-consumption and feed into the grid. 8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc), support no battery working during the day time.
1. 120A MPPT solar charger inside, max pv input 6kw+ (27A ) 2. With local wifi built inside (Requires App. Remote Wifi optional) 3. USB on-the-go function 4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded, tubular,LiFePo4 7. On grid and off grid solar inverter, support self-consumption and feed into the grid. 8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc), support no battery working during the day time.
Data Sheet
Model No. | JSK-4860E120P | |
Basical information | ||
Max. PV Input Power | 6000W | |
Rated AC Output Power | 6000W | |
Grid-Tie Operation | ||
PV Input (DC) | ||
Nominal DC Volt/Max DC Voltage | 360VDC/500VDC | |
Start-up Voltage/Initial Feeding Voltage | 120VDC | |
MPPT Voltage Range | 120-450VDC | |
No. of MPPT Tracker/Max. Input Current | 1/27A | |
Grid Output (AC) | ||
Nominal Output Volt | 230Vac, Single Phase (dual AC output) | |
Output Voltage Range | 184V-265Vac or 195-253V (Selectable) | |
Nominal Output Current | 26.0A | |
Power Factor | >0.9 | |
Efficiency | ||
Max. Conversion Efficiency (DC/AC) | 96% | |
Off-Grid Operation | ||
AC Input (AC) | ||
AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac | |
Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | |
Max. AC Input Current | 40A | |
PV Input (DC) | ||
Max. DC Voltage | 500VDC | |
MPPT Voltage Range | 120-450VDC | |
No. of MPPT Tracker/Max. Input Current | 1/27A | |
Grid Tie Mode | ||
Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase | |
Feed-in Voltage Range | 184V-265Vac | |
Max Efficiency DC/AC | >95% | |
Battery Mode Output | ||
Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) | |
DC output | 1pc*12Vdc/10A Max | |
Waveform | Pure sine wave | |
Efficiency(DC to AC) | 93% | |
Hybrid Operation | ||
PV Input (DC) | ||
Nominal DC Volt/Max DC Voltage | 360VDC/500VDC | |
Start-up Voltage/Initial Feeding Voltage | 120VDC | |
MPPT Voltage Range | 120-450VDC | |
No. of MPPT Tracker/Max. Input Current | 1/27A | |
Grid Output (AC) | ||
Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase (dual AC output) | |
Output Voltage Range | 184V-265Vac or 195-253V (Selectable) | |
Nominal Output Current | 26.0A | |
AC Input (AC) | ||
AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac | |
Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | |
Max. AC Input Current | 40A | |
Battery Mode Output | ||
Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) | |
DC output | 1pc*12Vdc/10A Max | |
Waveform | Pure sine wave | |
Efficiency(DC to AC) | 93% | |
Battery & Charger | ||
Battery Type Supported | Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/Lithium Ion | |
Nominal Battery Voltage | 48Vdc | |
Max Solar Charge Current | 120A | |
Max AC Charge Current | 120A | |
Max Total Charge Current | 120A | |
General | ||
Physical | ||
Products Dimension,D X W X H (mm) | 356*471*149mm | |
Product Net Weight(kgs) | 13.5 | |
Packing Dimension,D X W X H (mm) | 535mm*425mm*224mm,1PC/CTN | |
Gross Weight(kgs) | 15 | |
Parallel functions Optional | Yes, optional, max 9pcs | |
Communication Interface | RS232,USB,RS485,WIFI | |
Environment | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | -10℃ to 50℃ | |
Storage Temperature | -15℃ to 60℃ | |
* Product specifications are subject to change without further notice | ||
Product Packaging

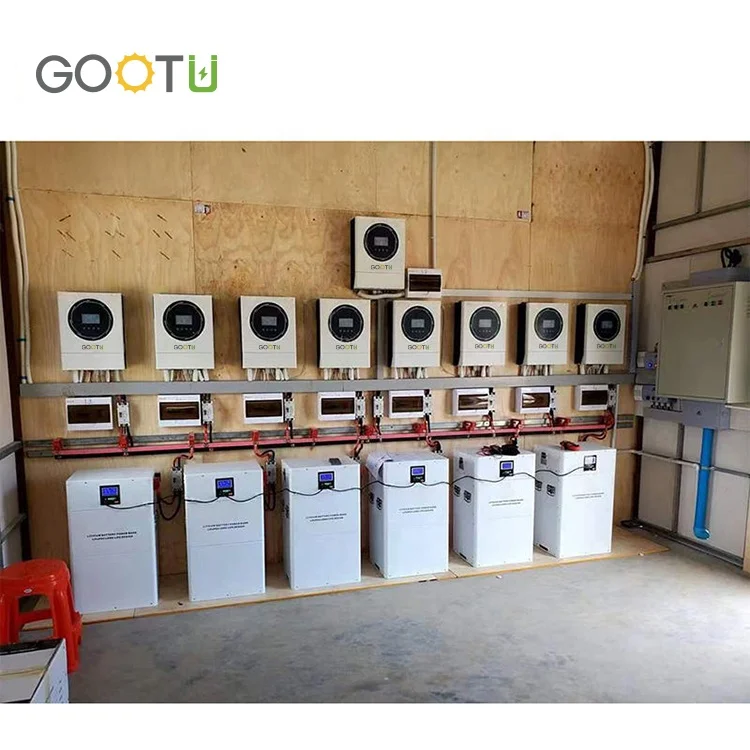

Project
Company Profile
Shenzhen Jiesaiyuan Electricity Co., Ltd
Shenzhen Jiesaiyuan Electricity Co., Ltd is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters, energy storage battery. We always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter & battery technology, rigorous quality control and continuous improvement of customer service, and enjoys a high reputation in the industry with excellent product quality, good reputation and advanced innovation consciousness. We can provide different application systems, engineering services and optimal system solutions according to our customers' requests. Our company has a professional R&D team which is composed of experienced professors, senior engineers and technical persons. We have abundant technical strength and rich experience in engineering design and construction.We always adhere to provide customers with quality products and services, and actively work with customers around the world to create a better future.
Certificates
FAQ
Q: How about the warranty? What you will do if the inverter in problem during 1 or 2 years? If refund should i return the goods?
A: The inverters are of 1 year warranty, during the warranty we offer you free replacements for parts,no need to send back to china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter,
on grid inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q: What certificates do you have for your products? Can you provide sample for testing? A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired RoHS, CE, FCC, UL, PSE certificates, which is able to satisfy most country’s importing requirements.
Q: How do you ship the goods and how long does it take?
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP, etc. All terms are available.
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP, etc. All terms are available.
