Полностью автоматическая одноразовая машина для производства пластиковых
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Pingyang,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.26 $* | 0.53 $* |
| Aug-18-2025 | 0.71 $* | 0.78 $* |
| Jul-18-2025 | 0.81 $* | 0.85 $* |
| Jun-18-2025 | 0.85 $* | 0.42 $* |
| May-18-2025 | 0.43 $* | 0.2 $* |
| Apr-18-2025 | 0.31 $* | 0.9 $* |
| Mar-18-2025 | 0.21 $* | 0.27 $* |
| Feb-18-2025 | 0.24 $* | 0.82 $* |
| Jan-18-2025 | 0.20 $* | 0.97 $* |
Характеристики
*Pictures and related technical parameters of products will be updated continuously without prior notice.The right of final
interpretation of this information belongs to our company.
interpretation of this information belongs to our company.
Product parameters
Technical Parameters | ||||||||
Station | Four stations | Three station | Four stations | Three station | ||||
Model | TTF-700AF | TTF-700A | TTF-520AF | TTF-520A | ||||
Forming Area | 700mm x 600 mm | 520mm x 400 mm | ||||||
Forming Depth (Max.) | 135mm | 110mm | ||||||
Sheet thickness | 0.2-2.0mm | |||||||
Forming Speed (Max.) | 30times/min | |||||||
Air pressure | 0.6-0.8mpa | |||||||
Air consumption | 3.6 m³/min | 3.0 m³/min | ||||||
Water consumption | 0.7 m³/h | |||||||
Sheet width (Max.) | 730mm | 570mm | ||||||
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |||||||
Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |||||||
Used power | 105Kw | 95Kw | 55Kw | 50Kw | ||||
Rated power | 210Kw | 190kw | 110Kw | 100Kw | ||||
Heating power | 118Kw | 75Kw | ||||||
Procedure | Forming-punching-cutting-stacking | Forming-cutting-stacking | Forming-punching-cutting-stacking | Forming-cutting-stacking | ||||
Dimension | L13000*W4700*H2750mm | L11500*W4700*H2750mm | L11000*W4600*H2700mm | L9700*W4600*H2700mm | ||||
Weight | About 25.0T | About 19.0T | About 11.0T | About 9.0T | ||||
Main Electrical Components | ||||
MODEL/PARTS | TTF520A/AF | TTF700A/AF | ||
Filter | CKD(Japan) | |||
Forming Valve | NORGER(UK) | |||
Touch Screen | DELTA | KUNLUN TONGTAI | ||
Proximity Switch | ROCKWELL(USA) | |||
Temperature Control Module | WEST(UK) | |||
AC Contactor/Circuit Breaker/Button | SCHNEIDER(France) | |||
Intermediate Relay | IDEC(Japan) | |||
Intermediate Relay Base | OMRON(Japan) | |||
PLC/Servo Motor | DELTA(Taiwan) | |||
Safety Door | - | Panasonic(Japan) | ||
Sheet Sagging Detection | - | Sick(Germany) | ||
Products Description
APPLICATION

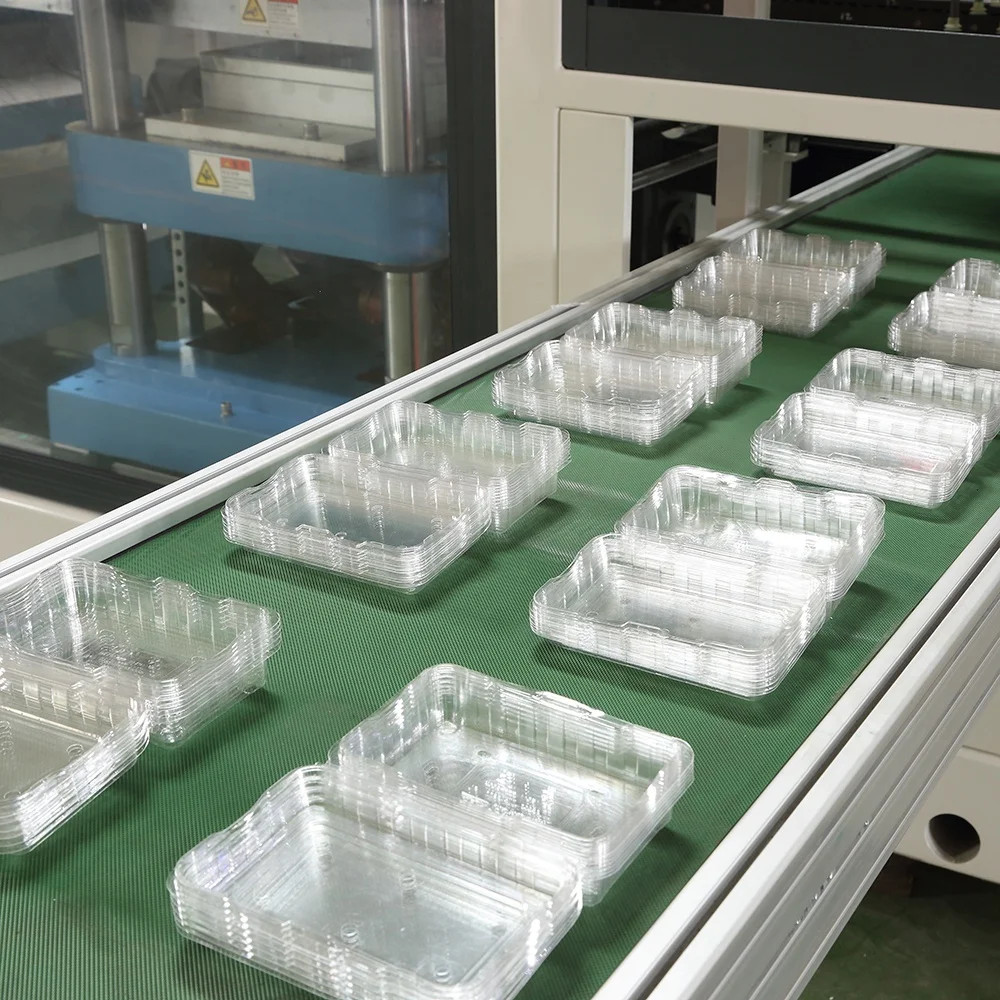

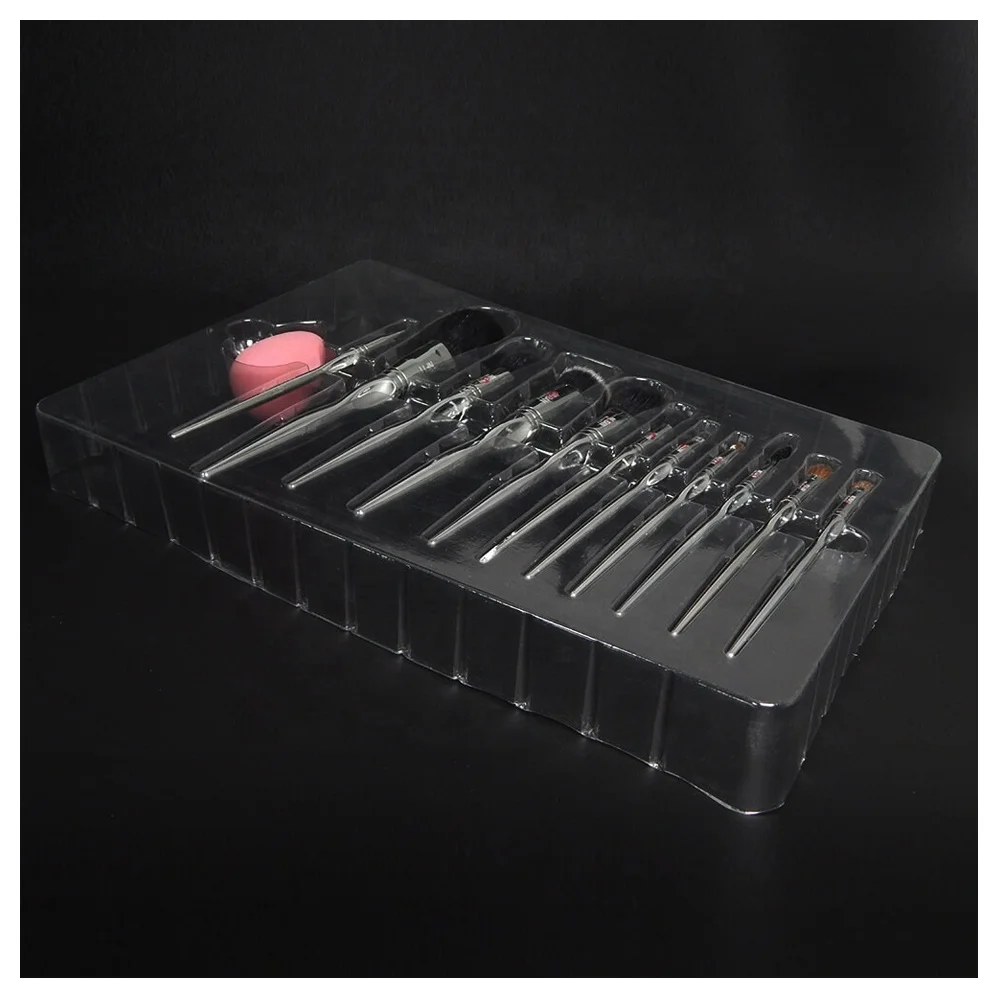

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.
Main Function
1.positive and negative pressure forming device.2.vacuum forming device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.

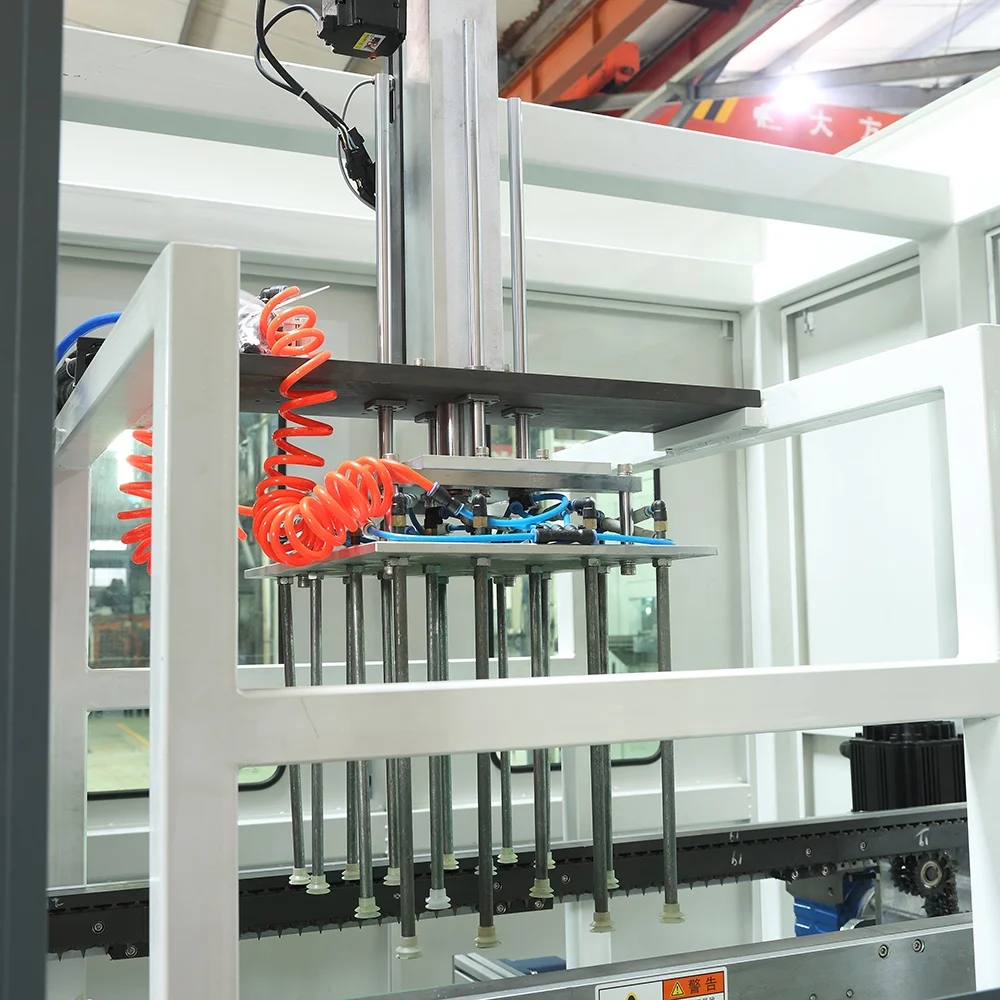

8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.
SUMMARY OF MACHINE

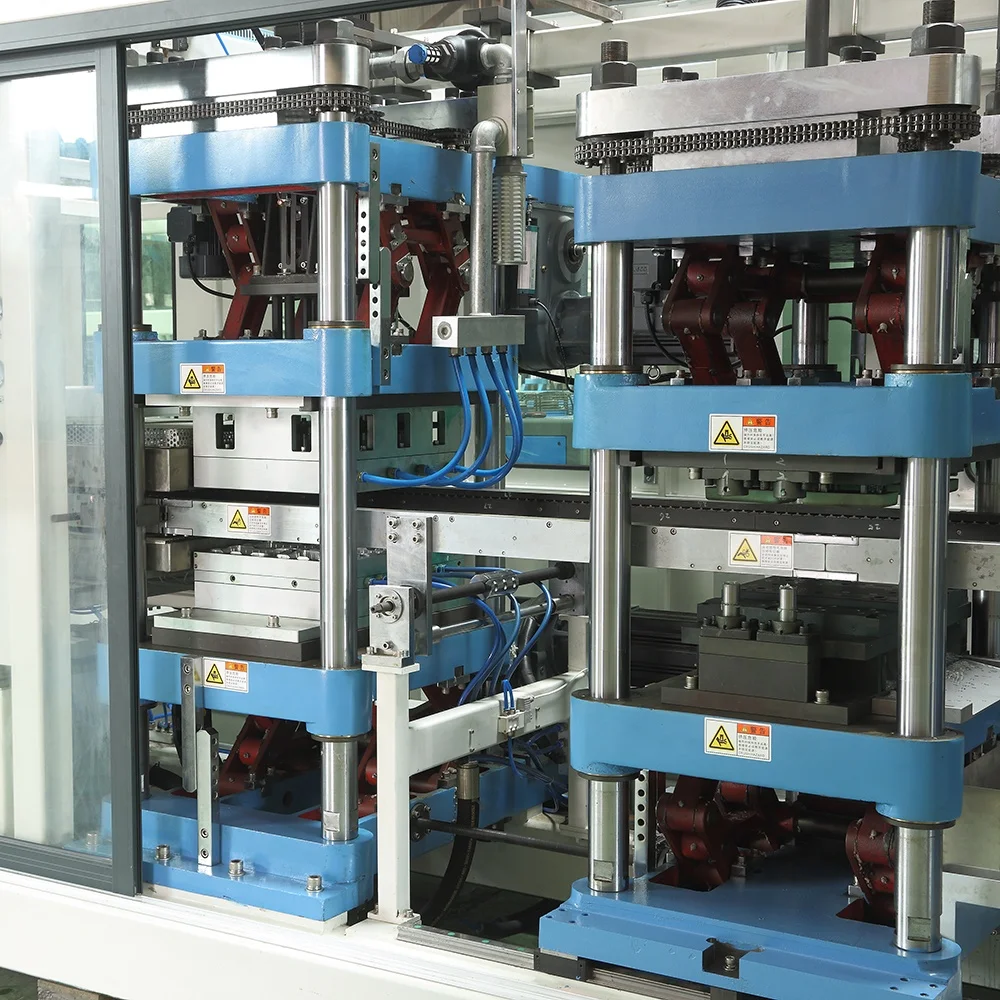

1.Every station is driven by the eccentric crank linkage structure.
2.Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3.The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4.The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5.There is a rapid mould change device, which shortens the time for mould change extremely.
6.Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
7.There is an alarm function of the sliding doors.

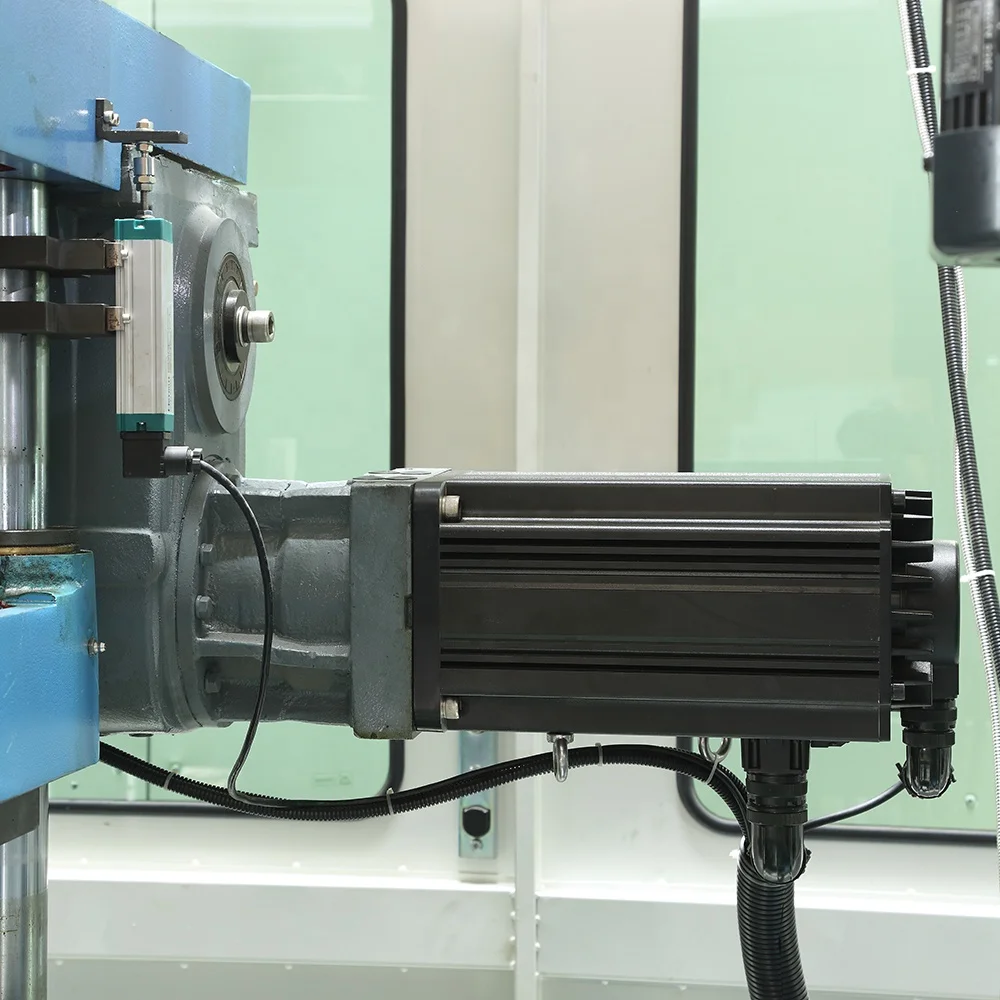

1. Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
2. Fully machine in compact structure,taking small floor space;
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet reaching without wasting materials;
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.
2. Fully machine in compact structure,taking small floor space;
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet reaching without wasting materials;
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.
