Оптовая цена устройство для очистки медных проводов электрическая


Поделиться:


Цена:300,00 $ - 345,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 357.93 $* 375.99 $*
Aug-18-2025 354.2 $* 372.38 $*
Jul-18-2025 297.23 $* 312.13 $*
Jun-18-2025 348.70 $* 365.51 $*
May-18-2025 303.37 $* 318.97 $*
Apr-18-2025 342.74 $* 359.18 $*
Mar-18-2025 339.63 $* 356.99 $*
Feb-18-2025 336.56 $* 353.23 $*
Jan-18-2025 333.20 $* 350.36 $*

Характеристики


Wholesale Price Wire Stripper Copper Wire Cable Peeler Machine Copper Electric


Comparing the wires’diameters with the feeding holes on the machine, feeding the wires one piece at one time. Before feeding the wires, please cut off the head of the wires, to avoid gaps caused to the blades.
On the output side, if the cuts on the wires are too deep, please check below points:
Please adjust the handles on the input side, screw down or loose them. (M12 handles)
Check whether the wires on the right position as you feeding them.
Make sure the blades are sharp, if not, polish them with the oil stone.


Stripping Machine.jpg

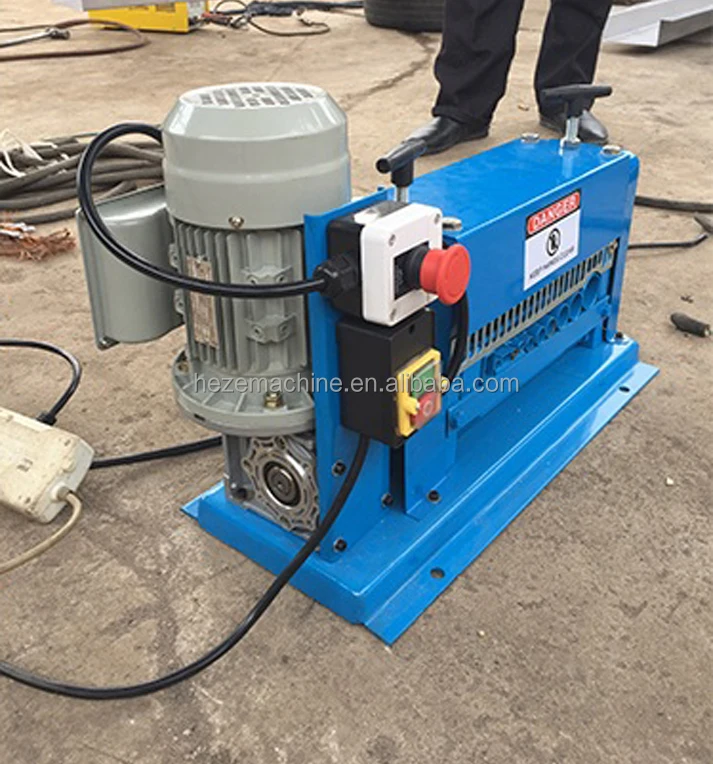

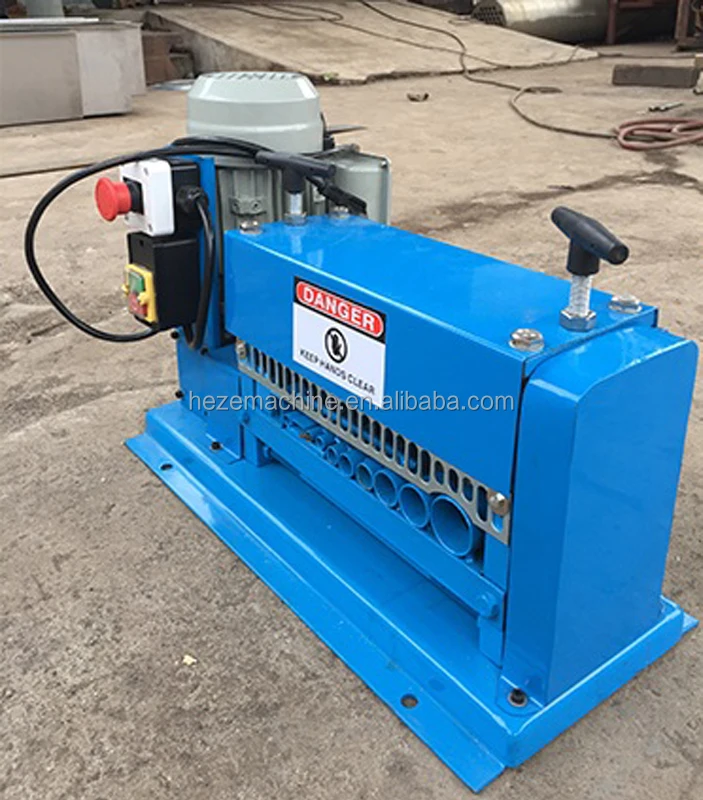

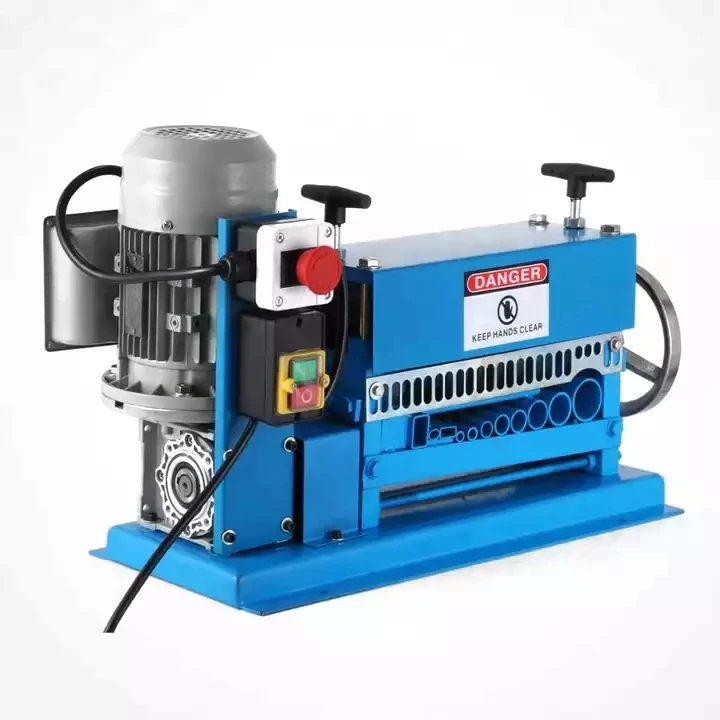

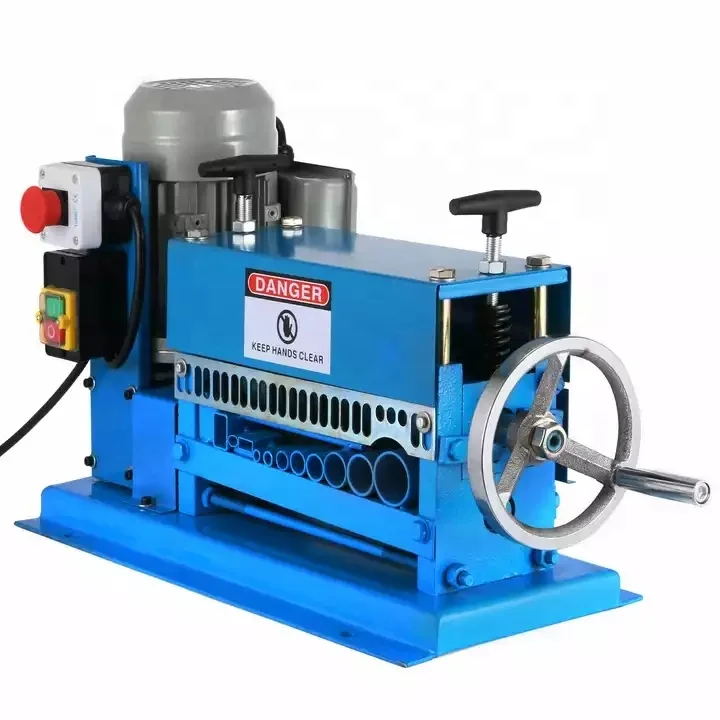

Product Description





This cable peeling machine is easy to transport and ready for use just with a 220V /110vpower supply and a stable table. It is an equipment of recycling copper and aluminum from a large number of scrap wires. It reliably splits cables between Φ1.5mm and Φ38mm with up to 20m per minute.
1. 11 holes and 10 blades can easy access to various cables / wires between 1.5~38mm.
2. Light weight can be easily movement and carry to any places.


3. Cost effective machine and suitable for industory and personal usage.
4. Working by adjust the diameter of holes.
5. Processing flat cable and round cable.
6. Blades and rollers rotate together at the same time to keep wire won't slip


Technical parameters









































Specification for cable cutting machine


Model


HZ-038


Wire processing range


1.5~38mm


Hole


11


Blade


10pcs


Power


0.5HP/0.37KW


Voltage


110v/220v/230v/240v(Optional)


Weight (G.W / N.W)


43.5KG / 38.5KG


Demension


620*290*370mm


Stripping Machine2.jpgStripping Machine3.jpgStripping Machine4.jpg

suitable for processing varieties of cables with a diameter in the range of 1.5 ~ 55MM, like electric copper wire, aluminum wire, metal cables and etc.Stripping Machine6.jpg

Stripping Machine7.jpg

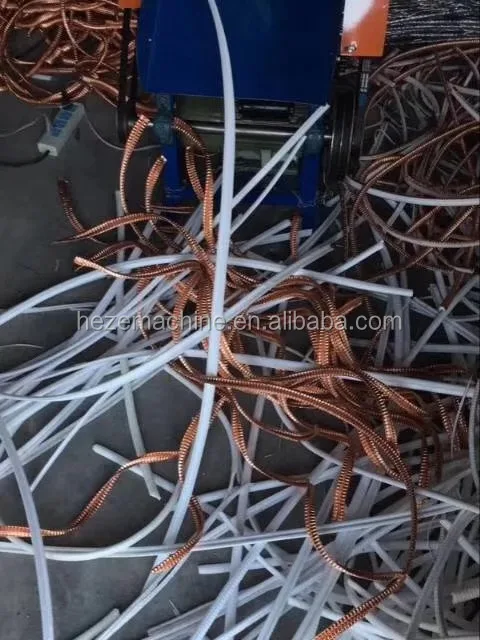

Wire Stripping Machine1.jpgThe machine has a total of 15 holes, including 11 round wire holes, 2 double wires (double core flat wires can be stripped) and 2 crimping holes.  The principle of the wire stripper is to cut and pass through two shafts, and the blades on the shaft can recover copper.

Wire Stripping Machine

  • 11 holes and 10 blades for easy access to any kind of cable or wire from the smallest to the largest

  • The professional device works even where conventional grip procedures fail

  • 11 different guides guarantee the machining of all types of cable with variable diameter from 1 mm to 40 mm

  • Do not waste time with other models of slotting machines where you need to adjust the blade every time you change the diameter of the cable

  • This machine automatically adjusts itself

  • Among these guides we have the ability to work flat and rigid cables

  • This machine is also ideal for industrial use

  • The blades and rollers rotate together at the same time by means of the gear so that the cable does not slip

  • The springs are adjustable to give the right cutting pressure





Certifications


 CE





Packaging
