Deye Гибридный Инвертор ЕС 12kw 10kw 8kw 5kw 3.6kw 3 фазы солнечный инвертор для дома Солнечная от сетки


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.56 $* 0.89 $*
Aug-19-2025 0.82 $* 0.45 $*
Jul-19-2025 0.22 $* 0.25 $*
Jun-19-2025 0.95 $* 0.24 $*
May-19-2025 0.16 $* 0.32 $*
Apr-19-2025 0.13 $* 0.76 $*
Mar-19-2025 0.33 $* 0.13 $*
Feb-19-2025 0.96 $* 0.79 $*
Jan-19-2025 0.72 $* 0.42 $*

Характеристики




Product Paramenters

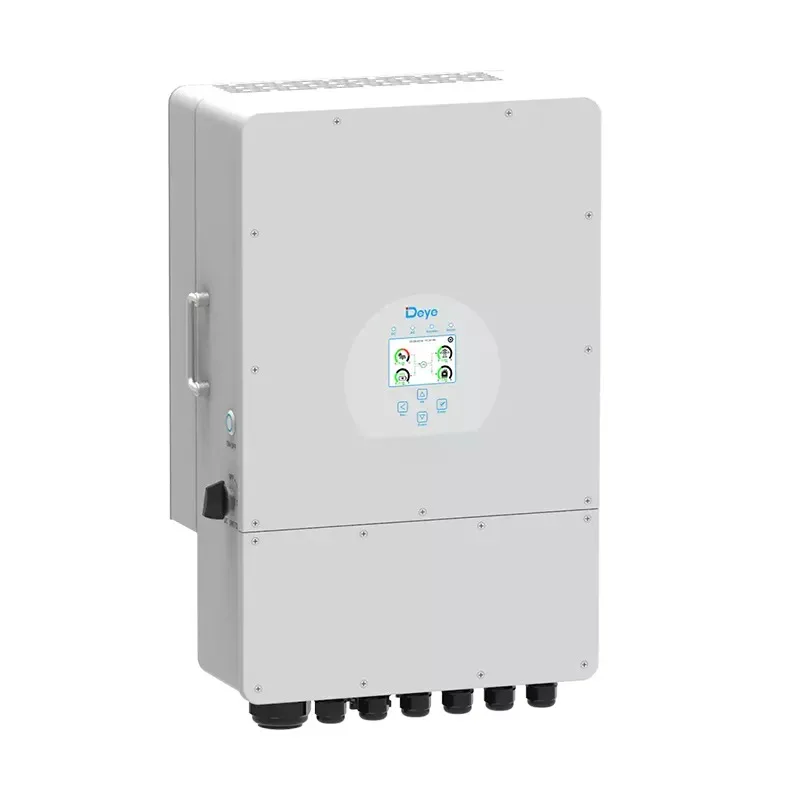

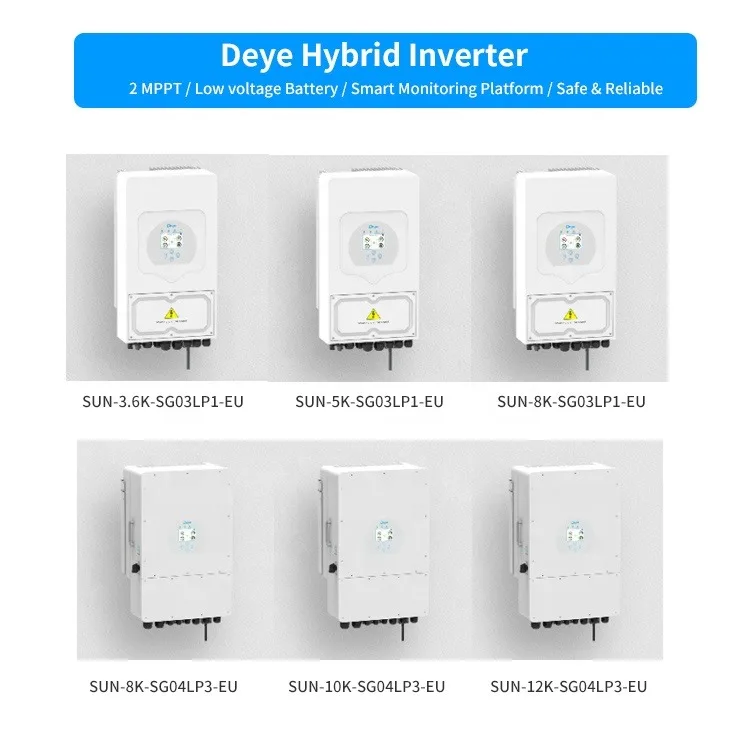

SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
Higher yields / Safe & Reliable / Smart / User-friendly
































Why Choose Deye Hybrid Inverter




1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.

2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters

3.All Deye Solar inverters can be found in PV Solar system

4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company

5.All Deye Solar inverters are equipped with Standard WiFi communication

6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)

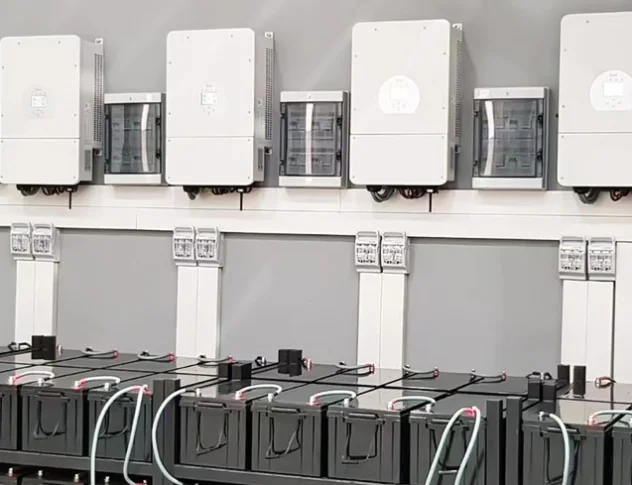

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. - Generator or Utility - PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.




































































































































































































































































































Model


SUN-12K-SG04LP3-EU/AU


Battery Type


Lead-acid or Lithium-ion


Battery Voltage Range (V)


40~60V


Max. Discharging Current (A)


240A


Charging Curve


3 Stages / Equalization


Charging Strategy for Li-Ion Battery


Self-adaption to BMS


Max. DC Input Power (W)


15600W


PV Input Voltage (V)


550V (150V~800V)


MPPT Range (V)


200V-650V


Start-up Voltage (V)


160V


PV Input Current (A)


26A+13A


No.of Strings Per MPPT Tracker


2+1


Rated AC Output and UPS Power (W)


12000W


Max. AC Output Power (W)


13200W


AC Output Rated Current (A)


18A


Max. AC Current (A


36.7A / 38.5A


Max. Continuous AC Passthrough (A)


27A


Max. Continuous AC Passthrough (A)


50A


Output Frequency and Voltage


50/60Hz; 230/400Vac (Three phase)


Grid Type


Three Phase


Current Harmonic Distortion


THD<3%(Linear load<1.5%)


Surge protection


DC Type II / AC Type II


Grid Connection Standard


EC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1


Safety EMC / Standard


IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12


Operating Temperature Range (℃)


-25~60℃, >45℃ Derating


Cooling


Smart cooling


Noise (dB)


<45dB


Communication with BMS


RS485; CAN


Weight (kg)


36.8


Size (mm)


422W×658H×281D


Protection Degree


IP65


Installation Style


Wall-mounted


Warranty


5 years









Company Profile
